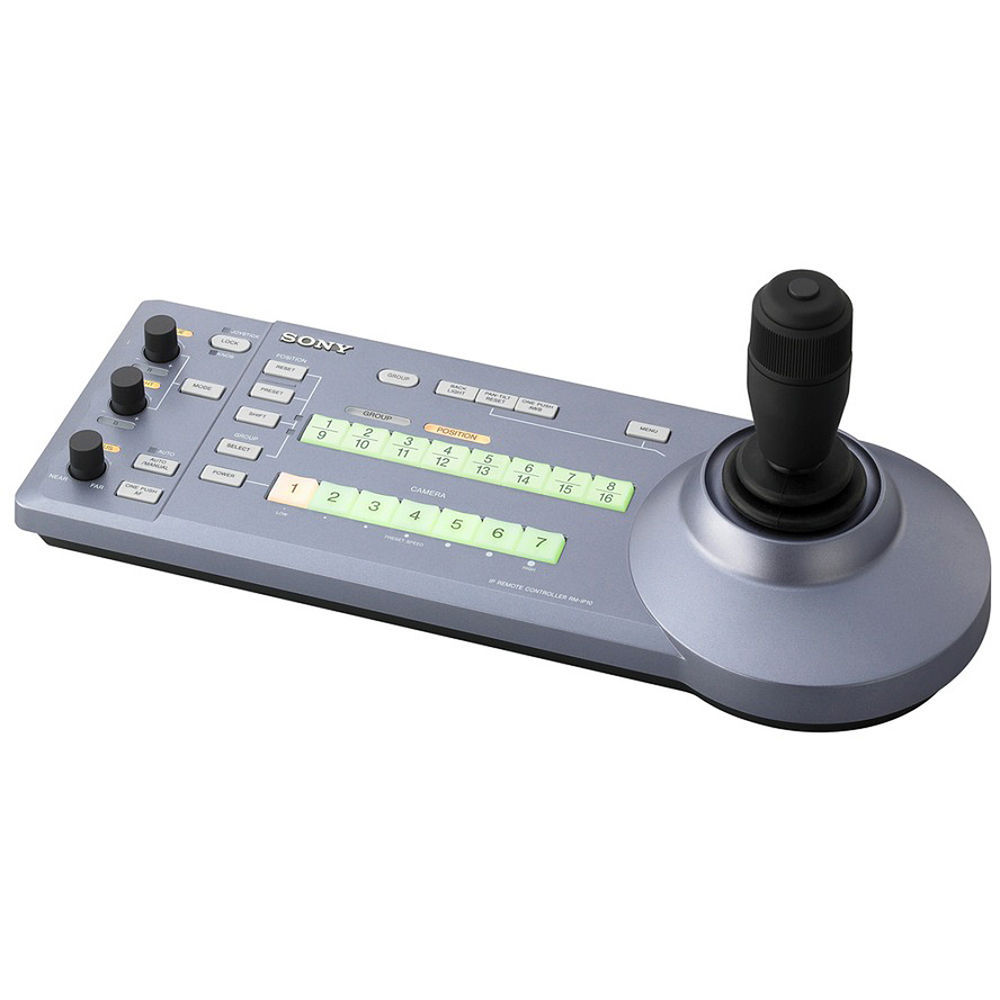

Remotely control your BRC remote cameras with the RM-IP10 IP Remote Controller from Sony over an IP network. The RM-IP10 can control up to 112 BRC cameras using a combination of IP and serial communication, and up to five RM-IP10 controllers can operate on the same LAN.
The RM-IP10 operates on your LAN using its RJ45 port and works in a standard VISCA IP network, providing control for up to seven BRC cameras. It can also control cameras using RS-232 and RS-422 VISCA serial communication. The controller can store up to 16 preset combinations such as zoom, pan/tilt position, focus, and backlight to save time making camera moves and adjustments.
Available controls include a joystick for pan/tilt/zoom operations, knobs for brightness/white balance/focus, buttons for group/reset/backlight/autofocus/auto white balance, and seven camera-select buttons.
Included with the controller is a power supply, a terminal connector, and the Windows software needed to get started. Read more below about camera compatibility and computer requirements.
Compatibility
The RM-IP10 is compatible with Sony BRC camera models:
BRC-H900
BRC-Z330
BRC-Z700
It is also compatible with the following cameras when they are fitted with the BRBK-IP10 option board:
BRC-X400
SRG-X400
SRG-X120
BRC-H900
BRC-H900
BRC-H800
BRC-X1000
SRG-300SE
SRG-300H
SRG-120DU
SRG-120DH
SRG-120DS
It is also compatible with the following camera when it is fitted with the BRBK-IP7Z option board:
BRC-Z700
OS Requirements
Microsoft Windows 7, 32-/64-bit
Windows 8.1 Pro, 32-/64-bit
Windows 10 Pro, 32-/64-bit
Computer Requirements
Intel Core 2 Duo 2.4 GHz or Higher
1 GB or more RAM
50MB or more hard drive space
10/100 RJ45 Ethernet port
Key Features
Comfortable PTZ operation with the optical 3-axis joystick
Versatile camera adjustment by simple panel operation
Use of IP technology allows for flexible installation and easy operation
Preset feature saves camera settings (up to 16 positions)
General
| Number of Supported Cameras | 112 Channels via IP 7 Channels via Serial |
| Supported Control Protocols | IP RS-232 RS-422 VISCA |
| Control I/O | 1 x Mini-DIN 8-Pin (RS-232) Output |
| Other I/O | 1 x DIN 9-Pin (RS-422) Output 1 x RJ45 (LAN) Output |
| Controls | 1 x Joystick 3 x Knobs 14 x Buttons |
Power
| PoE Support | None |
| Power Connectors | 1 x JEITA |
| Power Consumption | 3.6 W |
| DC Input Power | 10 to 13.2 VDC at 0.3 A |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
Physical
| Security Lock Support | None |
| Dimensions | 15.5 x 6.5 x 5.75" / 391.3 x 165 x 145.9 mm |
| Weight | 2.1 lb / 950 g |
