SWIT FL-C100D Bi-Color LED Fresnel Light

Brand: SWIT

MFR: FL-C100D

SKU: SF-2443-MABV

3,673.00

  • For Theater, Stage & Studio
  • Output: 55,000 Lux at 3.3' (12°)
  • 2700-6500K CCT
  • 12-26° Beam Angle
  • AC Power
  • CRI 97 | TLCI 99
  • Onboard & DMX Control; LCD Screen
  • Fanless Design
  • 0-100% Dimming & Flicker-Free Operation
  • Includes Barndoors & Power Cable

Items Included


  • SWIT FL-C100D Bi-Color LED Fresnel Light
  • powerCON AC Cable
  • Barndoor Kit
  • Black Out Cloth
  • Safety Rope
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: LED Lights

The 100W FL-C100D Bi-Color LED Fresnel Light from SWIT is a highly bright fanless COB LED Fresnel light for broadcast studio, theatre, and film set applications. The compact 14.3 x 6.3 x 6.3" fixture is intentionally designed with no fans to give you complete silence on set. With a high CRI of 97 and TLCI of 99 to keep faithful original colors, it can be focused from 12 to 26° for spot or flood lighting. 2700 to 6500K CCT and brightness output can be controlled onboard using the LCD screen and local controls for precise results. The FL-C100D also supports DMX512 to remotely control your lighting settings. Use the LCD screen to check the color, dimming, and the DMX information. The FL-C100D comes with detachable four-leaf metal barndoors and a yoke bracket for further lighting control and convenient mounting. This unit is powered via a 100-240 VAC source through the included AC cable.

PWM Dimming & Output
This fixture features smooth and flicker-free PWM digital dimming from 0 to 100%. The bright COB LED outputs up to 55,000 (12° spot) or 20,000 (26° flood) lux at a distance of 3.3'.
Continuously Adjustable CCT
Bi-Color control is adjustable from 2700 to 6500K outputting 100W at any color temperature level.
Color Accuracy
High CRI and TLCI ratings of 97/99 is your assurance of advanced capability and precision in color reproduction, which exceeds the numbers found in similar LED lights.
AC In & Loop Out Sockets
The FL-C100D facilitates studio installations by offering powerCON TRUE1 AC in and loop out sockets that can be loop through more than 25 units under 220V and 13 lights under 110V.
Light Shaping
Use the included rotatable barndoors to further modify the beam to selectively light areas of your subject.
Other Details

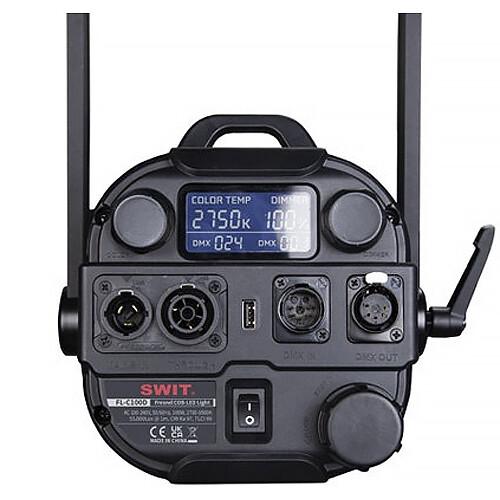

  • 5-pin XLR DMX512 in/out
  • DMX control of color, dimming, beam angle
  • Sets independent DMX addresses for dimmer and CCT
  • 5V USB-A power out for wireless DMX receiver
  • 100-240 VAC input/output
  • Includes a black out cloth to prevent the light leakage and a safety rope

Light Fixture
Item Type
1x COB LED Fresnel
Included Light Modifier
1x Barndoors
Included Storage Case
No
Photometrics
12° at :
5109 fc / 55,000 Lux at 3.3' / 1 m
566 fc / 6100 Lux at 9.8' / 3 m
204 fc / 2200 Lux at 16.4' / 5 m
26° at :
1858 fc / 20,000 Lux at 3.3' / 1 m
204 fc / 2200 Lux at 9.8' / 3 m
74 fc / 800 Lux at 16.4' / 5 m
Color Temperature
2700 to 6500K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 97
TLCI 99
Dimming
Built-In Dimmer / DMX
 • 0 to 100%
Cooling System
Passive
Beam Angle
12 to 26°
Built-In Flash
No
Preprogrammed Effects
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Lens
Lens Type
Fresnel
Connectivity
Wireless Remote Control Type
Wireless DMX *Adapter Required (Not Included)
Mobile App Compatible
No
Power & I/O
Power Source
AC Power (Cable Included)
Inputs/Outputs
1x powerCON TRUE1 AC Power Input
1x powerCON TRUE1 AC Power Output
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
1x USB-A Power Output (5 VDC)
Input Power
100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable
1x USA Type-A/B to powerCON TRUE1 Cable
Inline Switch
No
Power Pass-Thru
Yes
Power Consumption
100 W
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting
1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
General
Display
Yes
Dimensions
14.3 x 6.3 x 6.3" / 36.4 x 16 x 16 cm
Weight
11.51 lb / 5.22 kg
