SWIT FL-C200D Bi-Color LED Fresnel Light

Brand: SWIT

MFR: FL-C200D

SKU: SF-2443-OQQ7

6,244.00

  • For Theater, Stage & Studio
  • Output: 65,000 Lux at 3.3' (15°)
  • 2700-8000K CCT
  • 15-50° Beam Angle
  • AC Power
  • CRI 97 | TLCI 99 | SSI 75
  • Onboard & DMX Control; LCD Screen
  • Fan Cooled
  • 0-100% Dimming & Flicker-Free Operation
  • Includes Barndoors & Power Cable

Items Included


  • SWIT FL-C200D Bi-Color LED Fresnel Light
  • powerCON AC Cable
  • Barndoor Kit
  • Black Out Cloth
  • Safety Rope
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: LED Lights

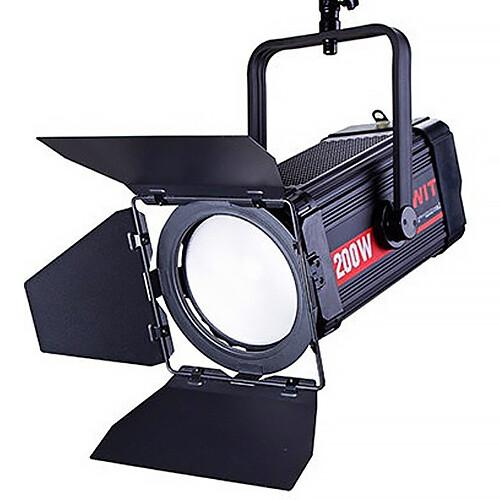

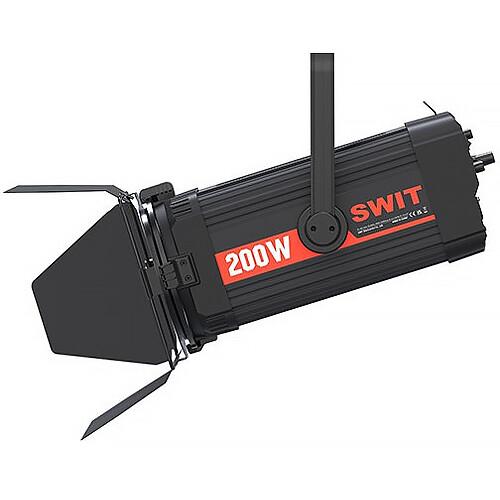

The 200W FL-C200D Bi-Color LED Fresnel Light from SWIT is a highly bright COB LED Fresnel light for broadcast studio, theatre, and film set applications. The compact 15.7 x 6.9 x 6.9" fixture is equipped with a double side Fresnel and fly's eye compound lens. Another important attribute is the fan that can be turned off while recording, a real asset in sound-sensitive locations. With a high CRI of 97 and TLCI of 99 to keep faithful original colors, it can be focused from 15 to 50° for spot or flood lighting. Extended 2700 to 8000K CCT and brightness output can be controlled onboard with an LCD screen and local controls or via DMX. The FL-C200D comes with detachable four-leaf metal barndoors and a yoke bracket for further lighting control and convenient mounting. This unit is powered by the included AC cable.

PWM Dimming & Output
This fixture features smooth and flicker-free PWM digital dimming from 0 to 100%. The bright COB LED outputs up to 65,000 (15° spot) or 12,000 (50° flood) lux at a distance of 3.3'.
Continuously Adjustable CCT
Bi-Color control is adjustable from 2700 to 8000K, outputting 200W at any color temperature level.
Color Accuracy
High CRI and TLCI ratings of 97/99 are your assurance of advanced capability and precision in color reproduction, which exceeds the numbers found in similar LED lights.

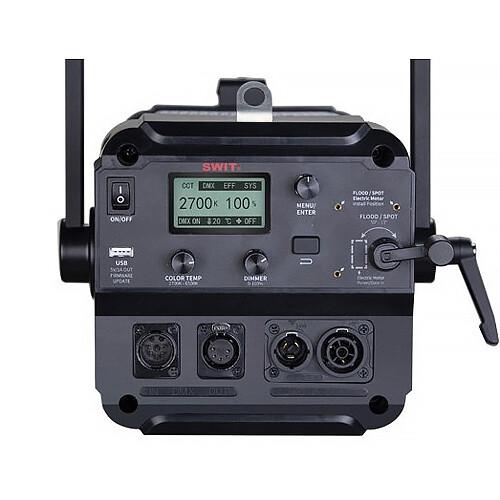

AC In & Loop Out Sockets
The FL-C200D facilitates studio installations by supporting powerCON TRUE1 AC input and loop output.
Light Shaping
Use the included rotatable four-leaf metal barndoors to further modify the beam to selectively light areas of your subject.
Other Details
  • Preset lighting effects
  • 5-pin XLR DMX512 in/out
  • Dimmer, CCT, and fan off DMX addresses
  • Works with optional E-motor to adjust spot angle via DMX
  • 5V USB-A power out for wireless DMX receiver
  • 100-240 VAC input/output

Light Fixture
Item Type
1x COB LED Fresnel
Included Light Modifier
1x Barndoors
Included Storage Case
No
Photometrics
15° at :
6038 fc / 65,000 Lux at 3.3' / 1 m
668 fc / 7200 Lux at 9.8' / 3 m
241 fc / 2600 Lux at 16.4' / 5 m
50° at :
1114 fc / 12,000 Lux at 3.3' / 1 m
241 fc / 2600 Lux at 9.8' / 3 m
44 fc / 480 Lux at 16.4' / 5 m
Color Temperature
2700 to 8000K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 97
TLCI 99
Dimming
Built-In Dimmer / DMX
 • 0 to 100%
Cooling System
Fan
Beam Angle
15 to 50°
Built-In Flash
No
Preprogrammed Effects
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Lens
Lens Type
Fresnel
Connectivity
Wireless Remote Control Type
Wireless DMX *Adapter Required (Not Included)
Mobile App Compatible
No
Power & I/O
Power Source
AC Power (Cable Included)
Inputs/Outputs
1x powerCON TRUE1 AC Power Input
1x powerCON TRUE1 AC Power Output
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
1x USB-A Power Output (5 VDC)
Input Power
100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable
1x USA Type-A/B to powerCON TRUE1 Cable
Inline Switch
No
Power Pass-Thru
Yes
Power Consumption
200 W
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting
1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
General
Display
Yes
Dimensions
15.7 x 6.9 x 6.9" / 40 x 17.5 x 17.5 cm
Weight
13.7 lb / 6.2 kg
