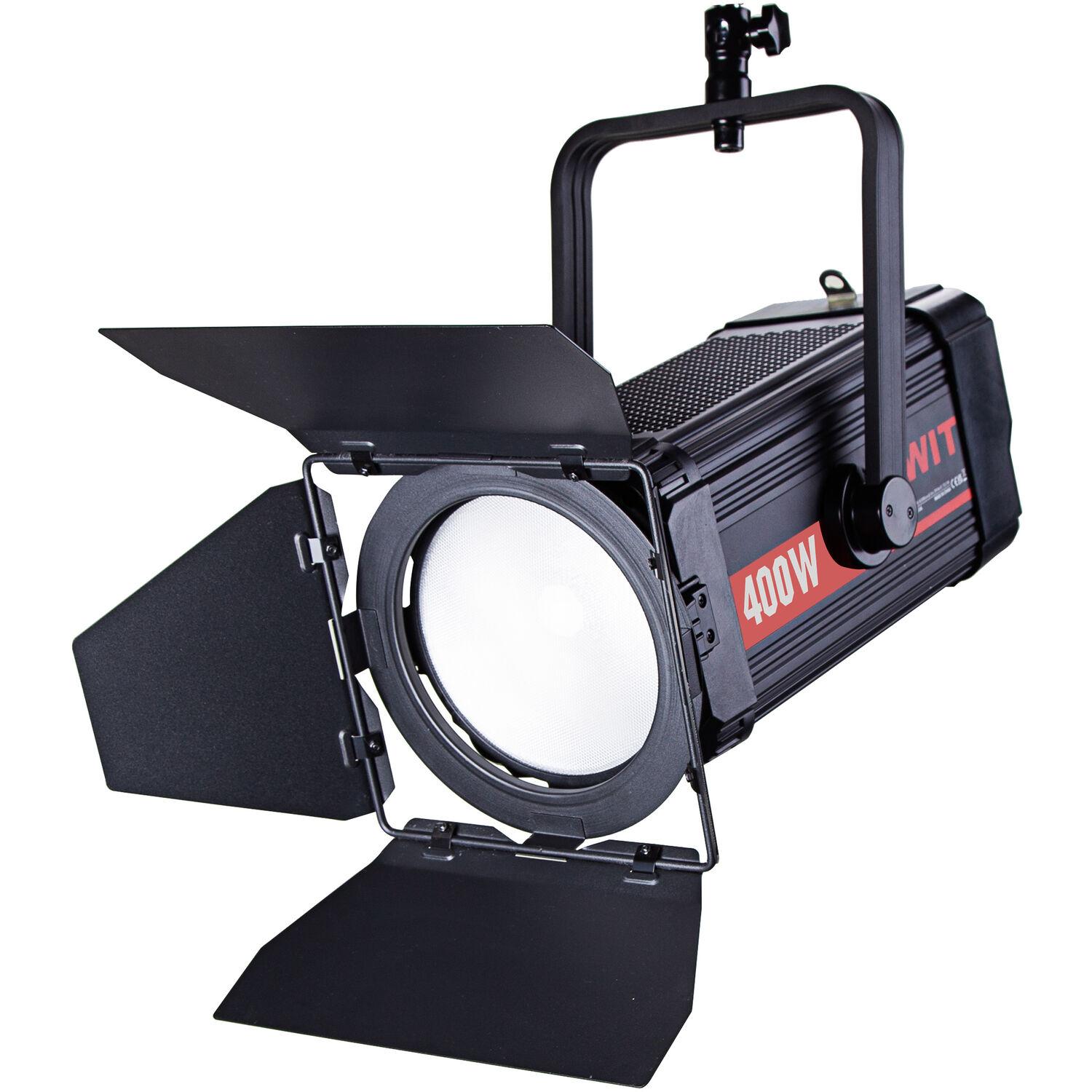

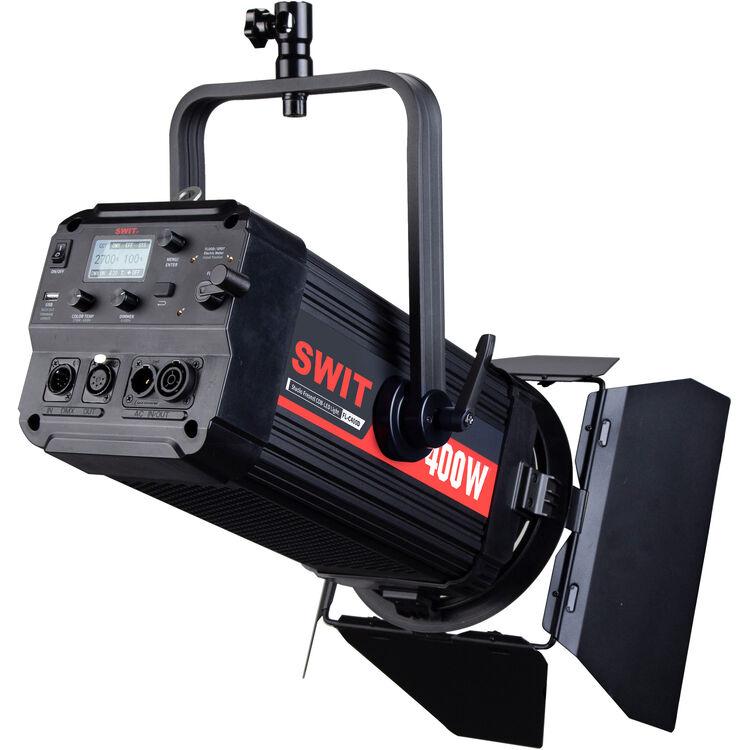

SWIT FL-C400D 400W Bi-Color Studio COB-LED Fresnel Light

Brand: SWIT

MFR: FL-C400D

SKU: SF-2443-OUKP

9,182.00

  • For Live Events, Broadcast & Video
  • Output: 130,000 Lux at 3.3' (15° Spot)
  • 2700-8000K CCT
  • 15° Spot; 50° Flood
  • PowerCON TRUE1 AC Input
  • CRI 97 | TLCI 99

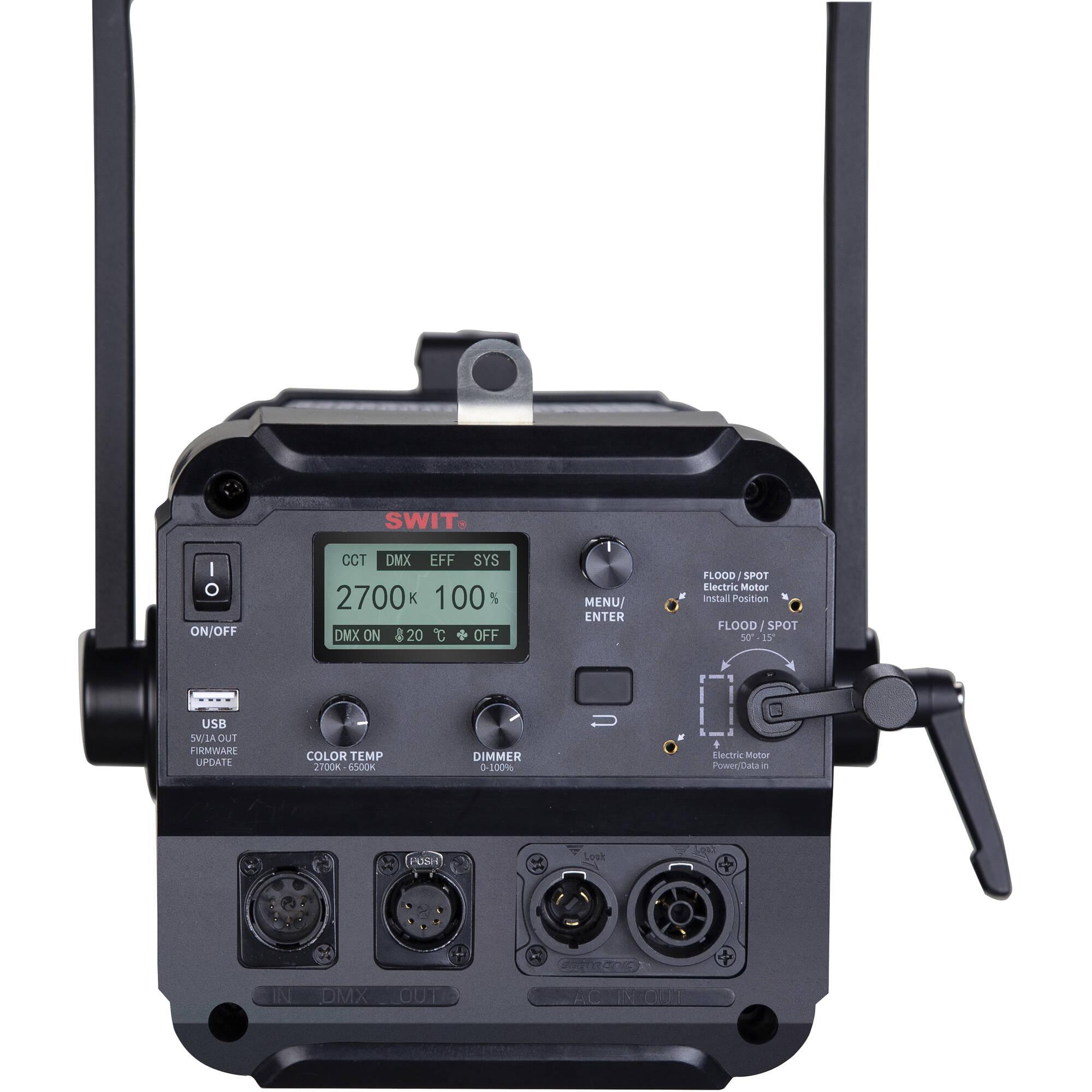

  • Onboard and DMX-512 Controls
  • Fan Cooled; 0-100% Dimming
  • Fresnel and Fly's Eye Compound Lenses
  • Includes Barn Doors and Yoke Bracket

Items Included


  • SWIT FL-C400D 400W Bi-Color Studio COB-LED Fresnel Light
  • Barndoor Kit
  • Black Out Cloth
  • PowerCON TRUE1 AC Cable
  • Safety Rope
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: LED Lights

The FL-C400D 400W Bi-Color Studio COB LED Fresnel Light from SWIT is a powerful lighting fixture featuring a 2700-8000K color temperature range with an ultra-bright output of 130,000 lux at 3.3'. The adjustable 15-50° spot and flood angles produce a vast 960-130,000 lux range. Designed for live events, the fixture regulates its internal temperature with a fan to emit consistently smooth, flicker-free light. Constructed with a double-sided compound fresnel and fly's eye lens, the light's high 97 CRI and 99 TLCI ratings ensure accurate color replication.

Easily control the light's settings with its onboard controls or DMX-512 connectivity. Further shape the fixture's light with the included four-leaf metal barn doors and black out cloth. The fixture includes a powerCON TRUE1 AC power cable, yoke bracket, and safety rope for secure mounting.

Double-Sided Compound Lens
The light's double-sided compound lens is constructed with front fresnel rings that converge the light's output. The rear fly's eye component eliminates yellow halos and produces an evenly distributed spot light.
Motorized Option Available
For additional versatility, the FL-C400D connects to a separately available electronic motor. When paired with the fixture, the motor can adjust the spot and flood angle using the light's onboard controls or with DMX connectivity.

Light Fixture
Item Type
12x COB LED Fresnel
Included Light Modifier
1x Barndoors
Included Storage Case
Yes
Photometrics
15° at :
12,077 fc / 130,000 Lux at 3.3' / 1 m
1393 fc / 15,000 Lux at 9.8' / 3 m
483 fc / 5200 Lux at 16.4' / 5 m
50° at :
2229 fc / 24,000 Lux at 3.3' / 1 m
241 fc / 2600 Lux at 9.8' / 3 m
89 fc / 960 Lux at 16.4' / 5 m
Color Temperature
2700 to 8000K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 97
TLCI 99
Dimming
Built-In Dimmer / DMX (Continuous)
 • 0 to 100%
Beam Angle
15 to 50°
Built-In Flash
No
Preprogrammed Effects
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Power & I/O
Power Source
AC Power (Cable Included)
Inputs/Outputs
1x powerCON TRUE1 AC Power Input
1x powerCON TRUE1 AC Power Output
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
1x USB-A Power Output (5 VDC)
Input Power
100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable
1x USA Type-A/B to powerCON TRUE1 Cable
Inline Switch
No
Power Pass-Thru
Yes
Power Consumption
400 W
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting
1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
General
Display
Yes
Environmental Resistance
No
Dimensions
15.7 x 6.9 x 6.9" / 40 x 17.5 x 17.5 cm
Weight
13.7 lb / 6.2 kg
