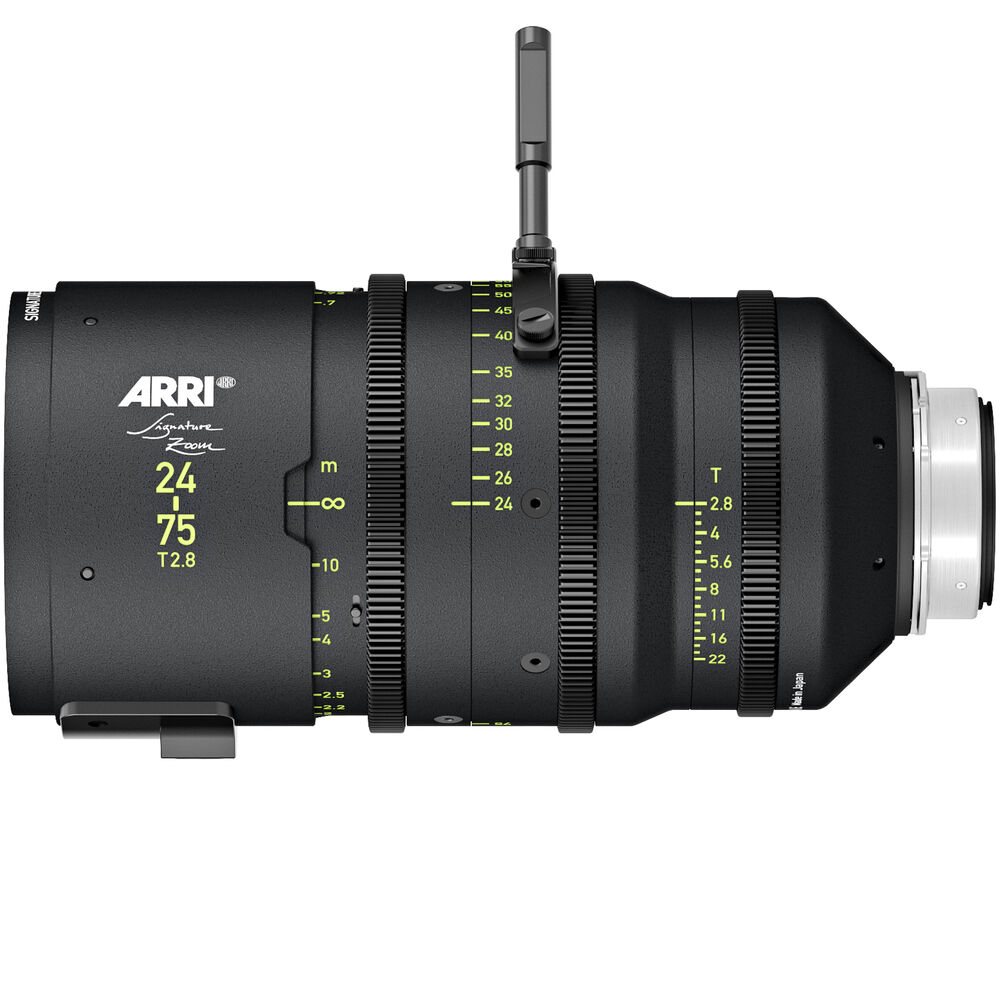

Designed to match the look and feel of ARRI's Signature Prime range, the LPL-mount 24-75mm T2.8 Signature Zoom produces attractive, organic images while covering sensor sizes ranging from Super35 to full-frame, large-format. The 24-75mm zoom features controlled flaring for HDR compatibility and lower contrast ratios for opening up shadowed areas. It also maintains its T2.8 maximum aperture across its entire focal length range, negating the need for ramping while zooming.
Signature Zoom Series
This mid-length 24-75mm zoom is one of four Signature Zooms that together offer a range of 16-510mm (when used with the 1.7x extender), the widest focal length range in the pro cine industry. Like the Signature primes, each of the zoom lenses gently softens the large-format look, producing pleasant, natural skin tones and rounded bokeh. Focus falls off smoothly, highlighting your subject against its background frame.
Covers a Range of Sensor Sizes
Covers a wide range of sensor sizes and cameras from any manufacturer, from Super35 to Large Format.
Custom Rear Diffusion Options
Matches Signature Primes
This 24-75mm T2.8 zoom matches the look and feel of the Signature primes, maintaining a consistent look across your footage.
Controlled Flare Effects
Fast T2.8 over Entire Zoom Range
Maintains a fast T2.8 maximum aperture over the entire zoom range with no ramping required.
8K+ Optimal Image Quality
LDS-2 ARRI LPL Mount
ARRI LPL mount transfers lens data via the LDS-2 lens data system for streamlined post-production and VFX needs.
Lighter Weight and Durable Build
Pairs with Zoom Series
Pairs with 16-32mm, 45-135mm, and 65-300mm zooms to produce the widest focal length range in the pro cine industry.
Reversible Focus Marks
Focus marks in feet that can be flipped at a rental house with integrated marks in meters.
Focal Length | 24 to 75mm |
Lens Mount | ARRI LPL |
Lens Format Coverage | Large Format |
Maximum Aperture | T2.8 |
Minimum Aperture | T22 |
Diagonal Angle of View | ARRI LF Open Gate: 86.9 to 33.4° |
Horizontal Angle of View | ARRI LF Open Gate: 75.5 to 27.8° |
Minimum Focus Distance | From Front of Lens: 16.2" / 412 mm |
Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch |
Front Diameter | 114 mm |
Focus Scales | Imperial |
Zoom Ratio | 3.1x |
Electronic Communication | Yes |
Maximum Magnification Ratio | 1:18.7 |
Image Stabilization | No |
Camera Connection | 1 x LEMO 4-Pin (Cooke /i Technology Lens Data / ARRI LDS) Data |
Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread |
Length | 9.6" / 244 mm |
Weight | 9 lb / 4.1 kg |
Packaging Info
Package Weight | 26.4 lb |
Box Dimensions (LxWxH) | 21.8 x 15.7 x 14.2" |
