The Basic Set for VENICE Extension Unit 1/2 from ARRI provides dedicated, cage-type support components for the Sony VENICE Rialto Extension Unit 1 or 2. This set includes a front 15mm LWS baseplate, cheese plate-style top and back plates, left and right brackets, a cable clamp, and a pair of rosette adapters.
ARRI Top Plate for VENICE Extension Unit
The Top Plate for VENICE Extension Unit from ARRI enables you to add a variety of accessories to your extension. This plate provides a 15mm LWS rod bracket, an interface for a second rod console, multiple 1/4"-20 and 3/8"-16 accessory threads, and RMB-3, CTH-1, CCH-2, and CCH-4 interfaces. To make your A.C.'s life easier, it also incorporates two measuring tape studs that align with the VENICE camera's focal plane.
Compatibility
Extension system for Sony VENICE and VENICE 2
ARRI Base Plate for VENICE Extension Unit
The Base Plate for VENICE Extension Unit from ARRI enables you to support your Sony VENICE Extension sensor block on an ARRI BPA-5 baseplate or the ARRI shoulder plate for the VENICE.
This adapter plate features front 15mm LWS rod support, the ability to mount and detach from the front or the back, release buttons on both sides, and versatile ARRI Multi Hex screws.

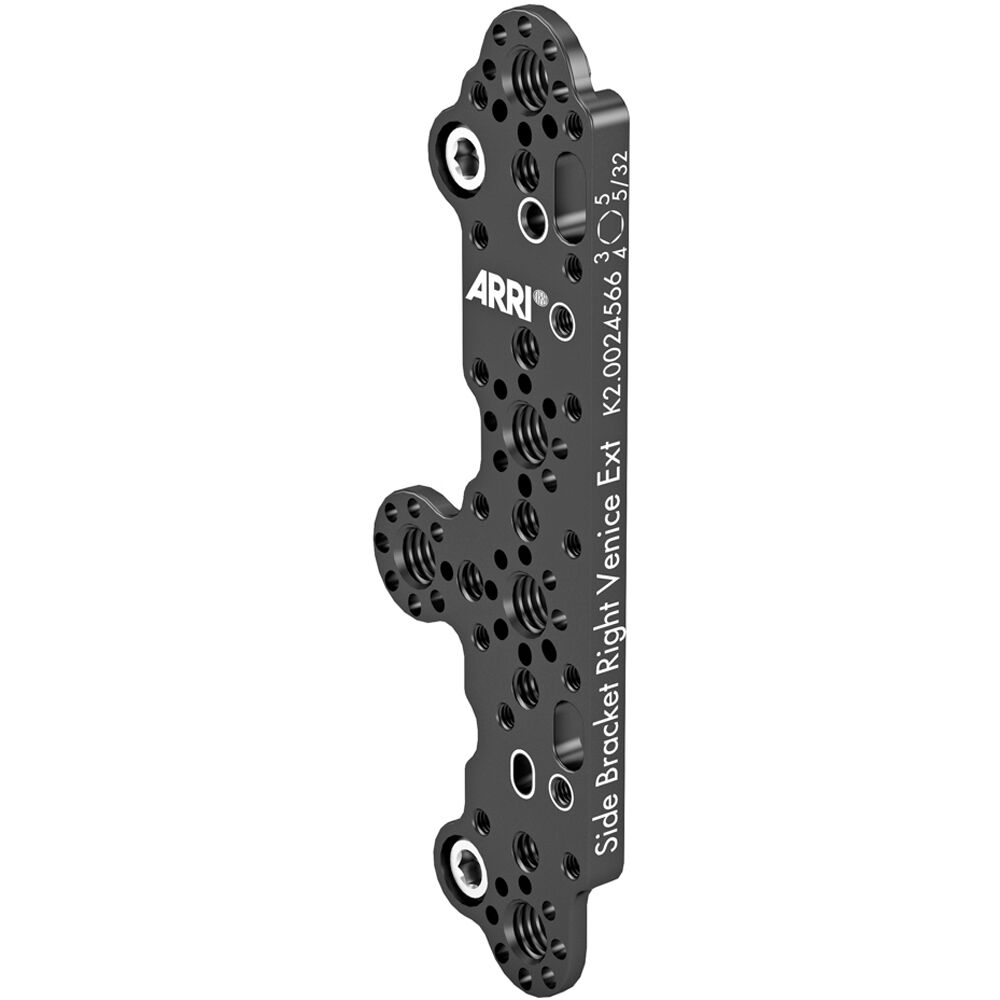

ARRI Side Bracket Right for VENICE Extension Unit
The Side Bracket Right for VENICE Extension Unit from ARRI adds a variety of accessory mounts to the right side of your Sony VENICE Rialto Extension Unit. This cage-type component sports multiple 1/4"-20 and ARRI anti-twist 3/8"-16 threads and an interface for using your camera vertically. It also incorporates mounting points for an optional RMB-3 19mm Rod Bracket, WHG-1 Wooden Handgrip, Cable Clamp, and RA-6 Rosette Adapters.
The Side Bracket Right features ARRI multi-hex mounting screws for quick assembly.
Features
The Side Bracket Left for VENICE Extension Unit from ARRI adds a variety of accessory mounts to the left side of your Sony VENICE Rialto extension unit. This cage-type component sports multiple 1/4"-20 and ARRI anti-twist 3/8"-16 threads and an interface for using your camera vertically. It also incorporates mounting points for an optional RMB-3 19mm Rod Bracket, WHG-1 Wooden Handgrip, Cable Clamp, and RA-6 Rosette Adapters.
The Side Bracket Left features ARRI multi-hex mounting screws for quick assembly.
Features
ARRI Back Plate for VENICE Extension Unit
The Back Plate for VENICE Extension Unit from ARRI adds a variety of accessory threads to the back of your Sony VENICE Rialto Extension Unit. Also compatible with the Extension Repeater Unit cable, this cheese plate incorporates multiple 1/4"-20 and ARRI anti-twist 3/8"-16 threads.
This plate can be mounted to the top or bottom of the Extension back and either vertically or horizontally when used with the Repeater cable. Ergonomic plate features include ARRI multi-hex mounting screws.
Features
ARRI Cable Clamp for VENICE Extension Unit
The Cable Clamp for VENICE Extension Unit from ARRI provides strain relief of the cable connecting the Rialto Extension to the VENICE camera body. This cable clamp is compatible with the Side Bracket Right for the VENICE Extension.
ARRI RA-6 Rosette Adapters (Pair)
This pair of RA-6 Rosette Adapters from ARRI enables you to mount ARRI rosettes on the Sony VENICE Rialto Extension Unit. Each adapter uses two multi-hex screws to provide a rock-solid connection for your separately available rosettes.
General
Compatibility | Sony VENICE Extension Unit |
Physical
Mounting | Multiple x 1/4"-20 Anti-Twist Threads Multiple x 3/8"-16 Anti-Twist Threads 1 x 15mm LWS Rod Support |
Color | Black |
Material of Construction | Anodized Aluminum |
Dimensions | 4.7 x 3.9 x 1.2" / 120 x 100 x 30 mm |
Weight | 6.5 oz / 184 g |
Support Type | Baseplate |
Grip Type | No |
Camera Compatibility | Sony VENICE |
Mounting
Rod Standard | 15 mm LWS / 60 mm Spacing |
Camera Mounting | 5/32" Male Screw, Hex 3 Male Screw, Hex 4 Male Screw, Hex 5 Male Screw |
Rod Ports | 2 x 15 mm Rod Port |
Rosettes | No |
General
Dimensions | Not Specified by Manufacturer |
Weight | Not Specified by Manufacturer |
Packaging Info
Package Weight | 0.535 lb |
Box Dimensions (LxWxH) | 5.9 x 5.75 x 1.4" |
General
Accessory Mount Threads | Multiple: ARRI Anti-Twist 3/8"-16 Multiple: 1/4"-20 |
Hex Socket Sizes | Hex 3, Hex 4, Hex 5, 5/32" |
Dimensions | 6.3 x 2 x 0.8" / 160 x 50 x 20 mm |
Weight | 2.4 oz / 67 g |
Packaging Info
Package Weight | 0.145 lb |
Box Dimensions (LxWxH) | 5.25 x 4.45 x 0.85" |
General
Accessory Mount Threads | Multiple: ARRI Anti-Twist 3/8"-16 Multiple: 1/4"-20 |
Hex Socket Sizes | Hex 3, Hex 4, Hex 5, 5/32" |
Dimensions | 4.7 x 3.1 x 1.6" / 120 x 80 x 40 mm |
Weight | 8.5 oz / 240 g |
Packaging Info
Package Weight | 0.165 lb |
Box Dimensions (LxWxH) | 6.05 x 4.25 x 0.8" |
General
Accessory Mount Threads | Multiple: ARRI Anti-Twist 3/8"-16 Multiple: 1/4"-20 |
Hex Socket Sizes | Hex 3, Hex 4, Hex 5, 5/32" |
Dimensions | 3.1 x 1.6 x 0.8" / 80 x 40 x 20 mm |
Weight | 1.6 oz / 46 g |
Packaging Info
Package Weight | 0.095 lb |
Box Dimensions (LxWxH) | 4.75 x 3.85 x 1.2" |
General
Dimensions | 2 x 1.6 x 1.2" / 50 x 40 x 30 mm |
Weight | 1 oz / 28 g |
General
Dimensions | Not Specified by Manufacturer |
Weight | Not Specified by Manufacturer |
Packaging Info
Package Weight | 0.175 lb |
Box Dimensions (LxWxH) | 4.05 x 3.65 x 0.9" |
