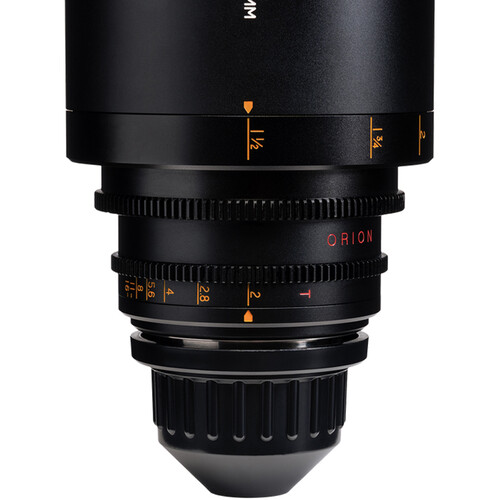

Designed by cinematographers for cinematographers, the Orion 21mm T2 2x Anamorphic Prime Lens from Atlas Lens Co. produces a vintage anamorphic look for Super 35-sensor cine-style cameras. The 21mm creates a wide-angle field of view with the shallow dept of field found in a telephoto prime. To maximize compatibility, this PL-mount lens can be switched to a Canon EF mount using a separately available Atlas mount kit. Anamorphic lens characteristics include "waterfall" bokeh, streak effects, and a spherical aberration glow when used wide open.
This mechanically dependable prime lens features a design that is standardized across the series with unified focus and iris gear positions. The Orion 21mm prime comes with focus marks in feet but can be switched by the used to meters using a separately available focus scale.
2x Vintage Anamorphic Look
Interchangeable EF/PL Mount
Super 35 Coverage
Fast T2 Aperture
Standardized Design
Wide Barrel Rotation
Adjustable Focus Scales
Focal Length | 21mm |
Maximum Aperture | T2 |
Minimum Aperture | T16 |
Lens Mount | ARRI PL |
Horizontal Squeeze (Anamorphic) | 2x |
Lens Format Coverage | Super35/APS-C (24.89 x 18.66 mm |
Image Circle | 31.0 mm |
Focus Scales | Imperial |
Filter Thread | None |
Minimum Focus Distance | From Unspecified Point in Lens: 1.5' / 45 cm |
Diaphragm Blades | 14 |
Image Stabilization | No |
Electronic Communication | No |
Weight | 6.9 lb / 3.1 kg |
Packaging Info
Package Weight | 9 lb |
Box Dimensions (LxWxH) | 14.8 x 10.3 x 7.4" |
