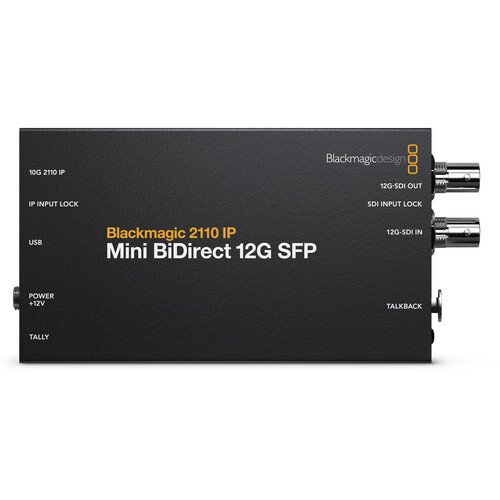

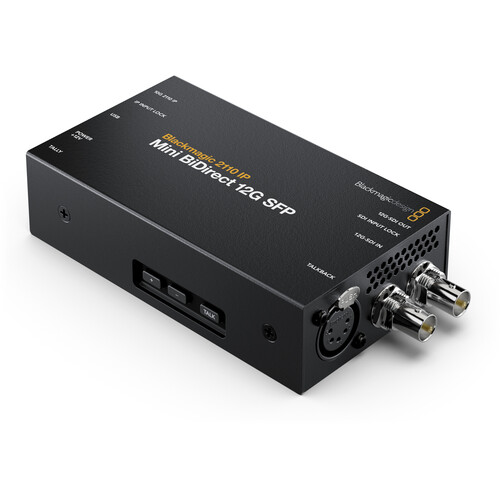

Connect your 12G-SDI broadcast studio camera to SMPTE-2110 IP systems over long distances with this 2110 IP Mini BiDirect 12G SFP Converter from Blackmagic Design. The converter allows you to send up to UHD 4K 12G-SDI camera video and program return using the same converter, and it is so compact it can easily be mounted on your camera rig. It features an SFP connection for optical fiber to connect over long distances. The converter also features a 5-pin XLR talkback headset and a press-to-talk button to keep communication between camera operators and the broadcast production booth.
Features
Audio I/O | Input 1x XLR 5-Pin Analog Female Output 1x XLR 5-Pin Analog Female |
Other I/O | Input/Output 1x RJ45 (10 GbE) Input 1x USB-C (Firmware) |
Expansion Slots | 1x SFP Slot |
Video Resolution | SDI Input/Output (4:2:2 YUV) 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 25/29.97/30 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps |
Embedded Audio | LAN (RJ45)/SDI |
Standards
Video Standard Compliance | SMPTE: ST-2110 |
HDCP Support | No |
HDR Support | Yes |
Hardware
Wireless | No |
OS Compatibility | macOS 13 or Later Windows 10 to 11 |
Power
Power I/O | 1x Barrel (12 to 16 VDC ) Input |
PoE Support | PoE++ 802.3bt |
Power Consumption | Device: 12 to 16 VDC (18 W) |
General
Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
Dimensions | 5.75 x 2.91 x 1.34" / 14.61 x 7.39 x 3.4 cm |
Packaging Info
Package Weight | 1.505 lb |
Box Dimensions (LxWxH) | 10.4 x 5.3 x 1.3" |
