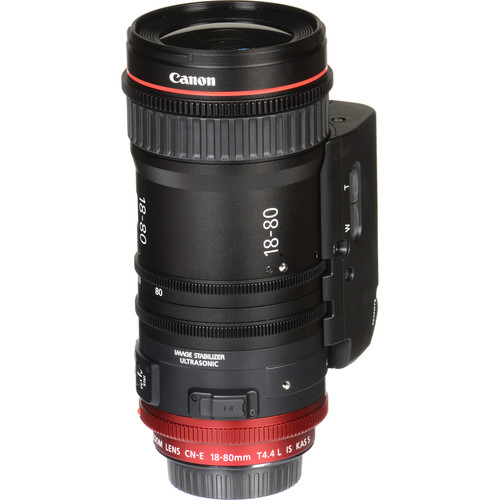

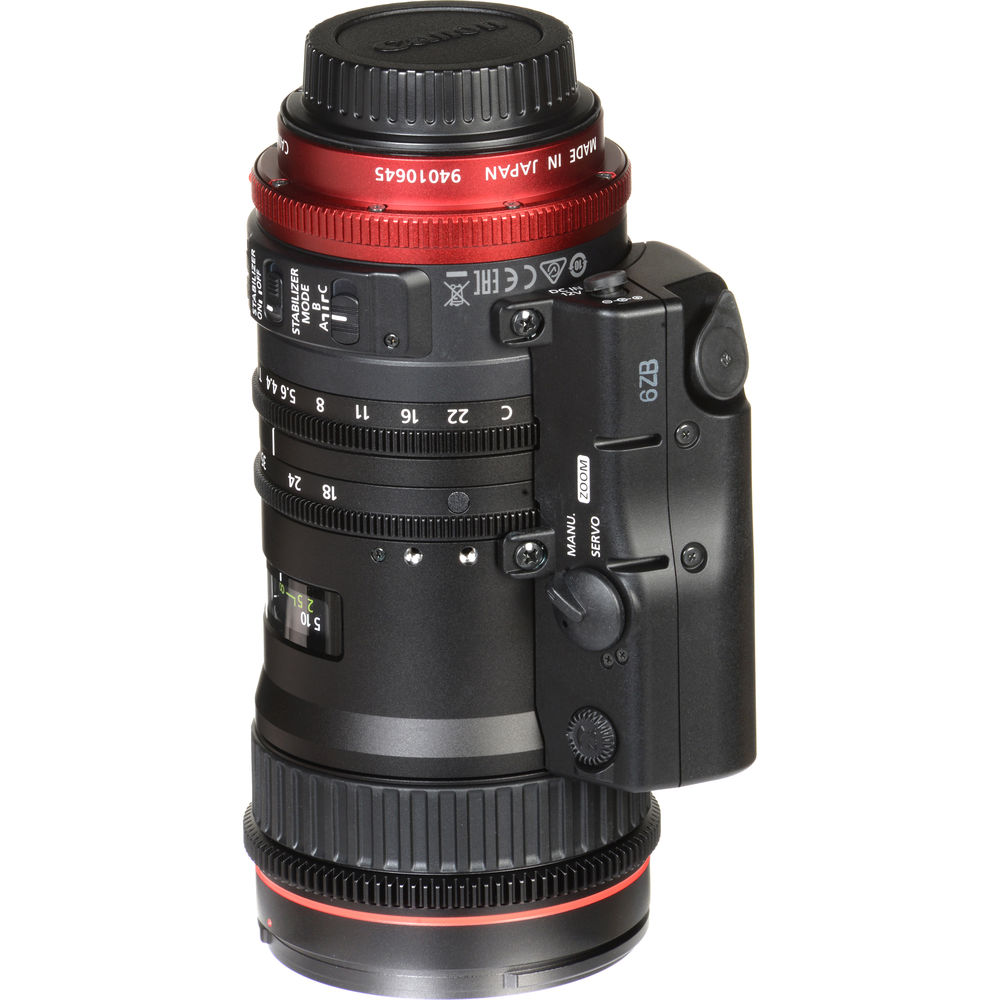

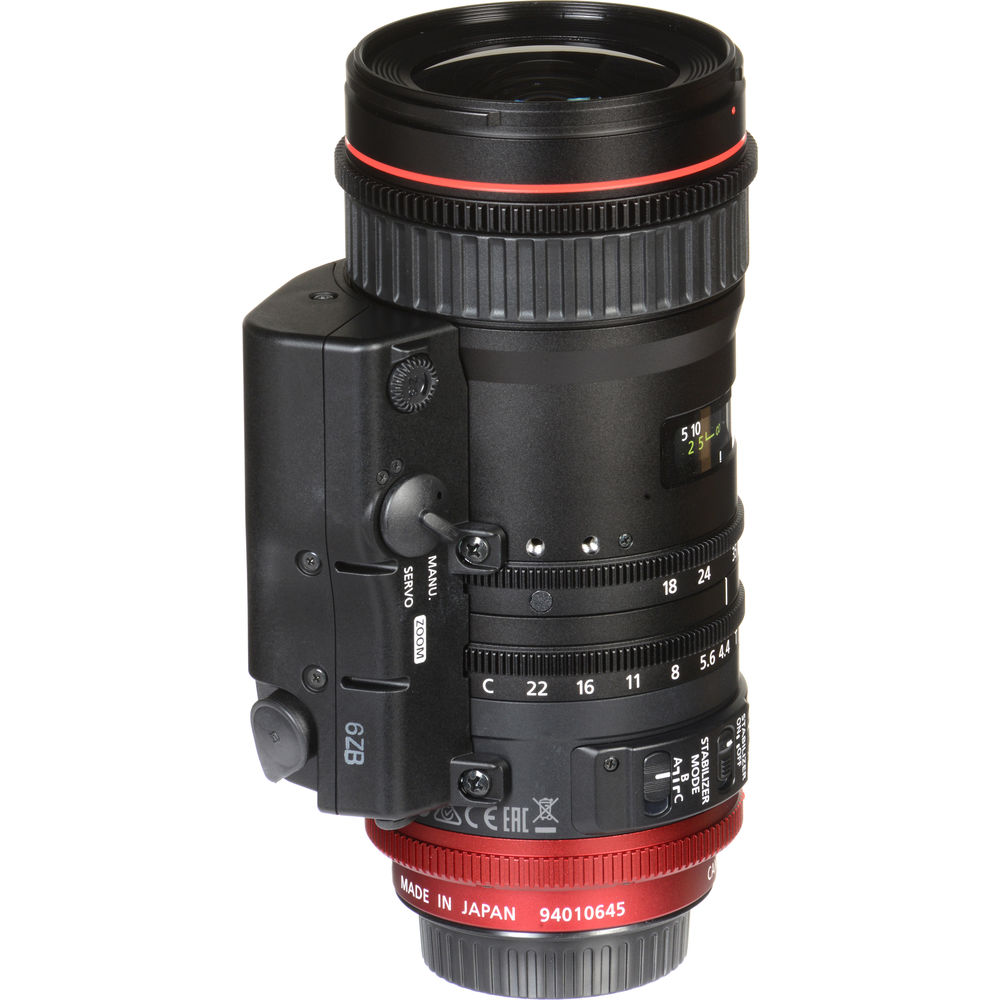

The Canon CN-E 18-80mm T4.4 COMPACT-SERVO Lens combines the functionality of Canon's EF lenses with the features and performance of their CN-E lineup. Designed for use with EF-mount cameras featuring Super 35 or APS-C sized sensors, the lens covers an incredibly useful 18 to 80mm focal range while maintaining a constant T-stop of T4.4 (f/4) throughout. Measuring 7.2" long and weighing only 2.65 lb, the lens presents itself as a compact, lightweight option suitable for a variety of productions, from narrative work to run-and-gun documentaries. Notably, the lens is Canon's first cine-style option to incorporate image stabilization and auto focus functionality when paired with Cinema EOS cameras.
Further enhancing the versatility of this lens, Canon has equipped it with a servo drive unit compatible with industry-standard lens controllers, including Canon's broadcast ZSD-300D and FPD-400D, for full zoom, focus, and iris control. Alternatively, you can outfit the lens with the optional ZSG-C10 Control Grip for ENG-style lens control and operation. Power is provided to the grip from compatible cameras via the EF mount. For non-servo zoom control, the lens features cine-standard 0.8 mod gears, as well as a rubberized grip on the focus ring enabling comfortable manual operation.
Lens Design
Servo Control
Functionality with Cinema EOS Cameras
Focal Length | 18 to 80mm |
Maximum Aperture | T4.4 f/4 |
Lens Mount | Canon EF |
Lens Format Coverage | Super35/APS-C |
Image Circle | 31.4 mm |
Filter Thread | 77 mm |
Minimum Focus Distance | From : 1.6' / 0.5 m |
Diaphragm Blades | 9 |
Image Stabilization | No |
Dimensions (W x H) | 3.7 x 4.2" / 94 x 106.7 mm |
Weight | 2.6 lb / 1.2 kg |
Packaging Info
Package Weight | 5.75 lb |
Box Dimensions (LxWxH) | 17.5 x 11.1 x 5.7" |
