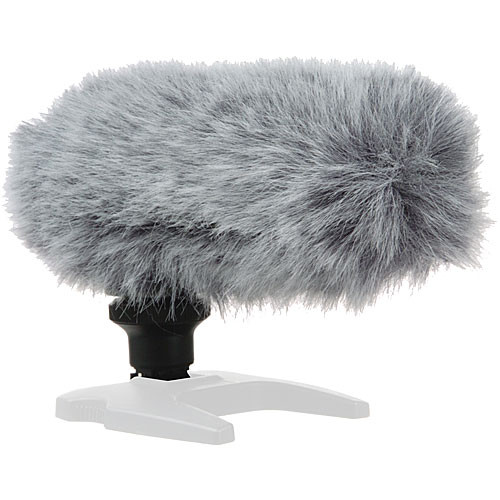

The Canon DM-100 is a lightweight, camera-mountable microphone designed for use with Vixia camcorders. The mic attaches directly to the Vixia's advanced accessory shoe, which supplies the mic with power and provides a cable-free audio connection to the camera. The versatile DM-100 offers three pickup modes to choose from. The monophonic shotgun setting provides a supercardioid polar pattern that focuses audio capture tightly in front of the mic. For stereo recordings, you can choose between a narrow 90° pickup and a wider 120° setting for a more panoramic sound stage. A furry windmuff is provided to reduce wind noise when shooting outside.
At a Glance
Compatible Vixia Models
Microphone
Primary Applications | ENG (Electronic News Gathering), Audio for Video, Location Sound, Field Recording |
Form Factor | Camera-Mount |
Intended Sound Sources | Speech/Voice-Over |
Sound Field | Mono, Stereo |
Capsule | 1 x Electret Condenser |
Polar Pattern | Half-Cardioid, Hemispherical/Half-Omnidirectional, Supercardioid |
Pattern Selection | Switched (Adjustable on Mic) |
Orientation | End Address |
Pad | None |
High-Pass Filter | None |
Tone Adjustment | None |
Gain Adjustment | None |
Indicators | None |
On-Board Controls | Polar Pattern |
Windscreen | Windsock/Windjammer (Included) |
Performance
Frequency Range | 100 Hz to 10 kHz |
Impedance | 200 Ohms |
Sensitivity | Supercardioid: -36 dB at 1 kHz |
Connectivity
Analog Output | None |
Digital Output Connector | 1 x Proprietary |
Headphone Output | None |
Digital Audio
OS Compatibility | None |
Mobile App Compatible | No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Power
Bus Power | None |
Operating Voltage | Not Specified by Manufacturer |
Physical
Color | Black |
Mounting | Camera/Shoe-Mount (via Integrated Hardware) |
Included Case | None |
Included Filters | None |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Dimensions | H: 3.1 x W: 1.3 x L: 5.1" / H: 80 x W: 32 x L: 130 mm |
Weight | 2.7 oz / 77 g |
Packaging Info
Package Weight | 0.51 lb |
Box Dimensions (LxWxH) | 7.75 x 5.35 x 3.3" |
