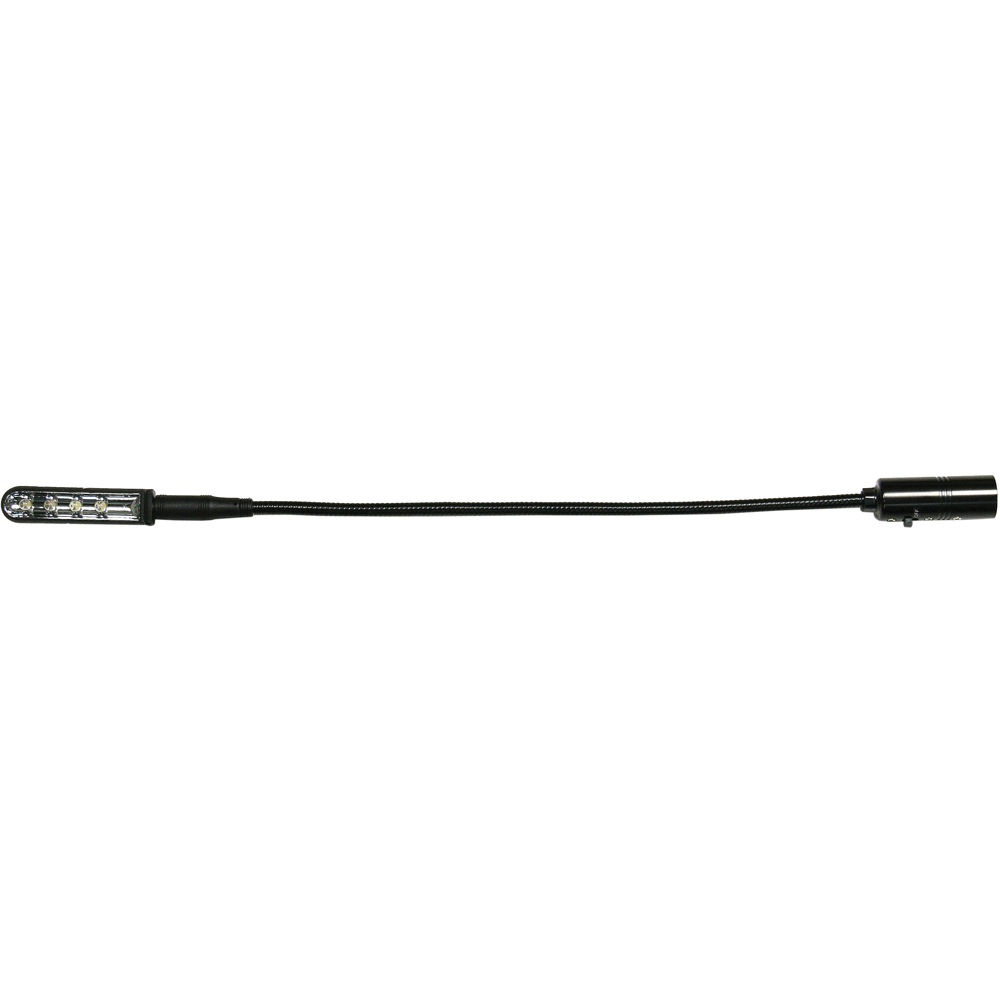

This Datavideo ITC100HP2K wired intercom kit from B&H includes an ITC-100 base station, four MC-1 headsets, four ITC-100SL beltpacks, four CB-3 cables (65'), four TD-3 camera tally lights, and four HP-2A dual-ear headsets. The ITC-100 system features 8-way talkback and tally indicators that provide clear communication between the director and the camera crew in production studio and live venue applications. The director can choose to talk to an individual channel or to all channels simultaneously.
The HP-2A is a circumaural, closed headset designed to prevent sound leakage, in and out. Featuring a noise-canceling microphone and a soft earpad, the HP-2A offers an ideal alternative to the MC-1 headset, for working in noisy environments with a comfortable fit during extended use.

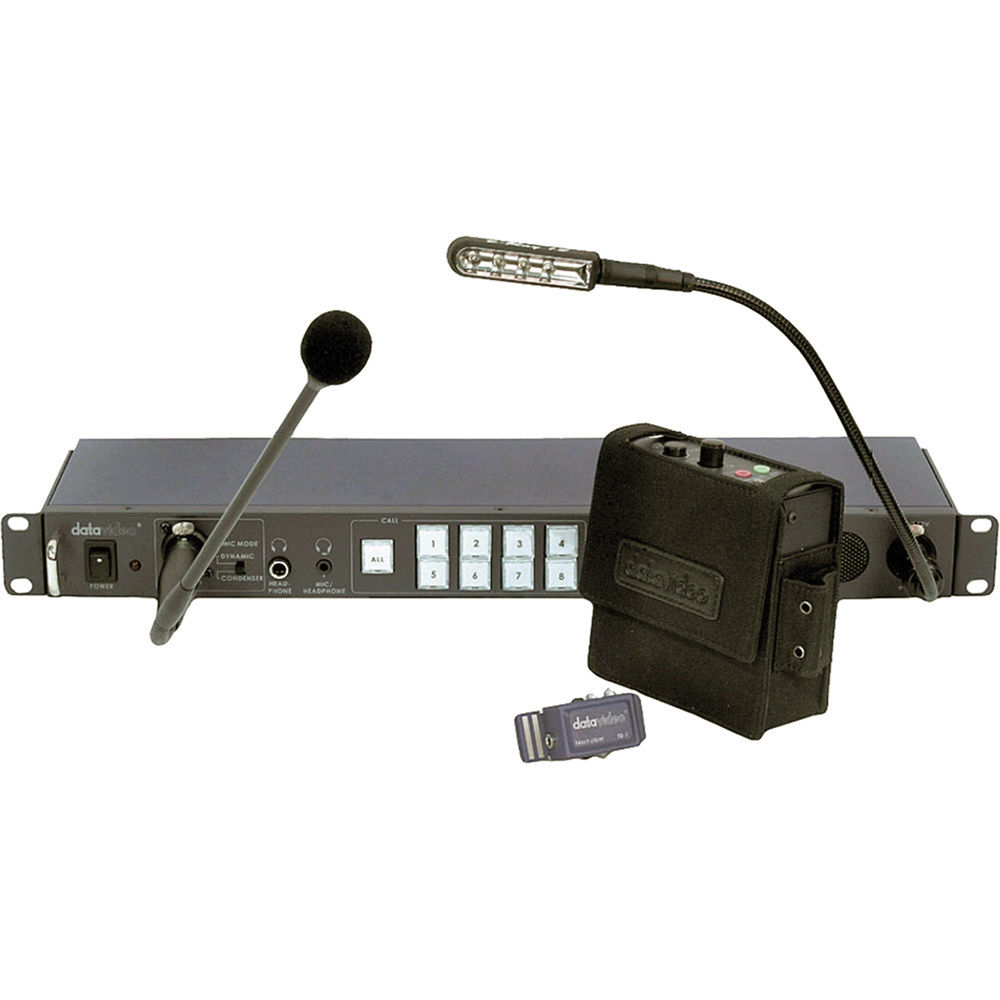

Datavideo ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets

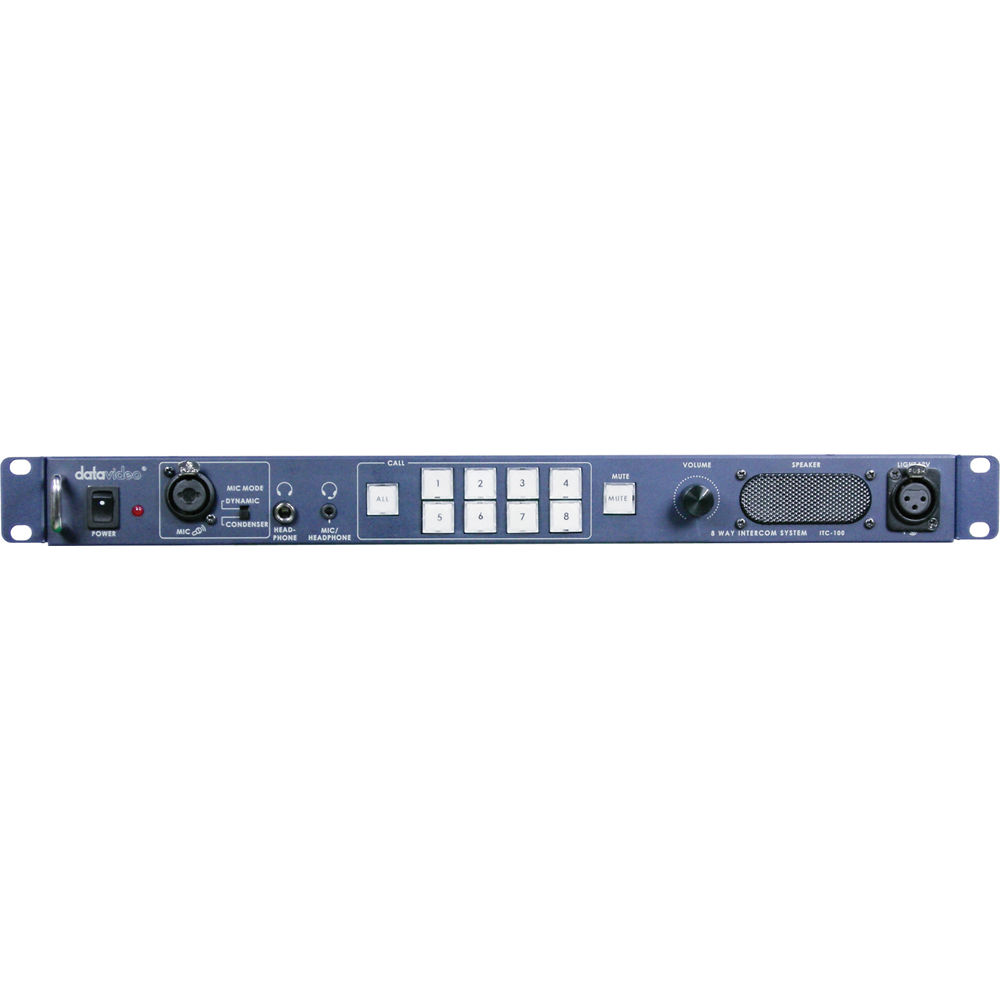

One of the innovative features of the rack-mountable ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets from Datavideo is that it can use headsets ranging from low-cost cell phone headsets to high-quality professional units.
Up to 8 users can be connected to the ITC-100 via PTT wired beltpacks. Four beltpacks, four headsets, four cables and a tally light set are all included. Cables for connecting the beltpacks may be up to 984 ft long, and use 5-pin XLR connectors. The base station features all call and mute buttons, a mic input, built-in speaker, and standard headphone jacks.
Datavideo HP-2A Dual-Ear Headset for ITC Intercom Systems
The Datavideo HP-2A Dual-Ear Headset is compatible with Datavideo ITC Intercom Systems. It features a closed-back design to reduce outside noise, soft circumaural earpads and a noise-cancelling microphone. The headphone drivers resist clipping during loud monitoring.
Frequency Response | 550 Hz - 3.6 kHz <±3 dB |
Total Harmonic Distortion (THD) | <3% |
Signal to Noise Ratio | >50 dB |
Operating Range | Up to 660' (200 m) Between Base Station and Slave |
Connectors | 1 x 12 V 1.5A Power Input 2 x 15-Pin Sub-D Tally Connectors 1 x 3.5mm Stereo Headphone/Mic Combo Jack 1 x 1/4" Stereo Headphone Jack 1 x 3-Pin XLR Light Socket 1 x XLR/TRS Combo Mic Input |
Speaker | 2.75 x 1.2" (70 x 30 mm) (3 W, 32 Ohms) |
Operating Temperature | 41 to 104° (5 to 40°C) |
Dimensions | 1 RU |
Weight | 4.2 lbs (1.9 kg) |
Packaging Info
Package Weight | 23 lb |
Box Dimensions (LxWxH) | 20.5 x 15 x 8.5" |
Headphone
Earpiece Design | Over-Ear (Circumaural), Closed-Back |
Number of Earpieces | Dual Earpiece |
Driver Type | Dynamic |
Impedance | 24 Ohms |
Frequency Response | 10 Hz to 22 kHz |
Total Harmonic Distortion (THD) | 0.2% |
Type | Condenser |
Pickup Pattern | Omnidirectional |
Frequency Response | 20 Hz to 16 kHz |
Sensitivity | -64 dB |
Impedance | 2.2 Kilohms |
Wired Connectivity
Audio Connector to Source | 1 x 1/8" / 3.5 mm |
Packaging Info
Package Weight | 1.445 lb |
Box Dimensions (LxWxH) | 12.35 x 8.25 x 4.5" |
