DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 5-Lens Kit (ARRI PL)

DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 5-Lens Kit (ARRI PL)

DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 5-Lens Kit (ARRI PL)

  • SKU : #BO3FDZO-APG5BIPL | MFR : #DZO-APG5BIPL | UPC : #842463103337
DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 5-Lens Kit (ARRI PL)
DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 5-Lens Kit (ARRI PL)
Features
  • Full Frame | T1.6/2.2/2.8 to T22
  • 14, 21, 40, 135, and 180mm Prime Lenses
  • Creates Warm Amber Halo Effect
  • Cine-Style 0.8 MOD Gearing
  • 95mm Front Outer Diameter
  • Consistent Series Gear Placement
  • Metallic, Retro-Style Design
  • Front M86 Filter Thread
  • Interchangeable ARRI PL/Canon EF Mounts
  • Hard Case with Custom Foam Inlay

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

You Pay:
AED 51,450.00
VAT Excl.

DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 5-Lens Kit (ARRI PL)

Warm Amber Look

Use the Arles Lustre T1.6 FF/VV Cinema Prime 5-Lens Kit from DZOFilm to create warm, nostalgic full-frame looks in wider and tighter focal lengths that complement the base 4-lens set. These 14, 21, 40, 135, and 180 lenses feature amber halo effects, retro-style metallic bodies, and fast T1.6/2.2/2.8 maximum apertures.



Interchangeable Mounts

  • Designed to work with a variety of cameras, these Arles Lustre primes come in ARRI PL mount.
  • They also include interchangeable Canon EF mounts, shims, and lens support rods.
  • The included hard case has a custom-cut foam insert.

Large-Format Coverage

These lenses have an image circle compatible with large-format, full-frame, and VistaVision camera sensors. NOTE: Please note that the 14, 25, 35, and 40mm lenses may produce slight vignetting on certain cameras.



Poetic Rendering



  • The Arles Lustre lenses are coated to produce a warm, poetic look.
  • The distinct amber halos are perfect for dream sequences and arty, retro looks.

Consistency Across Series

  • Each lens in the Arles Lustre series has a cine-style design with 0.8 MOD focus and aperture gears.
  • Consistent 0.8 MOD gear placement, similar lengths and weights, and a common 95mm front outside diameter across the series help speed the lens changes when using a matte box or lens control system.
  • Each lens in the series (except the 14mm) has an M86 front filter thread, enabling you to attach a filter without the weight of a matte box.

Unique Design

  • These ARRI PL-mount lenses feature a unique metallic finish and a retro design.
  • Their relatively light weight makes these Arles Lustre lenses suitable for handheld, shoulder-mounted, and vehicle rig capture.

IN THE BOX

    • DZOFilm Arles Lustre T1.6 FF/VV Cinema Prime 5-Lens Kit (ARRI PL)
    • Arles Lustre 14mm T2.2
    • Arles Lustre 21mm T1.6
    • Arles Lustre 40mm T1.6
    • Arles Lustre 135mm T2.2
    • Arles Lustre 180mm T2.8
    • 5 x Front Lens Cap
    • 5 x Rear Lens Cap
    • 5 x Focal Length Sticker for Front Cap
    • 5 x Support Foot (3/8"-16)
    • 5 x Lens Support Rod
    • 5 x Canon EF Mount
    • Shim Set

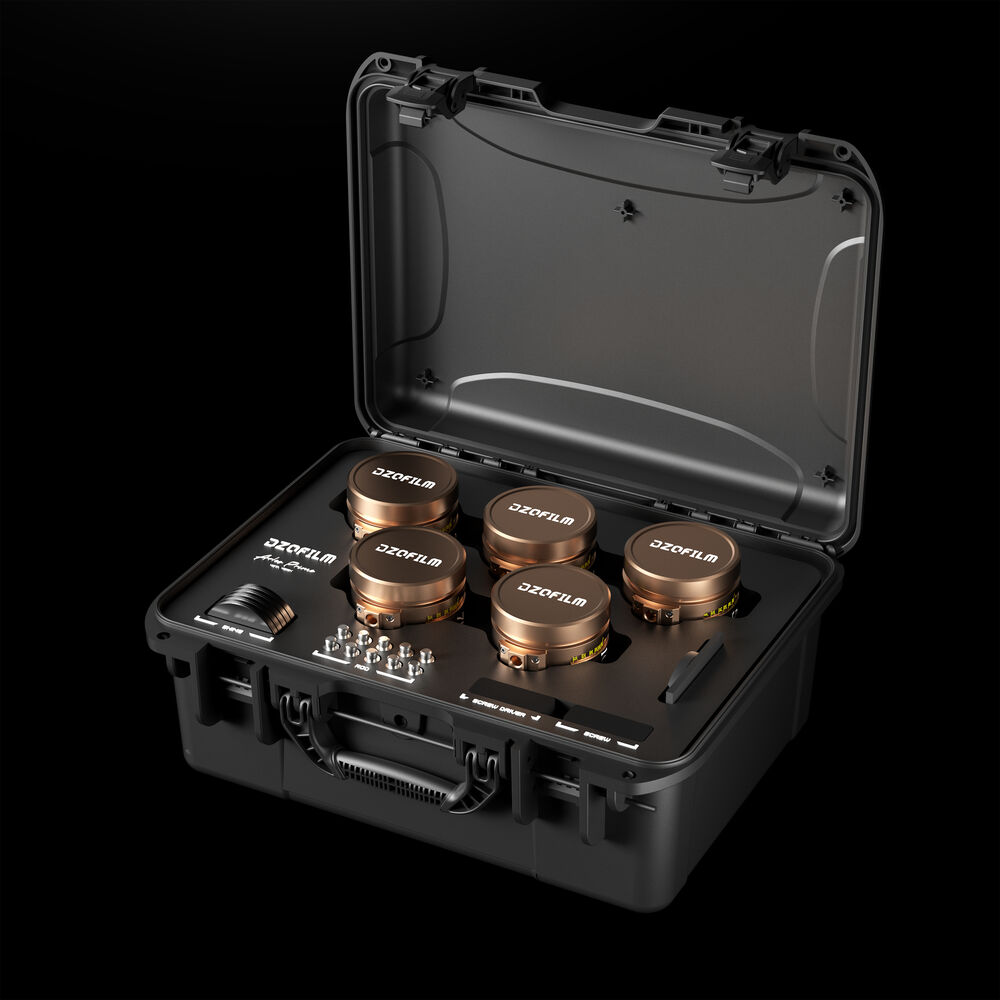

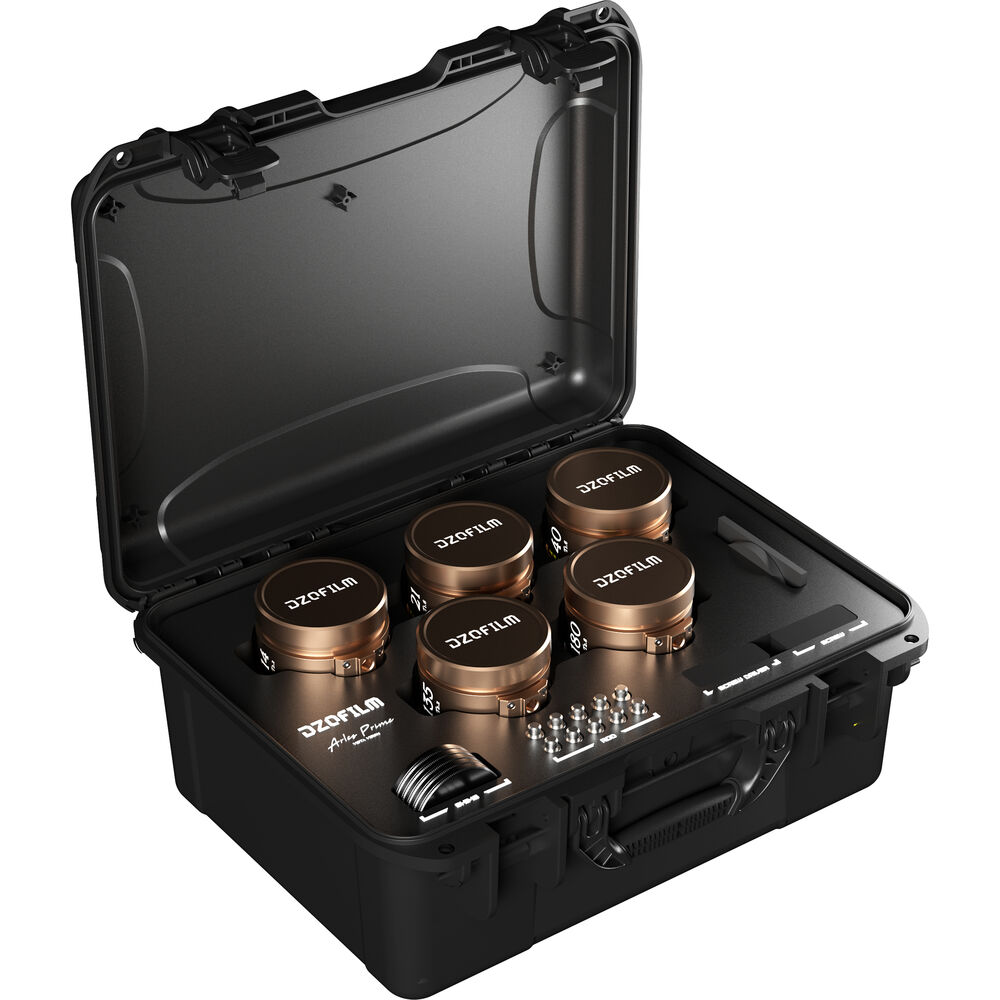

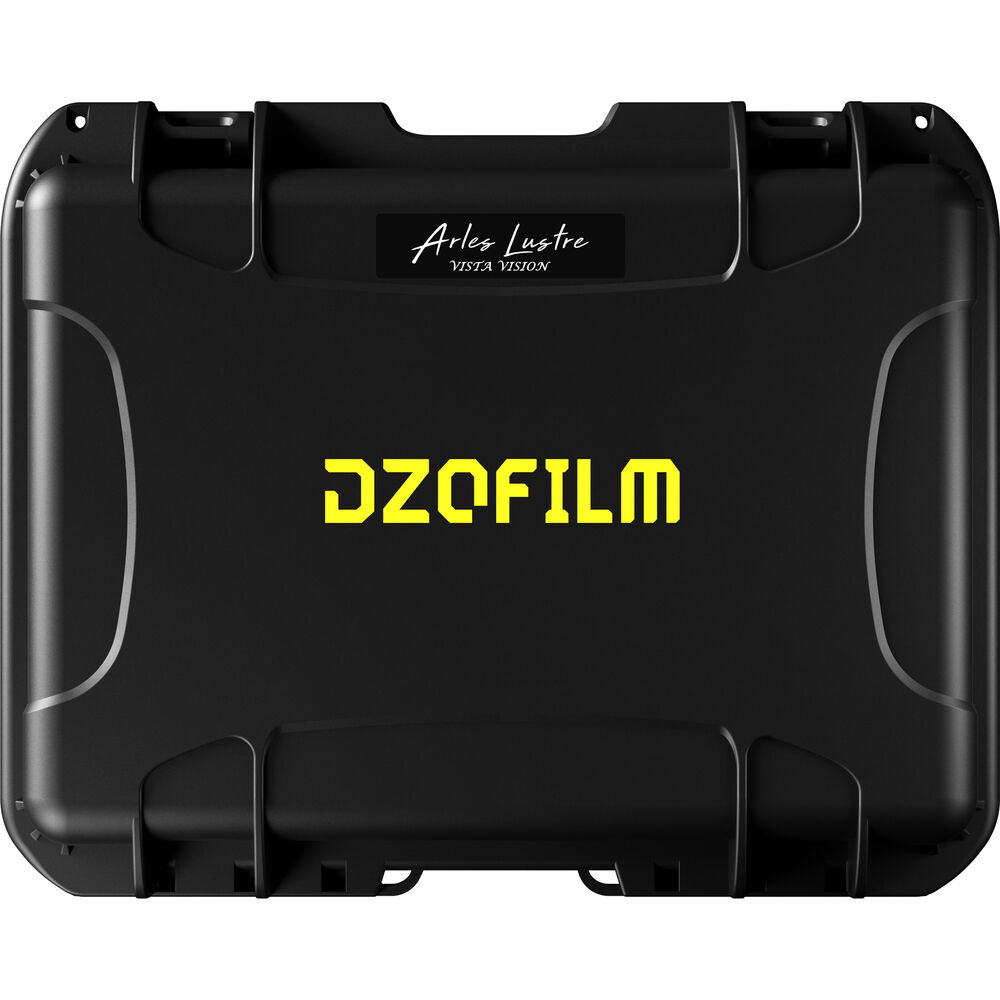

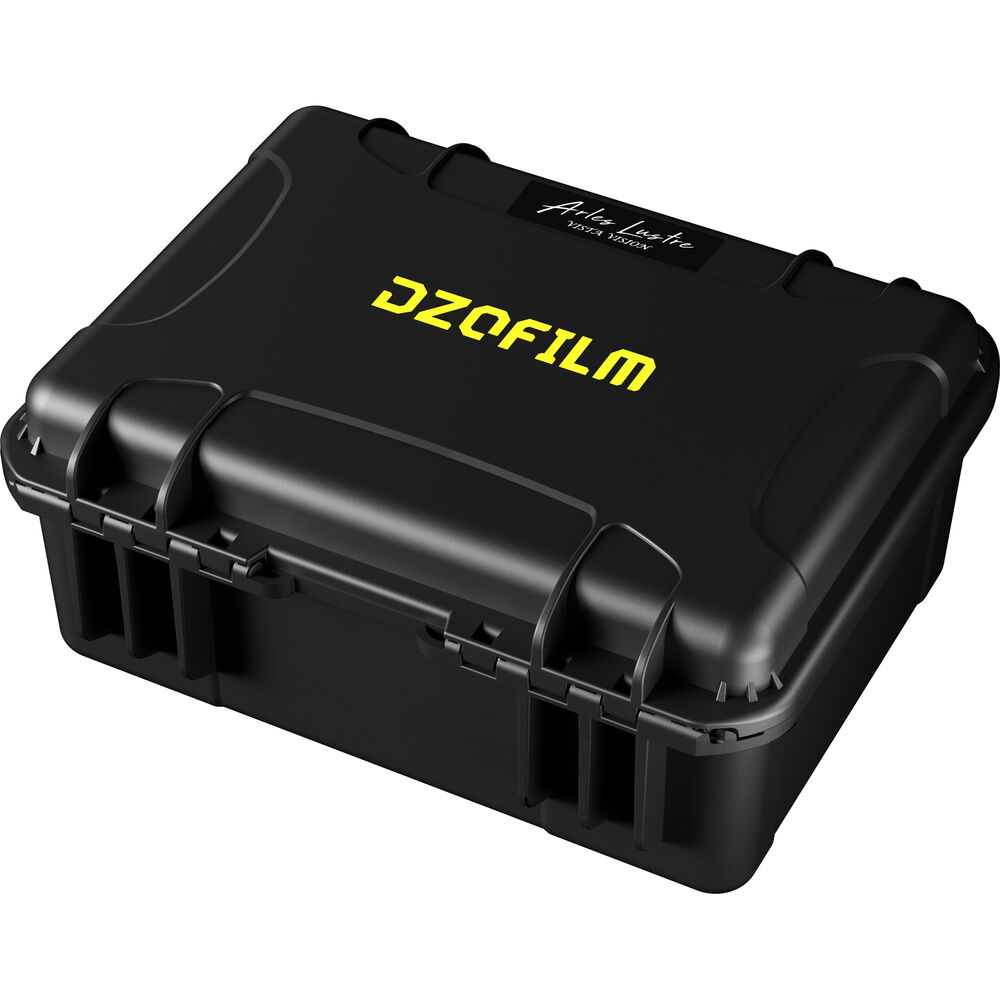

    • Hard Case with Custom Foam Inlay
    • Limited 1-Year Manufacturer Warranty
Maximum ApertureT1.6
T2.2
T2.8
Minimum ApertureT22
Lens MountARRI PL
Canon EF
Interchangeable MountYes
Lens Format CoverageFull-Frame
Image Circle46.5 mm
Angle of ViewFull Frame
Diagonal: 116°
Diagonal: 96°
Diagonal: 61°
Diagonal: 19°
Diagonal: 15°
Focus ScalesMetric, Imperial
Optical Design15 Elements in 12 Groups
14 Elements in 12 Groups
13 Elements in 11 Groups
12 Elements in 8 Groups
12 Elements in 9 Groups
Filter Thread86 mm
Minimum Focus DistanceFrom Camera Sensor: 11" / 28 cm (Wide) to 3.51' / 1.07 m (Tele)
Aperture/Iris Blades16
Image StabilizationNo
Lens MountingNo
Gear StandardFocus, Iris: 0.8 MOD
Gear RotationFocus: 270°
Electronic CommunicationNo
Diameter3.7" / 95 mm
Length4.8" / 121.8 mm
5.1" / 130.8 mm
Weight3.64 lb / 1.65 kg
3.3 lb / 1.5 kg
3.59 lb / 1.63 kg
3.7 lb / 1.68 kg
3.66 lb / 1.66 kg
