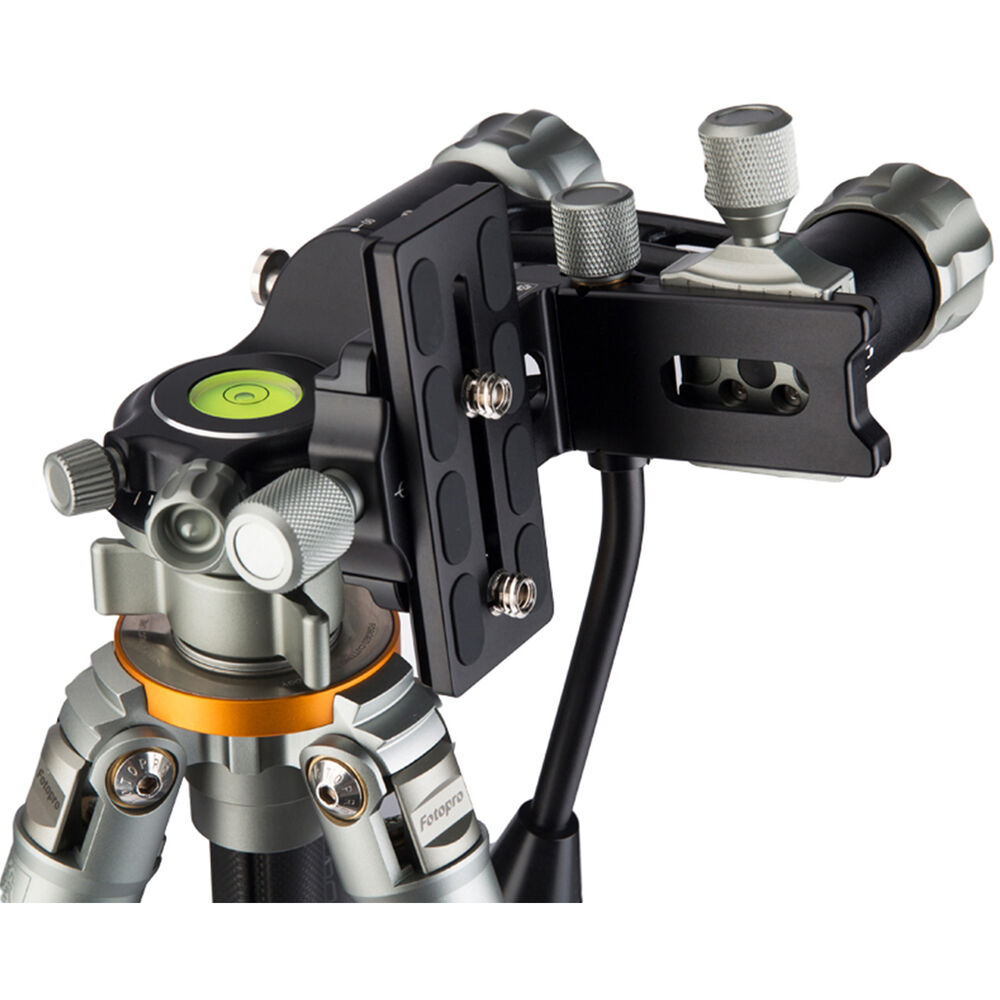

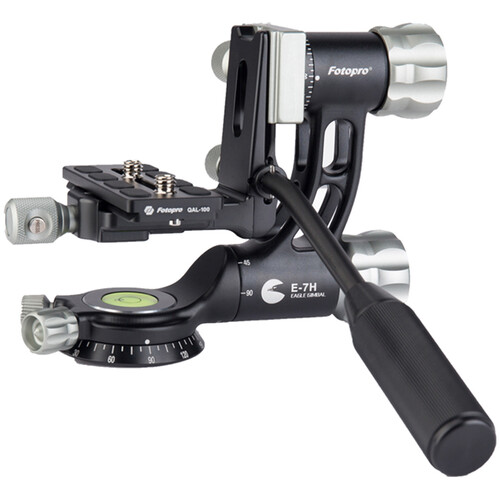

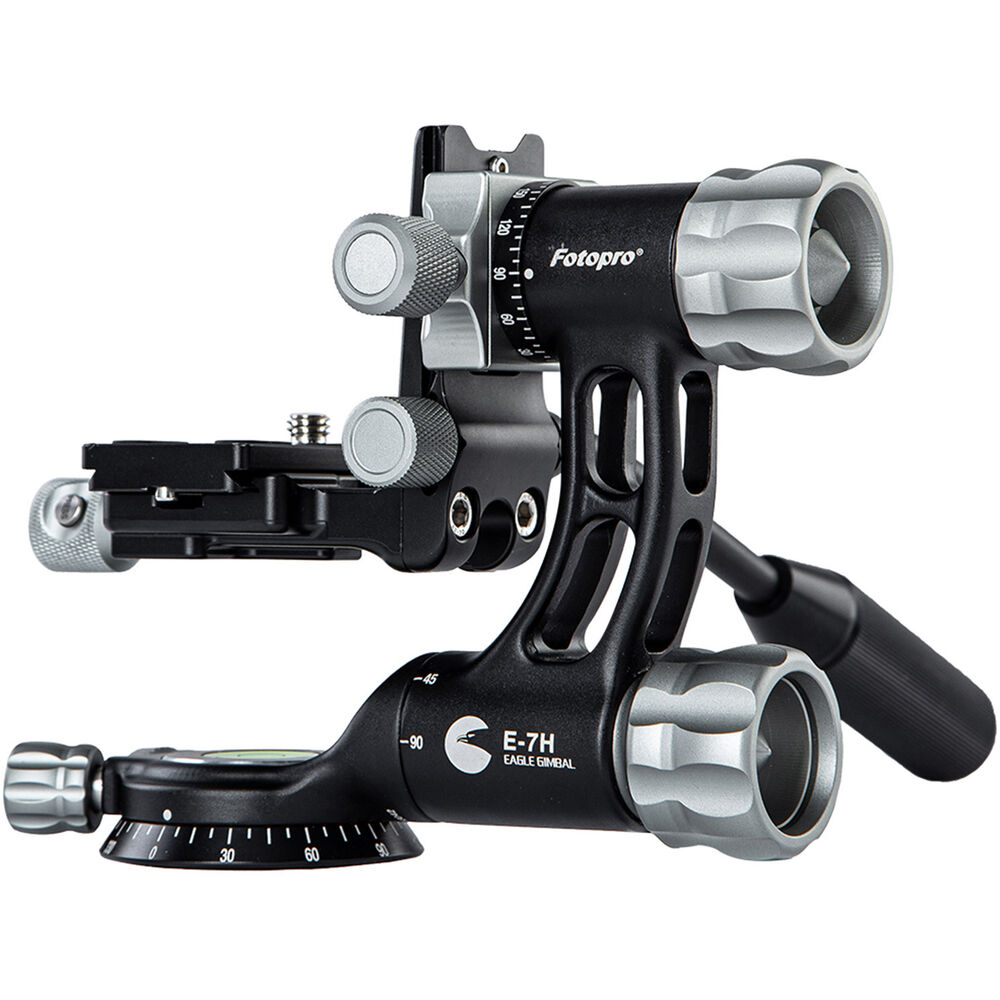

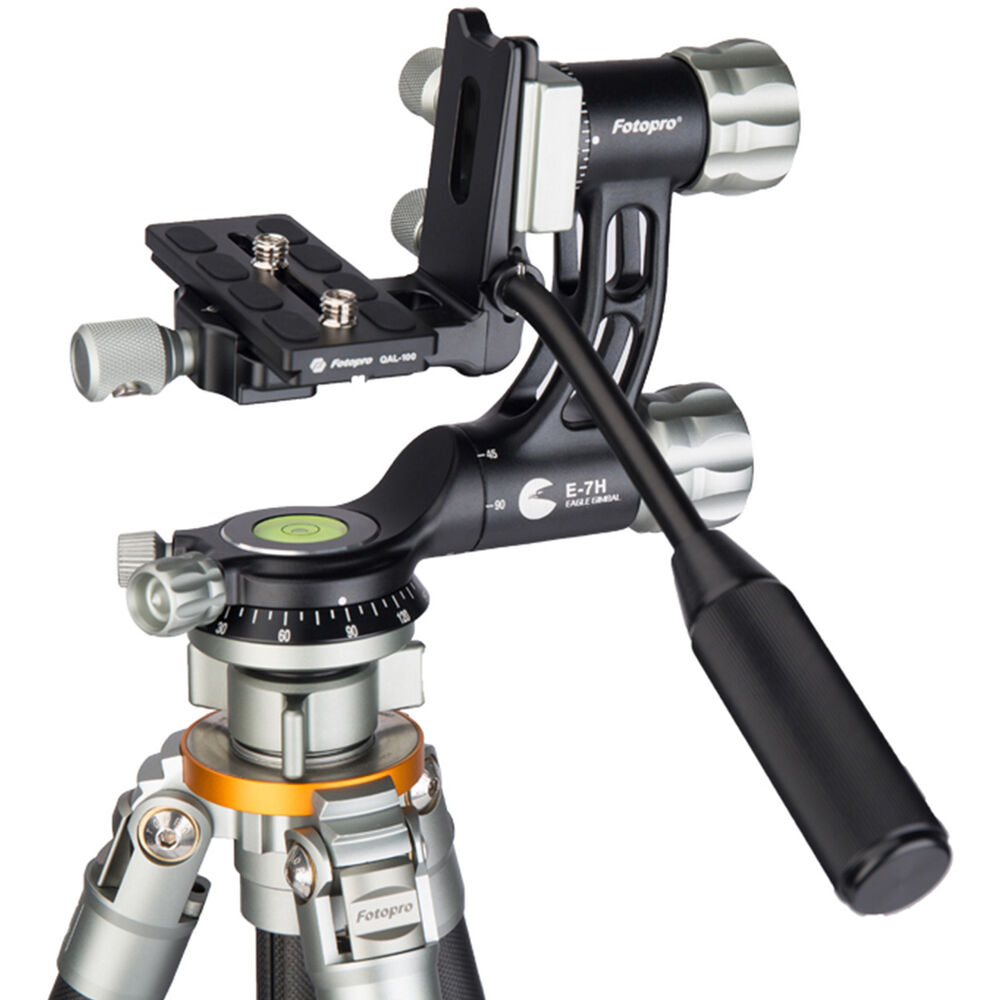

Support setups weighing up to 22 lb with the 11" tall, Arca-type compatible E-7H Gimbal Head from Fotopro. Both the vertical and horizontal planes are independently adjustable to perfectly balance your lens, so it can rotate and swing smoothly on each axis. A removable panning bar is included for easy adjustment and control for video applications, with the rotation of the head secured by an independent pan lock with tension adjustment. Additional features like engraved degree marks and a bubble level assist with precise adjustment.
Head

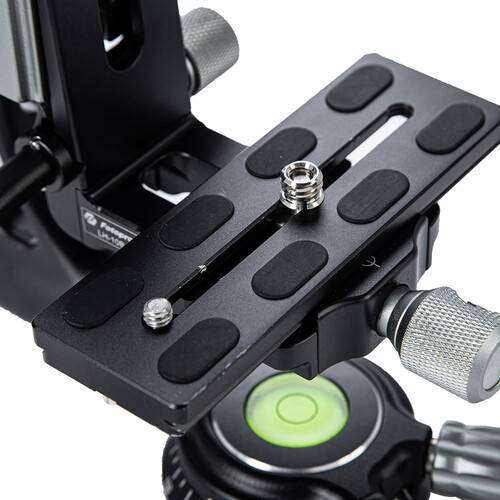

Camera Mounting | 1/4"-20 & 3/8"-16 Screws (Quick Release Plate) |
Head Type | Gimbal Head |
Base Mount | Flat Base (Thread Size Unspecified) |
Counter Balance | No |
Dimensions | Base Diameter: 2.7" / 68.00 mm |
Pan & Tilt
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
General
Load Capacity | 22 lb / 10 kg |
Accessory Mounting | No |
Bubble Level | Yes |
Weight | 2.4 lb / 1.09 kg |
