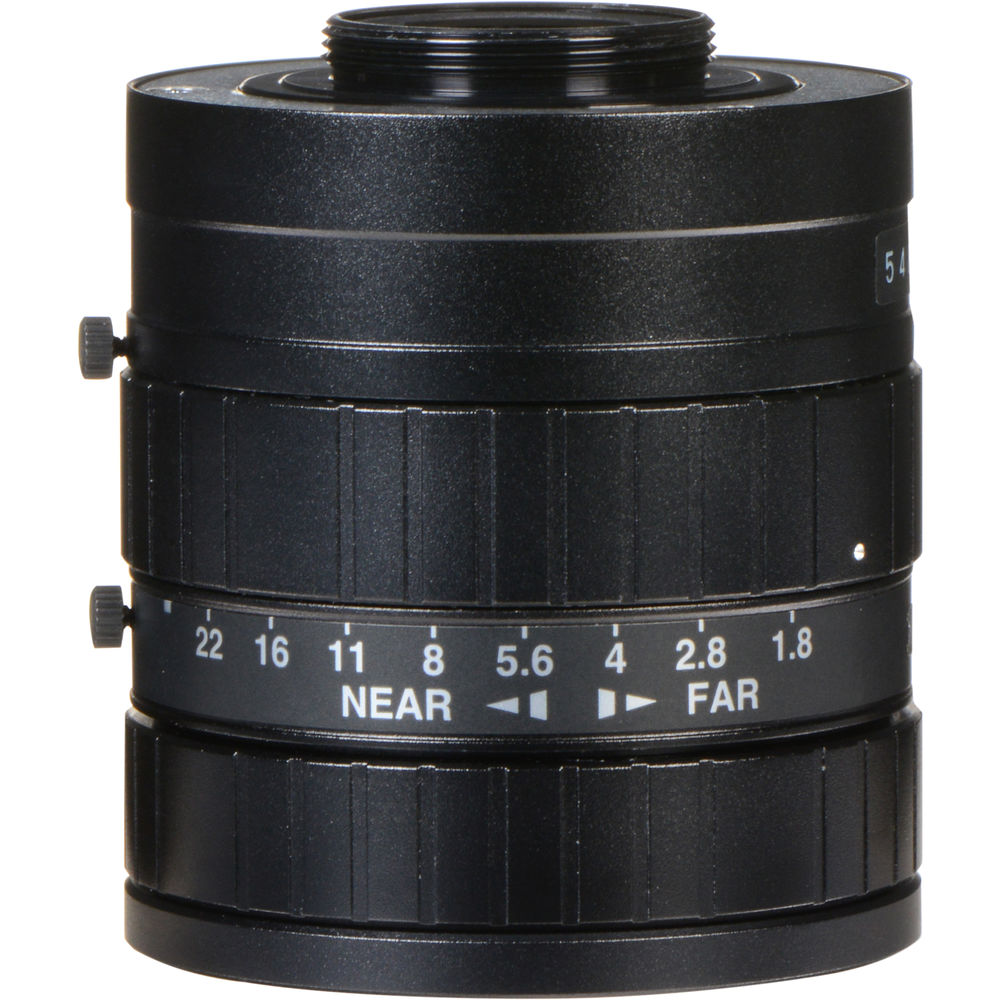

Designed for factory automation and machine vision applications, the Fujinon HF50SA-1 high resolution C-mount lens supports digital cameras up to 5 megapixels and uses superior optics to achieve corner-to-corner performance with low distortion. Requiring a minimum focusing range of only 0.4 meter, this compact and robust lens features a rear focusing system and is particularly well suited for applications where highly detailed close-up imaging is a priority. Additionally, this lens employs a ring lock system to prevent the focus and iris rings from shifting on vibrating machinery.
High Resolution
Designed for digital cameras up to 5 mega pixel, this lens employs superior optics to achieve quality corner-to corner performance with low distortion and features a wide-aperture (F1.8) design to enhance image illumination in low light conditions.
Compact & Robust
Engineered for machine vision and factory automation applications, this compact and robust lens is designed to fit a wide range of machinery and uses a rear focusing system to achieve highly detailed close-up imaging.
Ring Lock
Employs a ring lock mechanism to prevent focus and iris shift when used on vibrating machinery.
Lens Mount | C |
Sensor Compatibility | 2/3" |
Focal Length | 50mm |
Back Focal Length | 17.81mm |
Angle of View | 2/3"-Type Sensor Horizontal: 10.05° Vertical: 7.55° 1/2"-Type Sensor Horizontal: 7.32° Vertical: 5.5° 1/3"-Type Sensor Horizontal: 5.5° Vertical: 4.12° |
Minimum Focus Distance | From Front of Lens: 1.33' / 0.4 m |
Focus Type | Manual Focus |
Iris Type | Manual |
Filter Thread | M49 |
Weight | 0.5 lb / 240 g |
Packaging Info
Package Weight | 0.625 lb |
Box Dimensions (LxWxH) | 4.3 x 2.95 x 2.8" |
