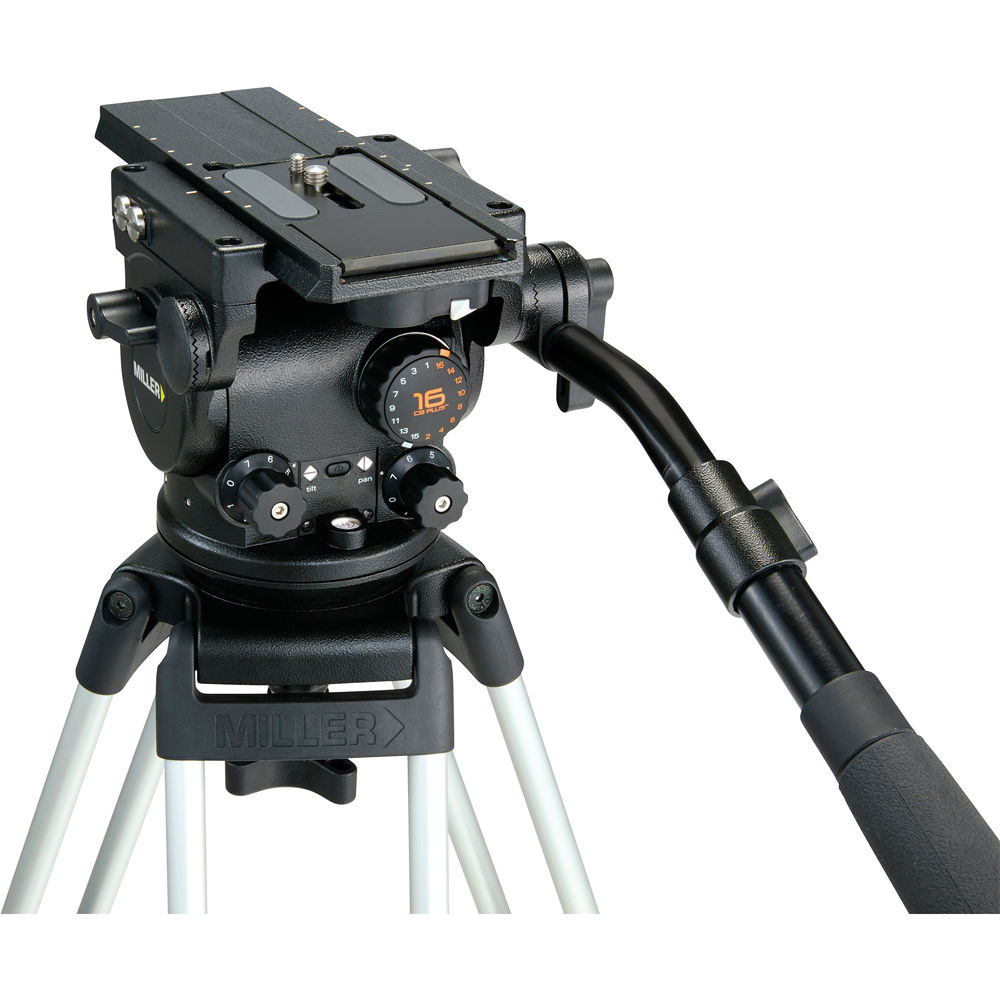

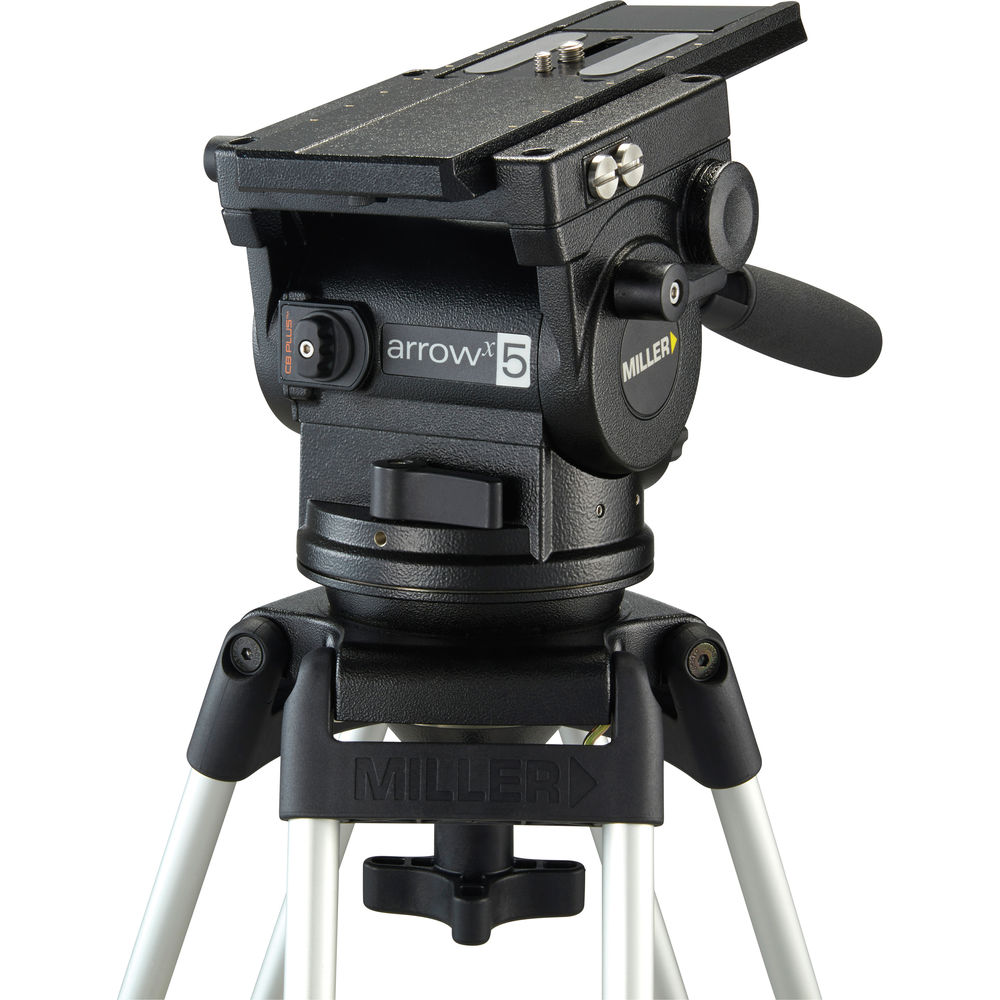

The Arrow X5 Fluid Head from Miller is suitable for use with ENG and EFP camcorders. It offers a 4.4 to 46.2 lb payload range and seven selectable pan-tilt fluid drag positions. It features precision fluid drag with a 16-position CB Plus counterbalance system. CB Plus is a sequential counterbalance design, features eight larger counterbalance steps, allowing you to quickly and efficiently achieve the required counterbalance position. The system's one flick switch located at the front of the head adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required. The Arrow X5 fluid head features a 100mm ball leveling with three M5 holes for flat base mounting. The pan and tilt locks utilize caliper disc brakes for reliable, short-throw fixing.
Camera Plate
Camera Plate Features | Sliding Balance Plate, Quick Release |
Balance Plate Sliding Range | 4.7" / 120 mm |
Head
Base Mount | 100 mm Half Ball |
Counter Balance | Incremental 16-Step |
Included Pan Handle Length | 15.4 to 23.2" / 390 to 590 mm |
Bubble Level | 1 x Illuminated |
Pan & Tilt
Drag Control | Tilt: 7-Step Plus 0 Pan: 7-Step Plus 0 |
Vertical Tilt | +90° to -75° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
General
Load Capacity | 4.4 to 46.2 lb / 2 to 21 kg |
Operating Temperature | -40 to 149°F / -40 to 65°C |
Weight | 7.5 lb / 3.4 kg |
Packaging Info
Package Weight | 12 lb |
Box Dimensions (LxWxH) | 16.3 x 14 x 11.5" |
