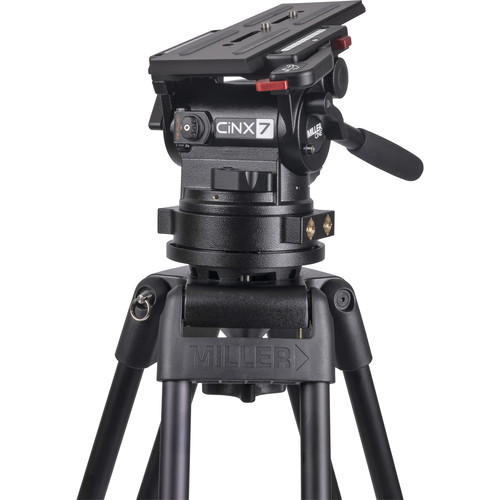

This Miller CiNX 7 and HDC 100 1-Stage Tripod System features the CiNX 7 fluid head, 100mm bowl HDC 100 aluminum tripod legs, ground spreader, and a wheeled carry case. The included version of the HDC 100 tripod has spiked feet only and is ground spreader ready.

The CiNX 7 supports 13.2 to 55 lb loads and offers 16 steps of counterbalance and 7 + 0 steps of pan and tilt drag. It features a flat base and comes with a 100mm bowl claw adapter. This head is designed to achieve ultra-soft starts and stops and balanced diagonal transitions. A sideload camera plate system allows you to efficiently mount and remove your camera.

With the head and ground spreader attached, the tripod offers a height range of approximately 36 to 68.5" in one stage of adjustment.

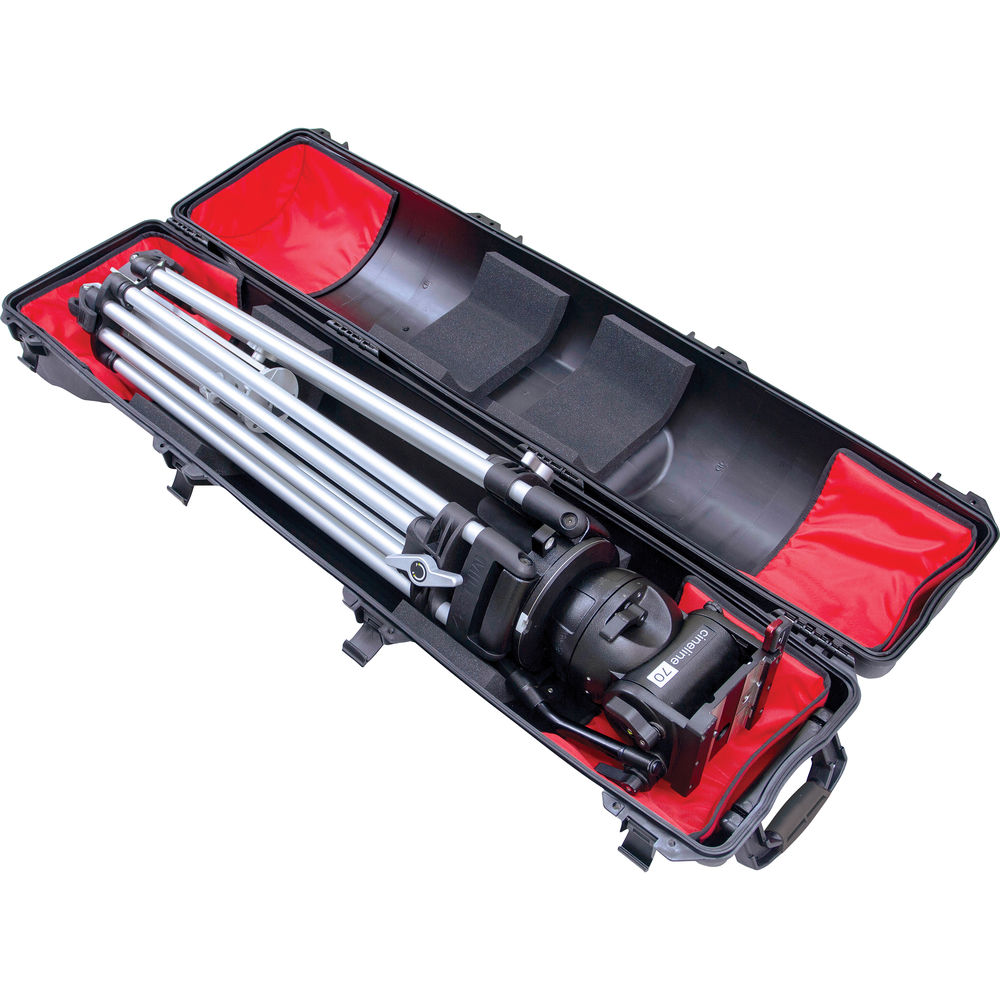

The wheeled case is designed with high-pressure resin, polymer, and aluminum materials and has a top handle, side handle, and bottom wheels. It's IP67 watertight and resistant to dust, moisture, acids, and sand. Other features include an automatic air pressure valve and inner padding.

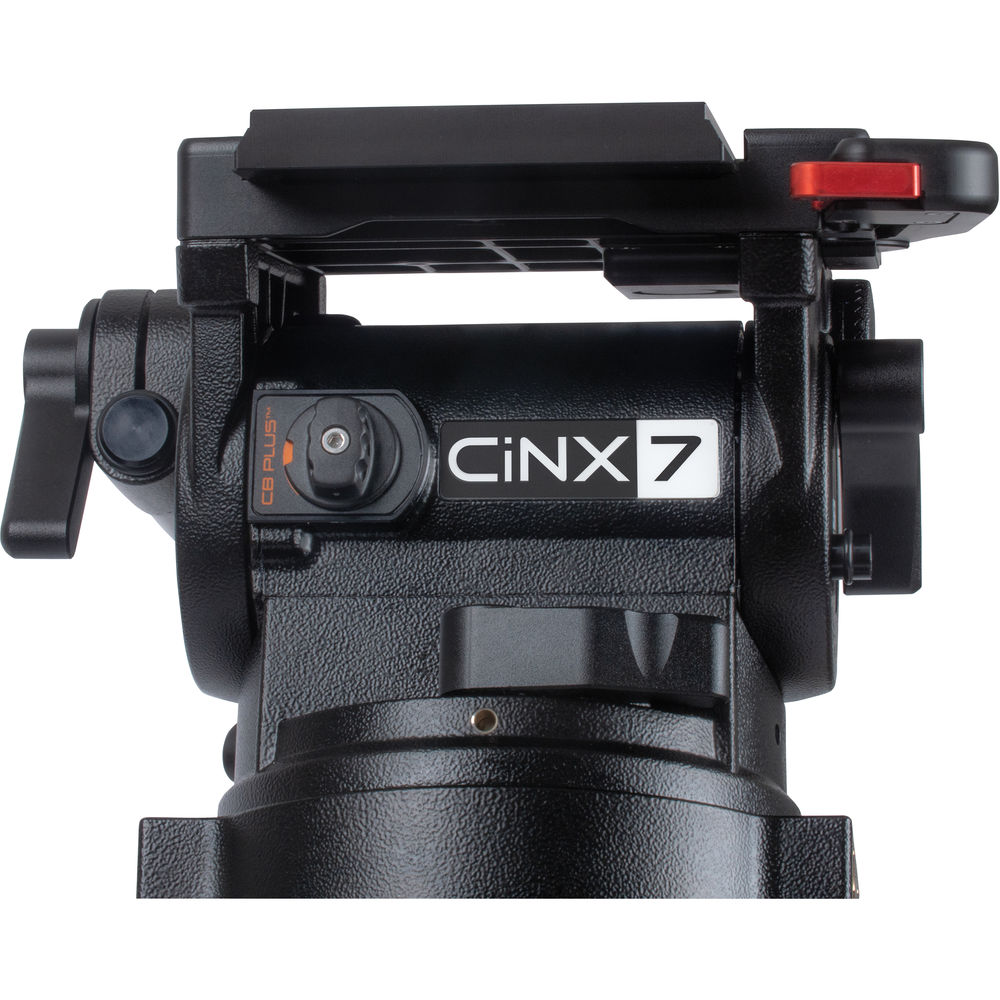

Miller CiNX 7 Fluid Head

Miller's CiNX 7 Fluid Head features a payload of 13.2-55 lb, 16 steps of counterbalance, and 7 + 0 steps of pan and tilt drag. It's designed with a strength-to-size ratio that provides an optimal solution for the supported load capacity. The drag and counterbalance systems offer progressive and equal increments of drag and torque to ensure ultra-soft starts and stops and balanced diagonal transitions. The CiNX 7 provides a smooth and effective workflow for heavy camera setups.

The CiNX 7 features a 3/8"-16 threaded flat base and includes a 100mm bowl claw adapter. Additionally, optional 150mm bowl or Mitchell base adapters from Miller are also supported.

The pan/tilt controls and a bubble level are all illuminated at the press of an illumination button. The CiNX 7 comes with a GP23A type battery already installed for illumination but supports multiple other types as you will find in the user manual.

For ultimate efficiency with heavy cameras, the CiNX 7 has a sideload camera plate platform with a safety lock, and it comes with an ARRI-type camera plate that can be adjusted approximately 6". It also includes a rosette-mount telescopic pan handle while supporting two in total for dual-handed operation. On the sides, it provides four anti-twist ARRI accessory mounts. The head is made of lightweight yet high-strength die-cast aluminum and rigid composite polymers. It's finished with a durable black ripple and anti-corrosive pretreatment. It also has water- and dust-resistant sealing.

The head also has a very wide operating temperature range of -40 to 149°F.

Key Features

• Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
• 3/8"-16 threaded flat base
• Includes a 100mm bowl claw adapter (optional 150mm bowl or Mitchell base adapters supported)
• 16 steps counterbalance
• Payload range of 13.2 to 55 lb
• 8 steps of pan and tilt drag; illuminated controls
• Sideload platform with safety lock
• 5.9" camera plate sliding range
• Four anti-twist ARRI accessory mounts
• Illuminated bubble level
• Pan handle included; optional second one supported
• Wide operating temperature range of -40 to 149°F

Miller HDC 100 1-Stage Metal Alloy Tripod (Ground Spreader Ready)

The heavy-duty Miller HDC 100 1-Stage Metal Alloy Tripod is a quick-setup solution for a tripod head that fits a 100mm bowl base. Its standard height design and metal alloy construction support up to 210 lb for use in ENG, EFP, and other pro video applications.

The HDC 100 extends from 28 to 60.6" in height, and when it's folded up for transport it measures 36.9". The tripod feet have integrated steel spikes to add stability on rough or uneven terrain, and each leg's single stage is secured with rotating locks. Compatible ground spreaders, rubber feet, and dollies are available separately.

• One-stage metal alloy tripod for heads that fit a 100mm bowl
• Maximum payload up to 210 lb
• Compatible with separately available ground spreader
• Height extends from 28 to 60.6"

Miller HD Ground Spreader for HD MB 1-Stage Tripod

The HD Ground Spreader from Miller is designed for use with the HD MB 1-Stage Tripod. It allows for rapid setup and pull-down by keeping tripod legs at an equal or preset distance relative to each other.

Compatibility

HD MB 1-Stage Tripod (2110)

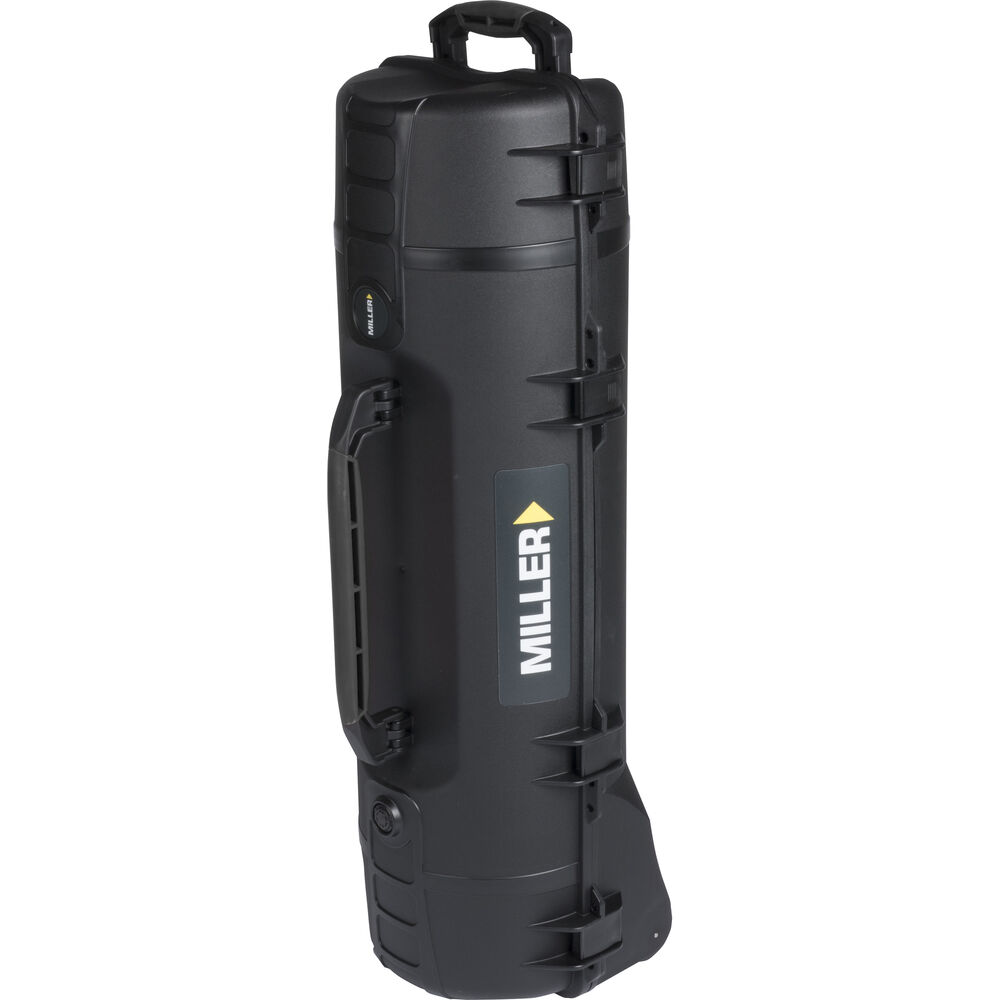

Miller Long Smart Tripod Case with Wheels for 1 Stage HD Systems (Black)

Store, transport, and protect a select Miller system tripod with the black Miller Long Smart Tripod Case with Wheels for 1 Stage HD Systems. The case features a latch closure, inner padding, a neoprene O-ring, an automatic air pressure valve, and an IP67 watertight rating. For strength and durability, the case is constructed from special polymers and aluminum. Carry the case with the top and center handles or roll with the built-in wheels.

• Watertight (IP67), resistant to dust, moisture, acids and sand.
• Ergonomic handle made of PP SEBS material with steel pins to provide a strength and ergonomics.
• Automatic valve which automatically adjusts the air pressure inside.
• Internal O-ring made of neoprene PA66 makes the suitcase totally waterproof.
• Materials: made of a patented material given by a special compound based on polypropylene TTX01, glass fiber and rubber.
• The case opens along the long side and uses 4 latches and can be locked (not included) if required.
