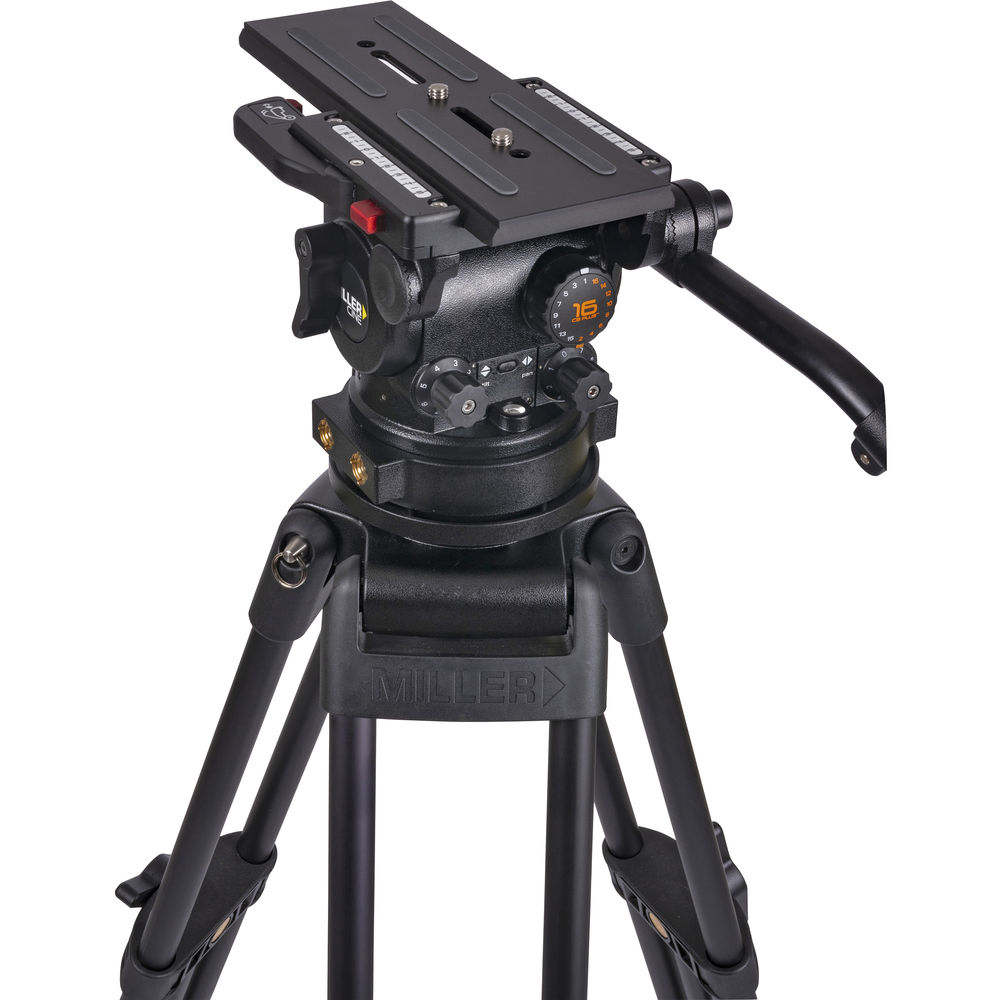

Miller's CiNX 7 and HDR MB 1-Stage Aluminum Tripod System features the CiNX 7 fluid head, Mitchell Base tripod legs and adapter, ground spreader, and a wheeled carry case.
The CiNX 7 supports 13.2 to 55 lb loads and offers 16 steps of counterbalance and 7 + 0 steps of pan and tilt drag. It features a flat base and comes with a 100mm bowl claw adapter. This head is designed to achieve ultra-soft starts and stops and balanced diagonal transitions. A sideload camera plate system allows you to efficiently mount and remove your camera.
The tripod has integrated stainless steel spiked feet and is optimized for a ground spreader only. With the spreader and head attached, the combined height range is 36.8 - 68.8" in a single stage of adjustment.
The wheeled case is IP67 watertight and can be rolled on built-in wheels or carried using the top or center handles. It's designed with a latch closure, inner padding, neoprene O-ring, and automatic air pressure valve.
Miller CiNX 7 Fluid Head
Miller's CiNX 7 Fluid Head features a payload of 13.2-55 lb, 16 steps of counterbalance, and 7 + 0 steps of pan and tilt drag. It's designed with a strength-to-size ratio that provides an optimal solution for the supported load capacity. The drag and counterbalance systems offer progressive and equal increments of drag and torque to ensure ultra-soft starts and stops and balanced diagonal transitions. The CiNX 7 provides a smooth and effective workflow for heavy camera setups.
The CiNX 7 features a 3/8"-16 threaded flat base and includes a 100mm bowl claw adapter. Additionally, optional 150mm bowl or Mitchell base adapters from Miller are also supported.
The pan/tilt controls and a bubble level are all illuminated at the press of an illumination button. The CiNX 7 comes with a GP23A type battery already installed for illumination but supports multiple other types as you will find in the user manual.
For ultimate efficiency with heavy cameras, the CiNX 7 has a sideload camera plate platform with a safety lock, and it comes with an ARRI-type camera plate that can be adjusted approximately 6". It also includes a rosette-mount telescopic pan handle while supporting two in total for dual-handed operation. On the sides, it provides four anti-twist ARRI accessory mounts. The head is made of lightweight yet high-strength die-cast aluminum and rigid composite polymers. It's finished with a durable black ripple and anti-corrosive pretreatment. It also has water- and dust-resistant sealing.
The head also has a very wide operating temperature range of -40 to 149°F.
Key Features
Miller HDR MB 1-Stage Alloy Tripod (Ground-Level Spreader Ready)
The Miller HDR MB 1-Stage Alloy Tripod is designed for cinematography with large cameras. It features a Mitchell base for a large fluid head, and is constructed from 24mm alloy tubing for a maximum payload of 210 pounds. The single locking stage uses rotary leg locks to maintain that payload. A compatible spreader is available separately.
Miller Mitchell Base Adapter for Skyline 70 Fluid Head
The Miller Mitchell Base Adapter allows the Skyline 70 Fluid Head to be connected with a Mitchell base and can be used with heavy-duty Mitchell tripods.
Miller HD Ground Spreader for HD MB 1-Stage Tripod
The HD Ground Spreader from Miller is designed for use with the HD MB 1-Stage Tripod. It allows for rapid setup and pull-down by keeping tripod legs at an equal or preset distance relative to each other.
Compatibility
HD MB 1-Stage Tripod (2110)
Miller Long Smart Tripod Case with Wheels for 1 Stage HD Systems (Black)
Store, transport, and protect a select Miller system tripod with the black Miller Long Smart Tripod Case with Wheels for 1 Stage HD Systems. The case features a latch closure, inner padding, a neoprene O-ring, an automatic air pressure valve, and an IP67 watertight rating. For strength and durability, the case is constructed from special polymers and aluminum. Carry the case with the top and center handles or roll with the built-in wheels.
Camera Plate
Camera Plate Features | Quick Release |
Camera Plate Type | Sideload Plate |
Camera Mounting Screw | 2 x 3/8"-16 Male |
Balance Plate Sliding Range | 5.91" / 150 mm |
Safety Lock | Yes |
Plate Dimensions | 10.24 x 3.76 x 0.46" / 260 x 95.5 x 11.7 mm |
Head
Base Mount | 100 mm Half Ball 3/8"-16 Female |
Counter Balance | Incremental 15-Step Plus 0 |
Pan Handle Fittings | 2 x Rosette |
Bubble Level | 1 x Illuminated |
Accessory Mounting | 4 x ARRI Accessory Mount Female |
Pan & Tilt
Drag Control | Pan: Stepped 7-Step Plus 0 Tilt: Stepped 7-Step Plus 0 |
Drag Type | Fluid |
Vertical Tilt | +90° to -75° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
General
Load Capacity | 13.2 to 55 lb / 5.99 to 24.95 kg |
Operating Temperature | -40 to 149°F / -40 to 65°C |
Weight | 8.8 lb / 3.99 kg |
General
Head Mount Type | Mitchell Flat Base |
Maximum Working Height | 61" / 154.9 cm |
Minimum Working Height | 29" / 73.7 cm |
Closed Length | 37.2" / 94.6 cm |
Materials | Aluminum |
Weight | 13.2 lb / 5.9 kg |
Legs
Leg Sections | 2 |
Payload Capacity | 200.0 lb (90.7 kg) |
Mounting Base | Mitchell |
Packaging Info
Package Weight | 1.78 lb |
Box Dimensions (LxWxH) | 6.95 x 6.8 x 3.25" |
Material | Lightweight, machined extruded alloy |
Payload | 209 lb (95 kg) Maximum |
Length | Collapsed: 17" (43 cm) Extended: 26.5" (67.3 cm) |
Range | Footprint: Ø 34.1 to 53" (86.6 to 135 cm) |
Weight | 4.4 lb (1.9 kg) |
Center Column
Material | High-pressure resin, polymers, aluminum, and a neoprene O-ring |
Type of Closure | Latches |
Temperature Range | 40° - +176° F / -40° - +80° C |
Padded | Yes |
Carrying/Transport Options | Top handle, side handle, bottom wheels |
Dimensions | 11.2 x 13.2 x 44.4" / 28.5 x 33.5 x 112.8 cm |
Weight | 14.9 lb / 6.8 kg |
Packaging Info
Package Weight | 30.69 lb |
Box Dimensions (LxWxH) | 59.63 x 15.75 x 14.75" |
