OBSBOT Tail 2 AI-Powered PTZR 4K Live Production Camera

OBSBOT Tail 2 AI-Powered PTZR 4K Live Production Camera

OBSBOT Tail 2 AI-Powered PTZR 4K Live Production Camera

  • SKU : #J4U0OAB-2305-CW | MFR : #OAB-2305-CW | UPC : #768556690686
OBSBOT Tail 2 AI-Powered PTZR 4K Live Production Camera
OBSBOT Tail 2 AI-Powered PTZR 4K Live Production Camera
Features
  • Compact 4K IP/HDMI/USB/SDI PTZ Camera
  • 5x Optical Zoom, 12x Hybrid Zoom
  • 50MP 1/1.5" CMOS Sensor
  • AI Auto Framing/Auto Tracking 2.0
  • Capture up to 4K60, 1080p120 Video
  • Phase-Detection Autofocus, NDI Support
  • SD Card Slot, Mic Input, Tally LED
  • Horizontal-to-Vertical Lens Rotation
  • Remote IP and RS-232 Control
  • 5-Hour Battery Life

Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less

You Pay:
AED 4,800.00
VAT Excl.

OBSBOT Tail 2 AI-Powered PTZR 4K Live Production Camera

Add a powerful broadcast camera to your remote, home, or conference room environment that can follow you around the room with the OBSBOT Tail 2 AI-Powered PTZR 4K Live Production Camera. The Tail 2 updates its features from the Tail Air with a powerful 1/1.5" 50MP CMOS sensor; updated AI human/animal/object tracking, updated gesture control 2.0, HDMI/SDI/USB-C/IP streaming output, mic/line 3.5mm audio input jacks, NDI support, and high-quality, low-light performance.



AI Tracking

Improved intelligent tracking algorithm seamlessly keeps the subject in frame, enabling hands-free operation to concentrate on capturing outstanding video. The new "Only Me" feature ensures unwavering focus on your selected subject. For group scenarios, our enhanced AI algorithm delivers precise Group Tracking.



The improved Animal and Object Tracking features are now more accurate and intelligent than ever before, making it easier to show off over 30 animal types and over 200 object types.



Easy Tracking Controls

Starting tracking is now simpler than ever - just double-click your target in the Obsbot Start preview interface to instantly activate AI Tracking. With the improved recognition engine and expanded database, you can immediately lock onto any supported subject with minimal delay.



There are flexible tracking speed settings to match your subject's movement patterns. Adjust tracking speed across a wide range or create custom settings to ensure smooth, precise following regardless of pace.



Axis Control

For ultimate creative control, the Tail 2 features enhanced pan and tilt axis customization during AI Tracking. Fine-tune the speed of each axis independently on a scale of 1-10, or lock either axis for pure horizontal or vertical tracking.



This versatile control system helps you capture exactly the movement you need while preventing unwanted camera motion.



Auto Framing and Composition Lines

Experience smarter, more intuitive framing with Tail 2's enhanced AI technology. The new AI auto framing features powerful auto zoom capabilities with an impressive 3-24x range. From close-up portrait shots to long-distance captures, you can easily customize your composition to match any shooting scenario.



Tail 2's composition Lines feature provides real-time visual guides to enhance your framing. Easily adjust on-screen lines to reposition your target and achieve the perfect composition for your shooting environment and creative needs.

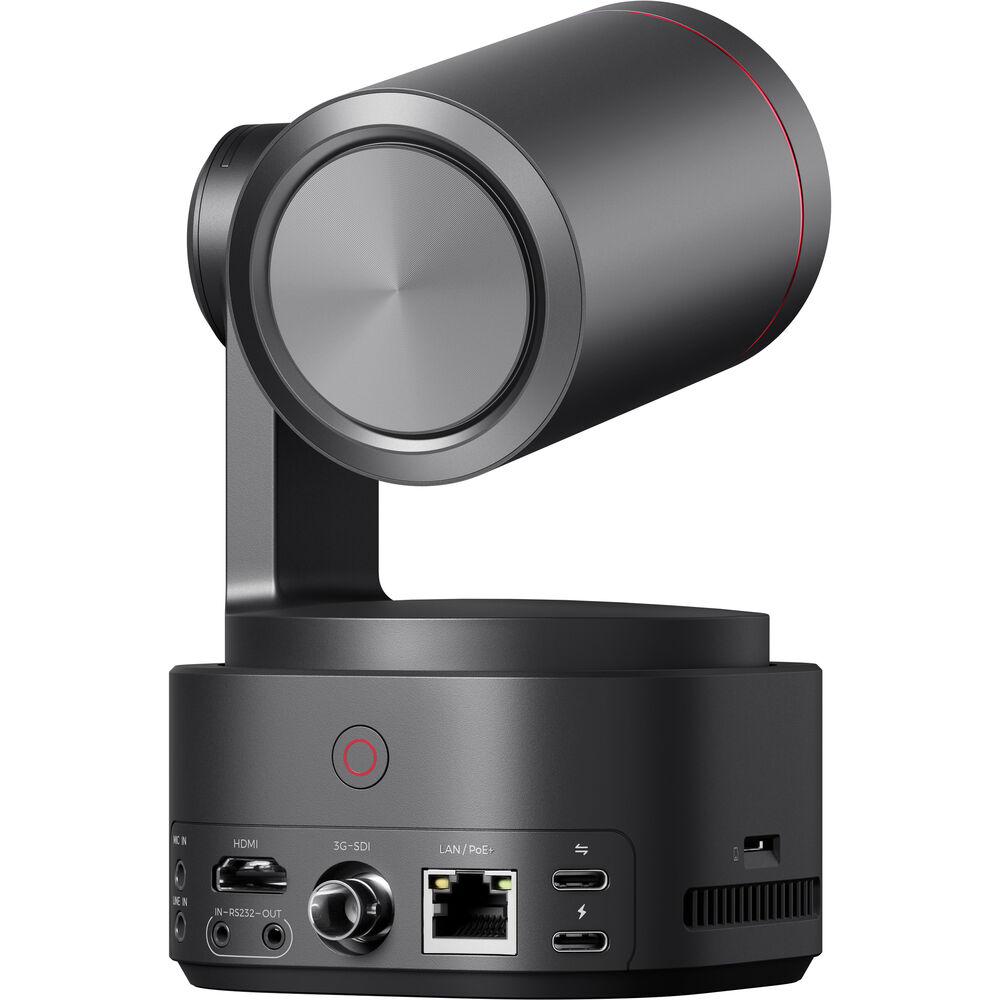

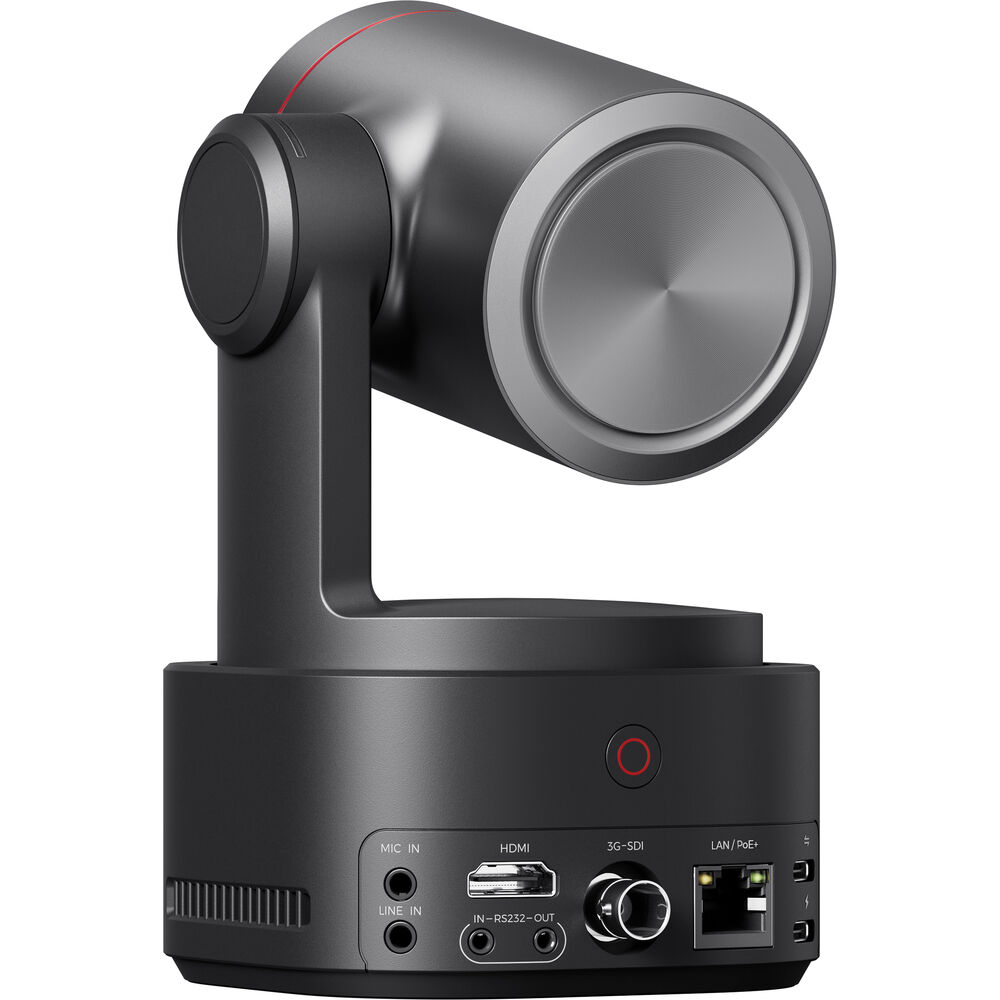

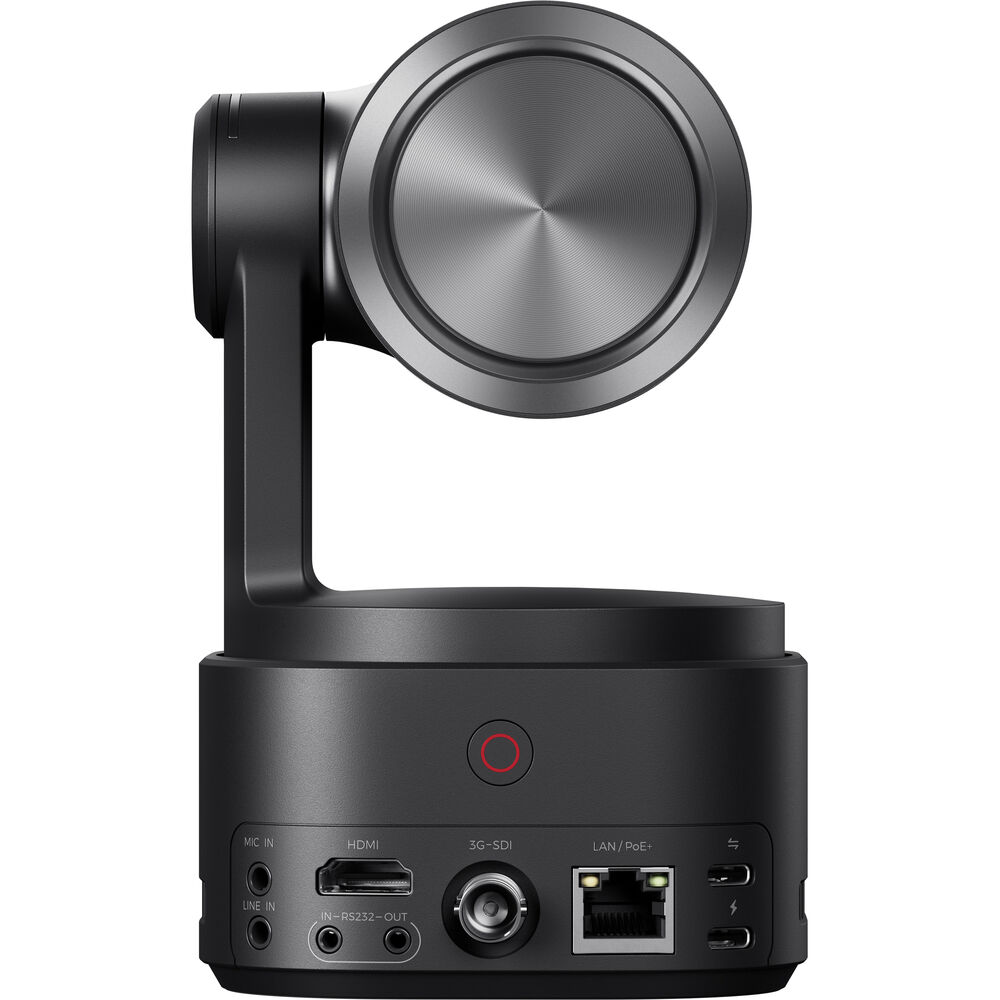

Multiple Interfaces

The Tail 2 includes several built-in interfaces, allowing it to have abundant compatibility. You can output its video signal directly to a screen or integrate it seamlessly into your current live stream workflow.



  • Use the HDMI port for outputting up to 4K60 and 1080p120
  • Other outputs include USB-C 2.1 Gen 1 and 3G-SDI
  • IP streaming
  • RS-232 input/output jacks
  • Mic and line inputs
  • USB power input
  • microSD card slot for recording

Gesture Control

Control the Tail 2 effortlessly from extended distances with intuitive hand gestures.



The device enables AI Tracking activation, zoom adjustments, and recording control through natural hand movements, making solo content creation seamless and efficient.



Accurate Focus and Zoom

The Tail 2's advanced all-pixel PDAF (Phase Detection Auto Focus) technology enables lightning-fast and precise autofocus, ensuring crystal-clear footage, whether you're tracking moving subjects or switching between multiple targets.



The enhanced Regular Focus and Face Focus modes provide improved accuracy and efficiency. The new Foreground Focus automatically prioritizes subjects closest to the camera, ensuring your intended target stays sharp and in focus throughout your shoot.

With 5x optical zoom and 12x hybrid zoom, this camera excels at capturing distant subjects. Even objects far away appear sharp and detailed, as if they were right in front of you, pushing the boundaries of long-distance videography.



Virtual Production with FreeD

Thanks to Tail 2's minimal angular vibration (±0.003°), the FreeD protocol delivers precise virtual camera data, ensuring stable and reliable real-time streaming and rendering for virtual productions.



Battery Powered

The upgraded 5000mAh battery in Tail 2 provides up to five hours of continuous video shooting and live streaming, giving you extended operation time with reliable power performance for your critical shooting sessions.



Control Options

The Tail 2 combines Wi-Fi 6 connectivity with bipolar antenna design to deliver ultra-fast and reliable wireless performance. This advanced technology ensures stable data transmission and responsive control for your streaming workflow, all without the need for cables.



Tally Light

The integrated tally light provides the on-air or program status of the camera. For content creators, streamers, and videographers, it's an indispensable ally in maintaining a smooth, professional workflow.



OBSBOT Ecosystem

OBSBOT provides a software suite to control the Tail 2, including Obsbot Start console software, Obsbot Live for multicamera streaming, and Obsbot Center for compatibility and control of all OBSBOT devices.



Simply connect your OBSBOT products for an extremely compact, convenient, and smart streaming setup. The OBSBOT ecosystem, with Tail 2 integration, simplifies multicam video production, camera control, program direction, and video distribution. Start professional live streaming anywhere, anytime, with minimal crew requirements.



Connect your OBSBOT Tail 2 to OBSBOT's suite of software for enhanced compatibility across various usage scenarios. Use Obsbot Start for a quick console experience, Obsbot Live for multicamera streaming setups, or Obsbot Center for comprehensive control over all OBSBOT products.

IN THE BOX

    • OBSBOT Tail 2 AI-Powered PTZR 4K Live Production Camera
    • USB-C 3.0 Cable
    • USB-C to USB-A 3.0 Adapter
    • USB-C Power Cable
    • 2 x 2.5mm Male to RS-232 MD8 Female Serial Cable
    • Limited 1-Year Manufacturer Warranty

Imaging

Image Sensor1/1.5"-Type CMOS
Sensor Resolution(8192 x 6144)Effective: 50 Megapixel (3840 x 2160)
Focus ControlAutofocus
Manual Focus

Exposure Control

Shutter Speed1/8000 to 1 Second
ISO/Gain SensitivityNative: 100 to 12,800
Precise Scan Rate ControlNo
White BalanceRange: 2000 to 10,000K

Lens

Focal Length22 to 110mm
Optical Zoom Ratio5x
Max Digital Zoom12x
Field of ViewDiagonal: 89 to 21°
Horizontal: 81 to 18°
Maximum Aperturef/1.8 to 3

Video Capture

External Recording ModesSDI/BNC / HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 23.98/25/29.97/30.00/48.00/50/59.94/60.00 fps
HD (1920 x 1080p) at 23.98/25/29.97/30.00/48.00/50/59.94/60.00/120 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 23.98/25/29.97/30.00/48.00/50/59.94/60.00/120 fps
Embedded AudioHDMI/IP/NDI/USB/BNC
Internal Recording ModesH.264/H.265/M-JPEG
UHD 4K (3840 x 2160) at 23.98/25/29.97/30.00/48.00/50/59.94/60.00 fps
1920 x 1080p at 23.98/25/29.97/30.00/48.00/59.94/60.00/120 fps
1280 x 720 at 50/59.94/60.00 fps
Audio RecordingYes
Broadcast OutputNTSC/PAL

Control

Pan/TiltPan: 340° (160 to 160°)
Tilt: 92° (-60 to 32°)
Tally LightYes
Supported Control ProtocolsFreeD
IP
NDI
Pelco-D
Pelco-P
RS-232
VISCA

Wireless

Wireless Range459.3' / 140 m (Wi-Fi)

Interface

Media/Memory Card SlotSingle Slot: microSD (Unspecified Type) [1 TB Maximum]
Video I/O1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
1x HDMI 2.0 Output
1x BNC (3G-SDI) Output
Audio I/O1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O1x RJ45 (Ethernet) Control/Data Input/Output
1x 2.5 mm Sub-Mini (RS-232) Control Input
1x 2.5 mm Sub-Mini (RS-232) Control Output
Built-In MicrophoneStereo
Built-In SpeakerNo

Power

PoE SupportPoE+ 802.3at
Power I/O1x USB-C (5 to 20VDC at 2 A) Input
Power ConsumptionPoE: 30 W

Environmental

Operating Conditions14 to 104°F / -10 to 40°C
Storage Conditions14 to 104°F / -10 to 40°C

General

Mounting1x 1/4"-20 Female
Dimensions (W x H x D)3.8 x 6.1 x 4.1" / 97.5 x 155 x 103.5 mm
Weight2.350 lb / 1.066 kg (Body Only)

Packaging Info

Package Weight5.23 lb
Box Dimensions (LxWxH)11.3 x 7.8 x 7.5"
