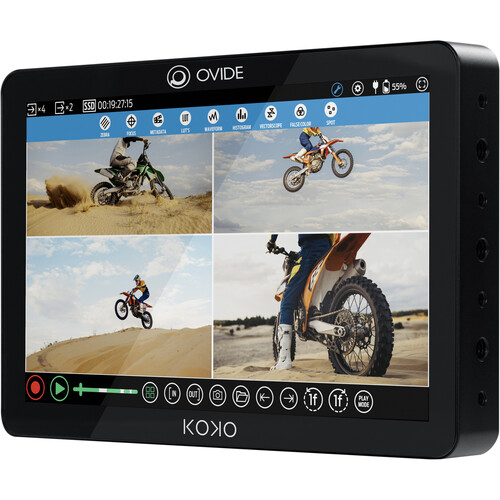

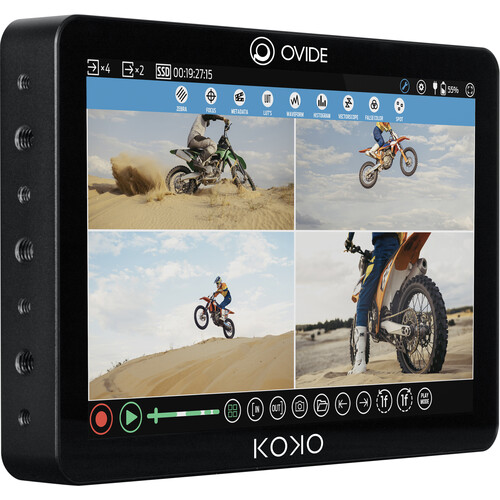

Monitor and record your production in 4K with the Koko 10" HDR Touchscreen Recording Monitor from OVIDE. Packaged with a Gold mount battery connector for powering via a separately available Gold mount battery or with the included power supply, the monitor features a 10.1" touchscreen TFT LCD that boasts 1920 x 1080 resolution, 1000 cd/m² brightness, and 900:1 contrast. With four 12G-SDI inputs and four 12G-SDI outputs, the Koko is designed with a removable SSD that allows you to record up to four 1080p60 feeds or a single 4K stream in Apple ProRes format with support for HDR and independent LUTs for each output. You can even record and play back mixed frame rates with ease.

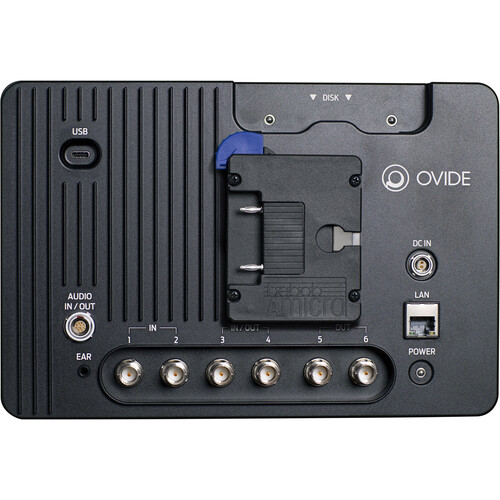

Packed with integrated video assist functions such as Rec-Stop-Play in/out, histogram, waveform, focus assist, zebra, false color, and more, the Koko supports automatic metadata reading and recording. This is very helpful in digital cinema production, where editors and other collaborators rely heavily on this pivotal information for a proper and comprehensive post-production workflow. The Koko is fully compatible with all OVIDE systems, and it is equipped with a bidirectional analog audio input/output and a 3.5mm TRS headphone output. A LAN Ethernet port and a USB-C port are integrated on the rear of the panel, but these are intended for future expanded functionality, and a sun hood is also included in the package.

A new firmware update is available, but remember to do a factory reset after installing this firmware (Settings/Factory/Reset menu), as this process will delete all metadata.

New Features with Firmware Update

• Dual playback
• Improved switching between Rec and Play modes
• ProRes codec selection
• SDI Rec trigger enable/disable option
• Improved timezone selection
• Tools settings for waveform and histogram
• Several bug fixes
