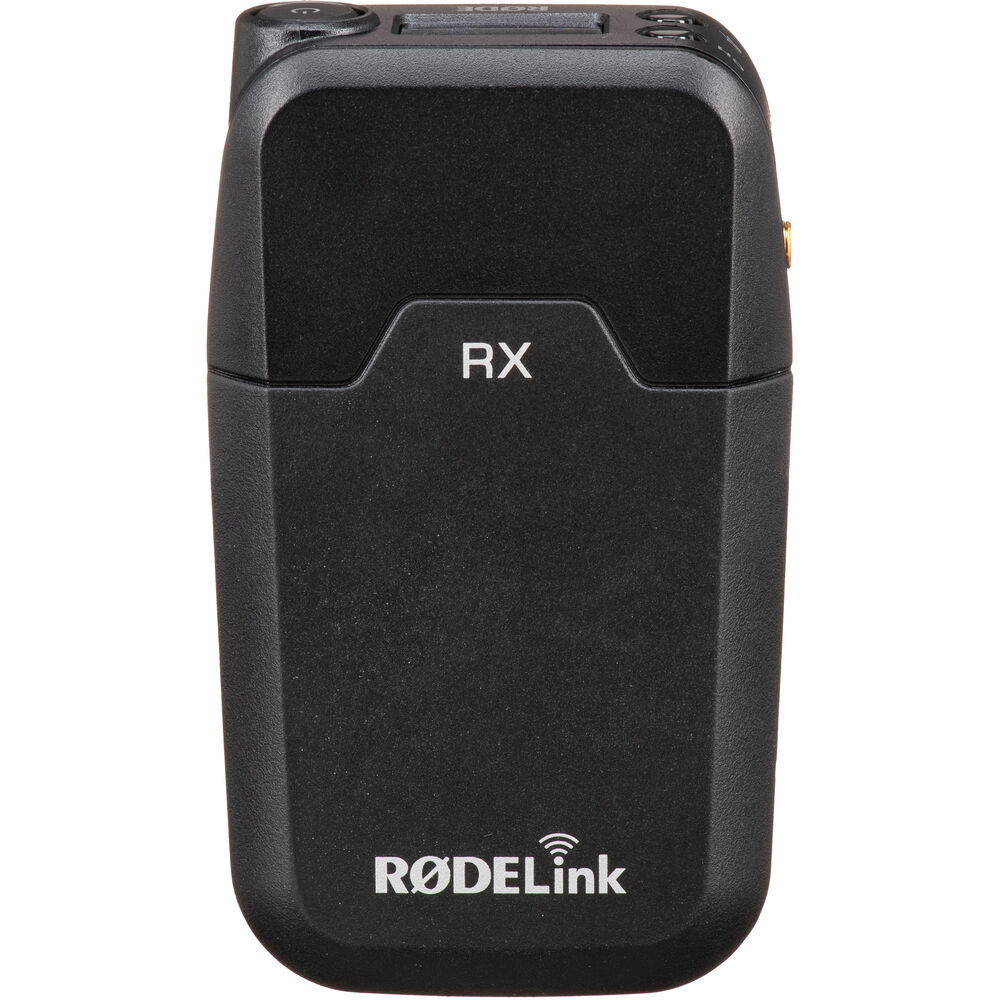

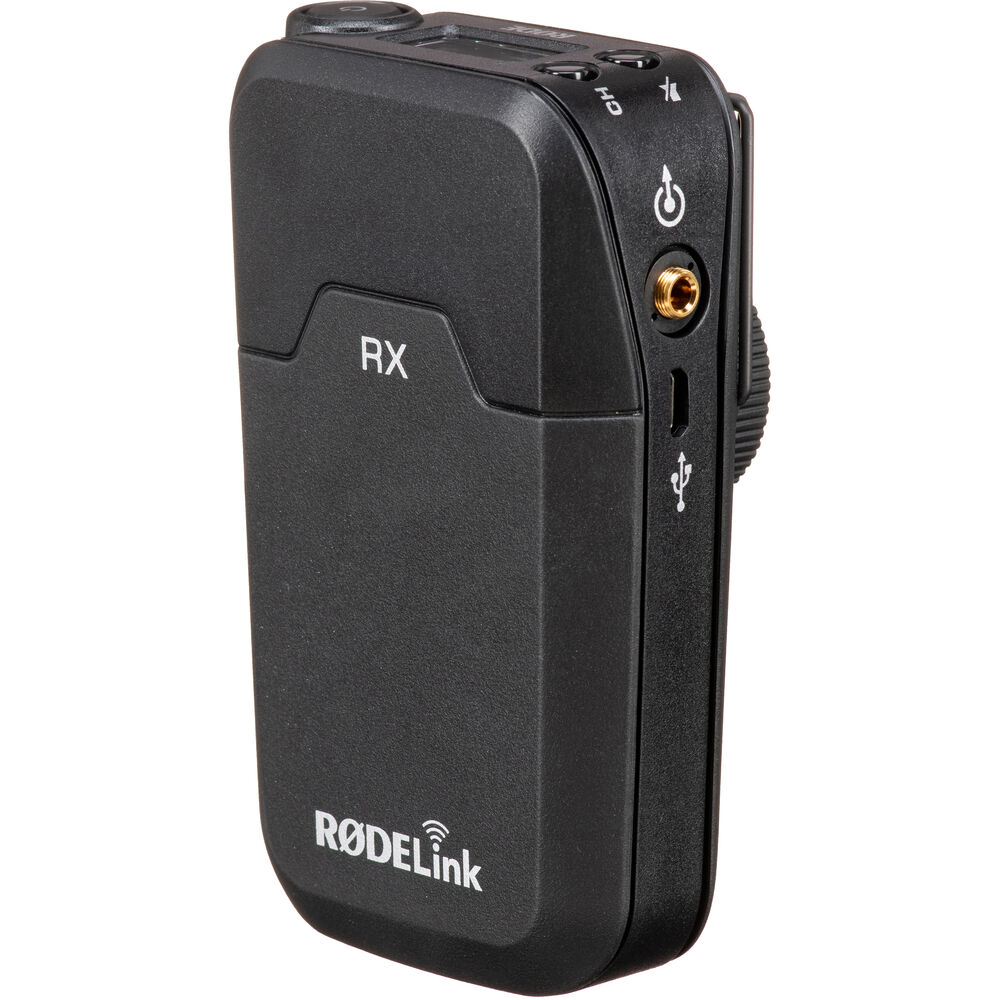

The Rode RX-CAM is a camera-mount wireless receiver compatible with RODELink digital wireless systems for videographers, podcasters, and mobile journalists.

Easy to use and fast to set up, the RX-CAM mounts on the shoe of your DSLR/mirrorless camera without adding much weight. Plug it into the 3.5mm mic input of your camera using the the included output cable. Additionally, the receiver can be clipped on a belt or mounted using the 3/8"-16 thread at the bottom.

The RX-CAM runs up to 30 hours on two AA batteries and can be powered via USB with a wall power source or a portable battery, while in operation.

Receiver with OLED Display

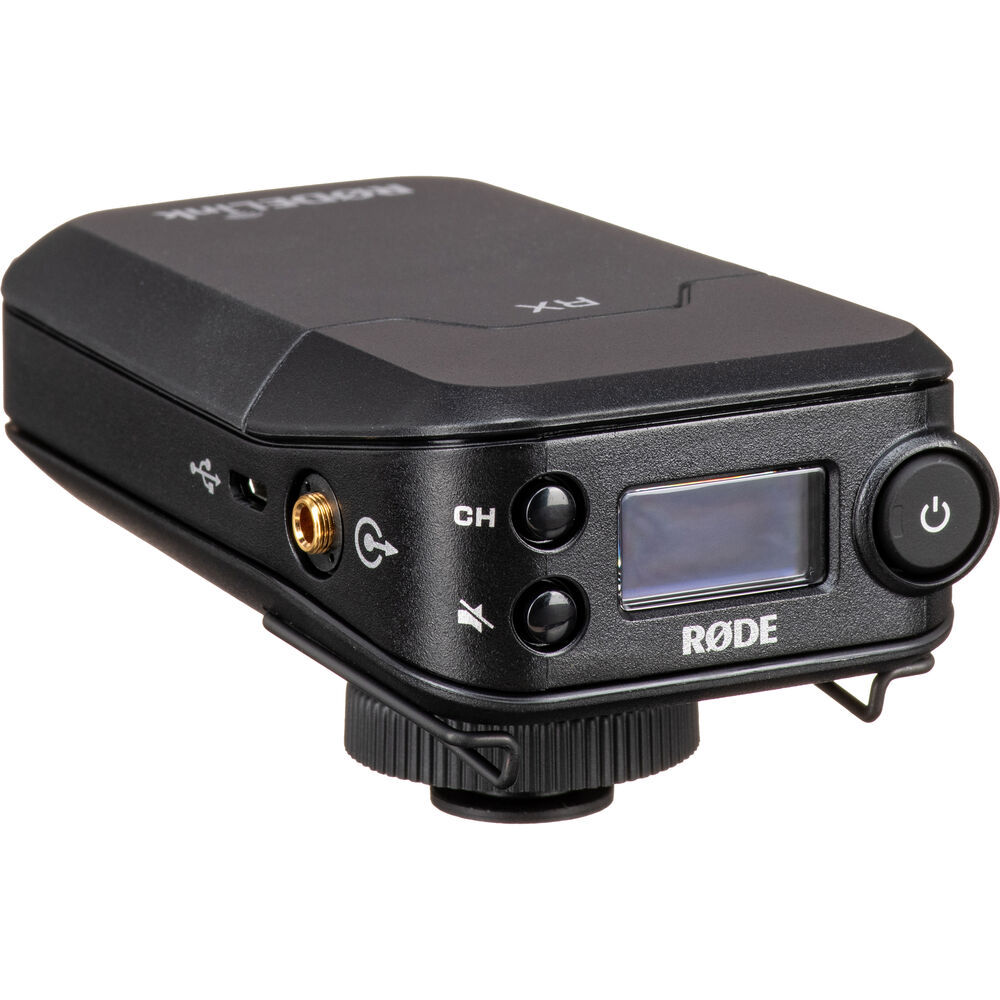

• The OLED display shows critical information for the receiver as well as the transmitter, including battery status, signal level, mute status, and channel selection for both units.
• The unit features a high-output level with 0 dB, -10 dB, or -20 dB gain adjustment, which lets you turn down the camera gain for cleaner recordings with less hiss.
• Lightweight (at 6.7 oz), the RX-CAM features a detachable shoemount with a rounded base that lets you conveniently angle the unit on top of your camera.
• The receiver’s shoemount adapter can be swapped, allowing it to be belt clipped, mounted on cameras and tripods, or used in an audio bag.

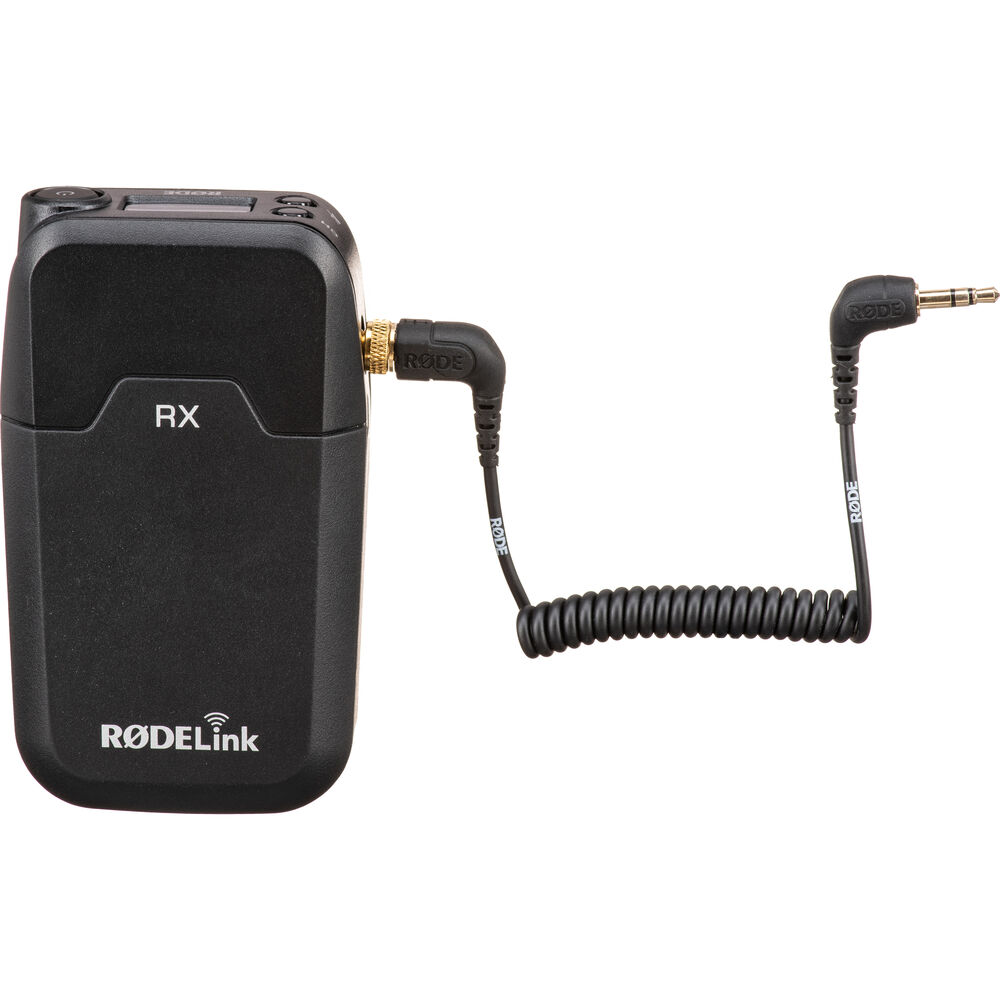

• The included cable connects the receiver's output to the 3.5mm audio input of any DSLR or mirrorless camera.
• Alternatively, the VXLR 3.5mm to XLR adapter (available separately) allows you plug your system into the XLR input of a camcorder or recording device.

Simple and Flexible Operation

• The RX-CAM uses an intuitive, single-button interface for frequently used basic functions including power and muting.
• Additional buttons offer more advanced controls—without elaborate menu diving—over audio levels, additional pairing, and channel selection (if you’re using multiple systems).

Other Features

• Up to 30 hours on two AA batteries.
• Also operates powered via USB with a wall power source or a portable battery.
• 4 ms maximum latency.
• 128-bit encryption for security.
• Designed and made in Australia.

Clean and Reliable Sound

• RODELink employs Series II 2.4 GHz digital transmission, which constantly monitors and hops between frequencies to maintain a clean transmission, at a range of up to 330’.
• To ensure clear communication, the system sends the audio on two separate frequencies (frequency diversity) and uses the cleanest signal.
• The system transmits a strong signal at the selected frequency to overcome interference even in busy 2.4 GHz (Wi-Fi) environments. For optimal performance, users are encouraged to maintain as direct a line of sight as possible between the transmitter and receiver.

Note: Each RODELink system creates a wireless peer-to-peer connection allowing the transmitter and the receiver to operate as a pair. This means that the transmitter can transmit audio to only one receiver at a time. Conversely, the receiver can only receive audio from one transmitter at a time.
