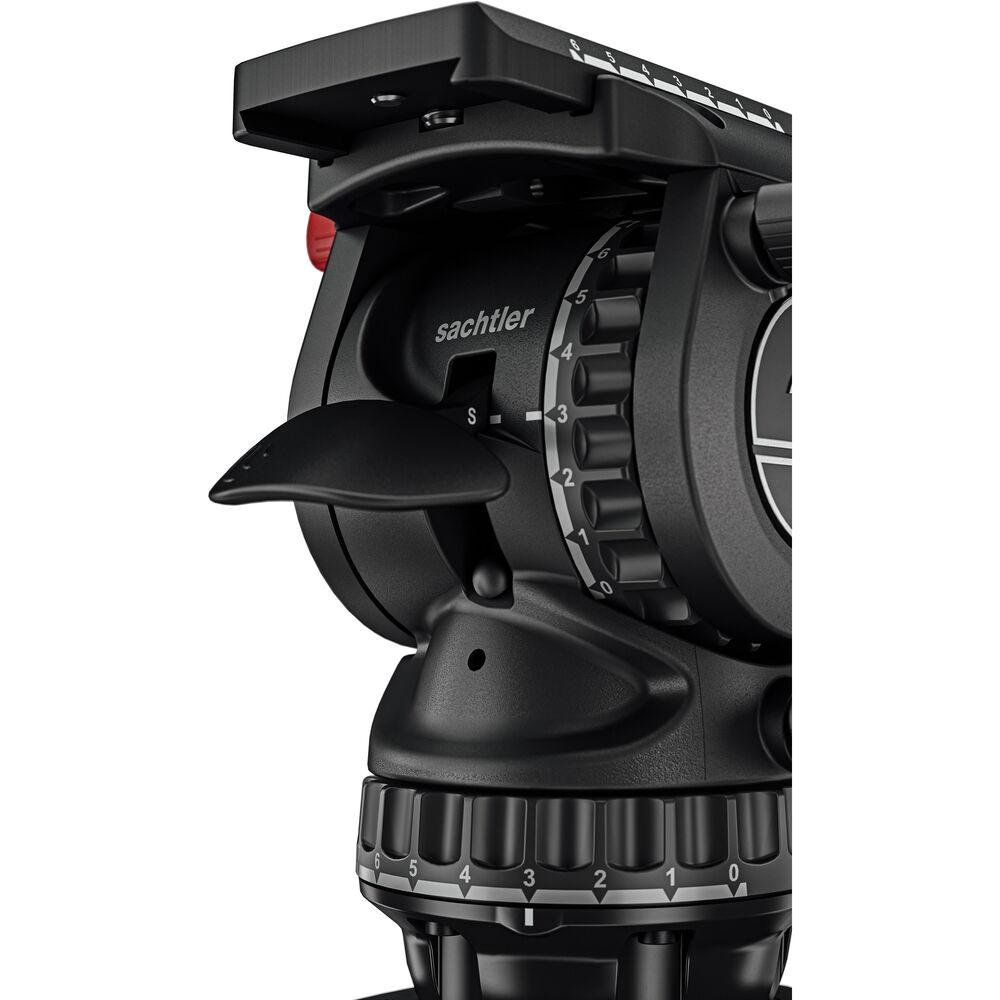

The aktiv8T Sideload Fluid Head uses Sachtler's truly innovative SpeedLevel technology to provide almost instant mounting and leveling of your camera rig on Sachtler 75mm tripod legs. The clamp and stud SpeedLevel system saves precious time leveling your camera rig by eliminating the need to screw on a tie-down knob. Designed for larger DSLRs, mirrorless, and digital cine-style cameras, the aktiv8T supports rigs weighing up to 26.5 pounds. This fluid head features 15 steps of counterbalance and seven steps of pan and tilt drag adjustment, plus zero settings for both balance and drag.

The SpeedLevel technology replaces the traditional head screw and tie-down design with a strong clamp built into the head bowl and a stud component that clamps onto your tripod bowl or other mounting platform, such as a slider. Simply grasp the large lever on the head and pull it up to release the clamp, then press it down to lock your head in place. Partially lifting the lever allows you to quickly and easily level the head.

When used with a separately available flowtech tripod, the activ8T enables you to spread the legs flat, getting as low to the ground as your head can without a tie-down knob getting in the way. You can also now mount your head directly onto a slider using a separately available aktiv system stud that screws onto support systems with a 3/8"-16 threaded stud.

The PrismBubble level system is pressed once to illuminate the bubble level to be illuminated or pressed twice to light up both the bubble level and the drag settings, a boon when working in darker environments. The bubble level also has a built-in prism, enabling you to more easily level the head when the legs are at set at maximum height or an awkward angle.

Mount your camera using the aktiv8T Touch & Go plate with both 1/4-20" and 3/8"-16 camera screws. A sliding range of 2.4" helps the head to quickly balance variously configured rigs. The Sachtler aktiv8T head also features a detachable pan bar that can be mounted onto the rosettes on either the right or left side of the head.

aktiv Fluid Head Compatibility

The aktiv6 and aktiv8 fluid heads are compatible with Sachtler 75mm tripods (flowtech 75 aktiv, Tripod 75/2 AL, SpeedLock 75, ENG 75/2 D, DA 75L)

Features

SpeedLevel Technology

Use the large integrated lever to quickly mount, level, and lock the head on your tripod or other base; lift up to release, lift partially to level, and press down to lock the head firmly in place

SpeedSwap Base

Centered around a metal stud, the SpeedSwap base clamps onto any 75mm bowl tripod or to the separately available slider base; additional bases can be purchased separately to fit a second tripod, dolly, or slider

PrismBubble Level

The illuminated PrismBubble is visible from any height or angle, saving you time when leveling at higher or lower positions

26.5 lb Capacity Fluid Head

This 26.5 lb capacity fluid head is suited for larger DSLRs, mirrorless MFT cameras, and pro-style digital cine cameras

Stepped Counterbalance and Drag

15 steps of counterbalance and seven steps of pan and drag plus zero settings for free spins and tilts

Touch & Go Plate

The Touch & Go platform provides quick camera mounting with 2.4" of travel for balancing your rig and both 1/4"-20 and 3/8"-16 camera screws
