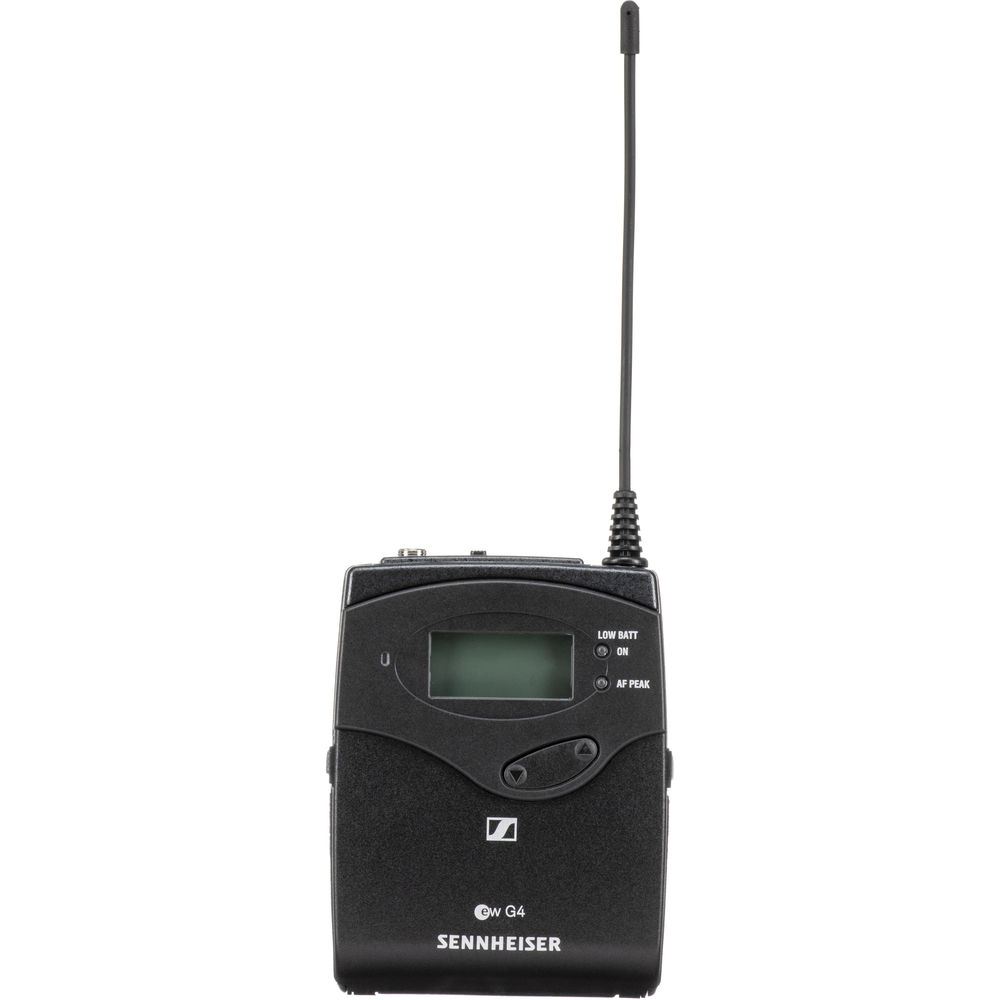

The Sennheiser SK 100 G4 is a waistband wireless transmitter compatible with the EM 100 G4 wireless receiver. Durable metal products are suitable for everyday use on stage by performers and presenters. It provides up to 8 hours of operation on two AA batteries, has a constant RF power output of 30 mW and a transmission range of up to 330 feet. The
SK 100 G4 features a level-adjustable locking 3.5mm connector for your choice of lavalier or headphone microphones, or adapter cables for guitar and bass.
When the sync function of the receiver is enabled, the transmitter and receiver are quickly connected to the same infrared frequency. The transmitter's backlit LCD displays important information, while a simple programmable mute function can be turned off to prevent any changes during the show.
The unit can also be powered by the rechargeable battery BA 2015 Accupack (sold separately). External users allow Accupack to charge without removing the transmitter - need L 2015 fast charger (supplied separately).
SK 100 G4 is backward compatible with all previous versions.
You can mix and match G4 / G3 / G2 / G1 receivers or bodypacks, holders and pluggable transmitters. Also compatible with EW 300/500 systems.
Wireless Technology | Analog UHF |
RF Frequency Band | A1: 470 to 516 MHz |
RF Bandwidth | 46 MHz |
Frequency Step Size | 25 kHz |
RF Channel Scanning | Auto-Scan |
Max Operating Range | 330' / 100.6 m |
Modulation | Wideband FM |
Transmitter
Transmitter Type | Bodypack |
RF Output Power | 30 mW |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Input (Lockable) |
Muting | Mute Switch |
Audio Input Level | 3 V RMS |
Gain Range | 60 dB (3 dB Steps) |
Frequency Response | 80 Hz to 18 kHz (Mic) 25 Hz to 18 kHz (Line) |
Sync Method | IR |
Antenna | 1 x Flexible Whip, Fixed (Beltpack) |
Power Requirements | Battery |
Battery Type | 2 x AA (Included) 1 x Sennheiser Accupack (Not Included, Replaceable) |
Approx. Battery Life | 8 Hours (Alkaline) |
Display & Indicators | 1 x Backlit LCD (Audio Level, Battery Status, Channel, Group, Mute, Signal Strength) |
Housing | Metal |
Operating Temperature | 14 to 131°F / -10 to 55°C |
Dimensions | 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm |
Weight | 5.6 oz / 160 g (with Batteries) |
Packaging Info
Package Weight | 0.71 lb |
Box Dimensions (LxWxH) | 13.95 x 3.2 x 2.9" |
