Teradek Prism 853 4K 10-Bit HEVC/AVC 12G-SDI Encoder Card
Teradek Prism 853 4K 10-Bit HEVC/AVC 12G-SDI Encoder Card
- SKU : #5CAG10-2853 | MFR : #10-2853 | UPC : #818264026564
Features
- Designed for Prism Rackmount Base System
- 12G-SDI Input, 12G-SDI Loop Output
- Supports Resolutions up to 4K60
- MPEG-4, AVC, H.265, HEVC Encoding
- AAC-LC Audio Compression
- RTMP/RTMPS, MPEG-TS, SRT Streams
- Embedded Audio Input
- Built-In Scaler and Deinterlacer
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
You Pay:
AED 10,247.95
VAT Excl.
VAT Excl.
Teradek Prism 853 4K 10-Bit HEVC/AVC 12G-SDI Encoder Card
This Prism 853 4K 10-Bit HEVC/AVC 12G-SDI Encoder Card from Teradek is a rackmount chassis card designed for use in the 1 RU or 2 RU Prism Rackmount Base System. The encoder card features one 12G-SDI input that supports 10-bit 4:2:2 video up to 4K60, encodes RTMP/RTMPS, MPEG-TS, and SRT streams using MPEG-4, AVC, H.265, and HEVC high-resolution compression, and it supports two channels of embedded audio with AAC-LC compression.
The card also features a built-in video scaler and deinterlacer to support a wide variety of resolutions, genlock signaling from the chassis, and it features 3.5mm audio line input and output jacks. The video is transmitted to optional Prism, Cube, Slice, Core, and T-Rax decoder cards in the Prism Rackmount Base System.
Compatibility
Teradek 1 RU or 2 RU Prism Rackmount Base System
Can transmit video to Prism, Cube, Slice, Core, and T-Rax decoders
Key Features
- 12G-SDI input and loop output supports up to 4K60 video
- 10-bit 4:2:2 support
- MPEG-4, H.264, AVC, H.265, HEVC video compression
- Bitrates from 250 Kb/s to 85 Mb/s
- Built-in video scaler and deinterlacer
- RTMP/RTMPS, MPEG-TS, Secure Reliable Transport (SRT) streaming protocols
- AAC-LC audio compression
- Up to 2 channels of audio

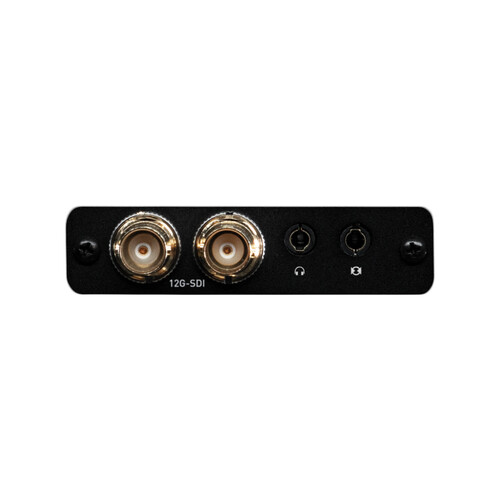

- 3.5mm line-level analog audio input/output
- Genlock signaling from chassis
- 15W power
IN THE BOX
- Teradek Prism 853 4K 10-Bit HEVC/AVC 12G-SDI Encoder Card
- Audio/Video Backplate
- Limited 1-Year Warranty
Teradek Prism Specs
| System Connection | Proprietary |
| Other I/O | 1 x 1/8" / 3.5 mm Input 1 x 1/8" / 3.5 mm Output |
| Input Video Format | SDI (10-Bit 4:2:2) DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
| Input Audio Format | Analog |
| Output Video Format | SDI (10-Bit 4:2:2) DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
| Embedded Audio | SDI: 2-Channel |
Standards
| HDR Compatibility | Not Specified by Manufacturer |
Hardware
| Power Consumption | Device: 15 W |
