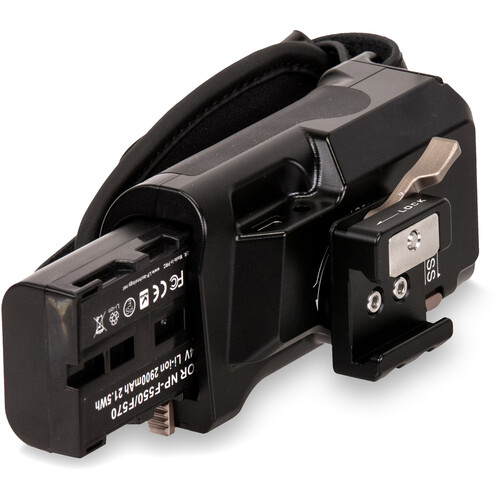

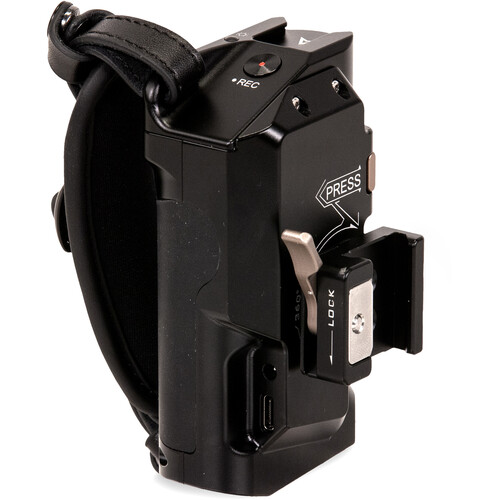

Power your Nucleus Nano lens motor and add start/stop control for select cameras with the type-IV Left-Side Advanced Power Handle with Run/Stop for F570 Battery from Tilta. This handgrip with a black finish comes with a NATO rail clamp, allowing you to attach it to a suitable camera or cage. The NATO clamp can be removed to reveal two threaded mounting holes that allow you to choose from a variety of attachment options for mounting on your camera cage or baseplate. The comfortable handgrip accepts an F55/F570 L-series battery internally, allowing you to power a variety of optional accessories, and it includes a run/stop cable. The handgrip also features a 12 VDC output port.
The integrated female mounting threads permit 360° rotation for adjustment of the handgrip's angle, and it allows you to choose your mounting attachment such as the Tilta Rosette Attachment, ARRI Locating Pin Attachment, NATO Rail Adapter, and more. An included adjustable wrist strap helps keep your hand comfortably on the handgrip.
Required Attachment Bracket
The handgrip requires an attachment device, which is not included, and it works with the following Tilta products:
Rosette Attachment
ARRI Locating Pin Attachment
NATO Rail Adapter
NATO Extender
Extender Arm
Dovetail Adapter (left)
Battery
The handgrip accepts an F550/F570 L-series battery (not included) for powering accessories.
Item Type | Left-Side Handgrip |
Rotation | Yes, 360° |
Built-In Controls | Remote Trigger, Focus Control |
Mounting
Attachment Method | Attaches via 2 Screw (Unspecified Type) |
Shoe Mounting | None |
Rosettes | None |
Rail Mounting | None |
General
Battery | 1 x Sony L-Series Battery (Not Included) Powers Focus Motor |
Inputs/Outputs | 1 x USB-C (8 VDC) 1 x DC Barrel (12 VDC) |
Materials | Aluminum, Silicone |
Dimensions | 4.2 x 2.4 x 1.7" / 106.2 x 60.8 x 43 mm |
Weight | 7.2 oz / 204 g |
Packaging Info
Package Weight | 0.665 lb |
Box Dimensions (LxWxH) | 5.5 x 4.3 x 2.8" |
