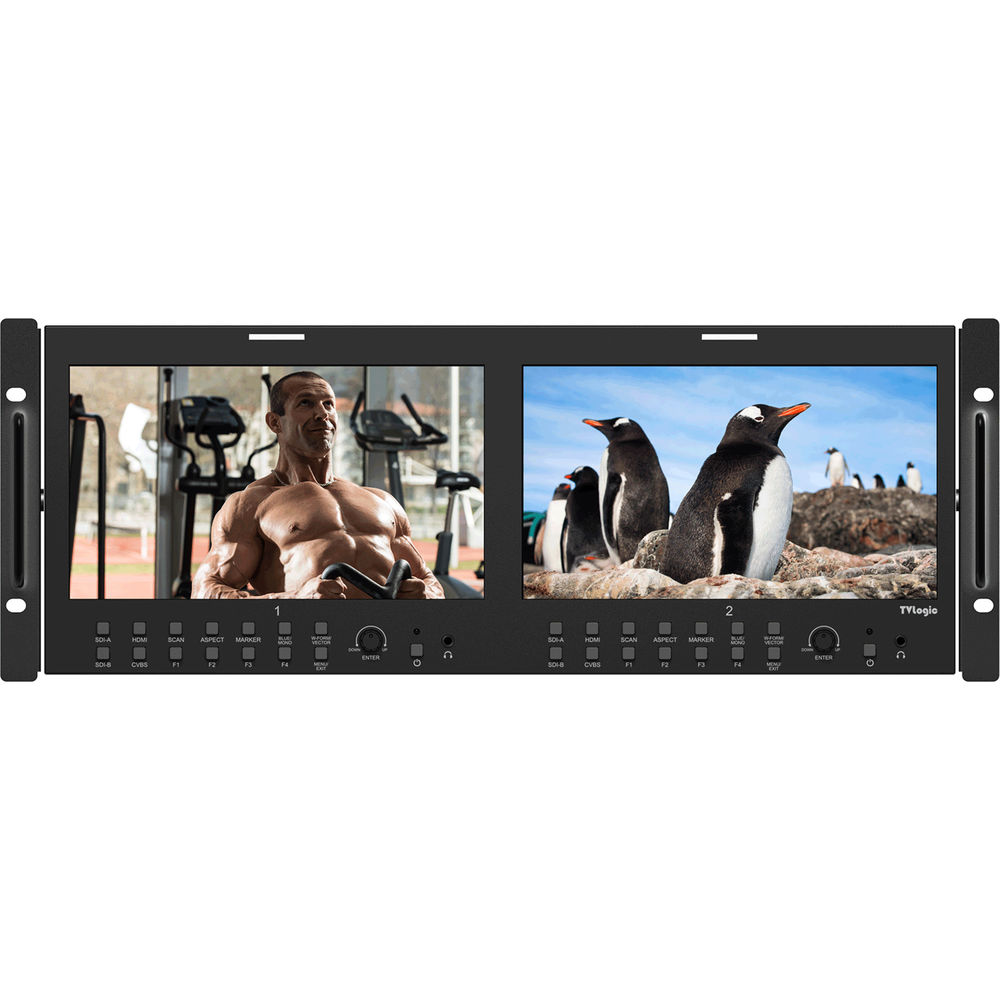

The TVLogic RKM-290A HD/SD Multichannel LCD Rack Monitor features two 9" IPS LCD screens with a 1920 x 1080 resolution. Both screens offer wide viewing angles of 176° (horizontal and vertical) with a maximum brightness of 400 cd/m² and contrast ratio of 750:1. The screens support multiple formats including 3G, HD-SDI, SD-SDI, and HDMI. Each screen features a built-in internal speaker and supports stereo audio out using a phone jack. This dual monitor can be VESA or rack-mounted.
Key Features
Display Size | 9" / 22.9 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Pixel Pitch | 0.103 mm |
Color Depth | 16.7M |
Viewing Angle (H/V) | 176°/176° |
Brightness | 400 cd/m² |
Contrast Ratio | 750:1 |
Display Area (H × V) | 199 x 112 mm |

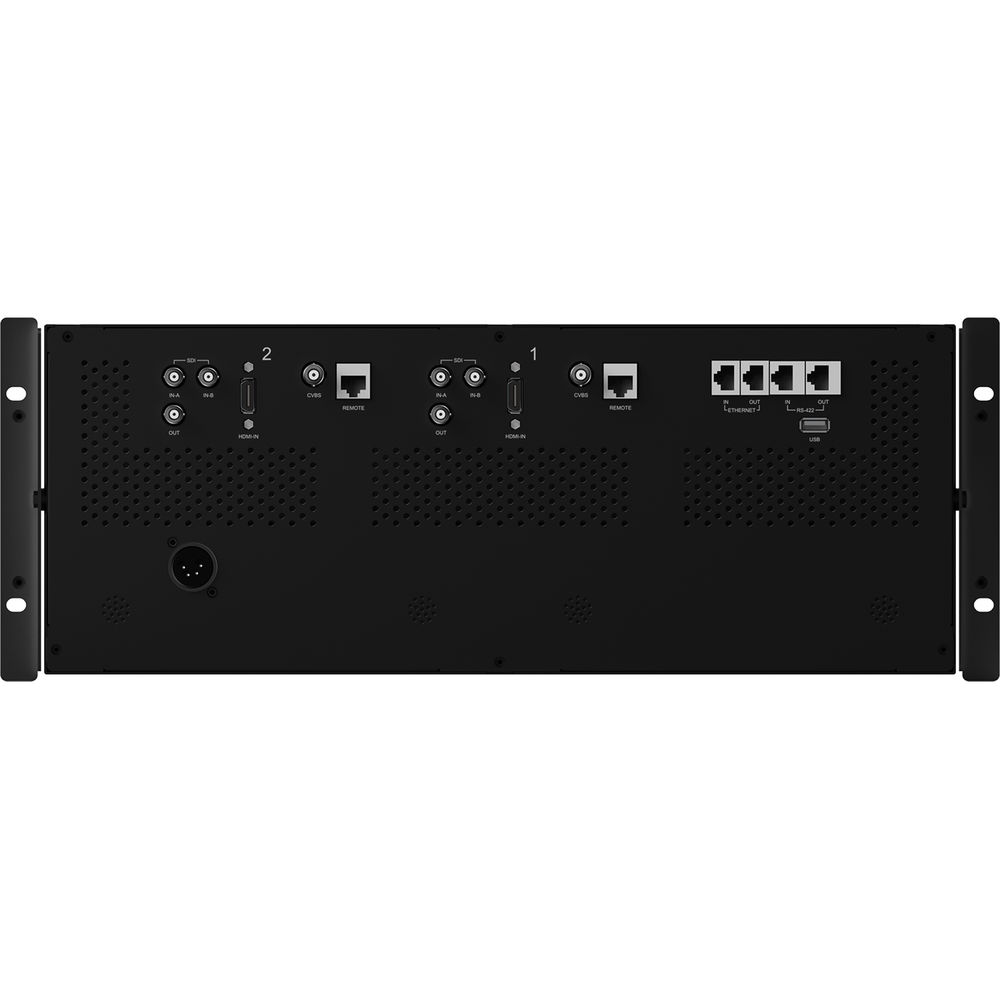

Input | 1 x HDMI 2 x BNC (3G-SDI A/B channel) 1 x BNC (CVBS) |
Output | 1 x BNC (3G-SDI selected channel) |
Input Signal | Analog: Composite 3G-SDI: 2.97 Gb/s HD-SDI: 1.485 Gb/s SD-SDI: 270 Mb/s HDMI: 1080p 60/50/30/25/24 1080i 60/50 720p 60/50 576p/i 50 480p/i 60 640 x 480 720 x 400 800 x 600 1024 x 768 1280 x 1024 1366 x 768 |
SDI Formats Supported | SMPTE-425M-A/B: 1080p 30/29.97/25/24/23.98 1080PsF 30/29.97/25/24/23.98 1080i 60/59.94/50 SMPTE-274M: 1080p 30/29.97/25/24/23.98 1080PsF 24/23.98 1080i 60/59.94/50 SMPTE-296M: 720p 60/59.94/50 SMPTE-260M: 1035i 60/59.94 SMPTE-125M: 480i 59.94 ITU-R BT.656: 576i 50 2K Format: 2048 x 1080p 24/23.98 2048 x 1080PsF 24/23.98 |
Audio In | Embedded audio Analog stereo (phone jack) |
Audio Out | Analog stereo (phone jack) Internal speaker (mixed mono) |
Functions Supported | FPGA Functions: 1:1 pixel mapping modes for SD/HD, 3G-SDI level A/B, audio level meter display, blue only, focus assist, H/V delay, key lock, luma (Y') zone check, marker, mono, range error, timecode display, UMD, various scan modes, waveform/vectorscope, zoom |
Closed Caption | CC-608 ANC, CC-608 LINE 21, CC-708 |
Other Functions | USB: Firmware updated via USB cable or USB flash drive Ethernet control support SDI-to-SDI conversion |
Power | 12/24 VDC |
Operating Temperature | 32 to 113°F / 0 to 45°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Dimensions | 18.9 x 6.55 x 1.86" / 48.02 x 17.50 x 4.74 cm |
Weight | 10.8 lb / 4.9 kg |
Packaging Info
Package Weight | 10.8 lb |
Box Dimensions (LxWxH) | 21.8 x 9.3 x 6.5" |
