Vaxis Storm 3000 Wireless TX/RX Kit (Gold Mount)
Vaxis Storm 3000 Wireless TX/RX Kit (Gold Mount)
- SKU : #VNC8VS19-3000DG- TR02 | MFR : #VS19-3000DG- TR02
Vaxis Storm 3000 Wireless TX/RX Kit (Gold Mount)

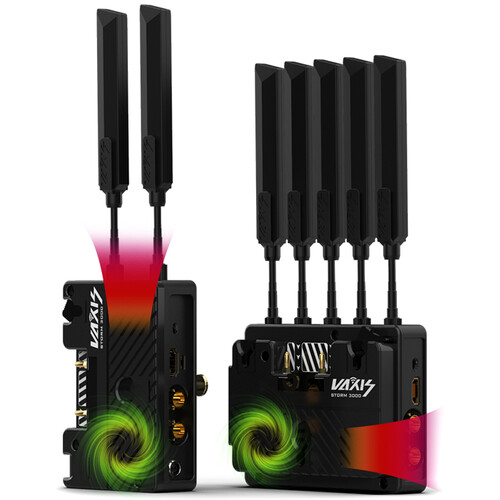

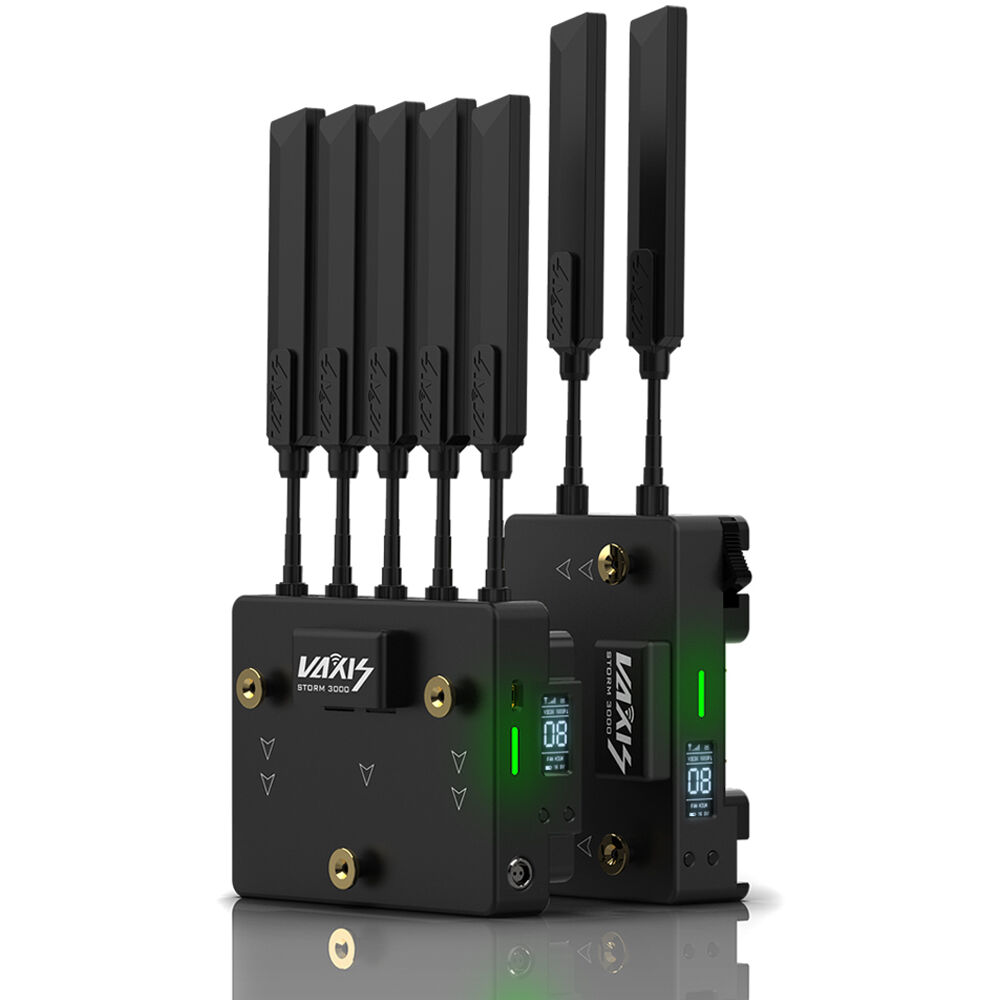

The Vaxis Storm 3000 Wireless TX/RX Kit is renowned for its ability to multicast to unlimited amount of receivers. Paired with a Storm 5G RF Channel Scanner, users can instantly see the number of usable camera pairings in the area. This kit includes a transmitter and a receiver, with the receiver featuring an integrated Gold mount plate.
IN THE BOX
- Vaxis Storm 3000 Wireless TX/RX Kit (Gold Mount)
Inputs / Outputs
| Antenna I/O | Transmitter: 2 x RP-SMA Male Receiver: 5 x RP-SMA Male |
| Video I/O | Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x BNC (3G-SDI) Loop Output Transmitter: 1 x HDMI 1.3 Input Receiver: 2 x BNC (3G-SDI) Output Receiver: 1 x HDMI 1.3 Output |
| Audio I/O | None |
| Power | Transmitter: 1 x LEMO 2-Pin Input Receiver: 1 x LEMO 2-Pin Input |
| Encryption | 128-Bit AES |
Wireless
| Wireless Range | 3000' / 914.4 m |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | 5.1 to 5.9 GHz |
| Latency | < 1 ms |
| RF Power | 21 dBm |
| RF Sensitivity | -75 dBm |
| Wi-Fi | None |
| Bluetooth | None |
| Mobile App Compatible | No *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
Format Support
| Video Format | HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i 480i |
| Video Standard Compliance | SMPTE 259M/274M/292M/296M/372M/424M/425M |
| Audio Format | 4-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
Power
| DC Input Power | 7 to 36 VDC |
| Battery Type | Transmitter/Receiver: 1 x Gold Mount |
| Power Consumption | Transmitter: 6.5 W Receiver: 6 W |
Mounting
| Mounting | 1/4"-20 Female |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
General
| Material of Construction | Metal |
| Dimensions | Transmitter: 5.2 x 2.7 x 1.1" / 131 x 69 x 27 mm Receiver: 5.3 x 3.6 x 1.1" / 135 x 92 x 27 mm |
| Weight | Transmitter: 10.2 oz / 290 g Receiver: 14.5 oz / 410 g |
Packaging Info
| Package Weight | 8.89 lb |
| Box Dimensions (LxWxH) | 14.2 x 13.9 x 6.8" |
