ARRI Camera Control Monitor CCM-1 Set

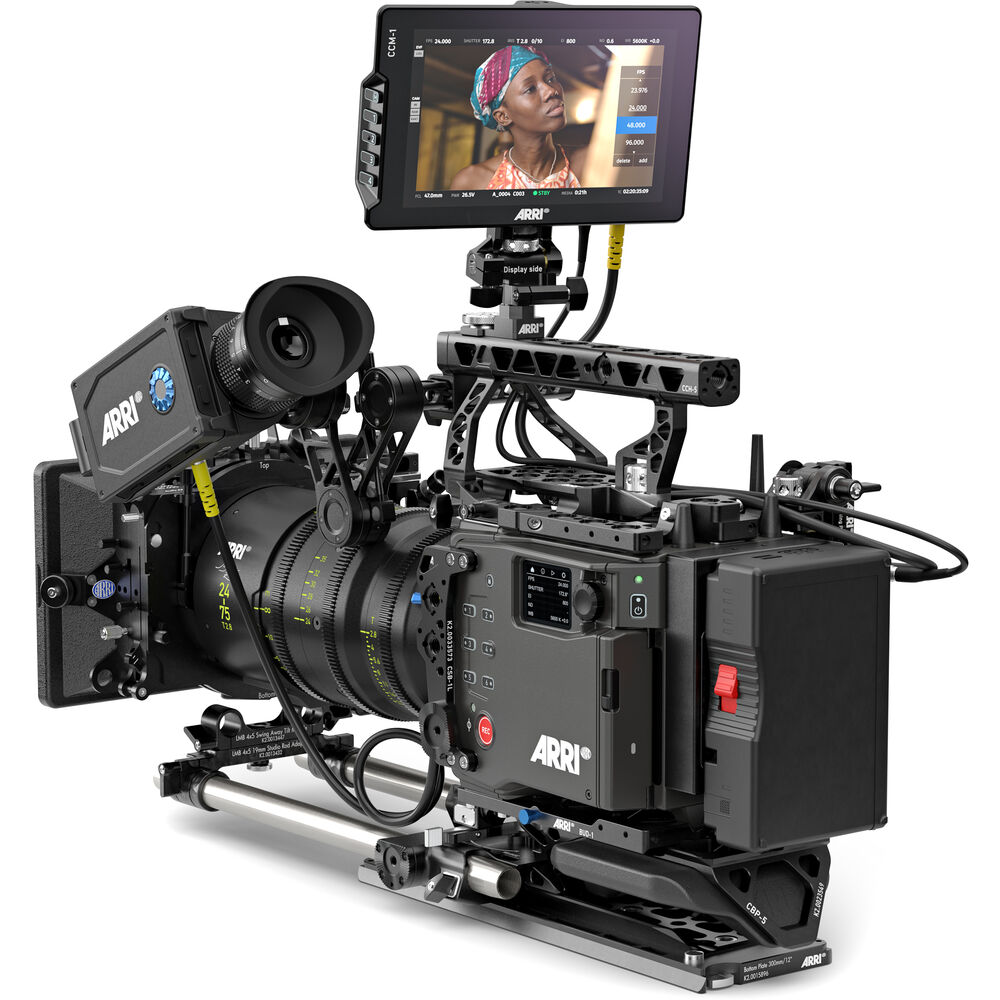

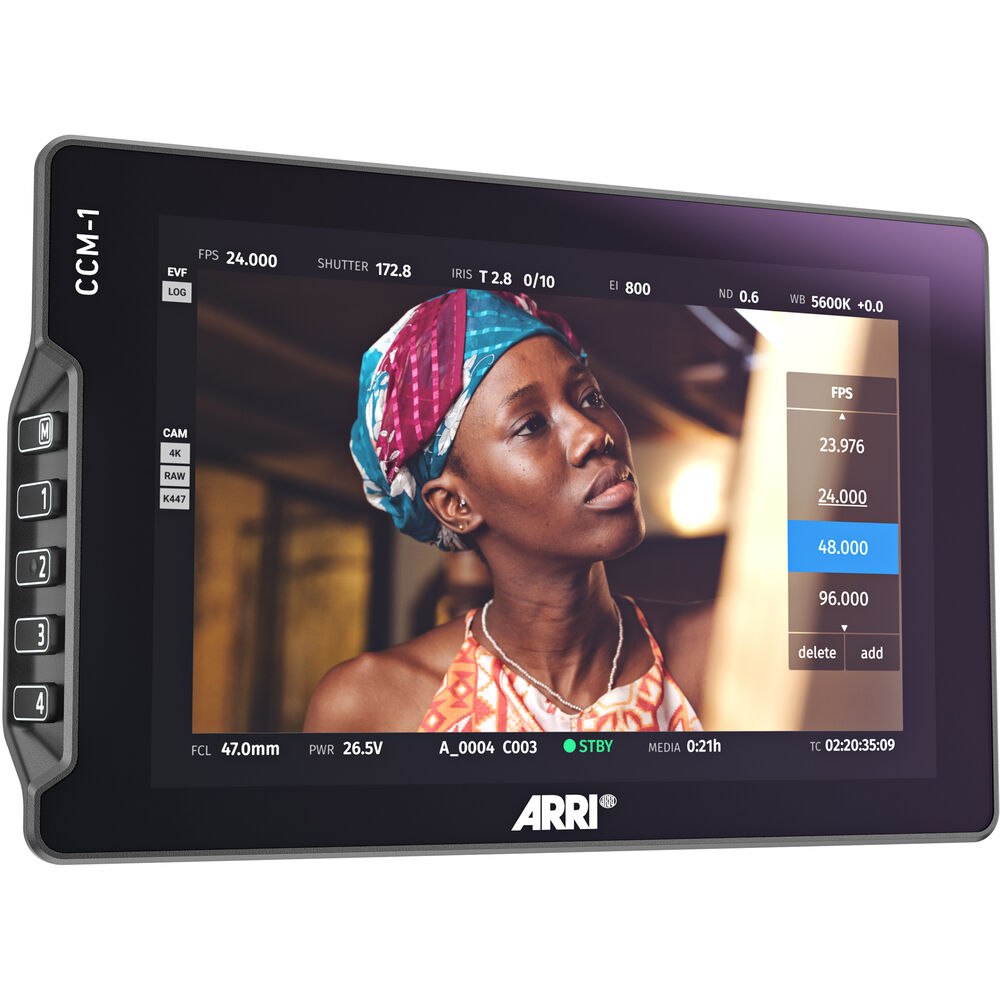

Use the compact Camera Control Monitor CCM-1 Set from ARRI to obtain both full camera control and menu access in a touchscreen display that is bright and sharp enough to use as an operating alternative to an EVF. This 7" onboard monitor features a single EVF-cable solution for imaging, control, and power for sleek rigging, BNC input and loop output, battery options, and a choice of touchscreen, side button, and joystick/button control. Display tools are based on the SmallHD monitoring tool kit familiar to many ACs and operators. This kit comprises the CCM-1 monitor, a folding sunshade, a screen protector, a tilting mount, a 1.5' VF cable, and a 1.6' RS power cable.

Full Camera Control Compatibility

The CCM-1 offers full camera control and novel viewing configurations for both the ALEXA 35 and ALEXA Mini LF digital cinema cameras. It can use the same viewfinder connector as the MVF-2 without taking up one of the camera's SDI ports, providing an alternate means of imaging, control, and menu selection, or it can be used alongside the MVF-2. The CCM-1 uses SmallHD PageOS, which enables LUTs to be added to a Page or Pages with the monitor LUT tool.

Note:

Both the ALEXA 35 and Mini LF will require an upcoming firmware update to be fully functional with the CCM-1.

Bright, Accurate Display

• The CCM-1 employs a 7" IPS LCD screen to display a bright, high-contrast 1080 x 1200 HD image with ARRI-quality color accuracy and subtlety.
• Display tools like focus peaking and false color affect only the image, not the status overlays, for easy viewability.
• Sensor-level functions like zooming use the sensor resolution for improved focus checking and more.
• The CCM-1 uses SmallHD PageOS which enables LUTs to be added to a Page or Pages with the monitor LUT tool.

Status and Home Screen

• Status changes can be viewed in real time as interactive settings overlaid on the live image.
• An updated home screen displays all relevant camera information.
• Each of the five main exposure parameters can be expanded for a live preview over your image.

Camera Menu and Playback Controls

• Access all your camera settings via the touchscreen, side buttons, or rear joystick and buttons.
• Playback control has been improved with an extended clip list and both menu and user button control.

Single-Hand Control

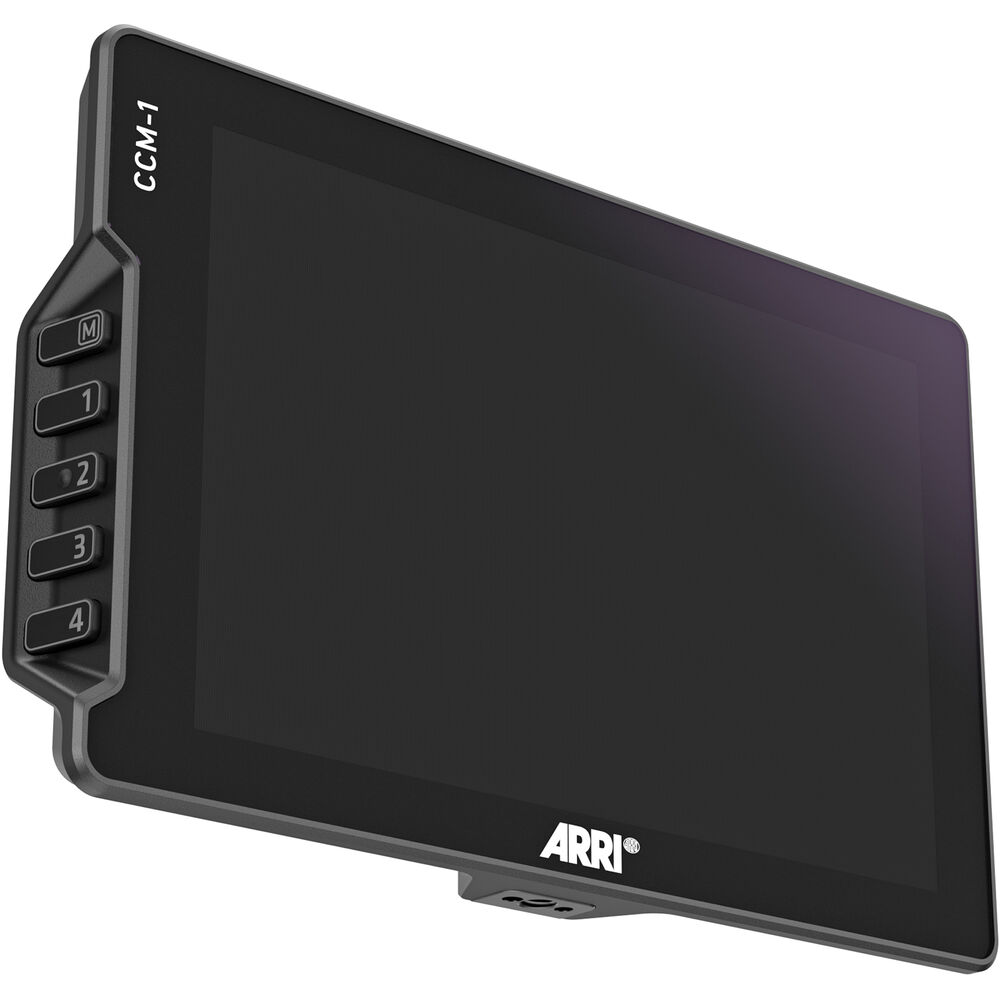

• Both the side buttons and the joystick and back buttons combination are positioned on the left side for easy, single-handed use.
• The side buttons include a dedicated Menu button and four user-assignable buttons.

Flexible Connectivity

• When used with your camera's VF connector, the CCM-1 leaves both SDI outputs free for other uses.
• The CCM-1 supports up to 33' VF cables that are ideal for distanced use for car rigs, confined spaces, cranes, and dollies.
• Connect the CCM-1 via its SDI ports to enable ALF-1 and ALF-2 application, access the full SmallHD tool set, and use with third-party cameras.

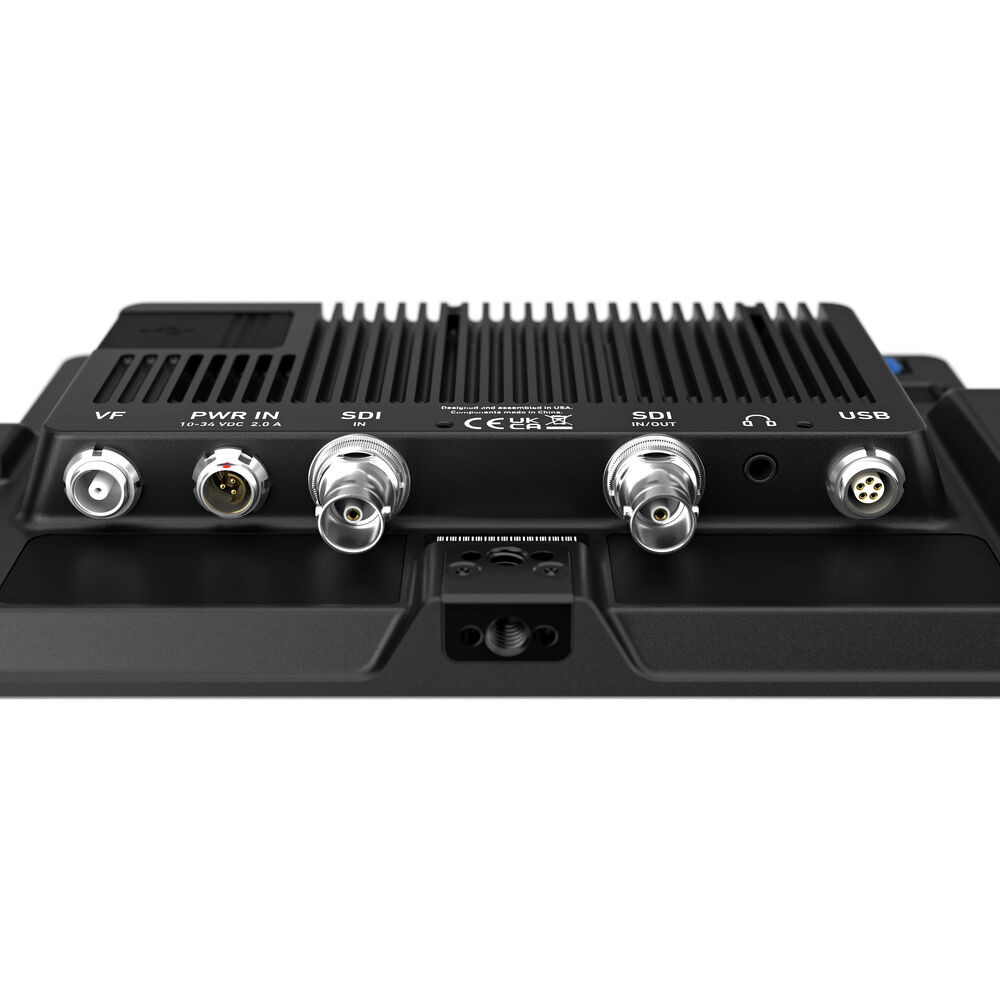

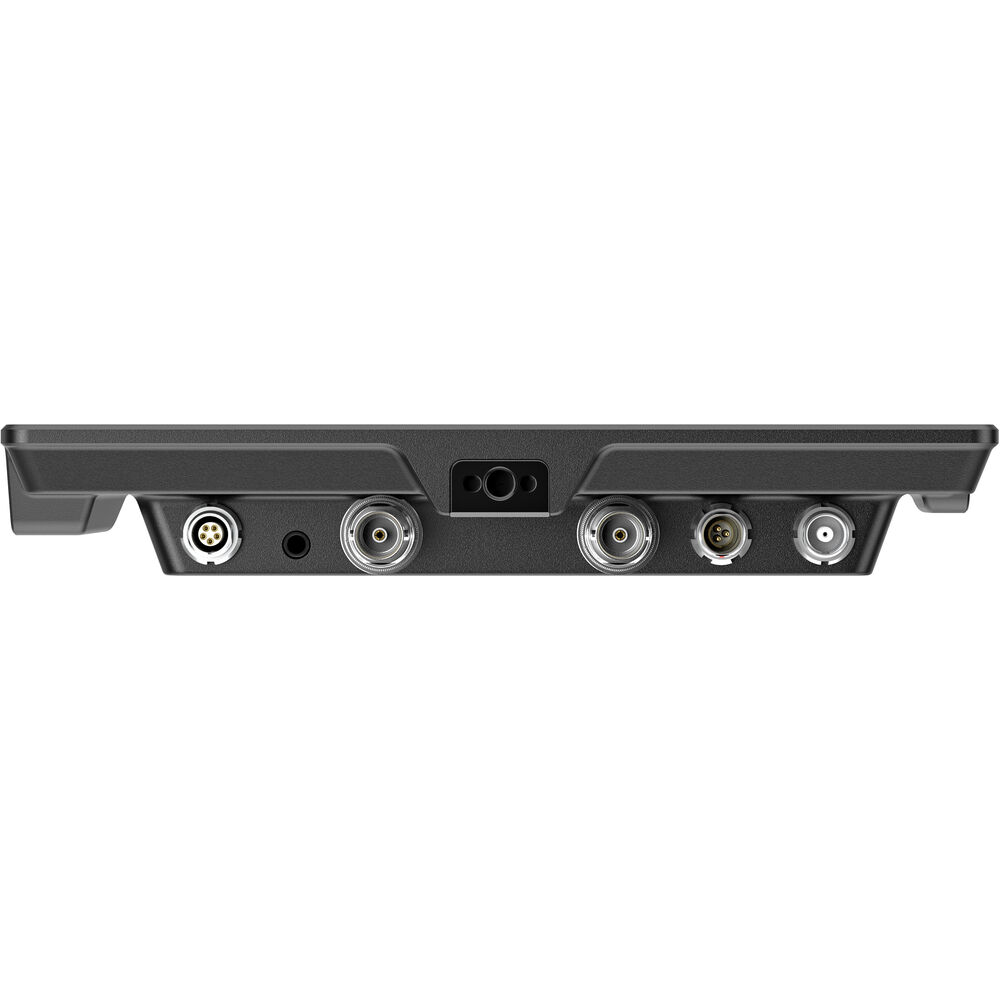

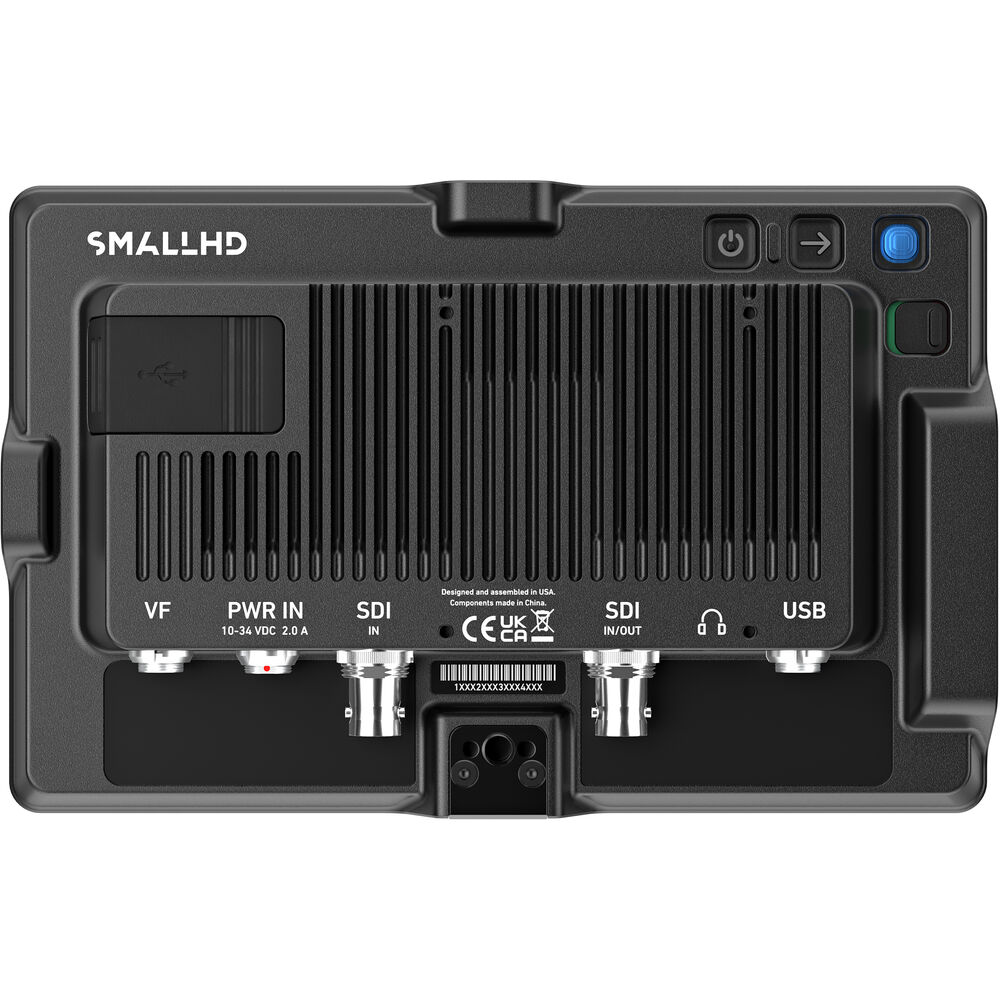

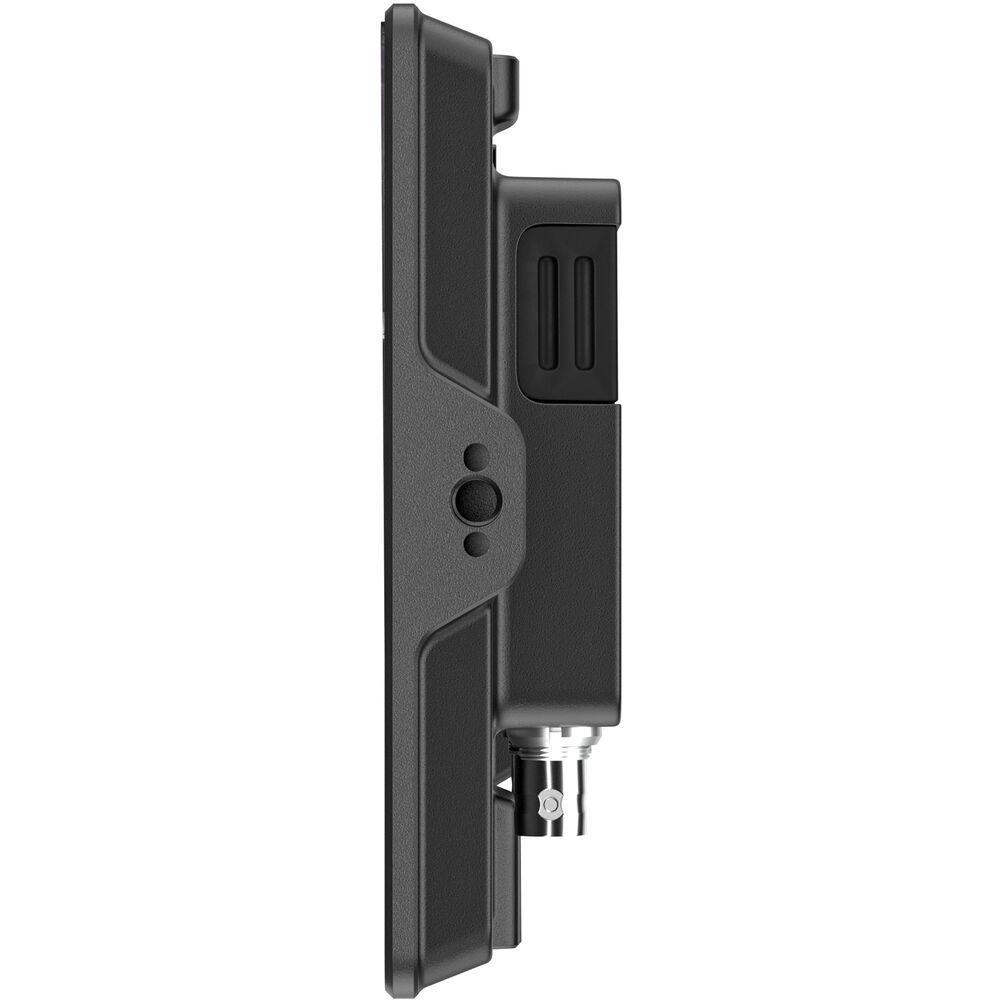

Versatile Interfaces

• The 3G-SDI input and loop outputs can be used for monitoring when using a Hi-5 or other wireless controller.
• A new 5-pin LEMO USB port can be used with the upcoming USB-to-Ethernet adapter to enable ALEXA Mini LF camera control while simultaneously using an MVF-2.
• The 3.5mm TRS audio jack provides the same headphone monitoring as the MVF-2.
• A user-replaceable steel block enables you to switch out the more frequently used ports in case of excessive wear.

Brightness

• When used with a single power/image/control VF cable, the CCM-1 provides the REC 709 standard of 100 cd/m2  brightness, which is suitable for studio and interior use.
• Add a power cable with DC input or an onboard battery using a separate plate to boost the brightness to 1300 cd/m2 for outdoor viewing.

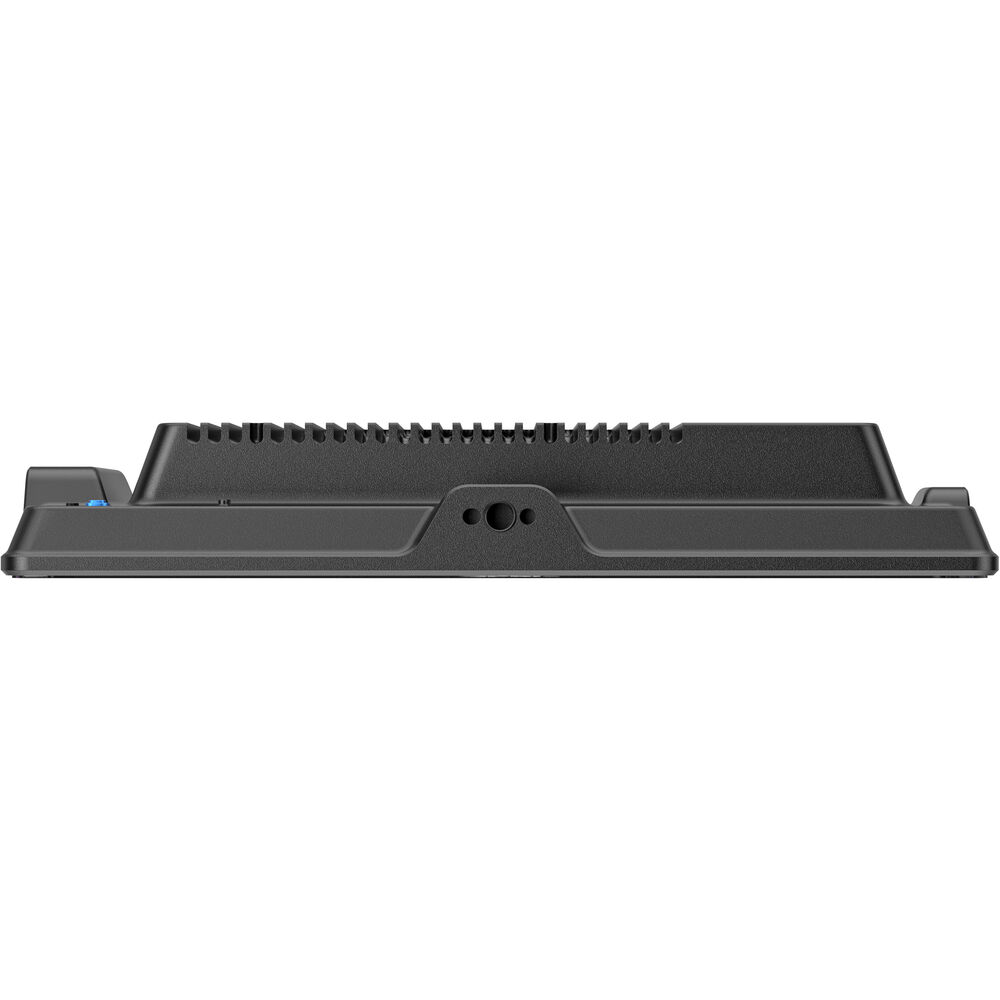

Mounting Options

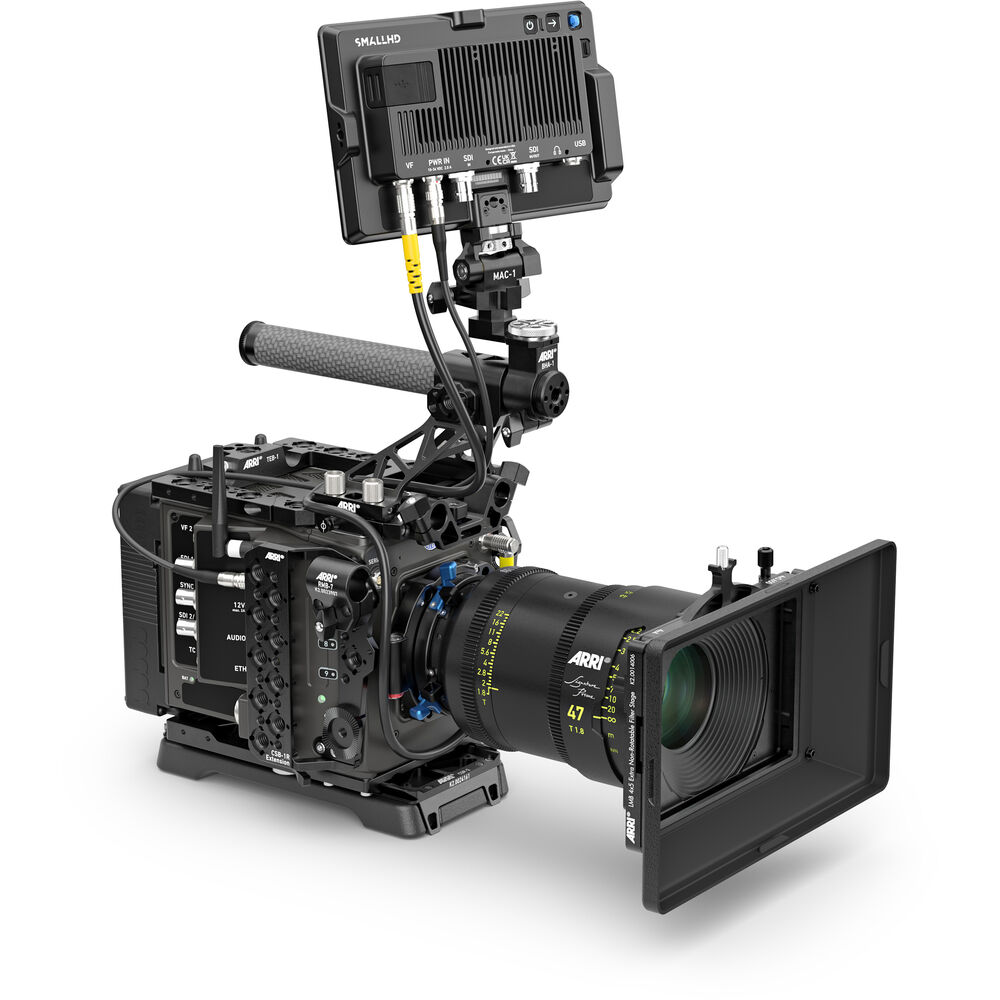

• Use the separately available VFA-4 adapter to attach the CCM-1 to standard ARRI viewfinder brackets.
• Mount the CCM-1 on the included MAC-1 arm for easy, single-handed repositioning with its friction lock.
