Astera AX2-50 PixelBar Wireless Linear Wash Fixture (20")

Astera AX2-50 PixelBar Wireless Linear Wash Fixture (20")

Name: Astera AX2-50 PixelBar Wireless Linear Wash Fixture (20")
Brand: ASTERA
SKU: SF-2443-R487
Availability: InStock

Brand: ASTERA

MFR: AX2-50

SKU: SF-2443-R487

Price Available Upon Request

8 Individually Controllable Pixels
Precision Optics from Gaggione
Internal 20-Hour Battery Pack
Wireless and Wired DMX Capability
Control via App or IR Remote
100% Color Consistency
Build, Trigger, and Beat-Match Programs
Scheduling, Anti-Theft, and DJ Features
Assembles in Numerous Ways
Supports Multi-Unit Setups

Items Included

Astera AX2-50 PixelBar Wireless Linear Wash Fixture (20")
2 x AX2 Foot
2 x TrackHanger
powerCON TRUE1 Cable

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Stage Light

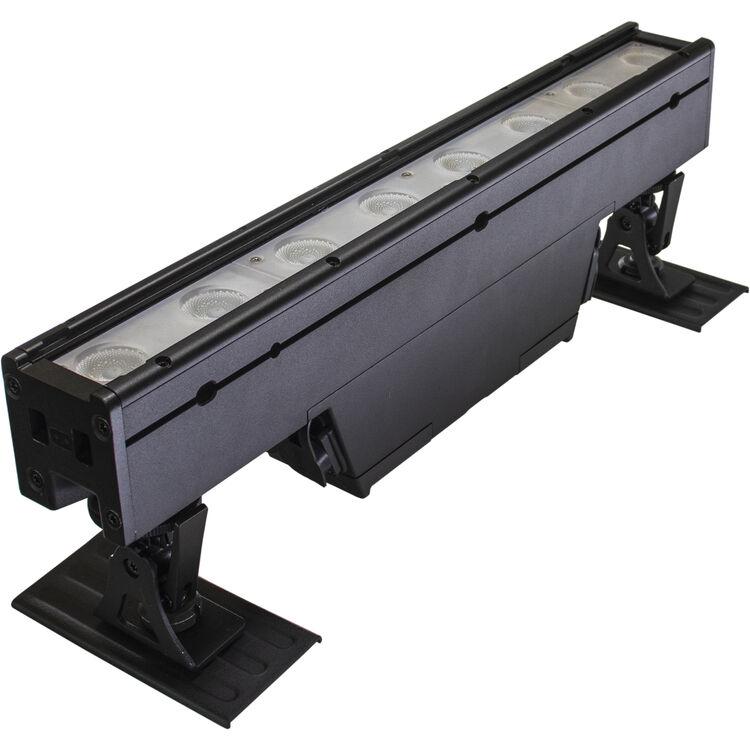

Built for versatility and high performance, the Astera AX2-50 PixelBar is a 20" long wireless linear wash fixture equipped with eight individually controllable pixels, 21° lenses from Gaggione, and the TITAN LED Engine, rendering it a highly capable LED bar for concerts, tours, corporate events, and more. With its internal 20-hour battery pack, wired and wireless DMX functionality, and support for control via the AsteraApp or an IR remote, the AX2-50 PixelBar can be smoothly integrated with a wide range of installations and workflows.

Each PixelBar provides 100% color consistency and precise color mixing from ceiling to floor, as well as advanced functions such as standby scheduling, anti-theft alarms, beat-matched effects, and programs. Using the BarConnect+ system, multiple AX2-50 PixelBars may be joined together while maintaining a concordant pixel pitch across the units. It comes with hanging brackets and removable feet to allow quick assembly in a variety of ways.

Astera System

Infrared remote, wireless DMX, and app work together to enable big setups. Your entire installation can be set up, monitored, and adjusted in a fast and convenient way.

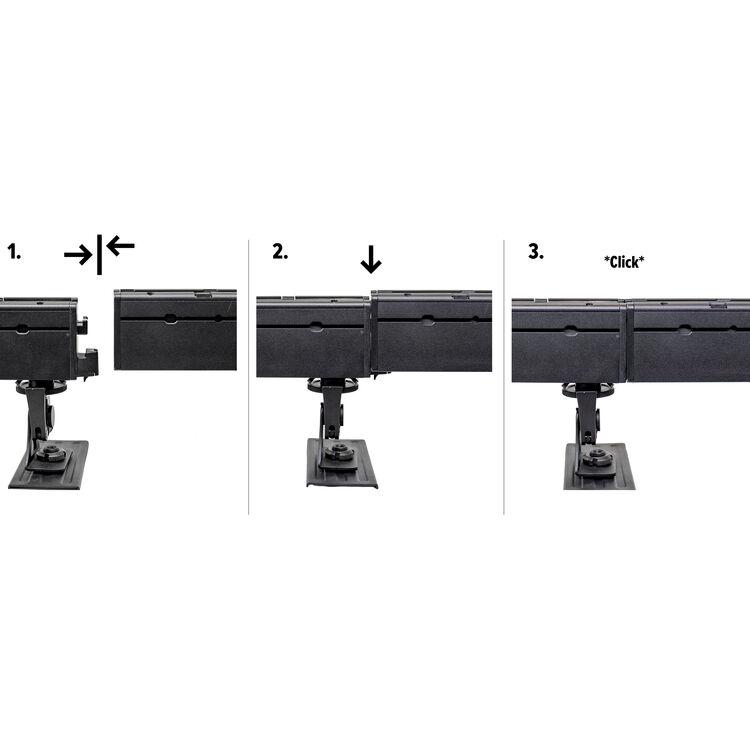

BarConnect+

Join several AX2s; they communicate to allow auto-addressing and flow sets.

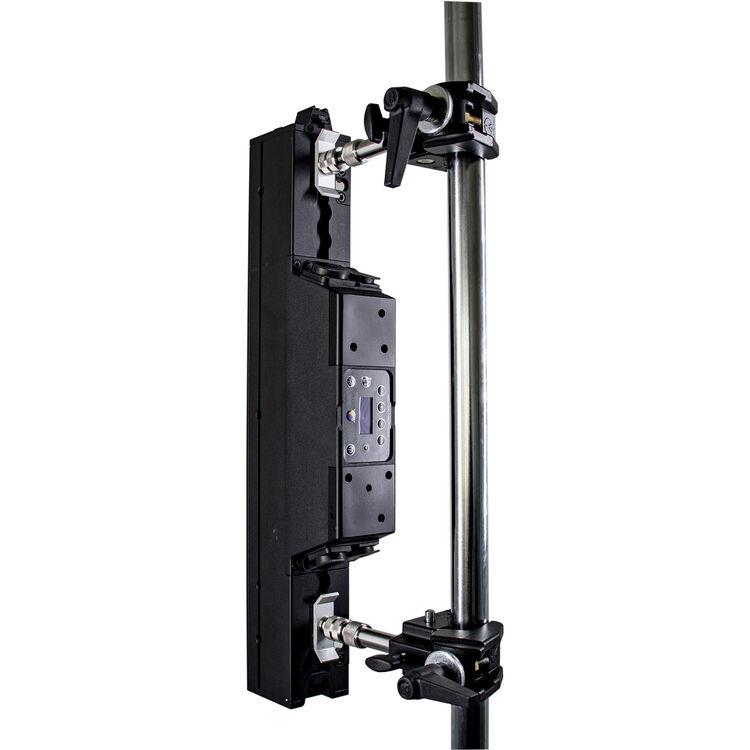

Airline Track

The Airline Track at the back and bottom allows attachment of mounting tools.

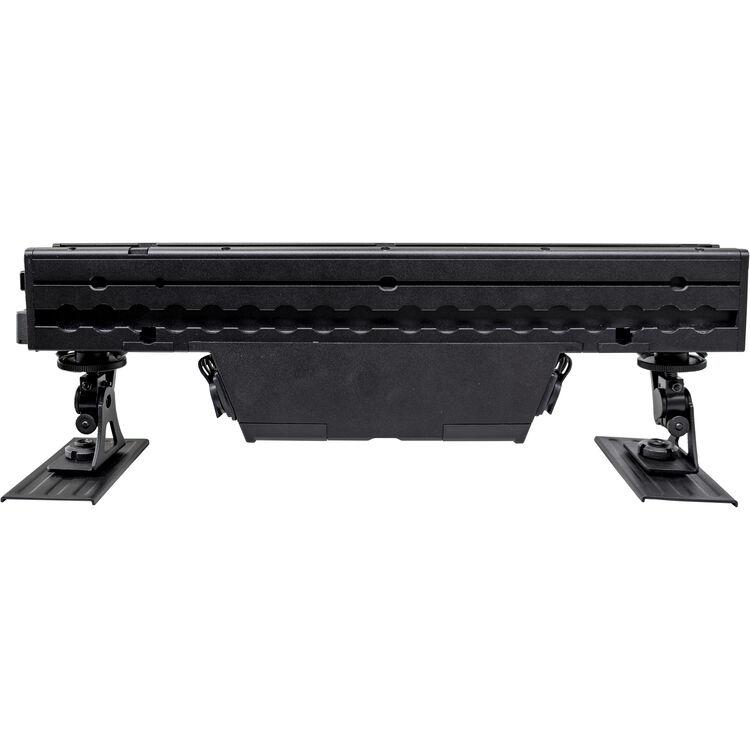

Removable Feet

The PixelBar includes multifunctional feet with quick release clamps.

Individually Controllable Pixels

With eight individually controllable pixels, precision optics from Gaggione, and the TITAN LED engine, the PixelBar gives you the versatility for optimal performance in a wide variety of applications such as concert/touring, corporate events, TV, and more.

Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses, and DMX profiles.

Seamless Runtime

Set the length of your production and be sure that your lights won't run out while still getting the maximum brightness.

TruColor Calibration

Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.

Effects

Quickly build programs out of colors and effects, trigger them, or make them match a beat.

Flicker-Free

Scrambled PWM technology avoids flickering when filming.

Green/Magenta Correction

Adjust green/magenta during content creation to reduce post-production work.

Scheduled Standby

Switch lights into power-saving standby and schedule them to wake up when the production starts.

Dynamic PowerBoost

This exclusive feature makes the light able to display the maximum brightness at all times and intensify non-white colors.

Emergency Lights

Switches to white light when AC power is cut to keep your event saved.

Anti-Theft

The lights give visual and audible alarms and send a notification to the AsteraApp if they are being moved during an event.

DJ Feature

Auto BPM analyzes the beat and matches programs to it; flash buttons can trigger special effects while being held down.

AsteraApp

The AsteraApp is packed with many additional items and new features are frequently added via a software update.

LED Array	TITAN LED Engine
Colors	RGB / Mint / Amber
LED Power	80 W
Power Draw	40 W
Light Output	1800 Lumens at 2700K 2230 Lumens at 3200K 2265 Lumens at 5500K
CRI Accuracy @ Ra	≥96 (TLCI 3200 to 6500K)
Beam Angle	21°
Strobe	0 to 25 Hz
Pixels	8
Battery Lifetime	70% after 300 Cycles
Battery Life	Up to 20 hours
Charging Time	5 Hours (Nominal)
Input Voltage	100 to 240 VAC, 50/60 Hz, 2 A Maximum
DMX Connectors	1 x XLR 5-Pin Male Input 1 x XLR 5-Pin Female Output
Receiver	Built-In CRMX Receiver
Wireless Frequency Band	UHF: 917 to 922.20 MHz
Modulation	FHSS
Transmitter Power	<25 mW
Channel Count	53
Wireless Range	984.3' / 300 m
Power Connections	1 x powerCON TRUE1 Input 1 x powerCON TRUE1 Output
Operating Temperature	32 to 104°F / 0 to 40°C
IP Rating	IP65
Housing	Aluminum
Dimensions	20.5 x 6.5 x 2.6" / 52.1 x 16.5 x 6.6 cm (Including Hook) 19.7 x 6.5 x 2.6" / 50.0 x 16.5 x 6.6 cm (Excluding Hook)
Weight	9.9 lb / 4.5 kg
