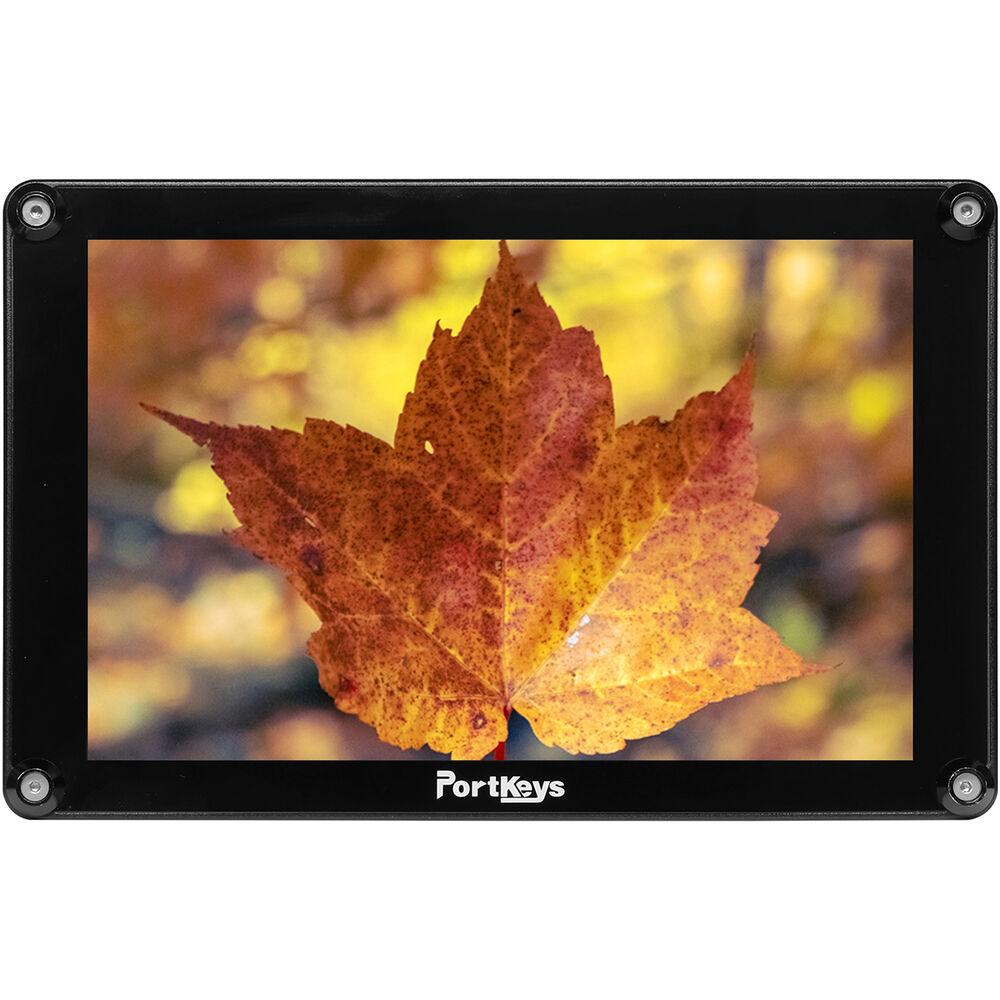

PORTKEYS HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support

PORTKEYS HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support

Name: PORTKEYS HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support
Brand: PORTKEYS
SKU: SF-2443-SACN
Availability: InStock

Brand: PORTKEYS

MFR: HS8

SKU: SF-2443-SACN

Price Available Upon Request

8" HDMI & 3G-SDI 1920 x 1200 Monitor
Supports up to DCI 4K24 Input
1100 cd/m² Bright, 1000:1 Contrast Ratio
10-Bit Color, 3D LUT Out on HDMI & SDI
4K HDMI/3G-SDI Input & Loop-Out
HDMI to SDI & SDI to HDMI Conversion
Heat-Dissipating Aluminum Housing
Peaking, Histogram, Waveform, Zebra
Mount for Select Video Transmitters
Dual L-Series Battery Plates & DC Port

Items Included

PORTKEYS HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support
D-Tap to DC Barrel Power Cable
Screen Cleaning Cloth
M2 Allen Key
4 x M3 Allen Screw
4 x Cup Head Gasket
Micro-USB Flash Drive
Limited 1-Year Manufacturer Warranty

Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less

Request Now

Categories: Monitors

View your video capture with 3D LUT output using the HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support from PORTKEYS. This monitor features support for up to DCI 4K24 video, 1920 x 1200 resolution, 10-bit color, and 3D LUT output on both the 4K HDMI and 3G/HD/SD-SDI outputs. Its 1100 cd/m² brightness is high enough for exterior viewing, and the wide viewing angles of 178° make it easy for multiple crew members to watch the footage simultaneously. The rear of the monitor sports a detachable cover for a video transmitter and dual Sony L-series/NP-F battery plates.

HDMI and 3G-SDI Input/Output

4K HDMI and 3G/HD/SD-SDI inputs, both with loop-through outputs

3D LUT Support

3D LUTs for color grading and monitoring can be applied to both the HDMI and SDI outputs

Hi-Bright Monitor

8" on-camera monitor with 1100 cd/m² brightness and 1000:1 contrast ratio

Durable Housing

Rugged, heat-dissipating CNC-machined aluminum alloy housing
Top and bottom 1/4"-20 thread mounts

Hot-Swappable Battery Plates

Hot-swappable, dual Sony L-series-type battery plates
DC input port for power supply

Optional Wireless Video Transmitter

Comes with a detachable cover for the wireless video transmitter mount

Display

Panel Type	LCD
Display Size	8.0" / 20.3 cm
Native Resolution	1920 x 1200
Aspect Ratio	16:9
Viewing Angle	Horizontal: 178° Vertical: 178°
Touchscreen	No
Maximum Brightness	1100 nits / cd/m²
Contrast Ratio	1000:1
Color Support	1.07 Billion Colors (8-Bit+FRC)
HDR Support	Yes
Color Gamut	100% Rec. 709
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Green Only, Histogram, Image Flip, OSD Flip, Red Only, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

Inputs/Outputs

Video I/O	1 x BNC (3G-SDI) Input 1 x HDMI (Unspecified Signal) Input 1 x BNC (3G-SDI) Output 1 x HDMI (Unspecified Signal) Output
Embedded Audio	HDMI SDI
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Power I/O	1x Barrel (20 VDC) Input
Other I/O	1x USB-A (LUT Upload)
Media/Memory Card Slot	No

Wireless

Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

HDMI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI (4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
SDI (4:4:4/4:2:2/4:2:0 RGB, YUV)
1080PsF: 30/29.97/25/24/23.98
SDI (4:4:4/4:2:2)
1080i: 60/59.94/50
720p: 60/59.94/50

Video Signal Conversion

HDMI to SDI

SDI to HDMI

Power

Input Power	7 to 20 VDC
Battery	2x L-Series Mount on Fixed Plate
Power Consumption	20 W (Maximum)

Mounting

VESA Mounting-Hole Pattern	100 x 100 mm
Tripod/Accessory Mounting	2x 1/4"-20 Female

General

Material of Construction	Aluminum
Dimensions	81.9 x 52.6 x 19.9" / 208 x 133.7 x 50.5 cm
Weight	23.81 oz / 675.00 g

Packaging Info

Package Weight	2.44 lb
Box Dimensions (LxWxH)	9.6 x 7.3 x 2.6"
