This Benro FH100M2 Master 100mm Filter Holder Kit allows for the convenient use of up to three separately available 100mm wide, 2mm thick filters and a separately available Benro MACPL82 82mm Circular Polarizer Filter. This kit includes a Benro FH100M2 Master 100mm Filter Holder as well as a Benro 100 x 100mm Filter Protecting Frame and a Benro 100 x 150mm Filter Protecting Frame. These two Benro filter protecting frames are each designed to encase the edges of one 100 x 100mm, 2mm thick filter and one 100 x 150mm, 2mm thick filter, respectively, for use within the filter holder. By encasing the sides of an installed filter, these filter protecting frames each help to eliminate stray light, which could have unwanted effects on exposure, from coming in-between an installed filter, as well as the filter holder and the lens behind it. Additionally, a Benro filter protecting frame reinforces an installed filter's rigidity while preventing its sides from having to come into direct contact with a filter holder's slots. This protects those side surfaces and promotes sharp results by helping to ensure that the filter remains flat.
The Benro FH100M2 Master 100mm Filter Holder includes up to three slots for a Benro filter protecting frame. Any Benro filter protecting frame within this filter holder can be switched with another Benro filter protecting frame that contains a different filter needed for other subjects or changing lighting conditions. If used with any one of the Benro FH100M2 Master 100mm Filter Holder's slots, an integrated safety-catch system prevents a Benro filter protecting frame from accidentally sliding out of the filter holder.

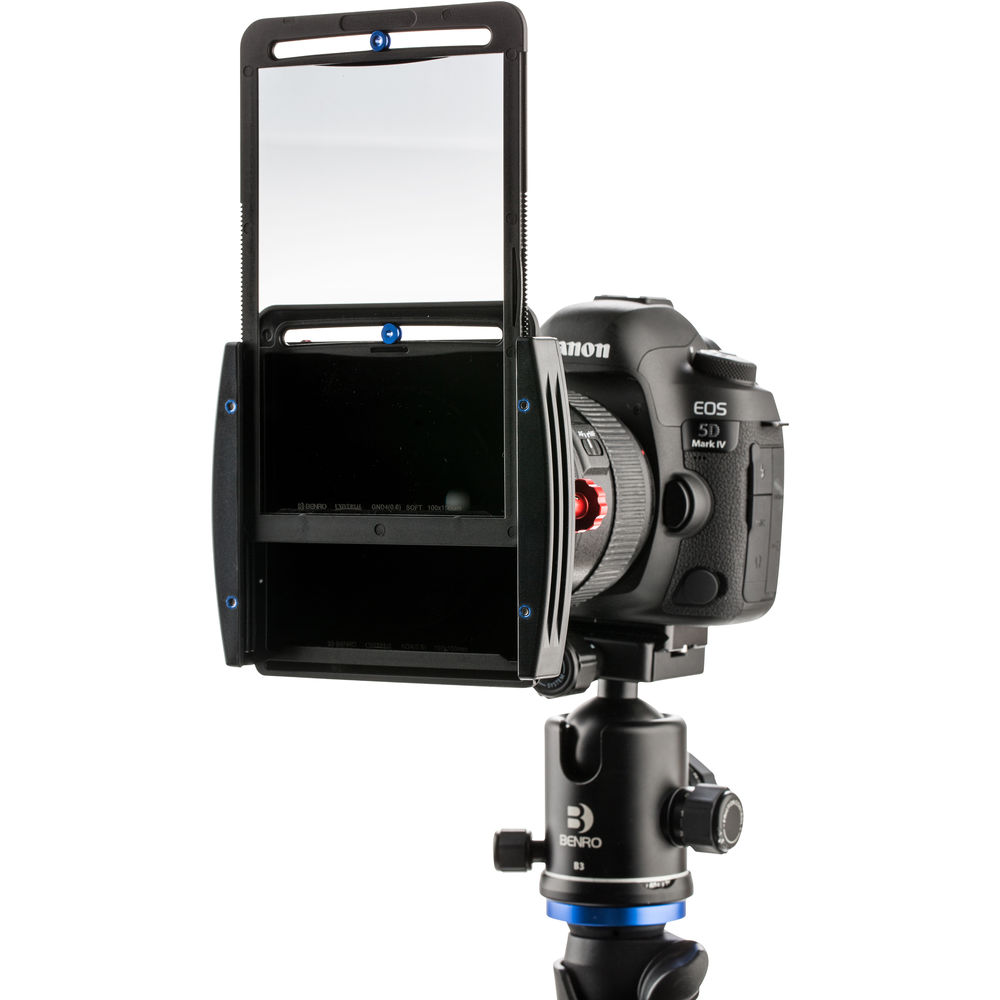

Additionally, the Benro FH100M2 Master 100mm Filter Holder utilizes an internal gear that is designed to engage with the built-in cogs along the outer edges of a Benro 100 x 150mm Filter Protecting Frame. A control knob allows that gear to be turned, precisely adjusting the position of a Benro 100 x 150mm Filter Protecting Frame, further benefiting the use of graduated neutral density or other filters that are enhanced by varied positioning. The control knob can be variously pushed or pulled, which provides the ability to toggle it among any or none of the Benro FH100M2 Master 100mm Filter Holder's three filter slots.
Installation of a compatible filter within a Benro filter protecting frame is accomplished by first moving the filter protecting frame's top slide lock into the open position. The edge of the filter protecting frame under the top slide lock can then be pushed open, allowing a compatible filter to be set within the filter protecting frame. The edge of the filter protecting frame under the slide lock can then be released and the top slide lock returned to its closed position, securing the filter.
Use of the filter holder can be easily accomplished by first screwing the included Benro FH100M2LR77 77mm adapter ring or FH100M2LR82 82mm adapter ring onto a lens or step-up ring with 77mm or 82mm front filter threads, respectively. After being fitted onto the adapter ring, the Benro FH100M2 Master 100mm Filter Holder's locking knob helps to provide a reliable, yet adjustable connection that allows the holder to be rotated 360°, also benefiting the use of graduated neutral density and other filters that are enhanced by varied positioning.
The Benro FH100M2 Master 100mm Filter Holder also accommodates a separately available Benro MACPL82 82mm Circular Polarizer Filter. When installed, that polarizer filter is mounted within an integrated, geared filter ring, and fits between the filter holder and any Benro filter protecting frame in use. Two external thumb dials along the rear of the filter holder allow for the independent rotation of the circular polarizer filter in order to adjust the intensity of the polarization effect.
A Benro FH100M2B Master 100mm Filter Holder Kit is separately available for lenses that require a circular polarizer with a wider diameter to avoid vignetting when using that filter type. It includes a Benro FH100M2B Master 100mm Filter Holder that accommodates a separately available Benro MACPL95 95mm Circular Polarizer Filter and up to two Benro filter protecting frames.
|Material||Filter Holder: Aluminum Alloy|
Filter Protecting Frames: Plastic
Adapter Rings: Aluminum Alloy
|Compatibility||Filter Holder: Accepts up to One Screw-In Circular Polarizer along with Any Combination of up to Three 100 x 100 mm Filter Protecting Frames or Three 100 x 150 mm Filter Protecting Frames|
100 x 100 mm Filter Protecting Frame: Accepts One 100 x 100 mm, 2 mm Thick Rectangular Filter
100 x 150 mm Filter Protecting Frame: Accepts One 100 x 150 mm, 2 mm Thick Rectangular Filter
77 mm Filter Holder Adapter Ring: Connects Filter Holder to Lenses with 77 mm Front Filter Threads
82 mm Filter Holder Adapter Ring: Connects Filter Holder to Lenses with 82 mm Front Filter Threads
|Dimensions||7.4 x 5.4 x 2.7" / 18.8 x 13.8 x 6.8 cm|
|Weight||7.4 oz / 210.0 g|
|Package Weight||0.6 lb|
|Box Dimensions (LxWxH)||7.8 x 5.8 x 2.8"|
