Litegear LiteMat Spectrum 3 RGB LED Light Panel (Edison Power Cable)
Litegear LiteMat Spectrum 3 RGB LED Light Panel (Edison Power Cable)
- SKU : #R8ONLMG-SPEC-THREE-KIT-EDISON-G2 | MFR : #LMG-SPEC-THREE-KIT-EDISON-G2
Features
- For Studio & Film/TV Production
- Output: 5948 Lux at 3.3' (5600K)
- 2000-11,000K CCT; RGB Color Control
- 30.5 x 21.1" Panel; AC/DC Operation
- CRI 95 | TLCI 95
- Onboard & DMX Control
- Art-Net, sACN & LumenRadio CRMX Control
- Rigid, Thin & Lightweight Design
- Includes LiteDimmer Spectrum
- Includes Diffusers, Skirt & Case
Special Order - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less
You Pay:
AED 16,826.01
VAT Excl.
VAT Excl.
Litegear LiteMat Spectrum 3 RGB LED Light Panel (Edison Power Cable)
Bringing full-color RGB light and advanced control options, the LiteMat Spectrum 3 RGB LED Light Panel from Litegear is your solution for stage, studio, or location lighting setups. This 30.5 x 21.1" rigid unit offers smooth dimming, three pixel-mappable large-format pixels, hue and saturation control, and a robust construction to withstand the most demanding productions. Its lightweight, ultrathin, and IP20-rated design means you can easily rig the panel in a wide array of shooting situations. A LiteDimmer Spectrum with DMX, RDM, CRMX, Art-Net, and sACN control options is included, along with essential accessories and a carry bag. This version comes with an Edison mains power cable.
Extended CCT, RGB & Tint Control
Providing 150W of power, the LiteMat Spectrum 3 features RGB capability for complete color control, as well as a generous tunable CCT from 2000 to 11,000K and tint control with plus/minus green adjustments. Light intensity is also variable, from 0-100%. In addition, its high CRI/TLCI rating of 95 is your assurance of superior color rendering. The panel produces up to 5948 lux from a distance of 3.3'.
Wide Control Methods
Control options include manual adjustments, wired DMX, or wireless DMX via the LiteDimmer Spectrum's built-in LumenRadio CRMX. In addition, Art-Net and sACN protocols allow you to control your light via etherCON connections.
LiteDimmer Spectrum AC/DC 200
The advanced electronics of the included LiteDimmer Spectrum AC/DC 200 enable Ethernet communication and AC/DC operation. Capable of controlling multiple large-format pixels, the compact unit makes pixel mapping easier than ever.
Other Benefits
- 3888 LEDs
- Pixelization allows for pixel mapping or the creation of subtle CCT gradients
- Precision-calibrated electronics ensure consistent performance across the Spectrum series
- Firmware updates keep your LiteMat Spectrum 3 running smoothly with improved functionality and performance
IN THE BOX
- Litegear LiteMat Spectrum 3 RGB LED Light Panel (Edison Power Cable)
- LiteMat Spectrum 3 Head
- LiteDimmer Spectrum
- Full Diffuser
- Half Diffuser
- Quarter Diffuser
- PolySkirt

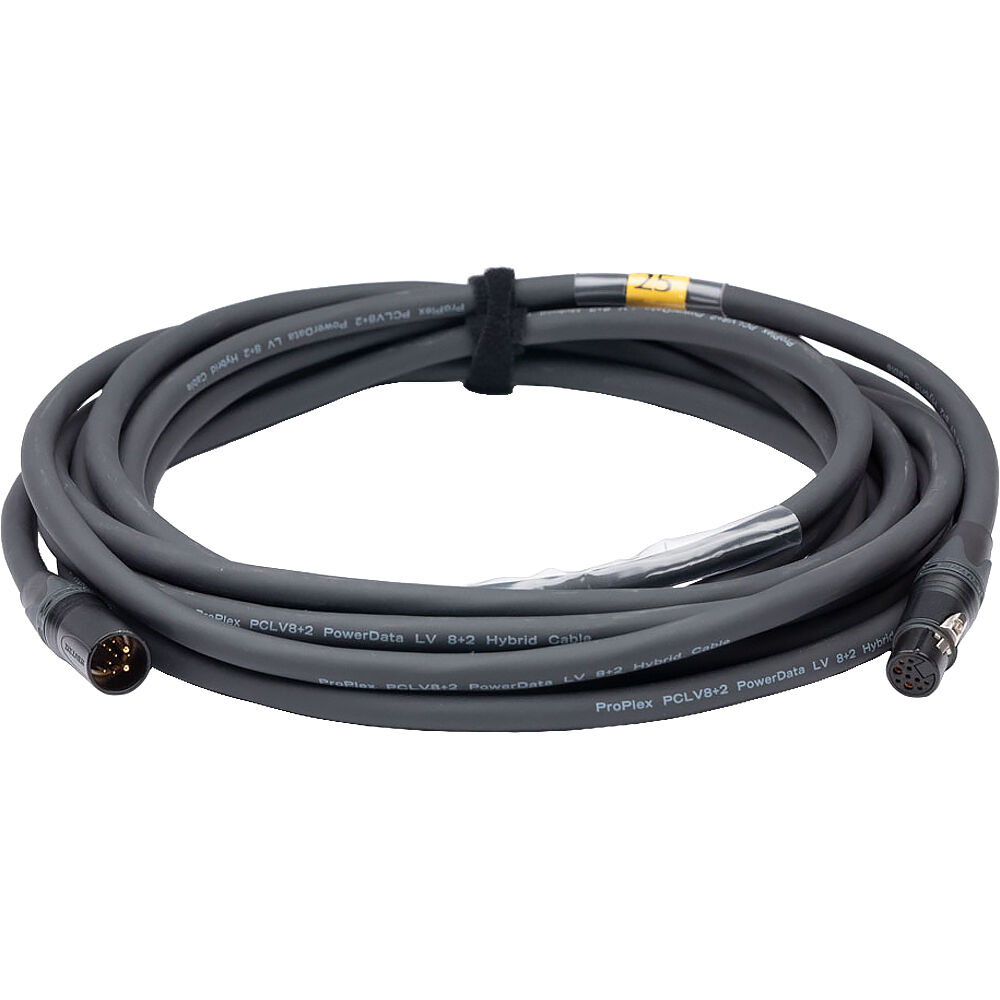

- PDX Cable (25')
- K-Mount
- Carry Bag
- Limited 1-Year Manufacturer Warranty
Light Fixture
| Item Type | 1x LED Light Panel |
| Included Light Modifier | 1x Skirt |
| Included Filters | Diffusion |
| Included Storage Case | 1x Case |
| Photometrics | 3200K: 497 fc / 5357 Lux at 3.3' / 1 m (Unmodified) 55 fc / 595 Lux at 9.8' / 3 m (Unmodified) 19 fc / 214 Lux at 16.4' / 5 m (Unmodified) 5600K: 552 fc / 5948 Lux at 3.3' / 1 m (Unmodified) 61 fc / 661 Lux at 9.8' / 3 m (Unmodified) 22 fc / 238 Lux at 16.4' / 5 m (Unmodified) |
| Color Temperature | 2000 to 11,000K |
| Color Modes | RGB, Daylight, Tungsten |
| Color Accuracy Standard | CRI 95 TLCI 95 |
| Dimming | Controller Included / DMX (Continuous) • 0 to 100% |
| Cooling System | Passive |
| Expected Lamp Life | 50,000 Hours |
| Beam Angle | 55° |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietary |
Connectivity
| Wireless Remote Control Type | Wireless CRMX *Power Supply/Controller Required (Included) |
| Mobile App Compatible | No |
Power & I/O
| Power Source | AC Power (Cable Included) *Requires Power Supply/Controller (Included) Battery (Not Included) *Requires Power Supply/Controller (Included) |
| Inputs/Outputs | Light Fixture 1x Proprietary Power Input (48 VDC at 3.13 A) Power Supply/Controller 1x powerCON TRUE1 AC Power Input (120 to 240 VAC, 50 / 60 Hz at 3 A) 1x powerCON TRUE1 TOP AC Power Output (120 to 240 VAC, 50 / 60 Hz at 15 A) 1x etherCON/RJ45 Network Input 1x etherCON/RJ45 Network Output 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 1x USB-A Service Input 1x XLR 3-Pin Battery/Power Input (48 VDC) 1x Proprietary Power Output (48 VDC at 5 A) |
| Battery | 1x Rechargeable, 48 VDC (Not Included) |
| AC Input Power | 120 to 240 VAC, 50 / 60 Hz at 3 A |
| DC Input Power | 48 VDC at 3.13 A |
| Included Adapter / Cable | 1x Proprietary to Proprietary Cable 1x USA Type-A/B to powerCON TRUE1 TOP Cable |
| Inline Switch | No |
| Power Pass-Thru | Yes |
| Power Consumption | 150 W |
Mounting
| Fixture Mounting | Proprietary |
Environmental
| Environmental Protection | Dust-Resistant (IP20) |
| Operating Temperature | 122°F / 50°C |
General
| Display | Yes |
| Certifications | ETL, CE, UKCA, FCC |
| Dimensions | 30.5 x 21.1 x 1" / 77.5 x 53.6 x 2.5 cm (Fixture) 13.3 x 7.3 x 4.1" / 33.8 x 18.5 x 10.4 cm (Power Supply/Controller) |
| Weight | 9.4 lb / 4.3 kg (Fixture) 6.8 lb / 3.1 kg (Power Supply/Controller) |
