- Number of Contact: Single Pole
- Type: Male Plug
- Color Coded: Red
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Double Set Screw
(Torque on Brass Contact min. Required: 85in-lb).
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0 (Longer set screw required for #6 & #4)
- Retaining Pin Material: POM
- Number of Contact: Single Pole
- Type: Male Plug
- Color Coded: White
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Double Set Screw
(Torque on Brass Contact min. Required: 85in-lb).
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0 (Longer set screw required for #6 & #4)
- Retaining Pin Material: POM
- Number of Contact: Single Pole
- Type: Female Receptacle
- Color Coded: Blue
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Threaded studs
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Female Receptacle
- Color Coded: Black
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Threaded studs
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Female Receptacle
- Color Coded: Brown
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Threaded studs
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Female Receptacle
- Color Coded: Green
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Threaded studs
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Female Receptacle
- Color Coded: Gray
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Threaded studs
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Female Receptacle
- Color Coded: Red
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Threaded studs
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Female Receptacle
- Color Coded: White
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Threaded studs
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Male Receptacle
- Color Coded: Blue
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Threaded studs
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Male Receptacle
- Color Coded: Black
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Threaded studs
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Male Receptacle
- Color Coded: Brown
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Threaded studs
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Male Receptacle
- Color Coded: Green
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Threaded studs
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Male Receptacle
- Color Coded: Gray
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Threaded studs
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Male Receptacle
- Color Coded: Red
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Threaded studs
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Male Receptacle
- Color Coded: White
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Threaded studs
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Female Receptacle
- Color Coded: Blue
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Double Set Screw
(Torque on Brass Contact min. Required: 85in-lb).
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Female Receptacle
- Color Coded: Black
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Double Set Screw
(Torque on Brass Contact min. Required: 85in-lb).
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Female Receptacle
- Color Coded: Green
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Double Set Screw
(Torque on Brass Contact min. Required: 85in-lb).
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Female Receptacle
- Color Coded: Red
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Double Set Screw
(Torque on Brass Contact min. Required: 85in-lb).
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0

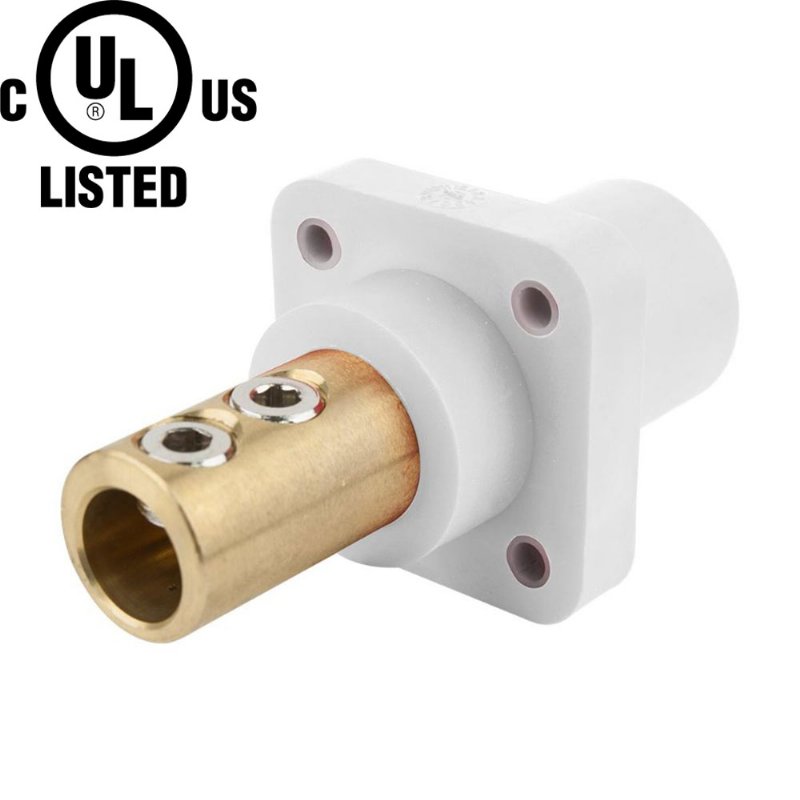

- Number of Contact: Single Pole
- Type: Female Receptacle
- Color Coded: White
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Double Set Screw
(Torque on Brass Contact min. Required: 85in-lb).
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Male Receptacle
- Color Coded: Blue
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Double Set Screw
(Torque on Brass Contact min. Required: 85in-lb).
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Number of Contact: Single Pole
- Type: Male Receptacle
- Color Coded: Black
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Double Set Screw
(Torque on Brass Contact min. Required: 85in-lb).
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Retaining Pin Material: POM
- Number of Contact: Single Pole
- Type: Male Receptacle
- Color Coded: Green
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Double Set Screw
(Torque on Brass Contact min. Required: 85in-lb).
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Retaining Pin Material: POM
- Number of Contact: Single Pole
- Type: Male Receptacle
- Color Coded: Red
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Double Set Screw
(Torque on Brass Contact min. Required: 85in-lb).
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Retaining Pin Material: POM
- Number of Contact: Single Pole
- Type: Male Receptacle
- Color Coded: White
- Voltage Rating: 600V Maximum
- Current Rating: 400Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Double Set Screw
(Torque on Brass Contact min. Required: 85in-lb).
- Terminal Accommodation: #6, #4, #2, 2/0, 4/0
- Retaining Pin Material: POM
- Material: Flame Retardant ABS + Stainless Steel (Hardware)
- Type: For 400Amp Receptacle
- Color Coded: Blue
- Provides NEMA 3R protection
- Material: Flame Retardant ABS + Stainless Steel (Hardware)
- Type: For 400Amp Receptacle
- Color Coded: Black
- Provides NEMA 3R protection
