ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)
ARRI SRH-360 Stabilized Remote Head (Basic Set)

ARRI SRH-360 Stabilized Remote Head (Basic Set)

Brand: ARRI

MFR: KK.0044436

Price Available Upon Request
  • 360° Pan Axis Rotation, Increased Torque
  • 170° Tilt, 180° Roll
  • Supports Payloads up to 66 lb
  • Flexible, 3-Axis Stabilized Remote Head
  • Remote Control Panel
  • DRW-1/DEH-1/Master Grips Control Options
  • Lightweight, Compact Design
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Stabilizers & Gimbals , Stabilizers & Gimbals

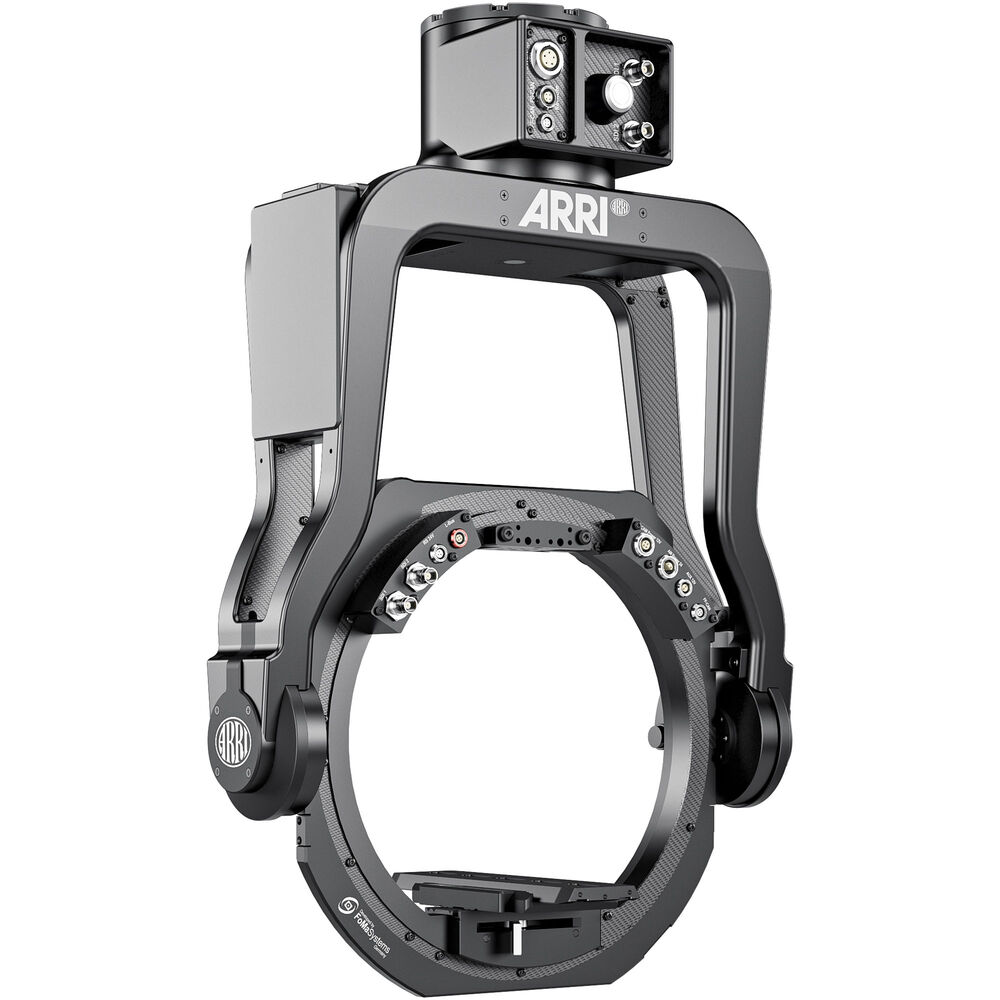

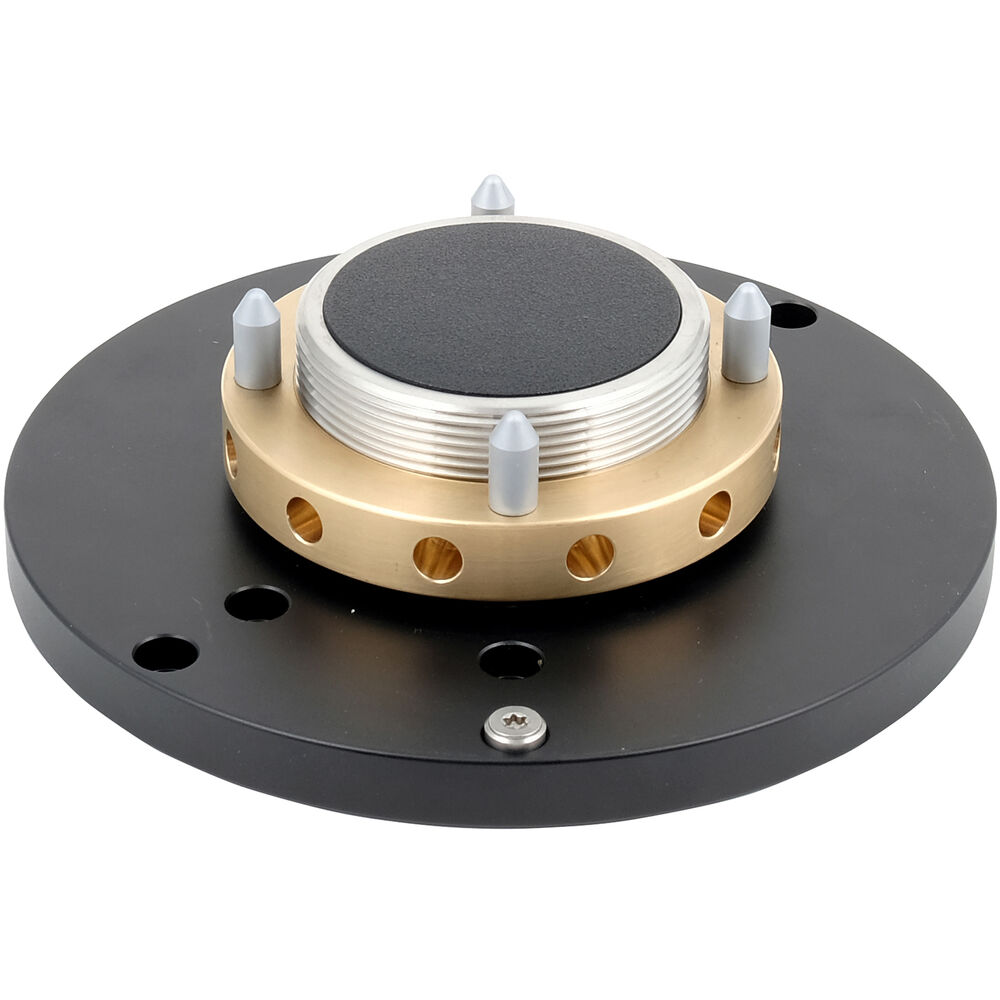

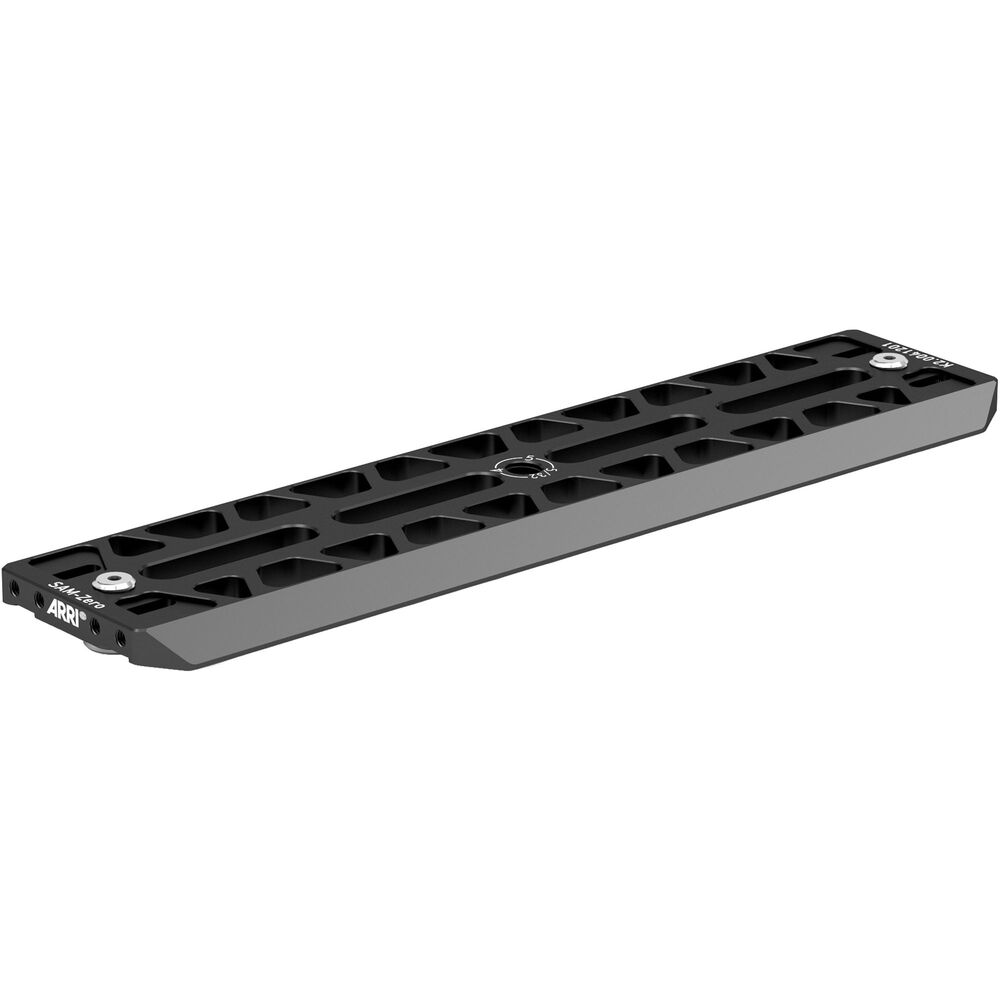

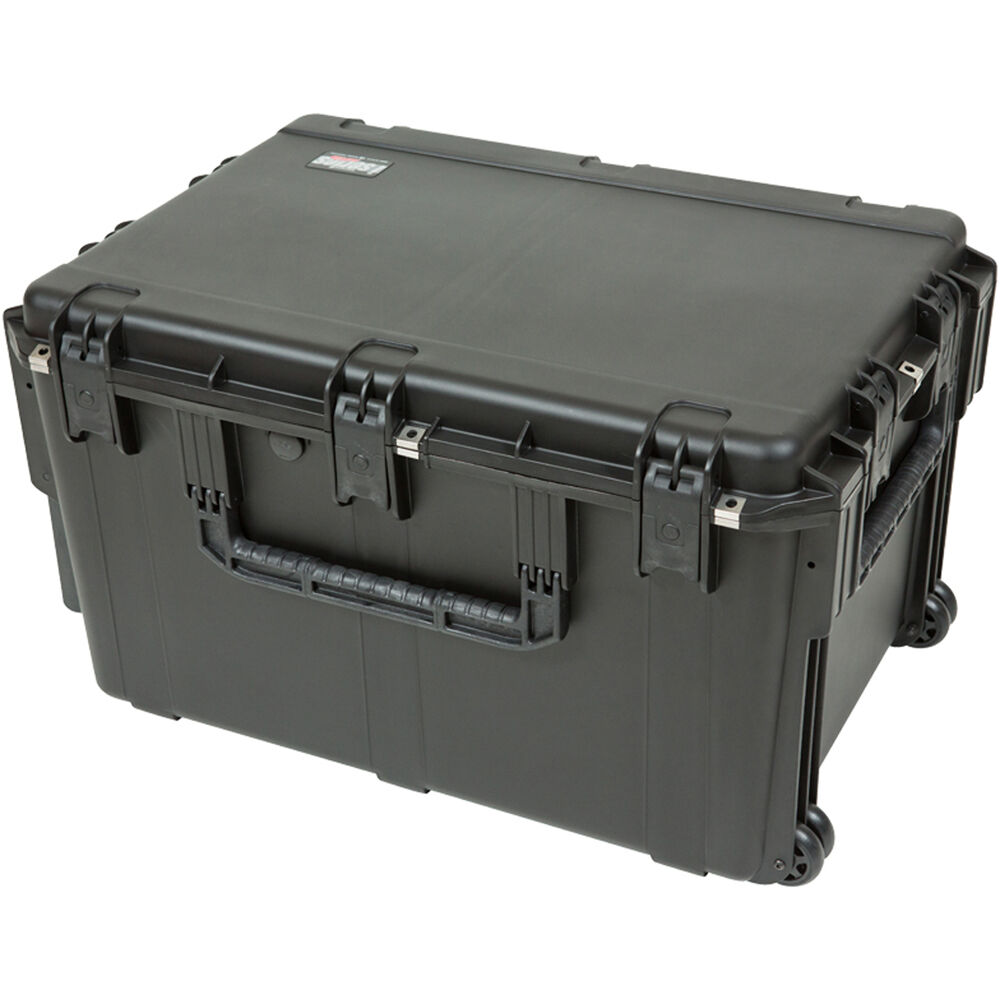

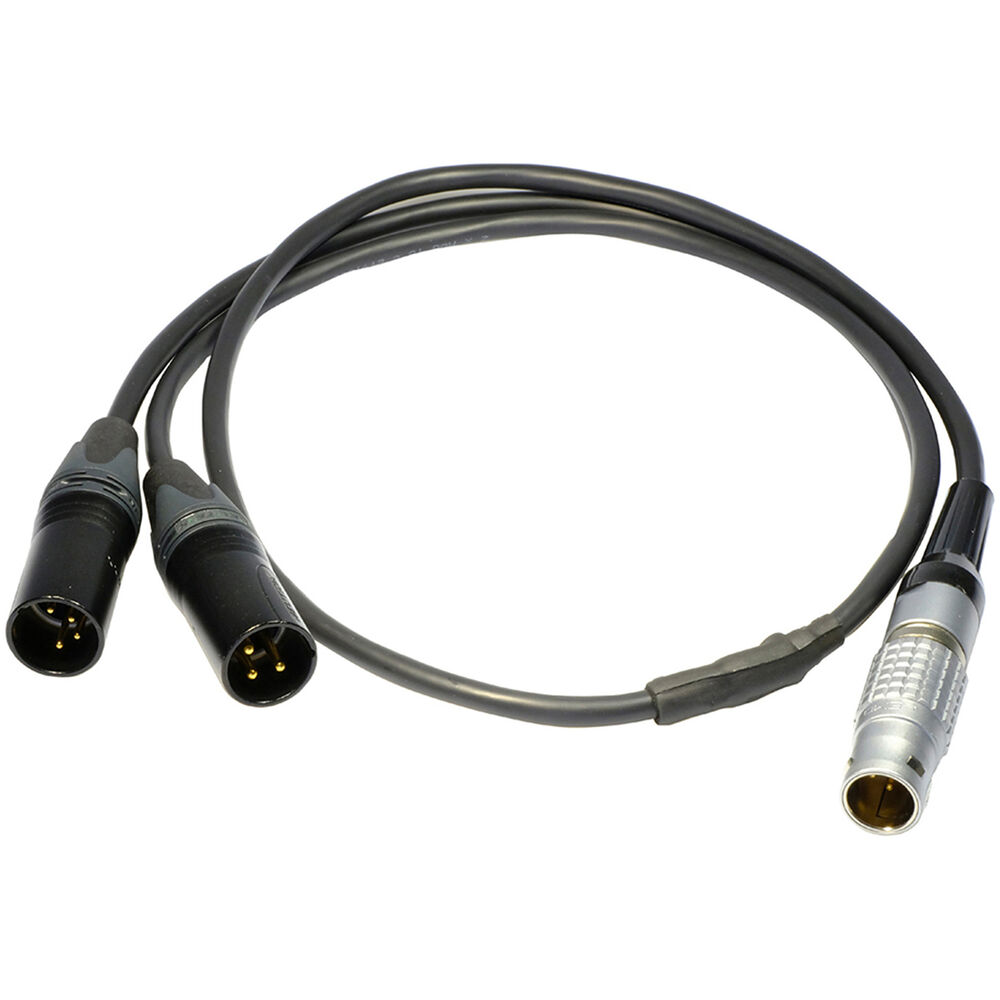

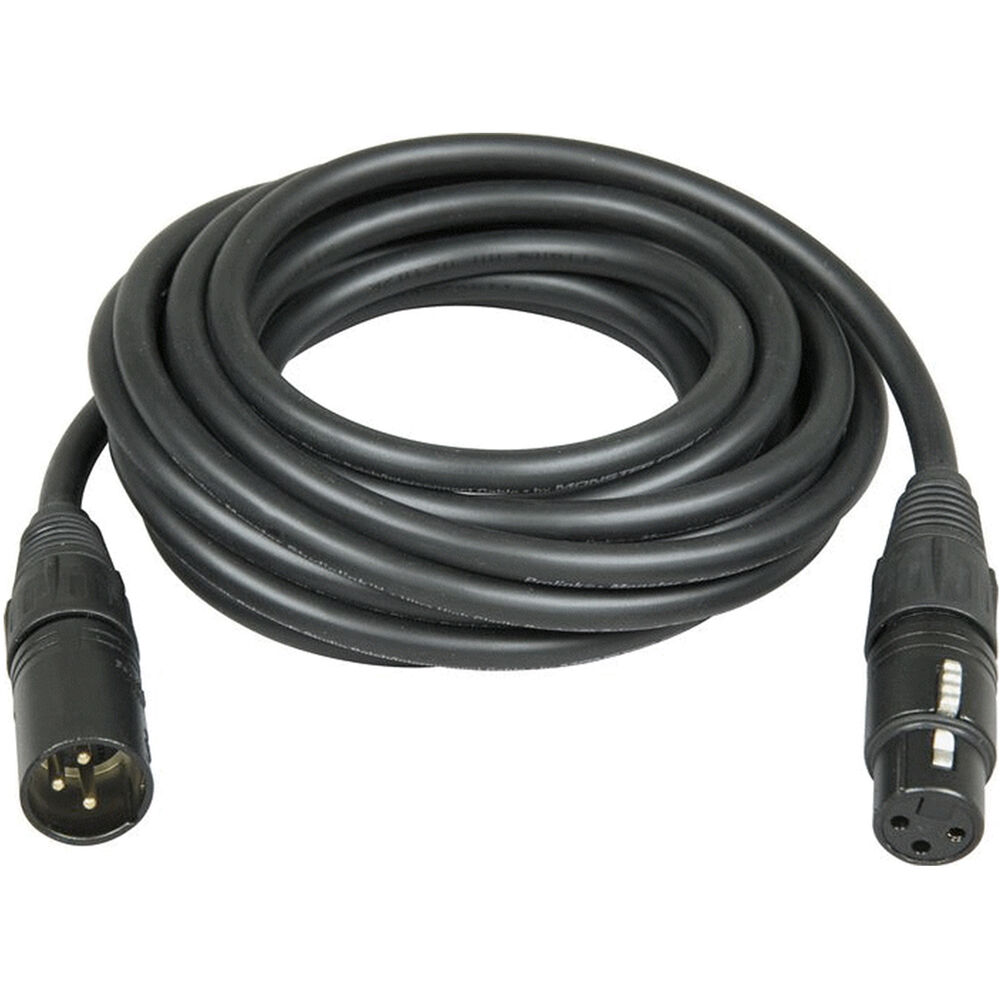

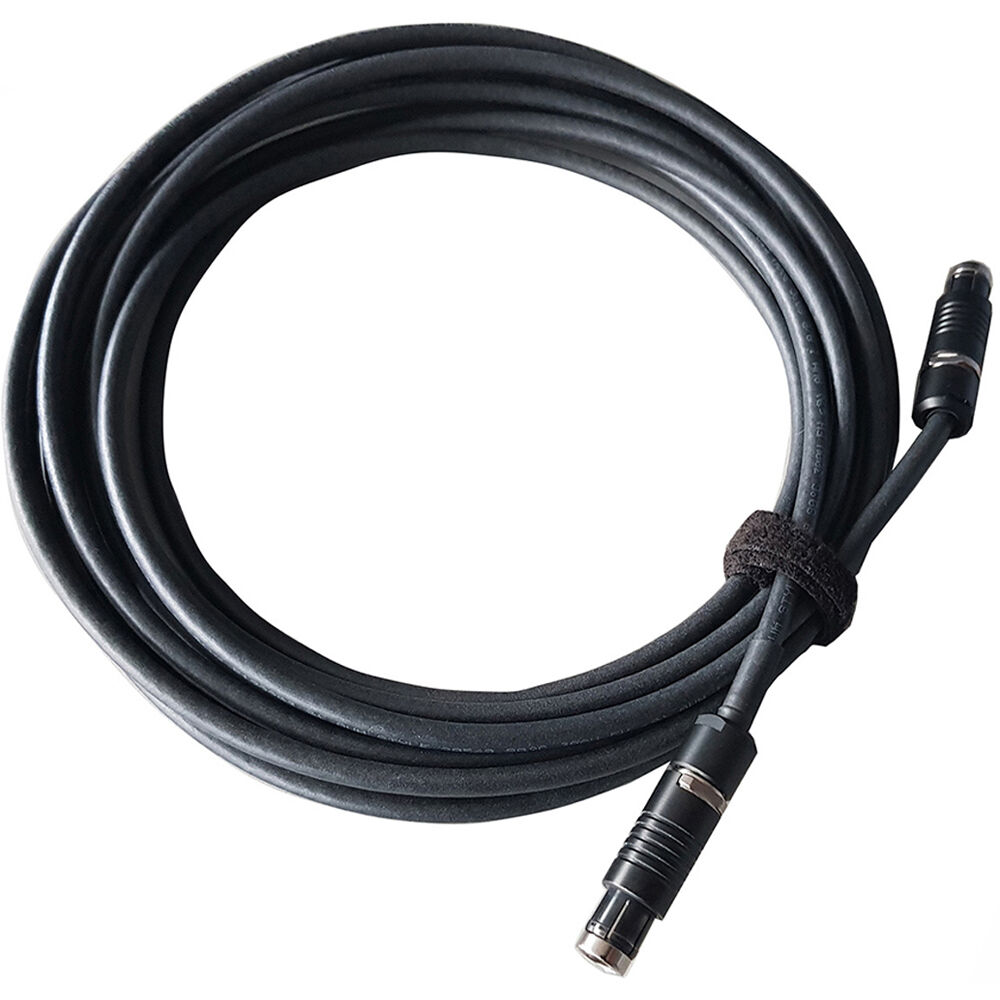

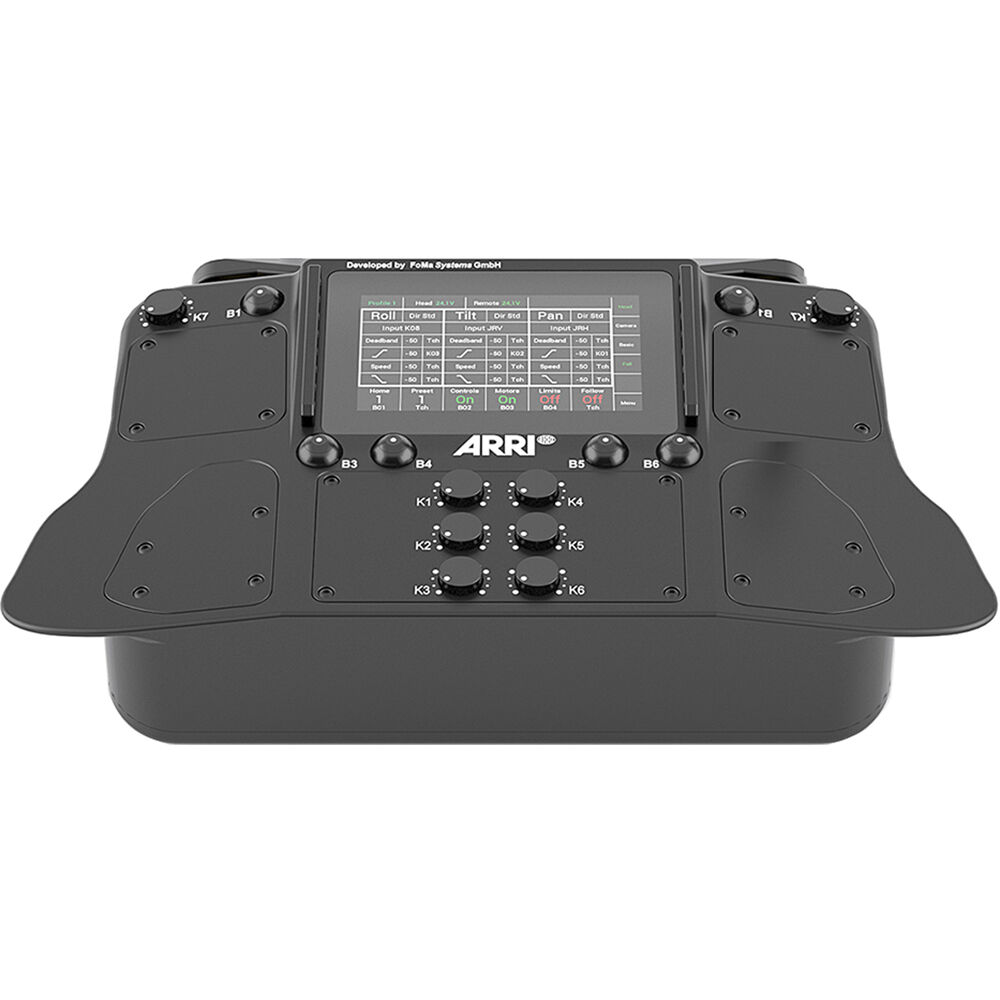

The flexible SRH-360 Stabilized Remote Head from ARRI enables you to add 360° pan rotation to your 3-axis camera moves. The SRH-360 remote head supports payloads of up to 66 lb and offers increased pan torque to compensate for the strong centrifugal forces created by high-speed moves. This Basic Set consists of the SRH-360 Remote Head, the RCP-2 Remote Control Panel (without radio), a SAM-Zero camera plate, a Mitchell mount, various cables, a storage pouch, and a hard-shell case.

Use the SRH-360 with digital controllers such as the DRW-1, DEH-1, and Master grips to access the full range of ARRI technology for your cine-style, broadcast, or event capture. The SRH-3's integrated LBUS interfaces help to create future-proofed solutions and workflows.

360° Rotation

The SRH-360 features a new slip ring that enables unlimited rotation on the pan axis, increasing your creativity when creating dynamic moves

Increased Pan Torque

A 50% increase in the pan torque lets the SRH-360 compensate for strong centrifugal forces created when capturing high-speed shots

66 lb Payload

The compact design supports payloads up to 66 lb while offering an excellent payload-to-head weight ratio

Versatile Control

Control using the included RCP-2 remote control panel, DRW-1 control wheels, or the DEH-1 digital encoder and Master Grips

Future-Proof Workflows

Use of the LBUS protocol and compatibility with modular ARRI accessories and third-party components offer future-proofed remote head workflows


Gimbal

Load Capacity66.1 lb / 30 kg
Number of Axes3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
Rotation RangeControllable Range
Yaw (Pan): 360° Unlimited
Pitch (Tilt): 170° (-110 to 60°)
Roll: 180° (-90 to 90°)
Follow SpeedPan/Tilt: 240°/s

Compatibility

Camera ControlOn Compatible Models
Supported Camera DimensionsW: 10.2 x H: 8.2" / W: 260 x H: 209 mm
Camera Mounting Screw2 x 3/8"-16 Male

Connectivity

Inputs/Outputs2 x BNC (HD-SDI) (Video) Input
1 x Proprietary (Control)
1 x Fischer 3-Pin (Control)
1 x LEMO 4-Pin (Power) Output
1 x LEMO 3-Pin (Power) Output
1 x LEMO 2-Pin (Power) Output
1 x LBUS (Control)
1 x LEMO 5-Pin (Power) Input
2 x CAN (Control)
2 x BNC (HD-SDI) (Video) Output

Power

Operating Voltage24.0 to 36.0 VDC

Environmental

Operating Temperature12 to 82°F / -20 to 50°C

General

Display TypeFixed Touchscreen OLED
Dimensions25.7 x 16.2 x 9.7" / 652 x 412 x 246 mm
Weight25.4 lb / 11.5 kg
