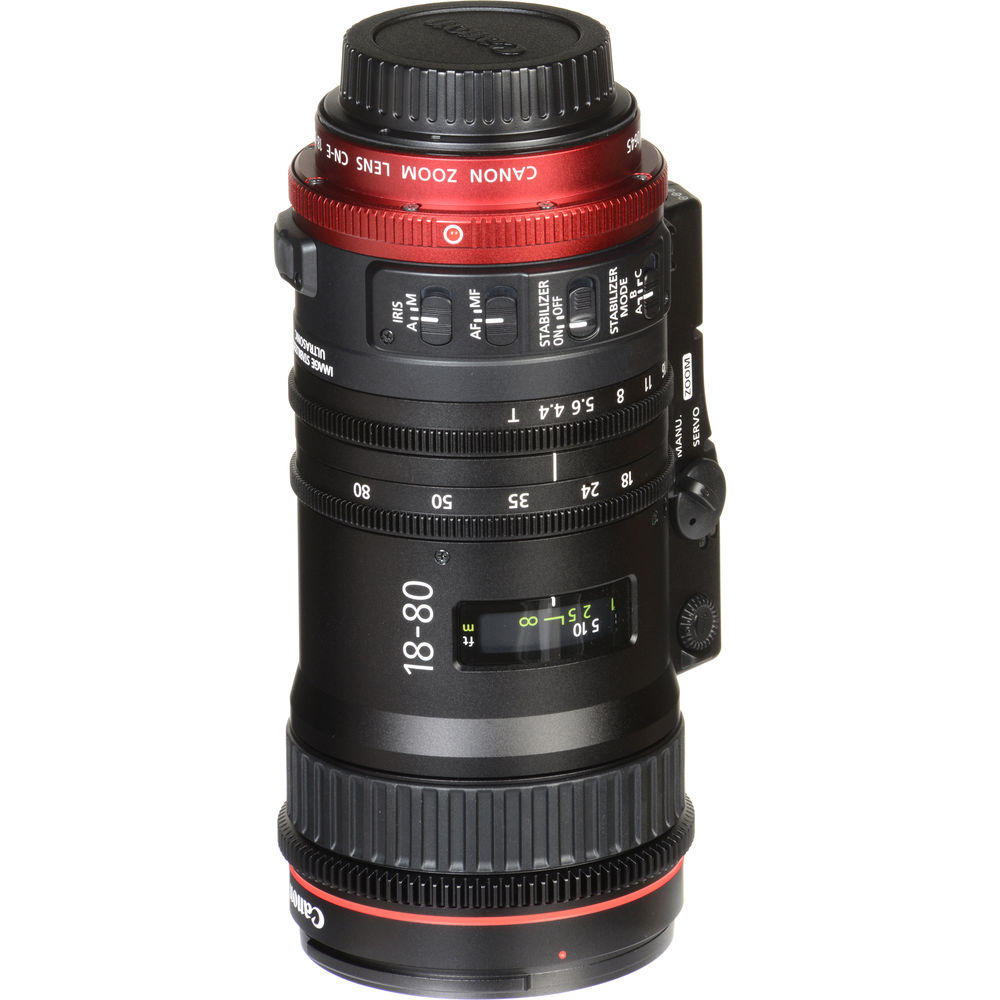

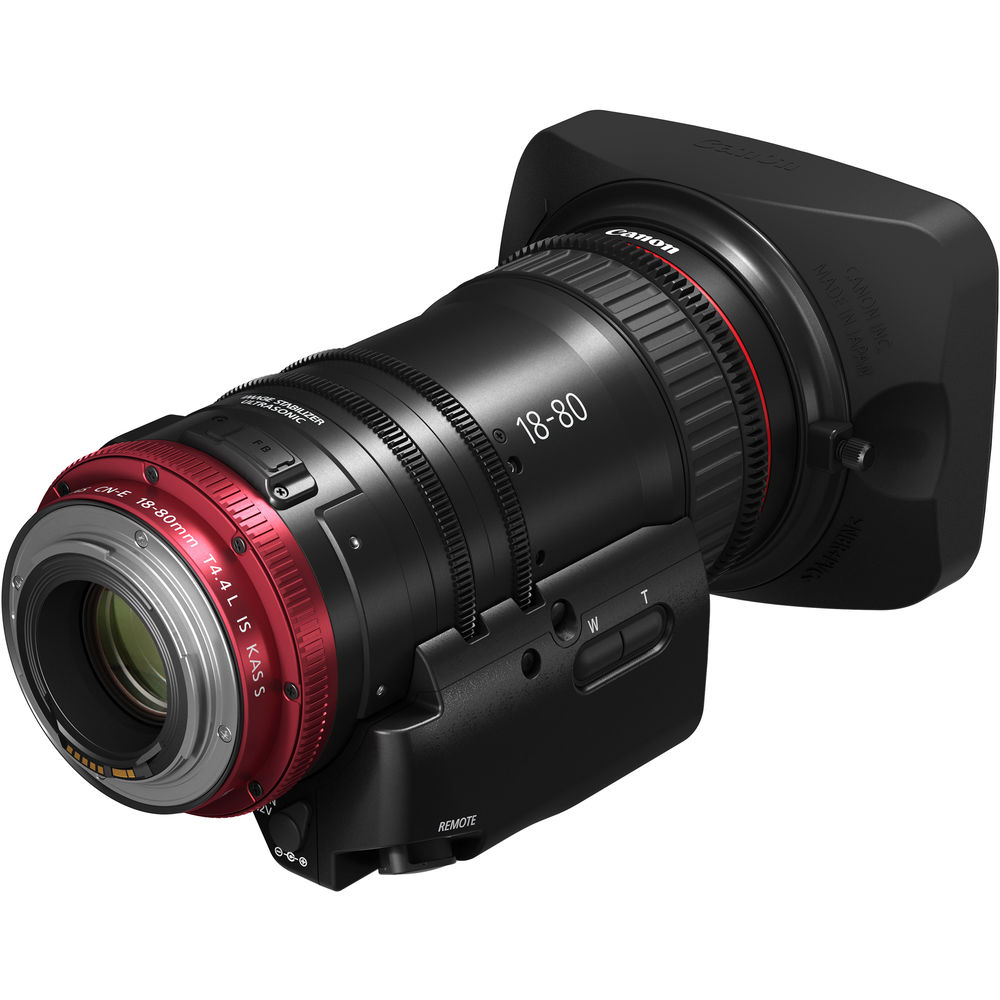

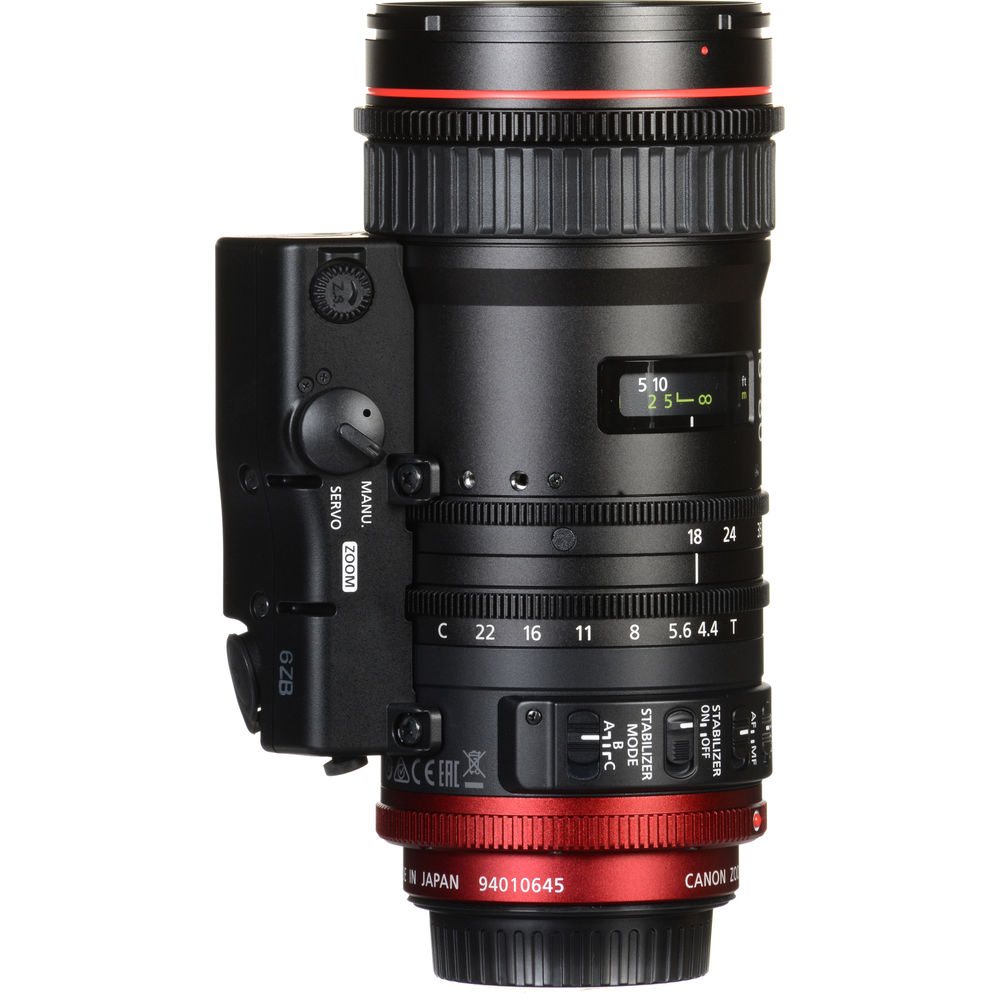

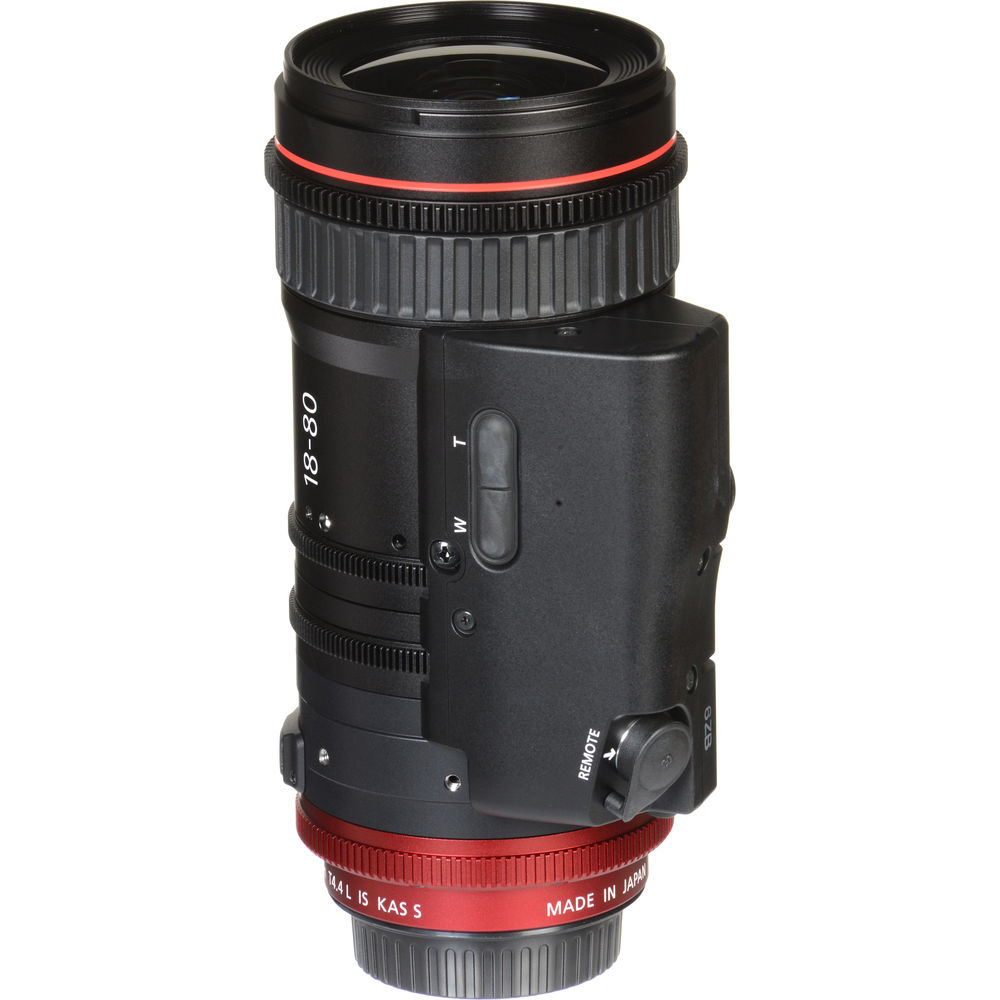

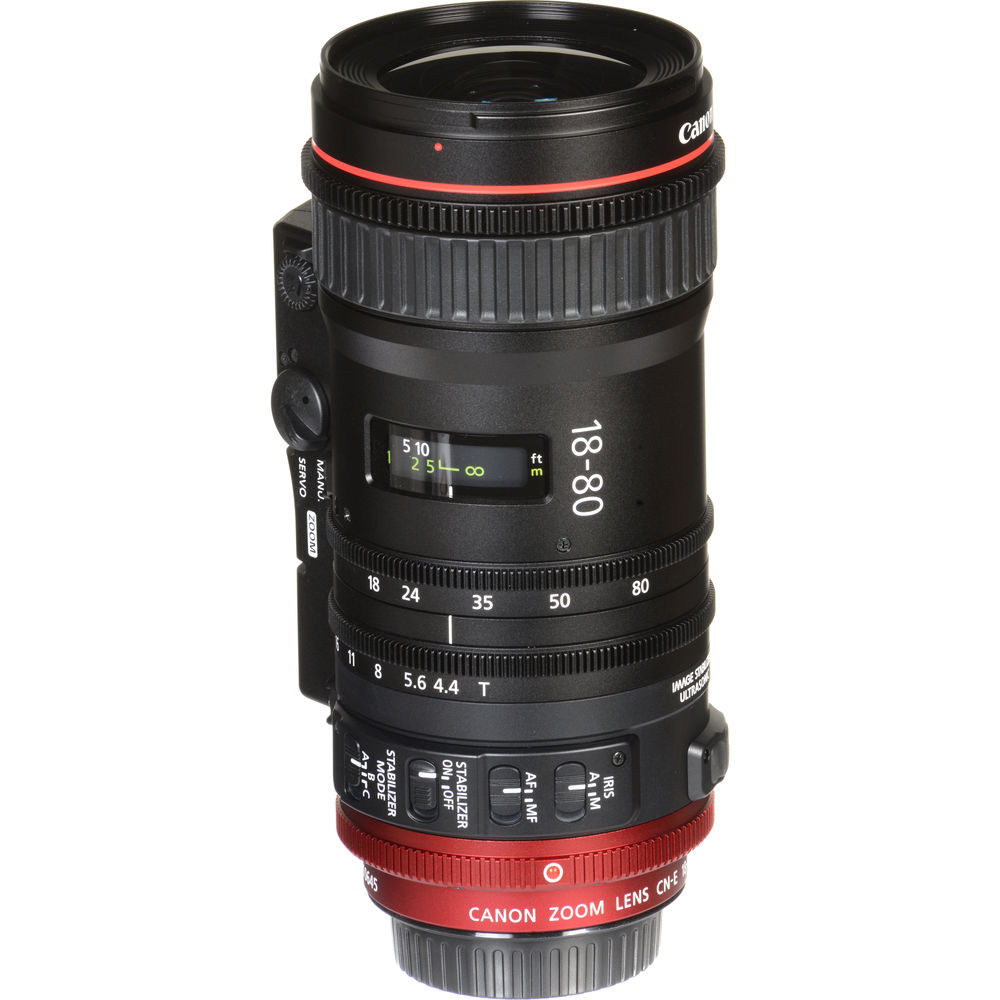

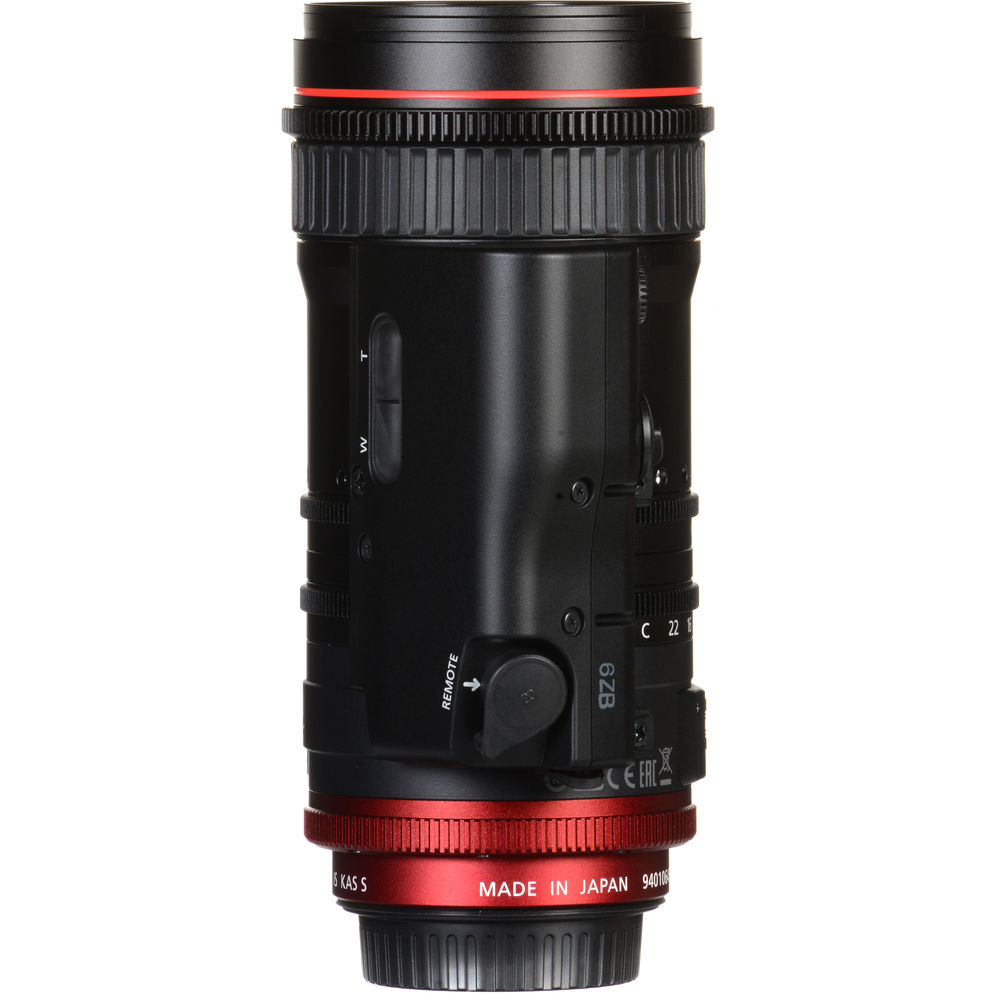

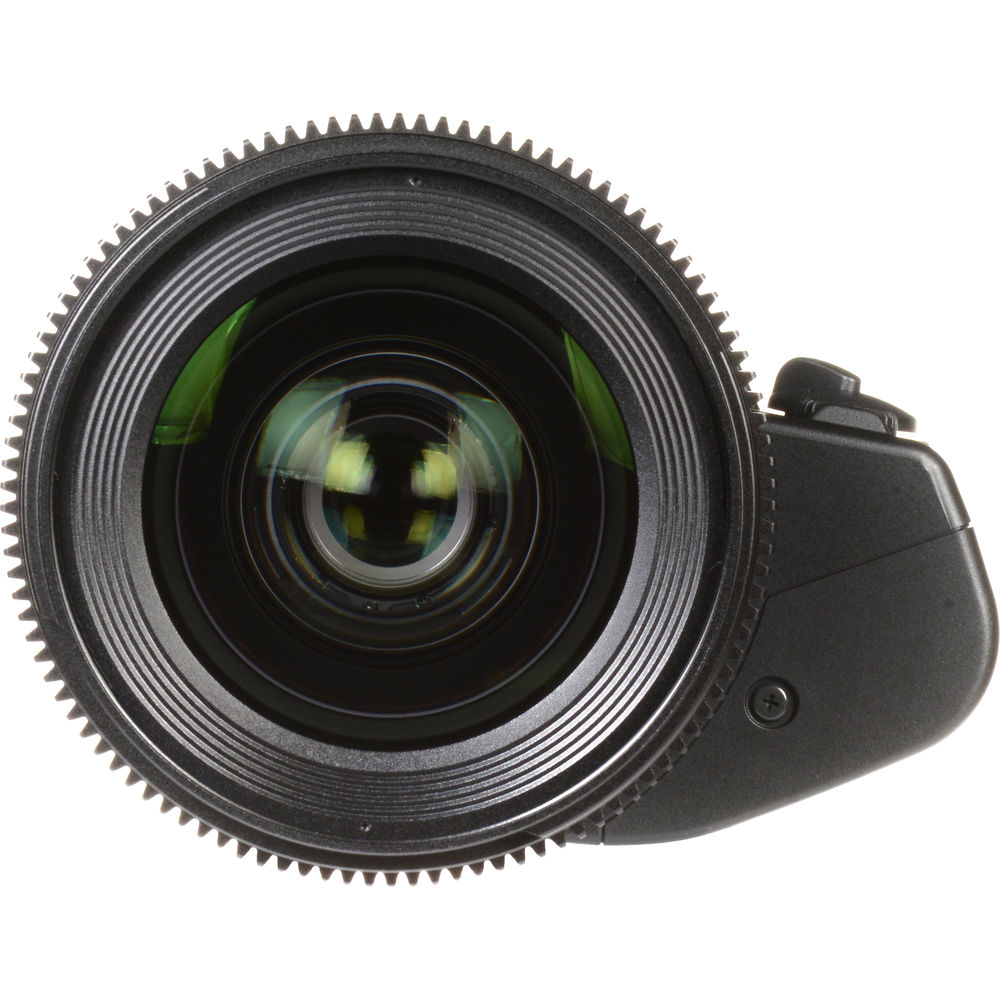

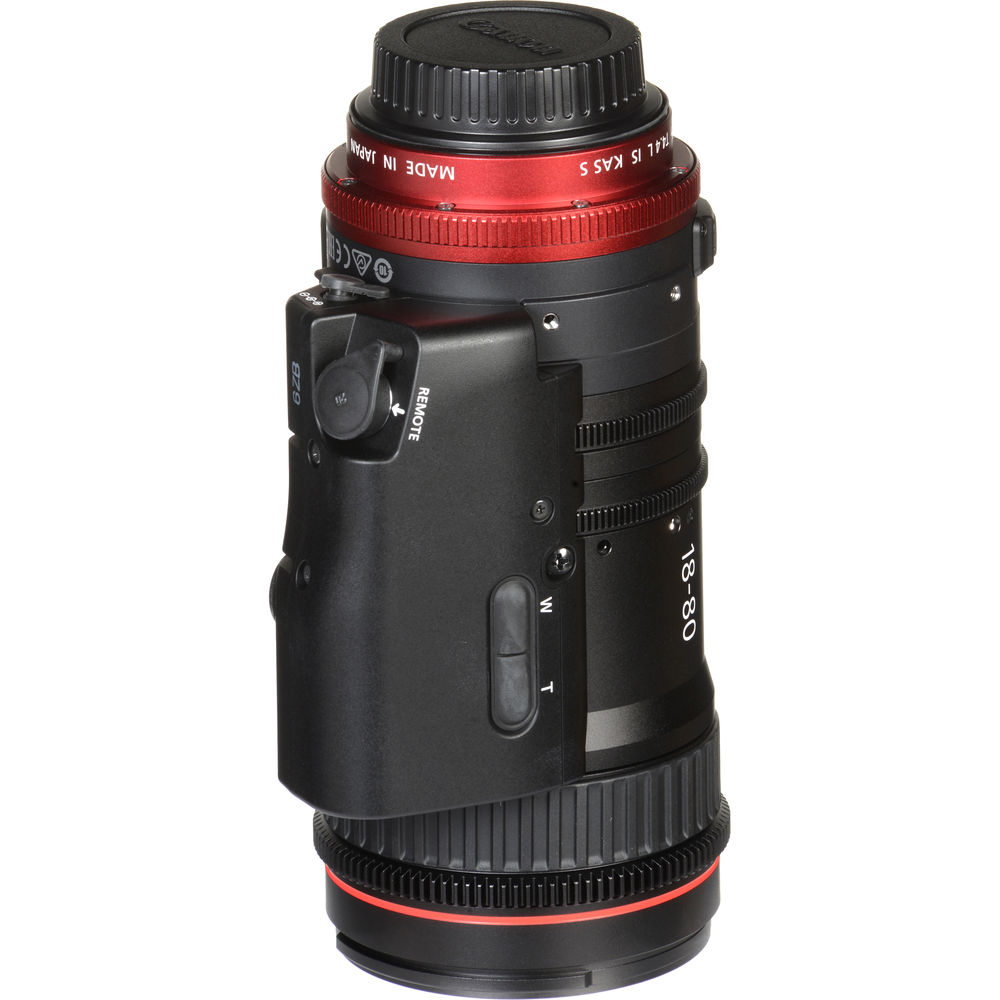

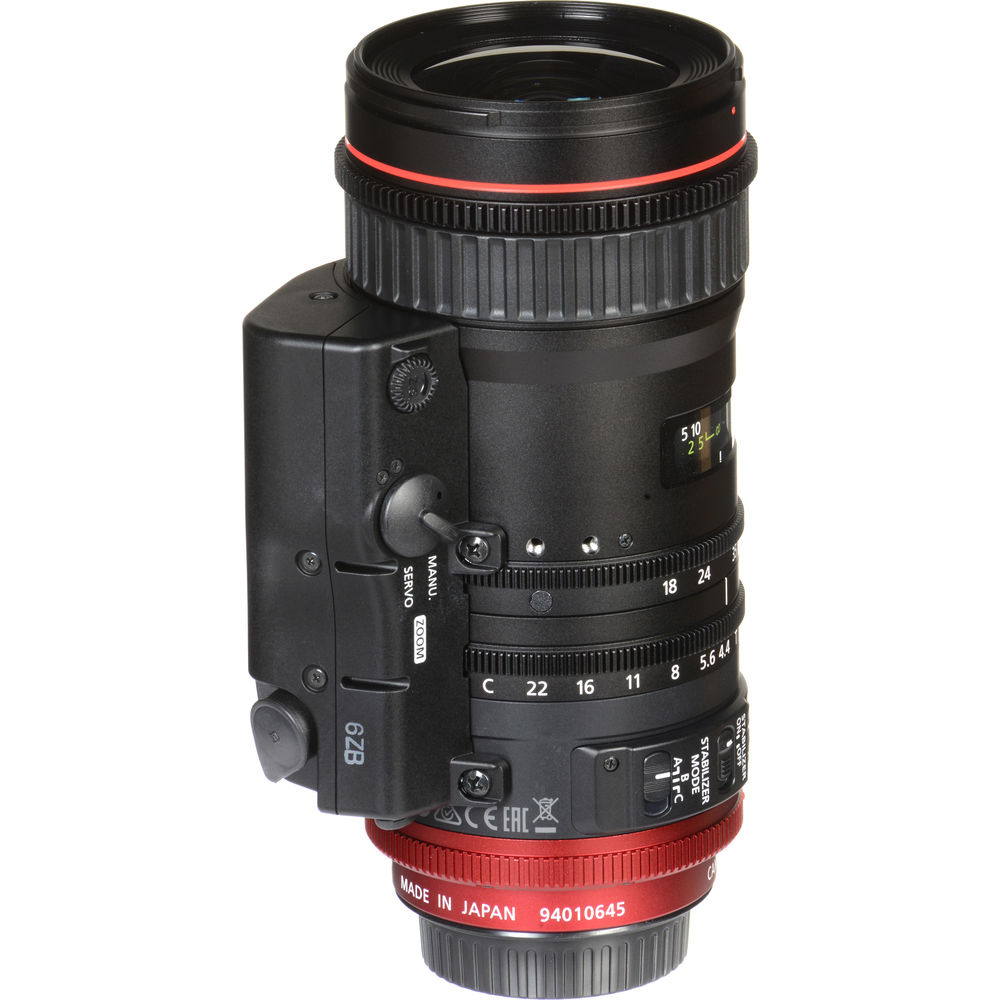

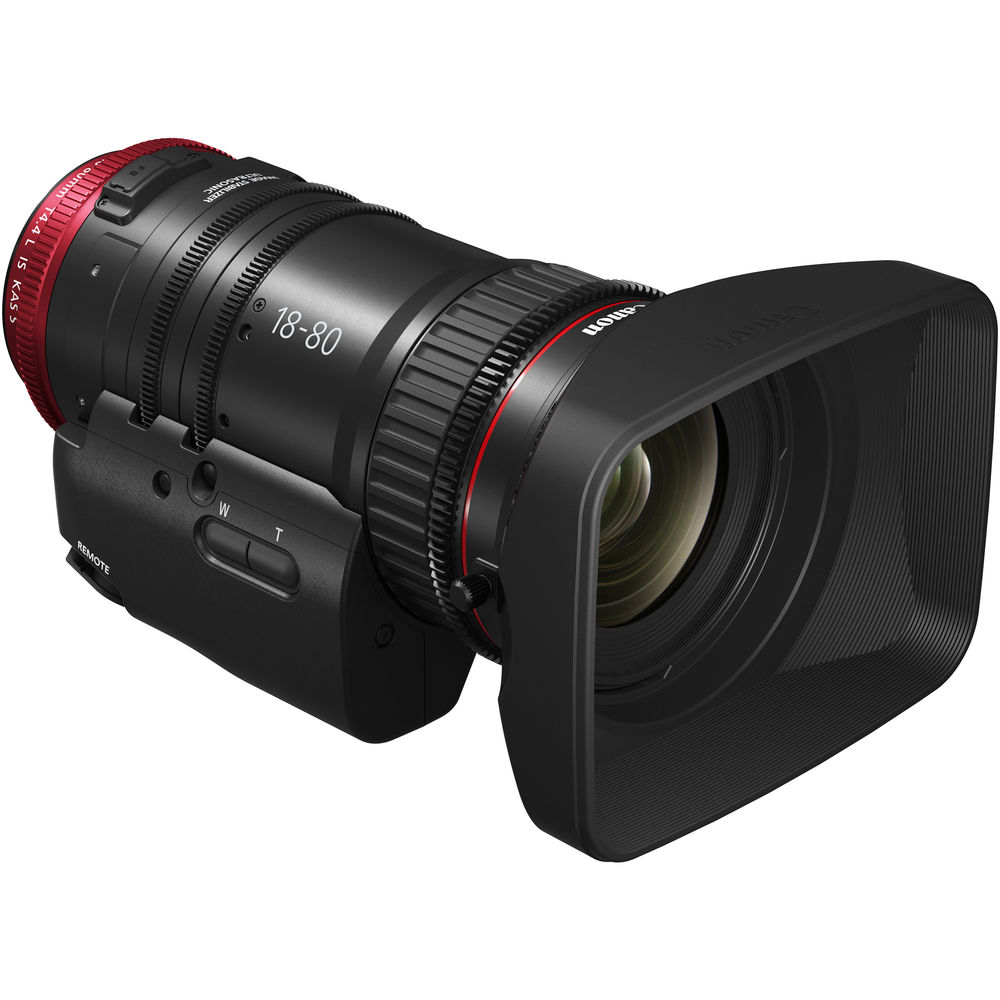

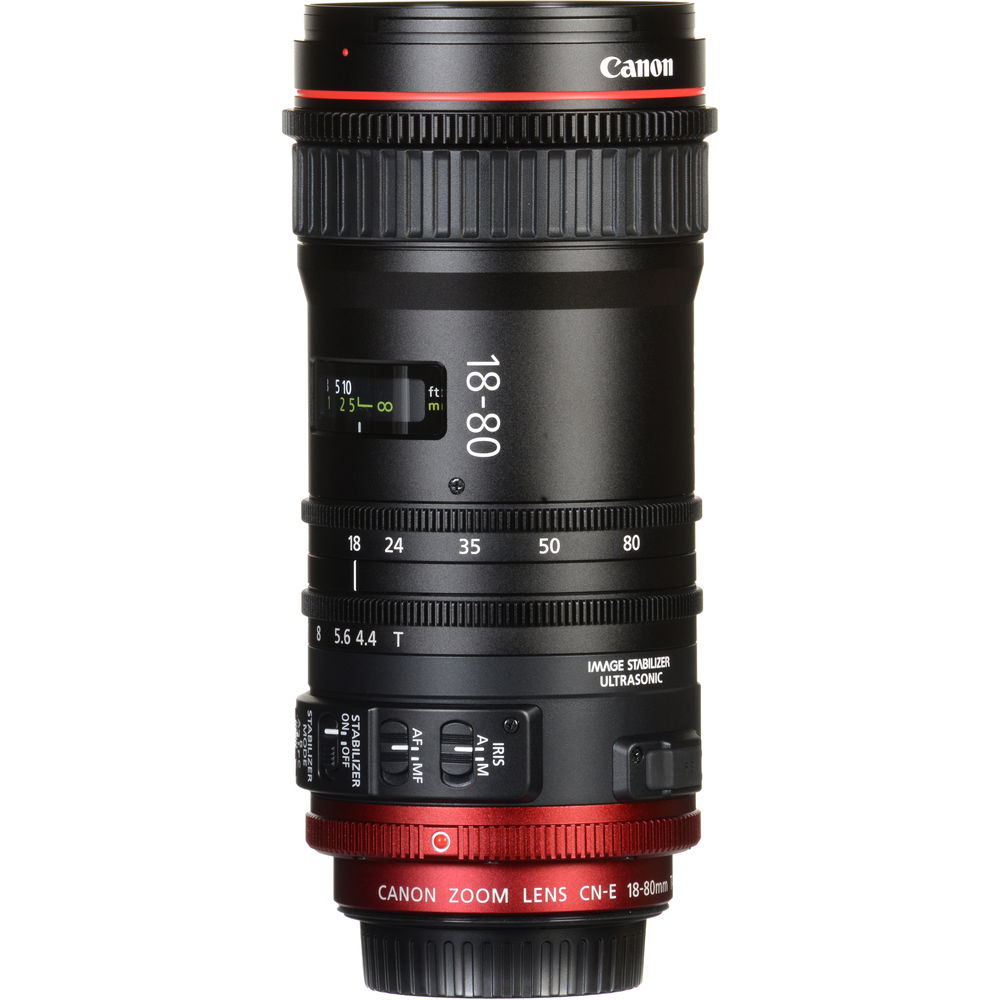

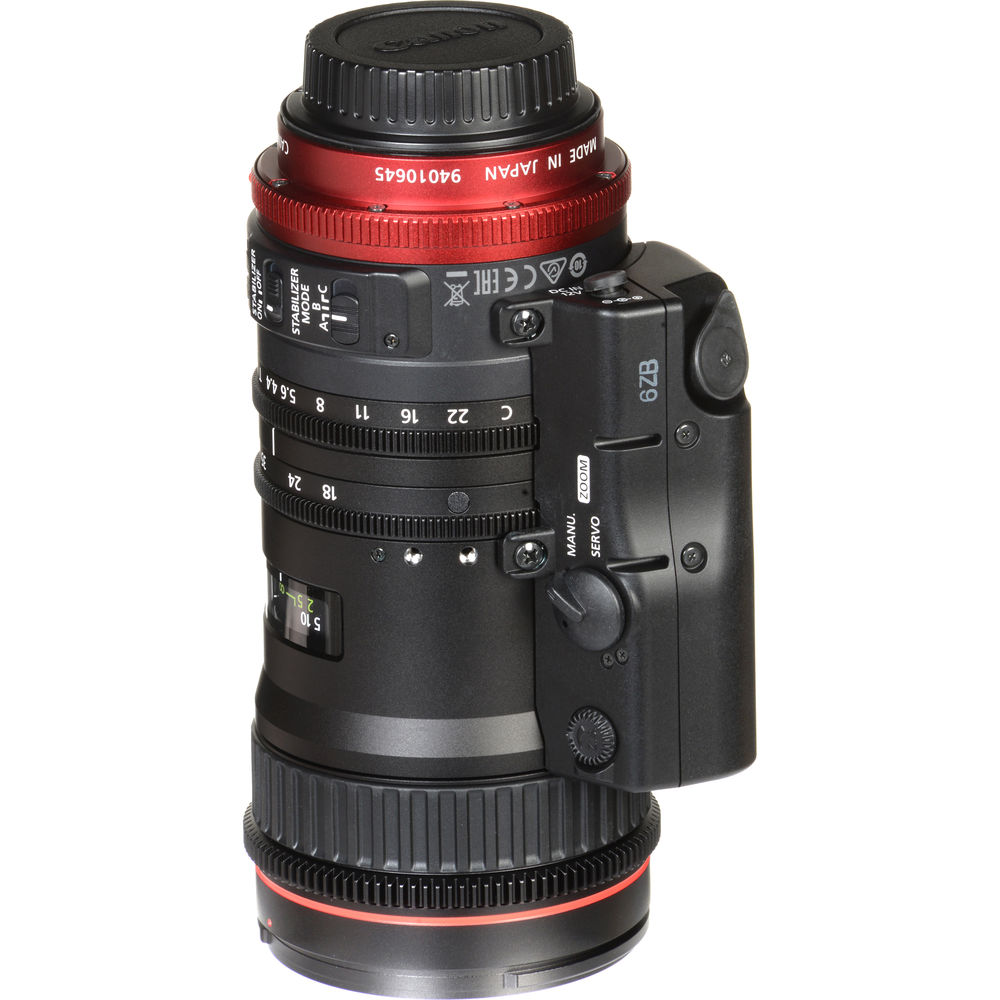

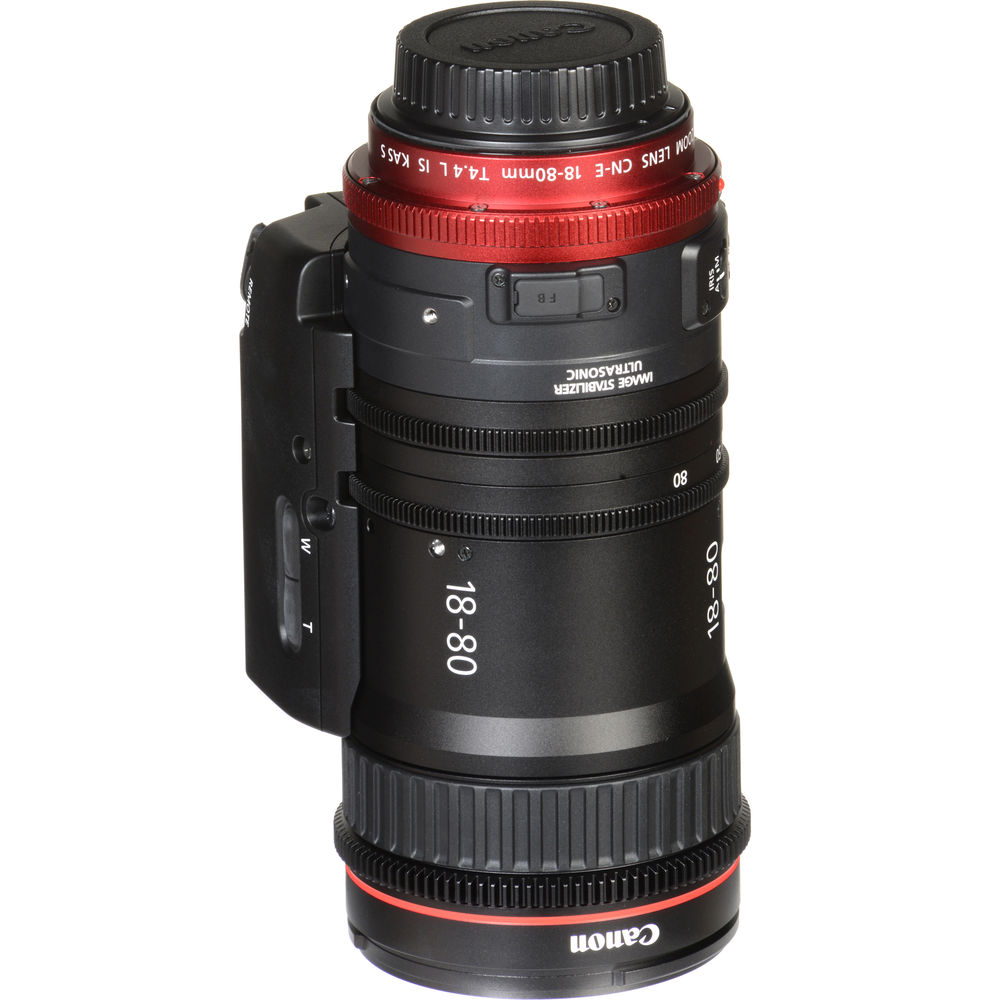

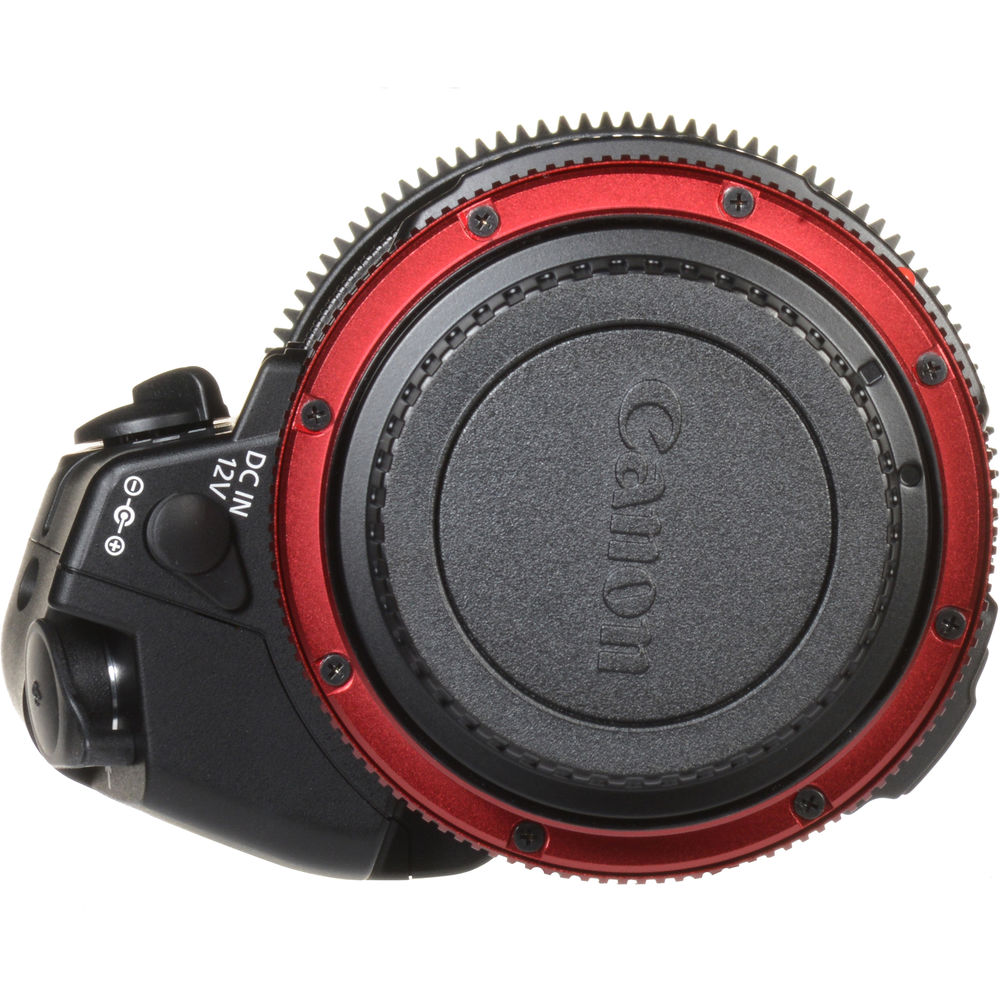

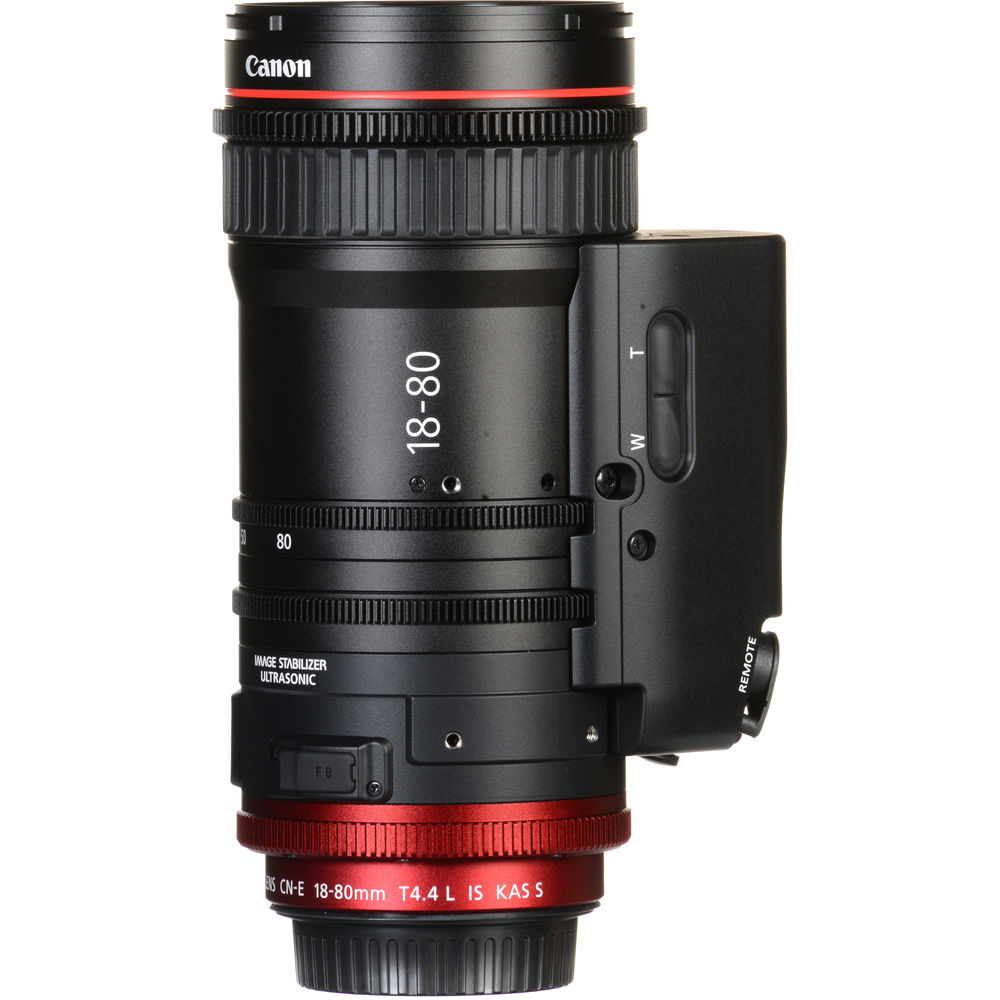

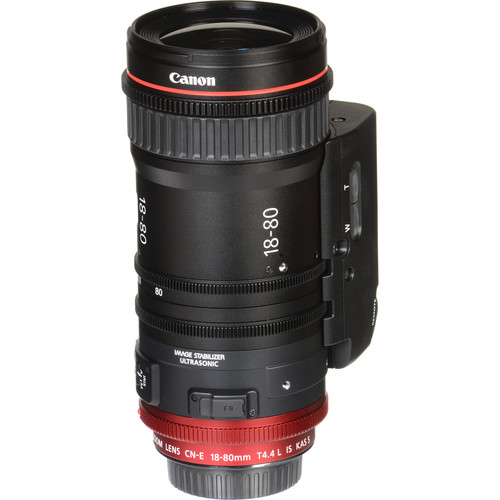

Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)
Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)

Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount)

Brand: Canon

MFR: 1714C002

Price Available Upon Request
  • Covers Super 35 & APS-C Formats
  • EF Mount
  • T4.4 Constant Maximum Aperture
  • 9-Blade Iris
  • Parfocal with Minimized Focus Breathing
  • Compatible with Servo Lens Controllers
  • Optional Control Grip
  • Image Stabilization & Auto Focus Support
  • 180° Rotation for Focus
  • Lightweight at only 2.65 lb
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Digital Cine Lenses , Digital Cine Lenses

The Canon CN-E 18-80mm T4.4 COMPACT-SERVO Lens combines the functionality of Canon's EF lenses with the features and performance of their CN-E lineup. Designed for use with EF-mount cameras featuring Super 35 or APS-C sized sensors, the lens covers an incredibly useful 18 to 80mm focal range while maintaining a constant T-stop of T4.4 (f/4) throughout. Measuring 7.2" long and weighing only 2.65 lb, the lens presents itself as a compact, lightweight option suitable for a variety of productions, from narrative work to run-and-gun documentaries. Notably, the lens is Canon's first cine-style option to incorporate image stabilization and auto focus functionality when paired with Cinema EOS cameras.

Further enhancing the versatility of this lens, Canon has equipped it with a servo drive unit compatible with industry-standard lens controllers, including Canon's broadcast ZSD-300D and FPD-400D, for full zoom, focus, and iris control. Alternatively, you can outfit the lens with the optional ZSG-C10 Control Grip for ENG-style lens control and operation. Power is provided to the grip from compatible cameras via the EF mount. For non-servo zoom control, the lens features cine-standard 0.8 mod gears, as well as a rubberized grip on the focus ring enabling comfortable manual operation.

Lens Design

  • Covers Super 35 / APS-C formats
  • 18 to 80mm focal range (4.4x zoom ratio)
  • Constant T4.4 (f/4) aperture
  • Parfocal design to maintain focus during zoom
  • Minimized focus breathing
  • Cine-standard 0.8 MOD focus gear ring
  • 0.5 MOD iris and zoom gear rings
  • Focus ring rotates 180°
  • Matching color characteristics to existing CN-E lenses
  • 9-blade iris
  • Iris closing
  • Compact and lightweight design

Servo Control

  • Servo Control Capability for all zoom, focus and iris
  • Power provided via camera mount (from compatible cameras)
  • Compatible with broadcast-style servo lens controllers, such as Canon ZSD-300D and FPD-400D
  • Optional ZSG-C10 Grip for ENG-style control and shoulder mount applications

Functionality with Cinema EOS Cameras

  • Auto focus function (Continuous AF, One-Shot AF, Focus Guide)
  • Image Stabilization
  • Remote control of zoom, focus and iris via camera
  • REC start/stop from ZSG-C10 Grip
  • Peripheral illumination correction
  • Chromatic aberration correction
  • Lens metadata record
  • T-stop/F-stop number display select

Focal Length18 to 80mm
Maximum ApertureT4.4
f/4
Lens MountCanon EF
Lens Format CoverageSuper35/APS-C
Image Circle31.4 mm
Filter Thread77 mm
Minimum Focus DistanceFrom : 1.6' / 0.5 m
Diaphragm Blades9
Image StabilizationNo
Dimensions (W x H)3.7 x 4.2" / 94 x 106.7 mm
Weight2.6 lb / 1.2 kg

Packaging Info

Package Weight5.75 lb
Box Dimensions (LxWxH)17.5 x 11.1 x 5.7"
