Canon ML-100 EF Multi-Purpose Camera
Canon ML-100 EF Multi-Purpose Camera
Canon ML-100 EF Multi-Purpose Camera
Canon ML-100 EF Multi-Purpose Camera
Canon ML-100 EF Multi-Purpose Camera
Canon ML-100 EF Multi-Purpose Camera

Canon ML-100 EF Multi-Purpose Camera

Brand: Canon

MFR: 5359C001

Price Available Upon Request
  • 35mm Full-Frame CMOS Sensor
  • 2K Raw Output via CoaXPress Interface
  • Ultralow-Light Capture | 4,000,000+ISO
  • Locking EF Lens Mount | Compact Design
  • Region of Interest 2K, 1080p & 720p
  • Up to 2K 97 fps 8-Bit/54 fps 16-Bit Out
  • 30 to 9999990 μs Shutter Speed
  • CoaXPress via GeniCam Protocol Control
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Digital Cine Cameras , Digital Cine Cameras

Get industrial video capture with highly sensitive, optimal imagery using the Canon ML-100 EF Multipurpose Camera. Built around a 35mm full-frame CMOS sensor, the ultracompact ML-100 camera creates top-of-the-line imagery with up to UHD 2K raw output and remote control via a CoaXPress interface. It features an EF lens mount, ROI (region of interest) options, a robust selection of functions, and MIL-standard equivalent compliance.

Highly Compact Functionality

  • The ML-100 maintains the sensitivity performance of the ME20F-SH while measuring 50% smaller, around 4 x 3".
  • It offers a minimum illumination of 0.0005 lux (or less), over 2.7 million pixels, and meets MIL Standard equivalents.

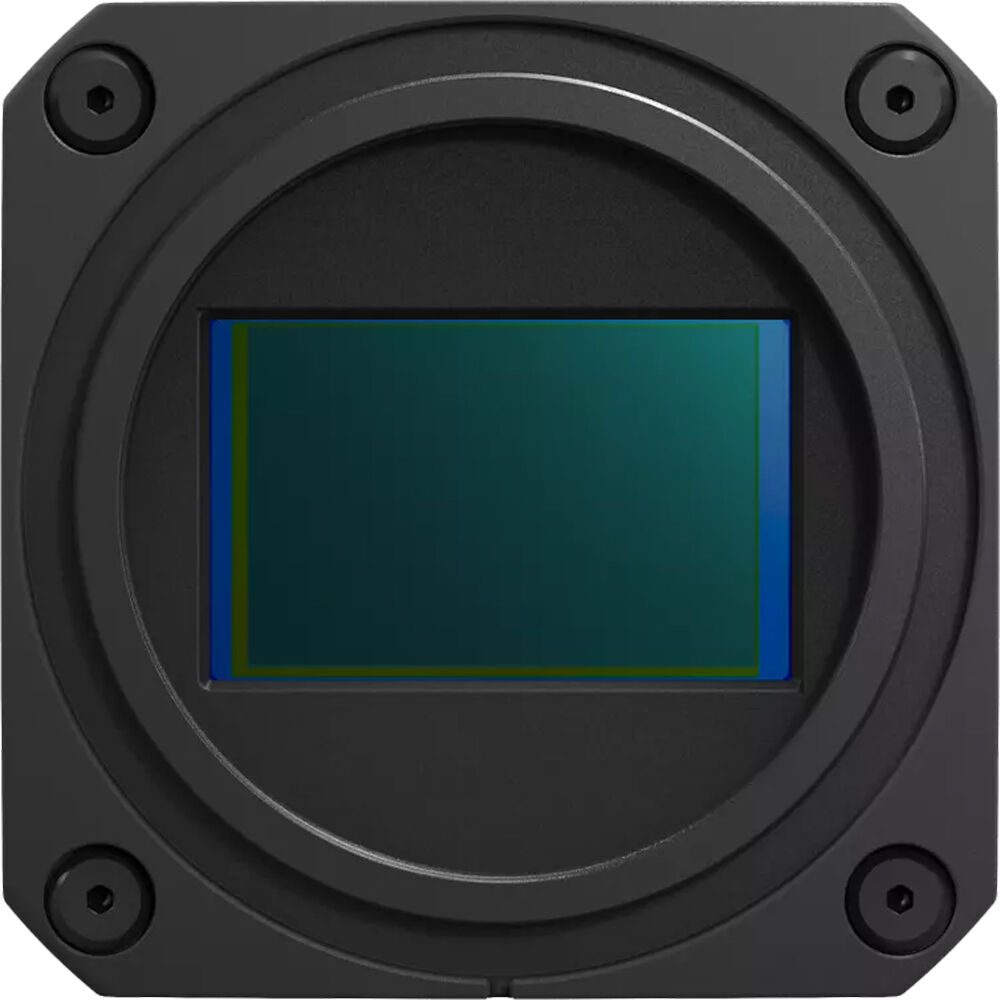

Low-Light, Full-Frame Sensor

  • The ML-100 EF's 35mm full-frame CMOS sensor uses larger 19μm photosites to obtain optimal performance, even with a minimum subject illumination of 0.0005 lux or below (at maximum 75 dB gain).
  • This sensor has a sensitivity equivalent to a higher than 4,000,000 ISO.

Raw Output via CoaXPress

  • The ML-100 EF's CoaXPress interface is used to output raw video at rates up to 2152 x 1272 97 fps video with approximately 8-bit color or 54 fps with approximately 16-bit color.
  • The raw output enables more flexible user processing, using the full potential of the ultrasensitive CMOS sensor.

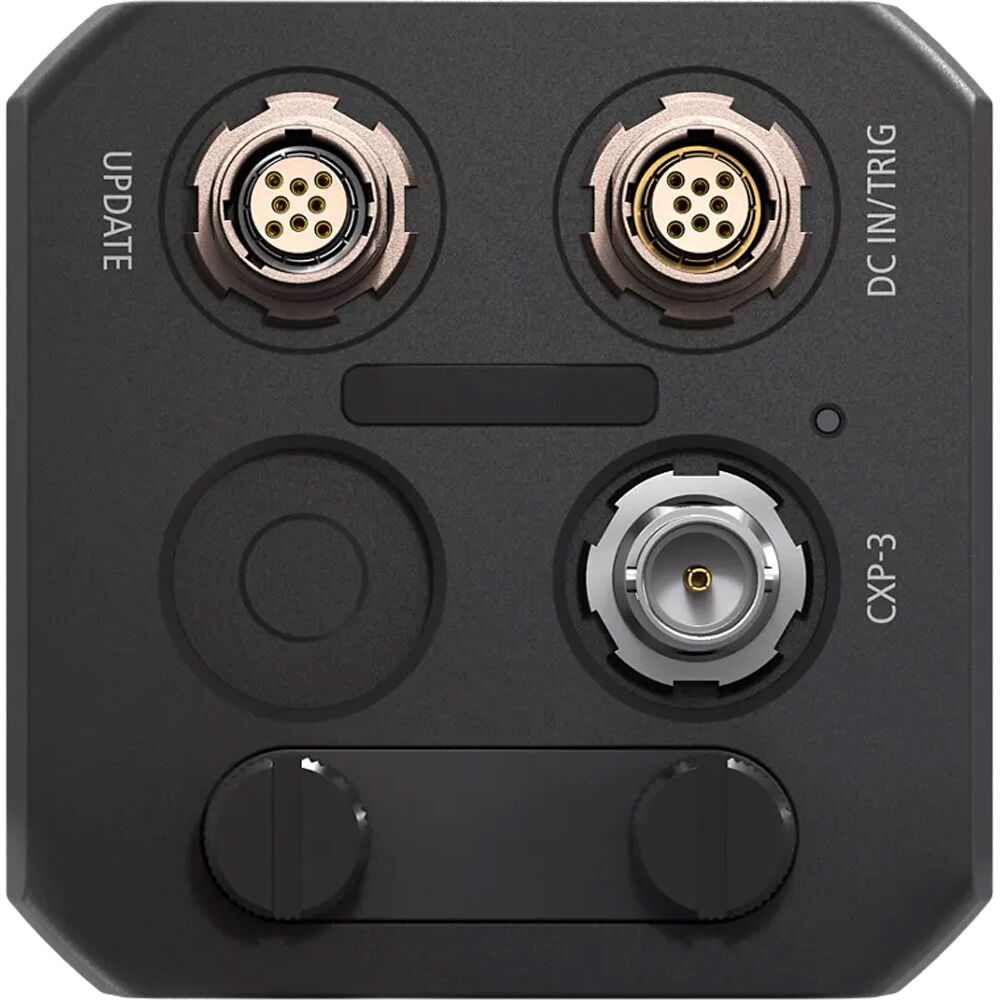

  • The camera also incorporates an 8-pin port power supply/trigger port.

Region of Interest Capture

  • Crop your frame to your desired view using the ML-100 EF's ROI (Region of Interest) function.
  • ROI options include full-view UHD 2K, center-cropped 1080p, and center-cropped 720p selections.
  • Higher frame rates are available as the frame height decreases with 1/10 height capable of 10x the frame rate.
  • 128 x 128 minimum pixel count.
  • Selectable X and Y axis offset.

Reduced Form Size

  • This compact box-style camera can be easily configured with a wide range of industrial systems.

General

CompatibilityCanon EF Lenses / EF Cinema Lenses (Excluding Cine-Servo)
Shutter Speeds30 to 9999990 μs

Inputs / Outputs

Video I/O1 x CoaXPress Output
Number of PixelsTotal: 3.02 Million
Size: 19 x 19 µm
Full Well Charge: 61,000 e at Gain x 1
Dark Random Noise: 2.2 e rms at Gain x 16 (Room Temperature)
Effective PixelsApproximate: 2.73 Million
Active Image Size: 40.9 x 24.2mm
Minimum Illumination0.0005 Lux or Less (at 75 dB, f/1.2, 30p, 50 IRE)
ISO SensitivityMaximum: 4,560,000 (75 dB)
FilterLow Pass
RemoteInput: 1 x 8-Pin ODU
FocusMotor-Driven Control

Wireless

Mobile App CompatibleNo
*As of September, 2023: Check with manufacturer for the most up-to-date compatibility

Power

Power SourceAC Adapter with Power Brick (Not Included)
DC Input Power10 to 29 VDC
Power Consumption9.2 W (Maximum)

Environmental

Environmental ProtectionNone
CertificationsMIL-STD, TAA
Operating Temperature-4 to 122°F / -20 to 50°C

Physical

ColorBlack
Dimensions4.4 x 3 x 3" / 112 x 76 x 76 mm
Weight1.7 lb / 785 g
