Canon ML-105 EF Multipurpose Camera (Canon EF)
Canon ML-105 EF Multipurpose Camera (Canon EF)
Canon ML-105 EF Multipurpose Camera (Canon EF)
Canon ML-105 EF Multipurpose Camera (Canon EF)
Canon ML-105 EF Multipurpose Camera (Canon EF)
Canon ML-105 EF Multipurpose Camera (Canon EF)

Canon ML-105 EF Multipurpose Camera (Canon EF)

Brand: Canon

MFR: 4843C001

Price Available Upon Request
  • 35mm Full-Frame CMOS Sensor
  • DIGIC DV4 Processor | Rolling Shutter
  • Ultralow Light Capture | 4,000,000+ISO
  • Locking EF Lens Mount | Compact Design
  • 2x, 3x & 4x Digital Teleconverter
  • Up to 1080p59.94 Video Output
  • 3G/HD-SDI BNC Interface
  • 4:2:2 8-Bit Color
  • 1/2000 to 1/3 Second Shutter Speed
  • Genlock, RC-V100, NU & OK-R Control
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Digital Cine Cameras , Digital Cine Cameras

Get exceptional, low-light industrial video performance using the Canon ML-105 EF Multipurpose Camera. Built around a 35mm full-frame CMOS sensor, the highly sensitive ML-105 camera creates top-of-the-line imagery in a reduced form factor. Despite its compact size, this high-end EF-mount camera offers a robust selection of functions and meets MIL-standard equivalents.

Highly Compact Functionality

  • The ML-105 maintains the sensitivity performance of the ME20F-SH while measuring 50% smaller, around 4 x 3".
  • It offers a minimum illumination of 0.0005 lux (or less), over 2.7 million pixels, and meets MIL Standard equivalents.

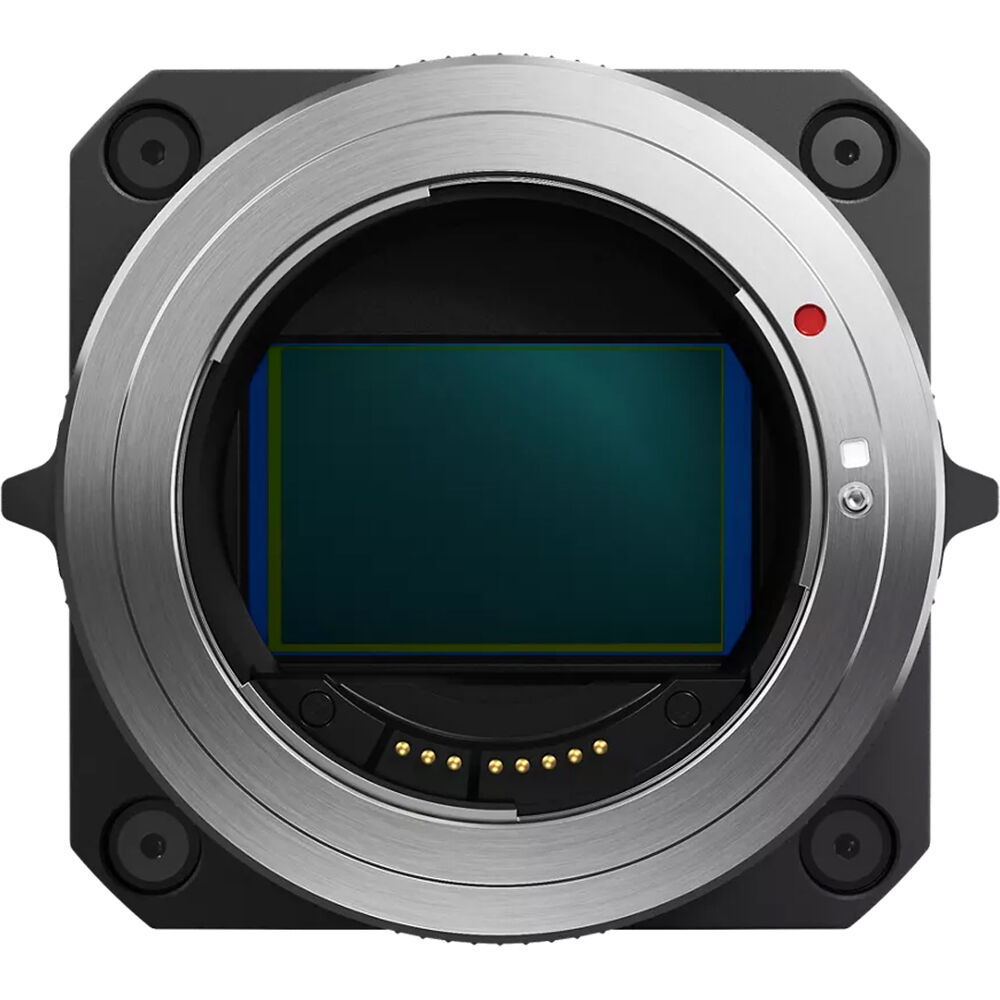

Low-Light, Full-Frame Sensor

  • The ML-105 EF's 35mm full-frame CMOS sensor uses larger 19μm photosites to obtain optimal performance even with a minimum subject illumination of 0.0005 lux or below (at maximum 75 dB gain).
  • This sensor has a sensitivity equivalent to a higher than 4,000,000 ISO.

Reduced Form Size

  • This box-style camera can be easily configured with a wide range of system devices.
  • Its modularity enables it to be used on multi-sensor optical systems, defense surveillance systems, research and surveying, and more.

3G-SDI BNC Output

  • The ML-105 EF outputs 8-bit effective, 4:2:2 video at rates up to 1080p 59.94.
  • It also incorporates a Genlock BNC terminal.

General

CompatibilityCanon EF Lenses / EF Cinema Lenses (Excluding Cine-Servo)
Shutter Speeds1/2000 to 1/3 Second

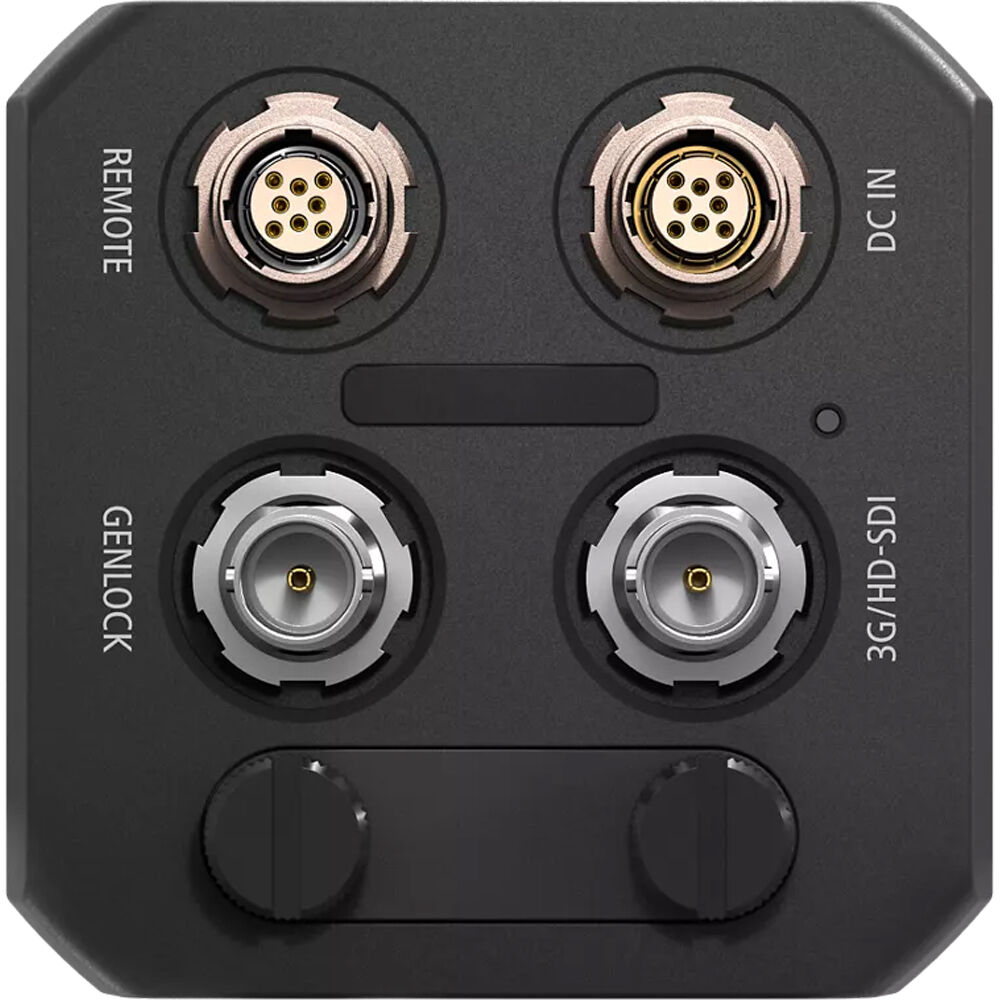

Inputs / Outputs

Video I/O1 x BNC (3G-SDI) Output
Number of PixelsTotal: 3.02 Million
Size: 19 x 19 µm
Full Well Charge: 61,000 e at Gain x 1
Dark Random Noise: 2.2 e rms at Gain x 16 (Room Temperature)
Effective PixelsApproximate: 2.07 Million
Active Image Size: 36.5 x 20.5 mm
Minimum Illumination0.0005 Lux or Less (at 75 dB, f/1.2, 30p, 50 IRE)
ISO SensitivityMaximum: 4,560,000 (75 dB)
FilterLow Pass
Other Input/OutputGenlock: 1 x BNC
RemoteInput: 1 x 8-Pin ODU
FocusMotor-Driven Control

Wireless

Mobile App CompatibleNo
*As of September, 2023: Check with manufacturer for the most up-to-date compatibility
Video Resolution1080p: 59.94/50/29.97/25/23.98
1080i: 59.94/50
720p: 59.94/50/29.97/25/23.98

Power

Power SourceAC Adapter with Power Brick (Not Included)
DC Input Power10 to 29 VDC
Power Consumption10.2 W
CoolingPassive

Environmental

Environmental ProtectionNone
CertificationsMIL-STD, TAA
Operating Temperature-4 to 122°F / -20 to 50°C

Physical

ColorBlack
Dimensions3.3 x 3 x 3" / 83 x 76 x 76 mm
Weight1.8 lb / 800 g
