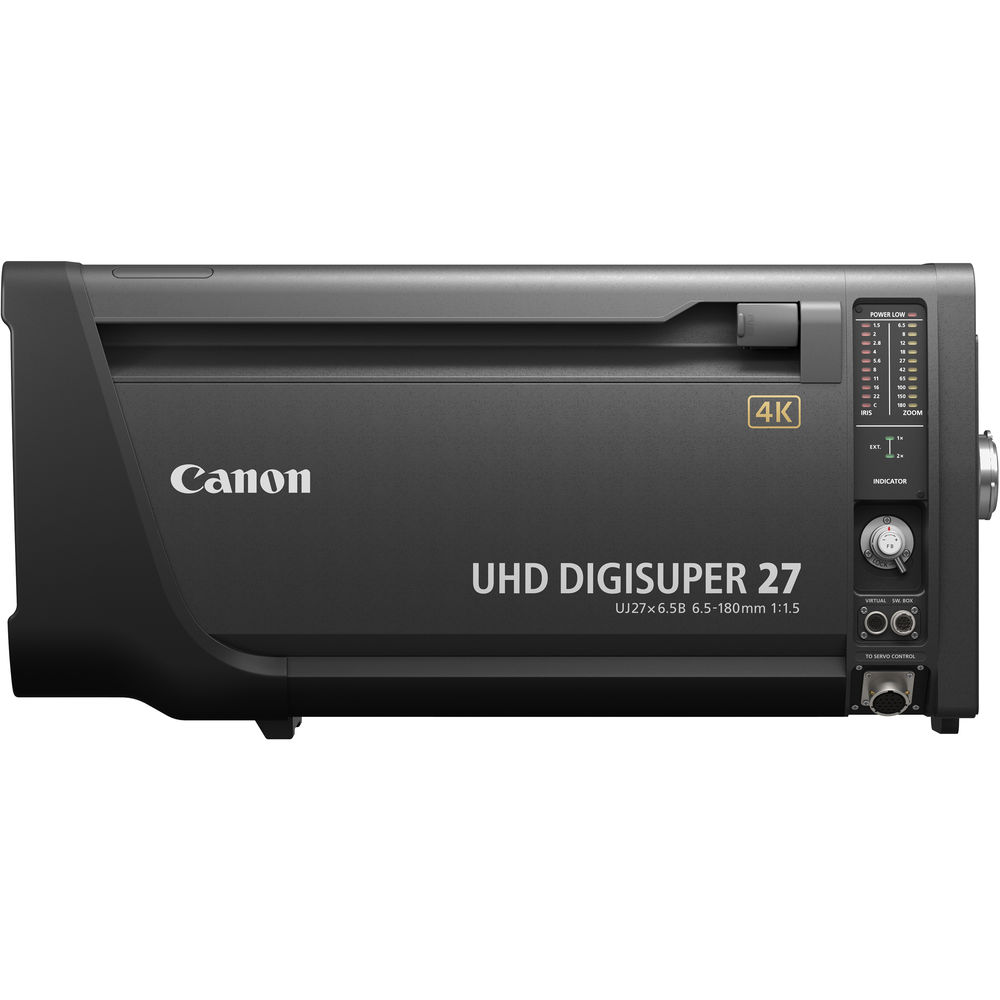

Canon UHD DIGISUPER 27 4K Studio Lens (Full Servo)
Canon UHD DIGISUPER 27 4K Studio Lens (Full Servo)

Canon UHD DIGISUPER 27 4K Studio Lens (Full Servo)

Brand: Canon

MFR: UJ27X6.5B / P01-DFS

Price Available Upon Request
  • 6.5-180mm Lens for 2/3" Cameras
  • 27x Zoom Ratio with 2x Extender
  • f/1.5 Max Aperture at 6.5-123mm
  • 16-Bit Optical Rotary Encoders
  • 4K Quality Retained when Using Extender
  • Servo System for Zoom and Focus
  • Optical Coating, Anti-Reflective Design
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Professional Lenses

The UHD DIGISUPER 27 4K Studio Lens (Full Servo) is Canon's flagship 2/3" box-style studio lens. This wide lens features a 27x zoom range (6.5-180mm) and a maximum aperture of f/1.5 at 6.5-123mm. When using the built-in 2x extender, the zoom range becomes 13-360mm. The UHD DIGISUPER 27 is constructed with a proprietary lens coating and anti-reflection materials, improving contrast and color reproduction, while minimizing ghosting and flares. The resulting images enhance your camera's HDR (high dynamic range) feature. The 4K-quality resolution is maintained even when using the UHD DIGISUPER 27's 2x extender.

This Full Servo version of the UHD DIGISUPER 27 includes a ZDJ-P01 Zoom Demand, an FDJ-P01 Focus Demand, and two SMJ-E01 Servo Modules. The lens is compatible with these and other established Canon servo components. The UHD DIGISUPER 27 also features 16-bit optical rotary encoders to capture the lens data required when shooting with virtual or robotic systems.

Key Features

  • 6.5-180mm zoom lens for 2/3" cameras with integrated 2x extender producing a 13-360mm range
  • Fast f/1.5 maximum aperture at 6.5-123mm and f/2.2 at 180mm, with f/3.0 at 13-246mm and f/4.4 at 360mm using the 2x extender
  • The lens's 4K UHD image quality is preserved even when using the 2x extender
  • 16-bit optical rotary encoders capture lens data for use with virtual and robotic systems
  • Anti-reflective materials and a proprietary lens coating help to minimize internal reflections, ghosting and flares
  • Focus and zoom servo components are included; focus and zoom operation has been improved over prior models

Sensor Compatibility2/3" (16:9)
Focal Length6.5 to 180mm
With Extender: 13 to 360mm
Built-In Extender2x
Zoom Ratio27x
Angle of View16:9
Wide: 72.9 x 45.1° (H x V)
Tele: 3.1 x 1.7° (H x V)
16:9 With 2x Extender
Wide: 40.5 x 23.5° (H x V)
Tele: 1.5 x 0.9° (H x V)
Maximum Aperturef/1.5 to 2.2
With Extender: f/3 to 4.4
Minimum Object Distance2' / 0.6 m
Dimensions21.7 x 9.9 x 10.1" / 550.0 x 250.6 x 255.5 mm (L x W x H)
Weight47.4 lb / 21.5 kg
