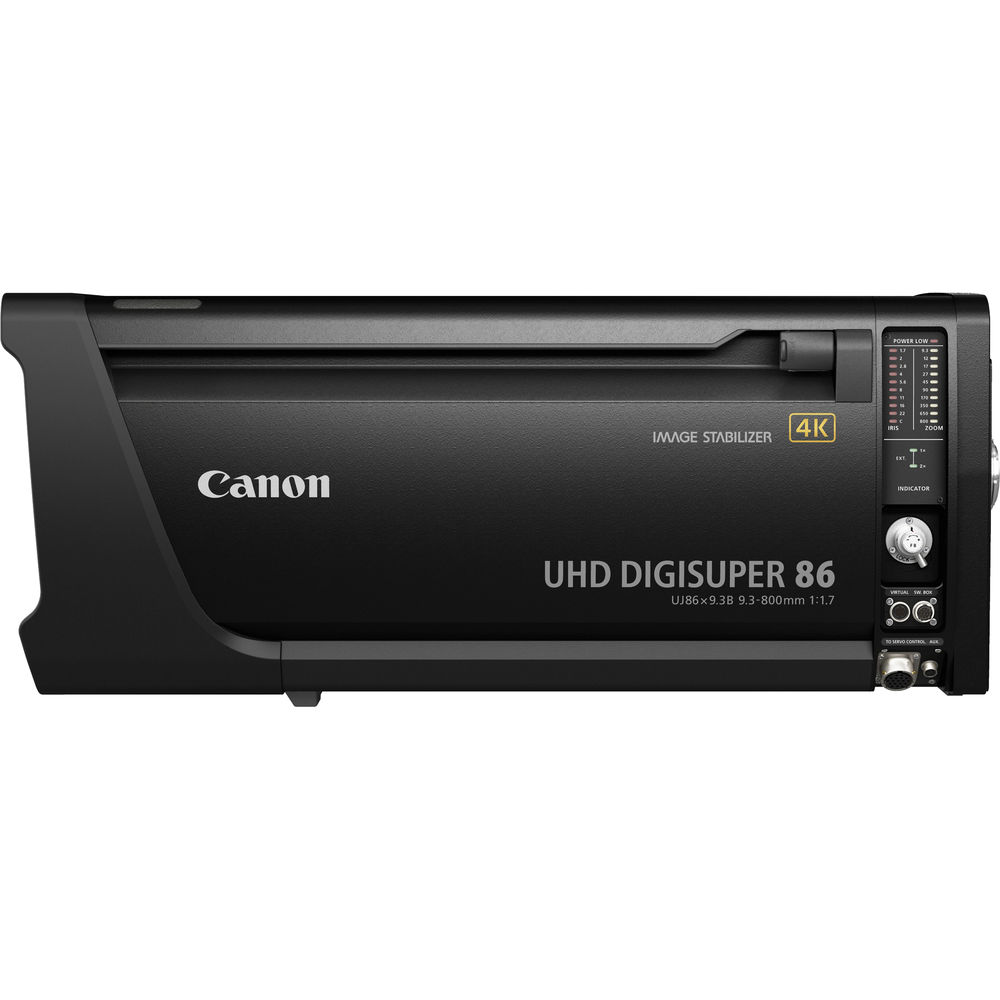

Canon UHD-DIGISUPER 86 4K Field Lens (Semi-Servo Control)
Canon UHD-DIGISUPER 86 4K Field Lens (Semi-Servo Control)

Canon UHD-DIGISUPER 86 4K Field Lens (Semi-Servo Control)

Brand: Canon

MFR: UJ86X9.3B / P01-DSS

Price Available Upon Request
  • 86x Zoom Ratio with 2x Extender
  • 9.3 to 800mm Lens for 2/3" Cameras
  • 18.6 to 1600mm with Extender
  • f/1.7 Max Aperture at 9.3 to 340mm
  • 4K Quality Retained When Using Extender
  • Servo System for Zoom and Focus
  • Optical Coating, Antireflective Design
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Professional Lenses

The UHD-DIGISUPER 86 4K Field Lens from Canon is a box-style housed lens for field use. This lens features an astounding 86x zoom range for a 2/3" inch lens (9.3 to 800mm) and a maximum aperture of f/1.7 from 9.3 to 340mm, then ramping to f/4.0 at 800mm. When using the built-in 2x extender, the zoom range becomes 18.6 to 1600mm, with a consistent decrease in the speed of the lens (two stops). The UHD-DIGISUPER 86 exceeds 4K resolution, providing exceptional image quality and maintaining 4K resolution when the 2x extender is engaged.

This Semi Servo version of the UHD DIGISUPER 86 includes a ZDJ-P01 Zoom Demand, an SMJ-E01 Servo Module, an FFP-T61 Focus Demand, and a 36" Flex Cable. The lens is compatible with these and other established Canon servo components. The UHD DIGISUPER 86 also features 16-bit optical rotary encoders to capture the lens data required when shooting with virtual or robotic systems.

Key Features

  • 9.3 to 800mm zoom lens for 2/3" cameras, with an integrated 2x extender producing an 18 to 1600mm range
  • The lens's UHD 4K image quality is preserved even when using the 2x extender
  • Antireflective materials and a proprietary lens coating help minimize internal reflections, ghosting, and flares

Sensor Compatibility2/3" (16:9)
Focal Length9.3 to 800mm
With Extender: 18.6 to 1600mm
Built-In Extender2x
Zoom Ratio86x
Angle of View16:9
Wide: 54.6 x 32.4° (H x V)
Tele: 0.69 x 0.39° (H x V)
16:9 With 2x Extender
Wide: 28.9 x 16.5° (H x V)
Tele: 0.34 x 0.19° (H x V)
Maximum Aperturef/1.7 to 4
With Extender: f/3.4 to 8
MacroNo
Minimum Object Distance8.92' / 271.9 cm
Optical Image StabilizationNo
Dimensions25.0 x 9.9 x 10.1" / 635.0 x 251.5 x 256.5 mm (L x W x H)
Weight59.5 lb / 26.99 kg
