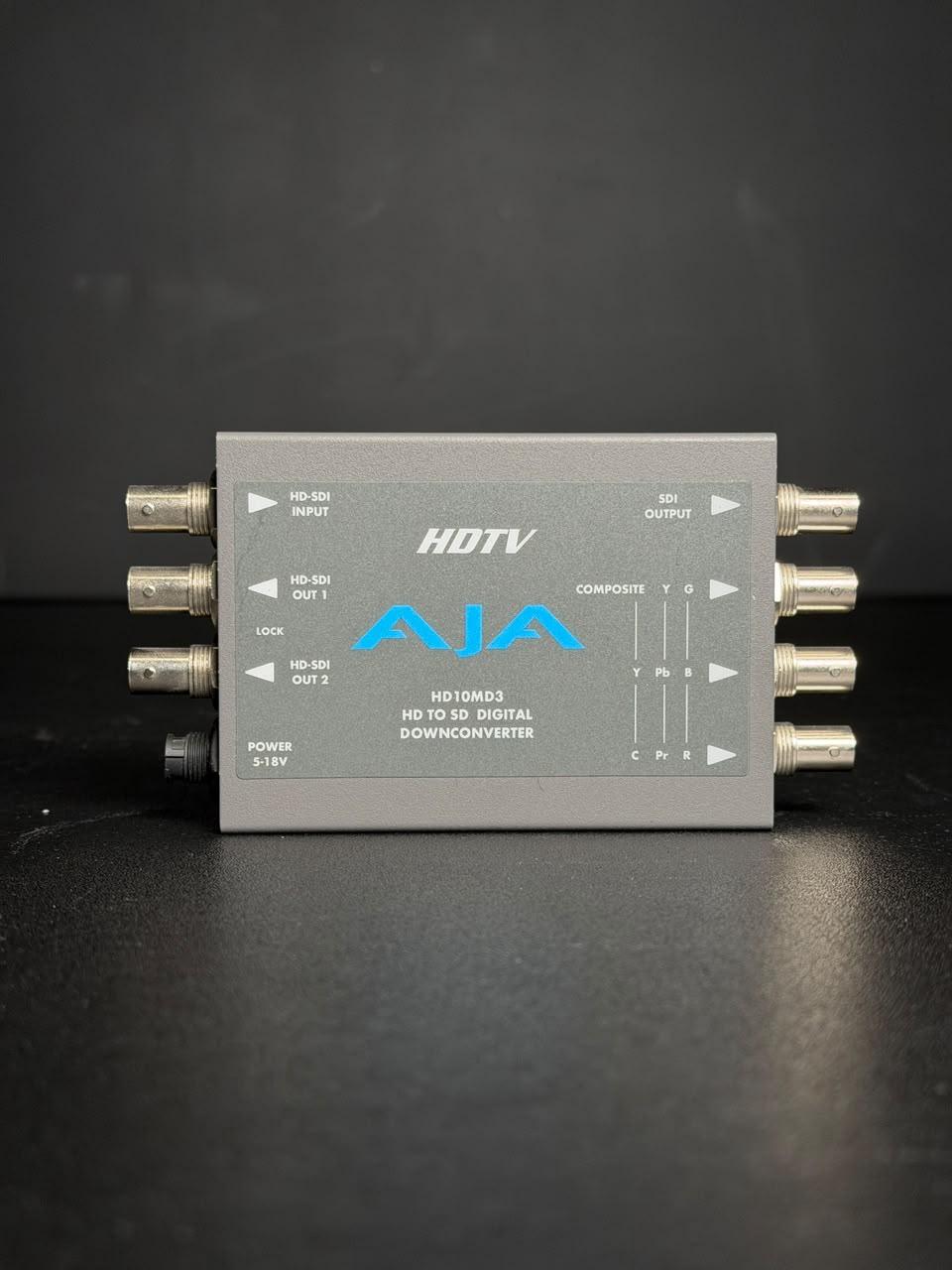

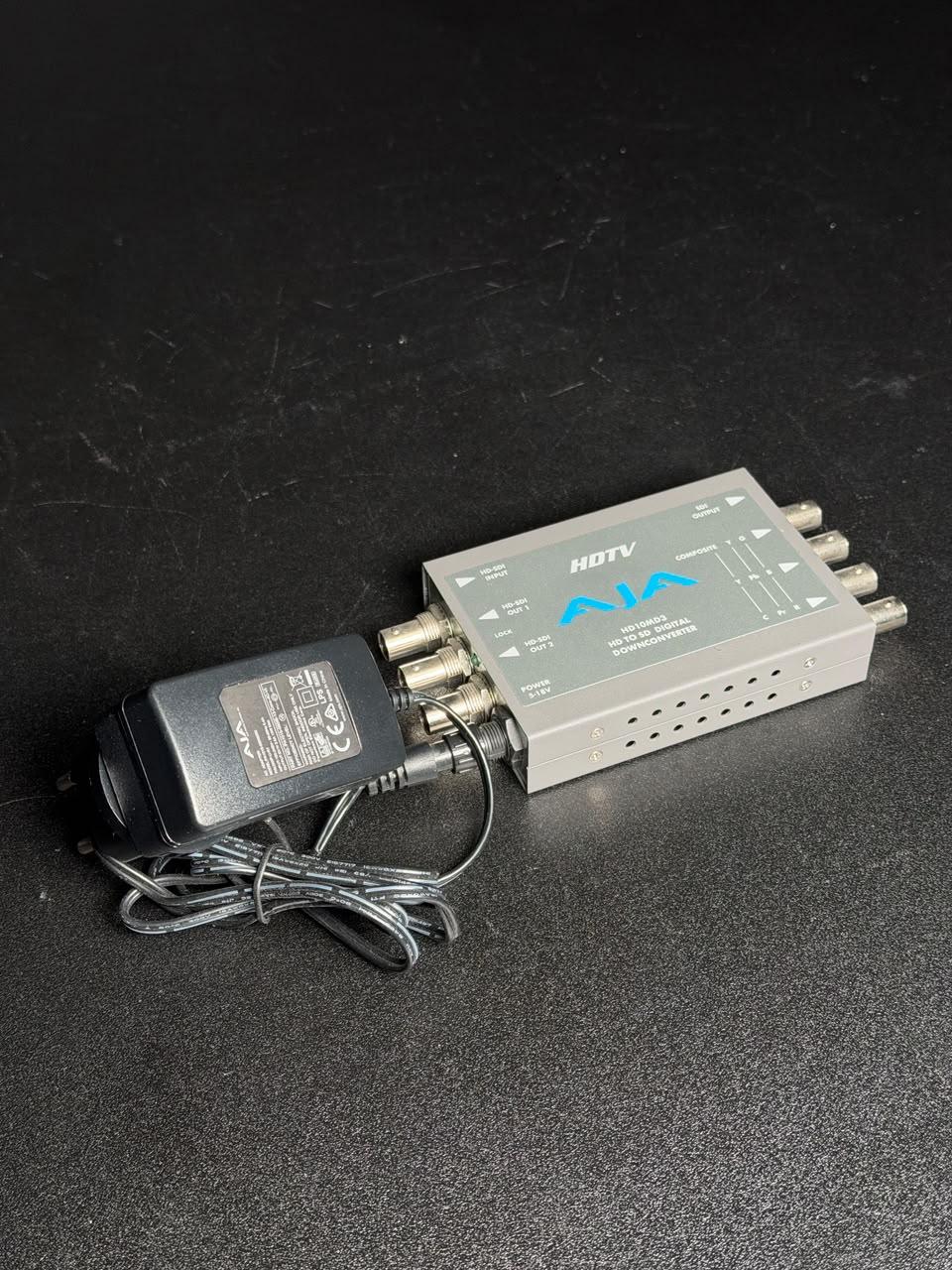

AJA’s HD10MD3 is a compact, broadcast-grade downconverter designed to translate HD-SDI signals into SD-SDI, component, and composite video formats. Utilizing a 10-bit processing path with multi-point interpolation, it delivers precise image downscaling while preserving audio integrity by passing up to four channels of embedded audio to the SD-SDI output. The unit handles 1080p24 and 1080p24sf sources by applying standard 3:2 pulldown to output smooth 59.94 Hz video. With user-configurable external DIP switches, operators can easily adjust settings on the fly, including formatting outputs to fit either 4:3 or 16:9 standard-definition monitors.
| Specification | Detail |
|---|---|
| Supported Input Formats | 1080i: 50 / 59.94 / 60 Hz
1080p/psf: 23.98 / 24 / 25 / 29.97 / 30 Hz
720p: 50 / 59.94 / 60 Hz |

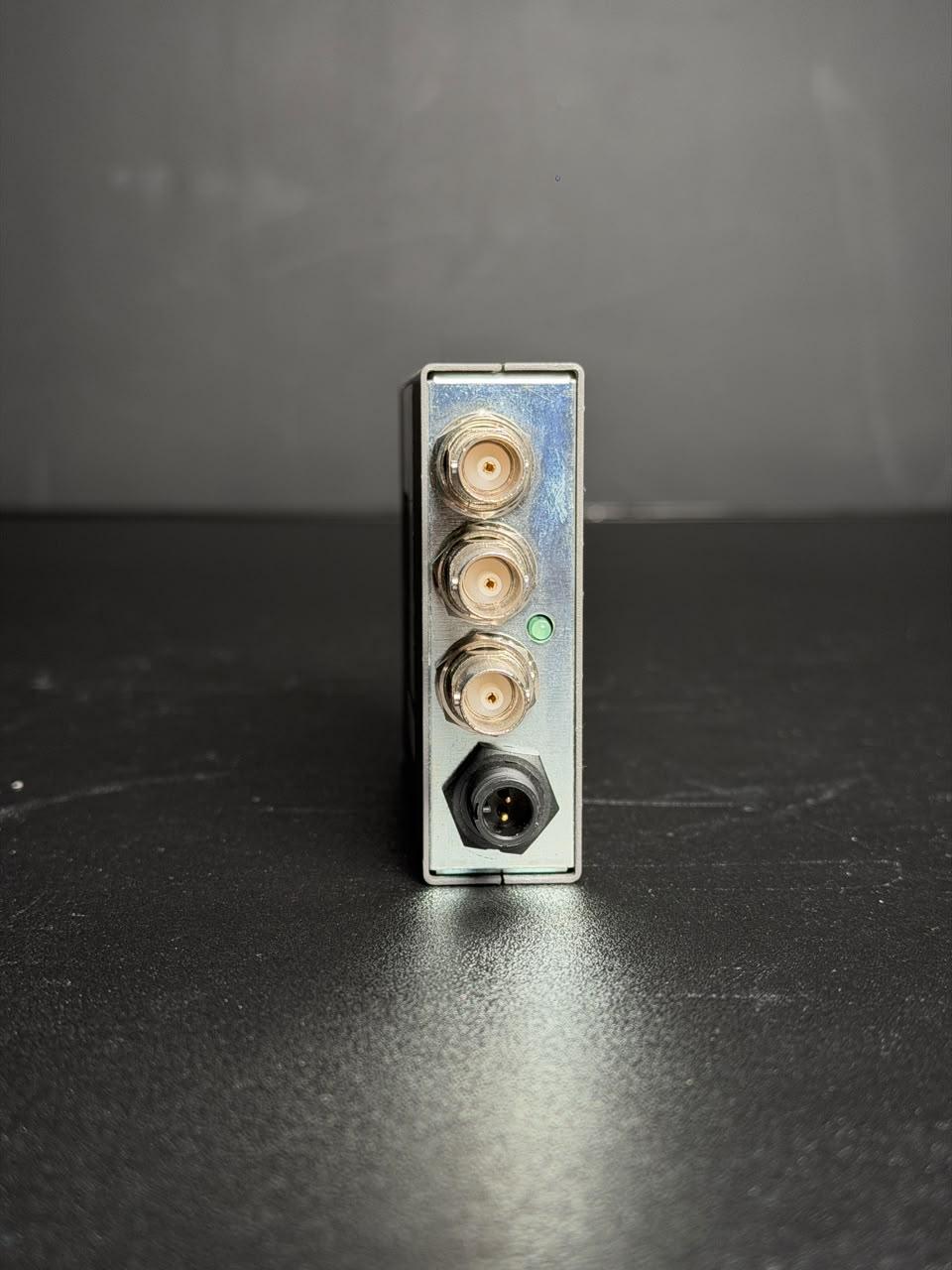

| Input Interfaces | 1 x HD-SDI / SDI dual-rate (SMPTE 292/296) |

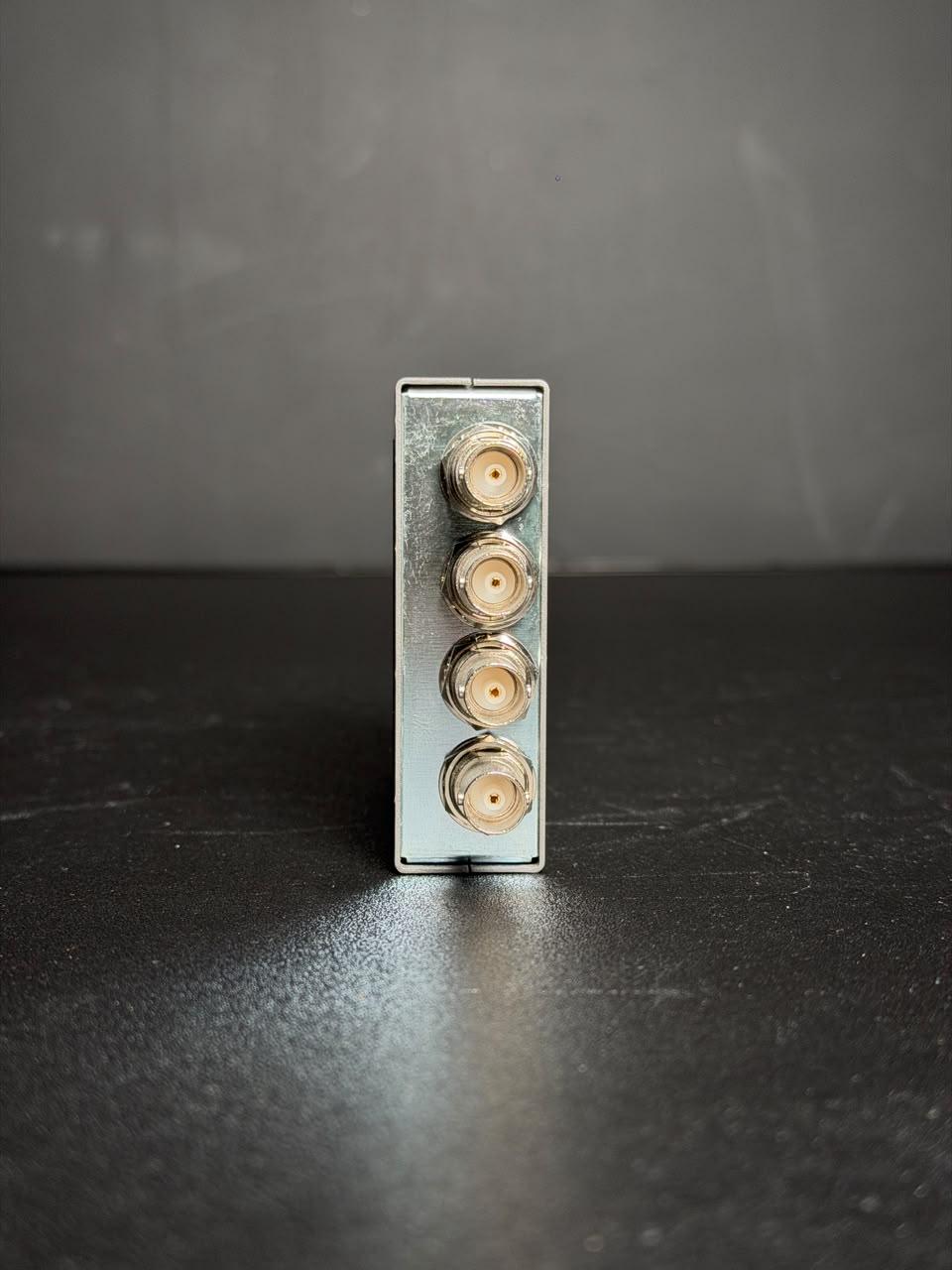

| Output Interfaces | 1 x SD-SDI (SMPTE 259M)
2 x HD-SDI
1 x YPbPr Component via BNC (SMPTE, EBU-N10, Betacam)
1 x RGB via BNC
1 x YC (S-Video) via BNC
1 x Composite (NTSC / PAL) |
| Downconversion Engine | 10-bit processing with multi-point interpolation
3:2 pulldown conversion for 23.98 / 24p / psf sources |

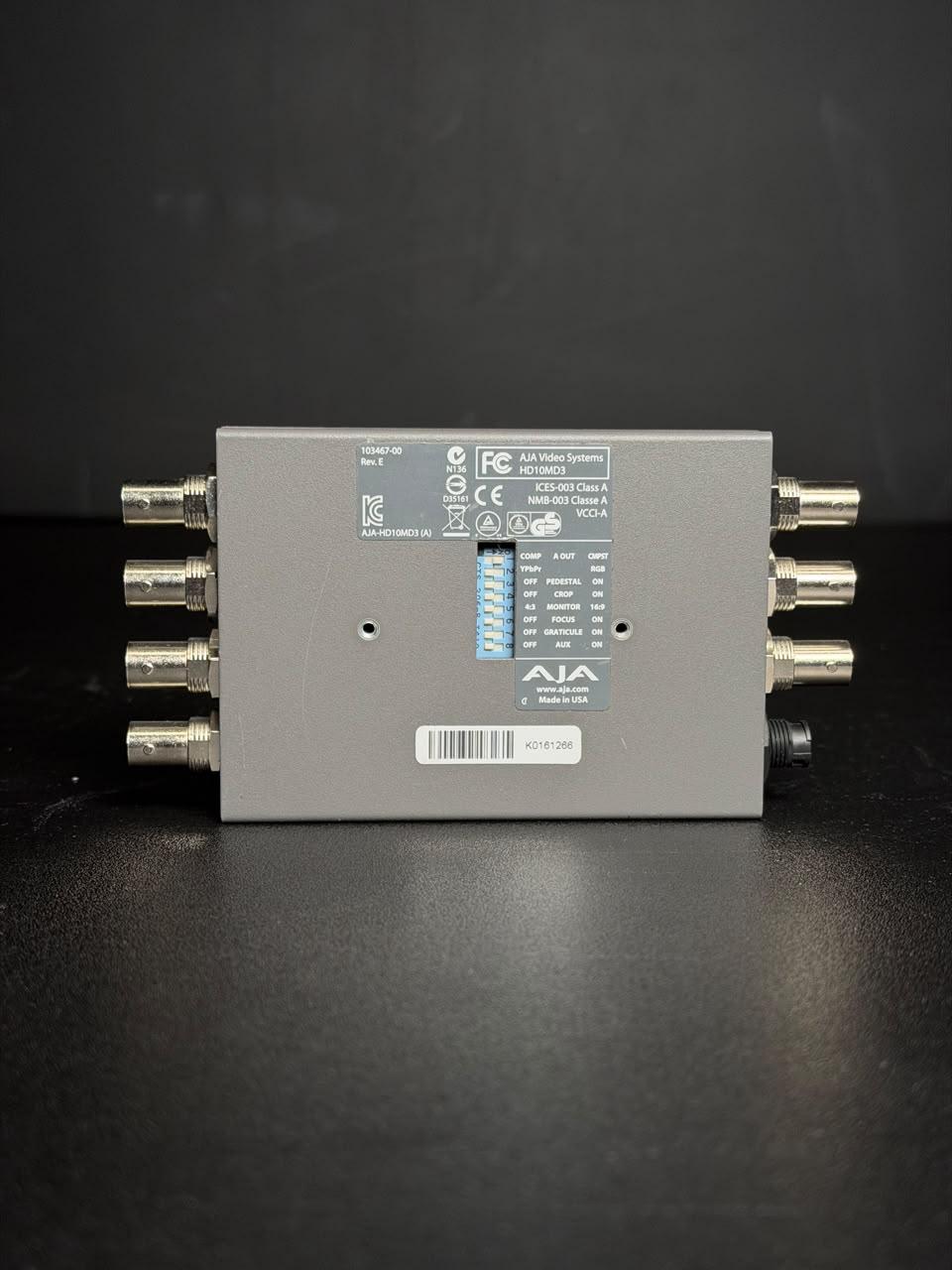

| Hardware Controls | External DIP switch configuration for:
• Input video format selection
• Output video format selection
• 4:3 Safe-zone graticule overlay
• Pedestal level adjustment
• 4:3 or 16:9 aspect ratio formatting |
| Power Consumption | +5 to 18 VDC, regulated (4W consumption) |

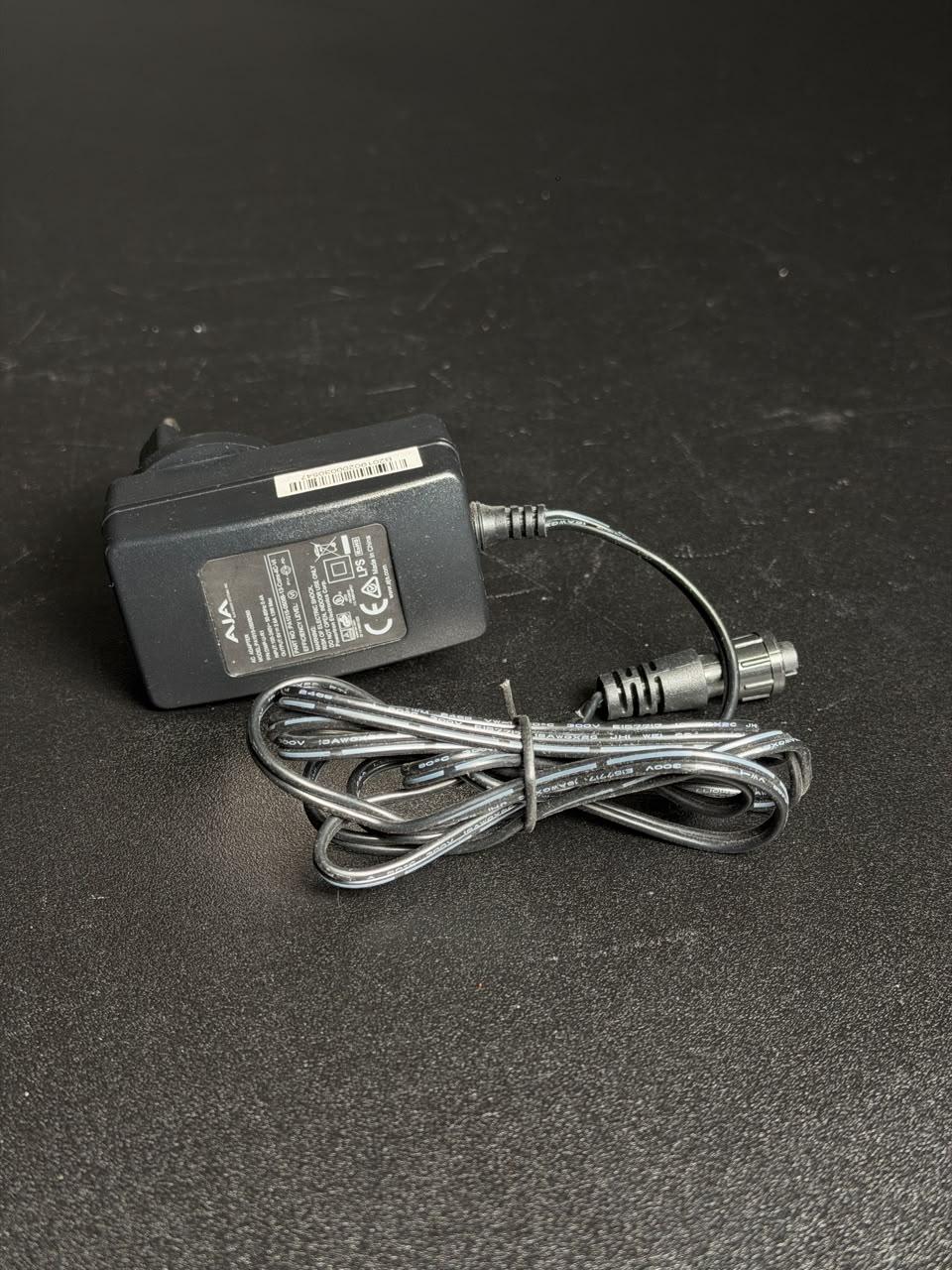

| Included Power Supply | Universal input (100–240 VAC, 50/60 Hz)
+5 VDC regulated output (7.5W capacity) |
| Dimensions (WxDxH) | 5.8 x 3.1 x 1.0" / 14.7 x 8.0 x 2.5 cm |
| Packaging Info | |
| Package Weight | 1.7 lb |
| Box Dimensions (LxWxH) | 9.8 x 7.3 x 2.8" |
