Anton/Bauer 26V Dual Mounting Plate for ARRI SkyPanel S-60C / S-30C (Gold Mount Plus)
Anton/Bauer 26V Dual Mounting Plate for ARRI SkyPanel S-60C / S-30C (Gold Mount Plus)
Anton/Bauer 26V Dual Mounting Plate for ARRI SkyPanel S-60C / S-30C (Gold Mount Plus)
Anton/Bauer 26V Dual Mounting Plate for ARRI SkyPanel S-60C / S-30C (Gold Mount Plus)
Anton/Bauer 26V Dual Mounting Plate for ARRI SkyPanel S-60C / S-30C (Gold Mount Plus)
Anton/Bauer 26V Dual Mounting Plate for ARRI SkyPanel S-60C / S-30C (Gold Mount Plus)
Anton/Bauer 26V Dual Mounting Plate for ARRI SkyPanel S-60C / S-30C (Gold Mount Plus)
Anton/Bauer 26V Dual Mounting Plate for ARRI SkyPanel S-60C / S-30C (Gold Mount Plus)

Anton/Bauer 26V Dual Mounting Plate for ARRI SkyPanel S-60C / S-30C (Gold Mount Plus)

Brand: ANTON BAUER

MFR: 8075-0256

SKU: SF-2443-RJCI

Price Available Upon Request
  • Power ARRI SkyPanel S-60C / S-30C
  • Dual Gold Mount Plus Battery Plate
  • For Dionic 26V Gold Mount Plus Batteries
  • Hot-Swap Capable, 4-Pin XLR Output
  • Supports Gold Mount Plus 240Wh Batteries

Items Included

  • Anton/Bauer 26V Dual Mounting Plate for ARRI SkyPanel S-60C / S-30C (Gold Mount Plus)
  • 4-Pin XLR Cable
  • Light Stand Clamp
  • Limited 1-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Battery Adapter Plates

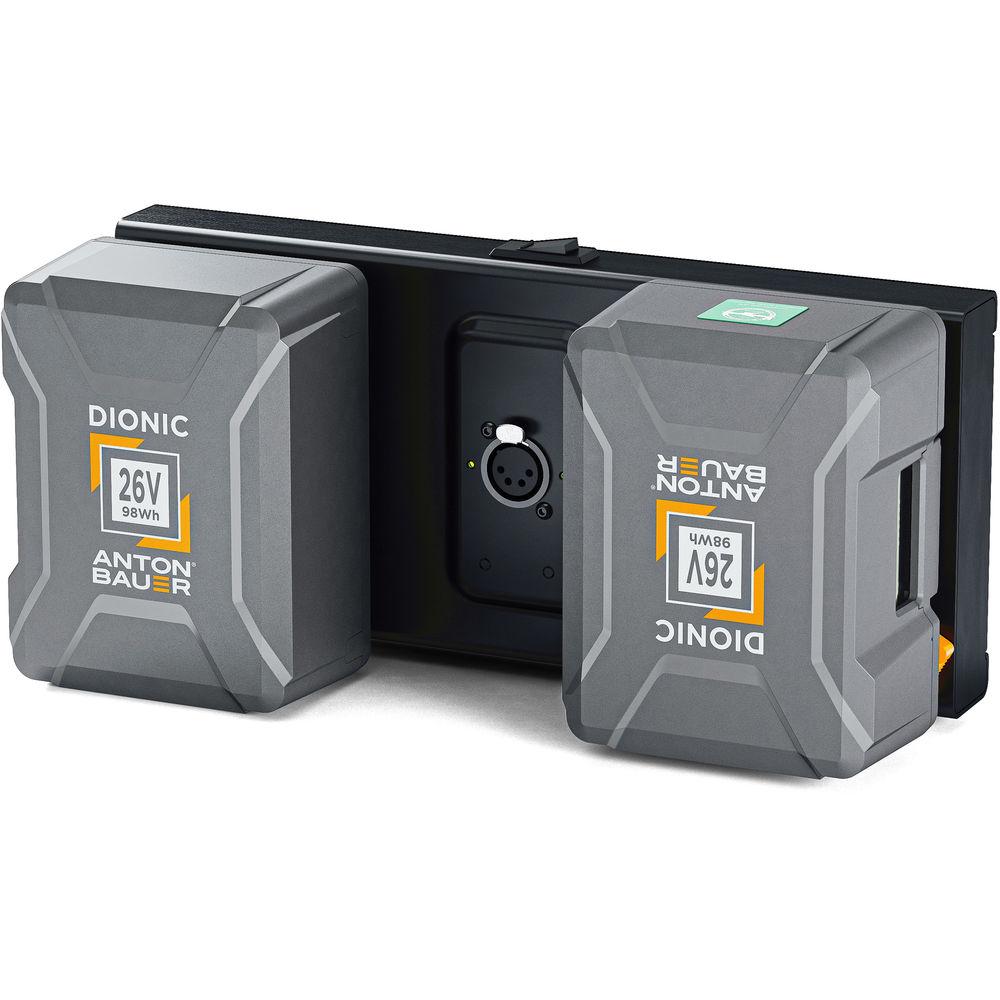

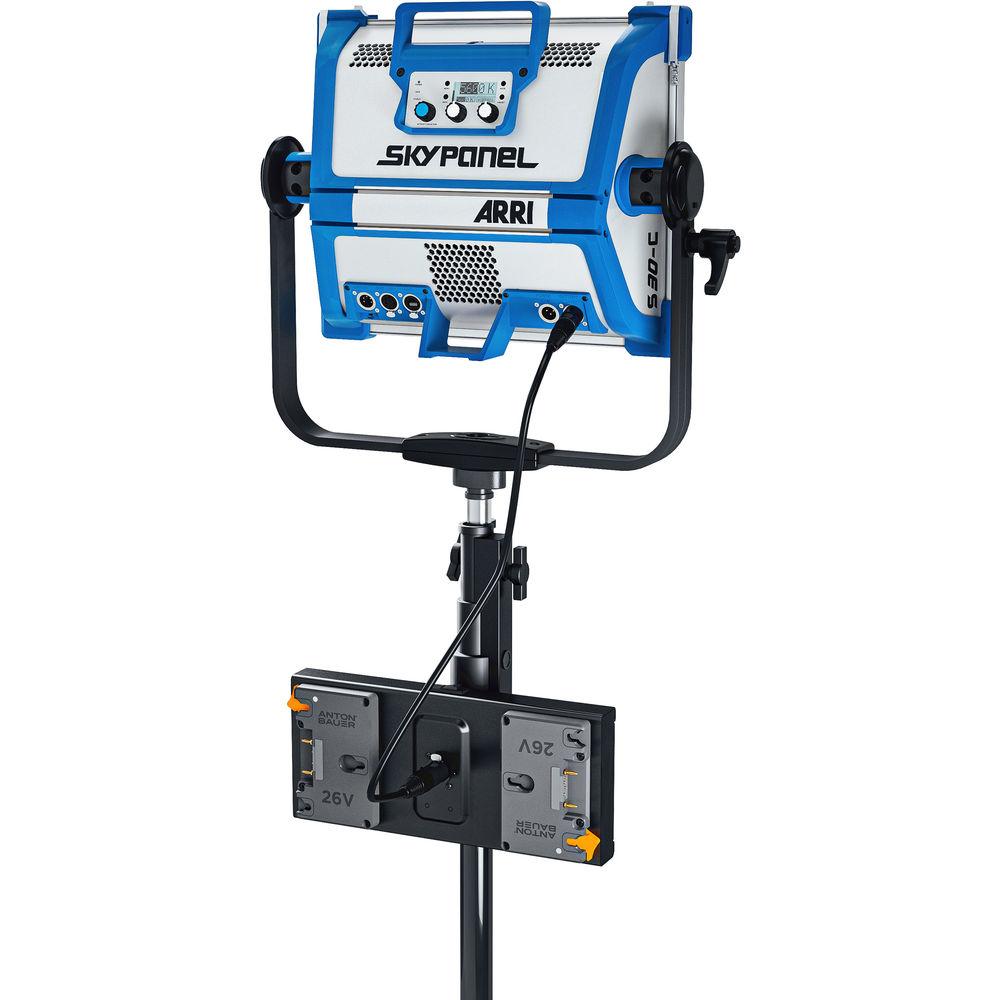

Use this 26V Dual Mounting Plate from Anton/Bauer to power the ARRI SkyPanel S-30C at 100% maximum or the S-60C at 50% via the XLR4 connector using two 26V Gold Mount Plus batteries. The dual mount supports two Dionic 98Wh batteries, and it also accepts Dionic 26V 240Wh Gold Mount Plus batteries that offer a faster, more accurate charge, even more accurate runtime data, and extended battery life.

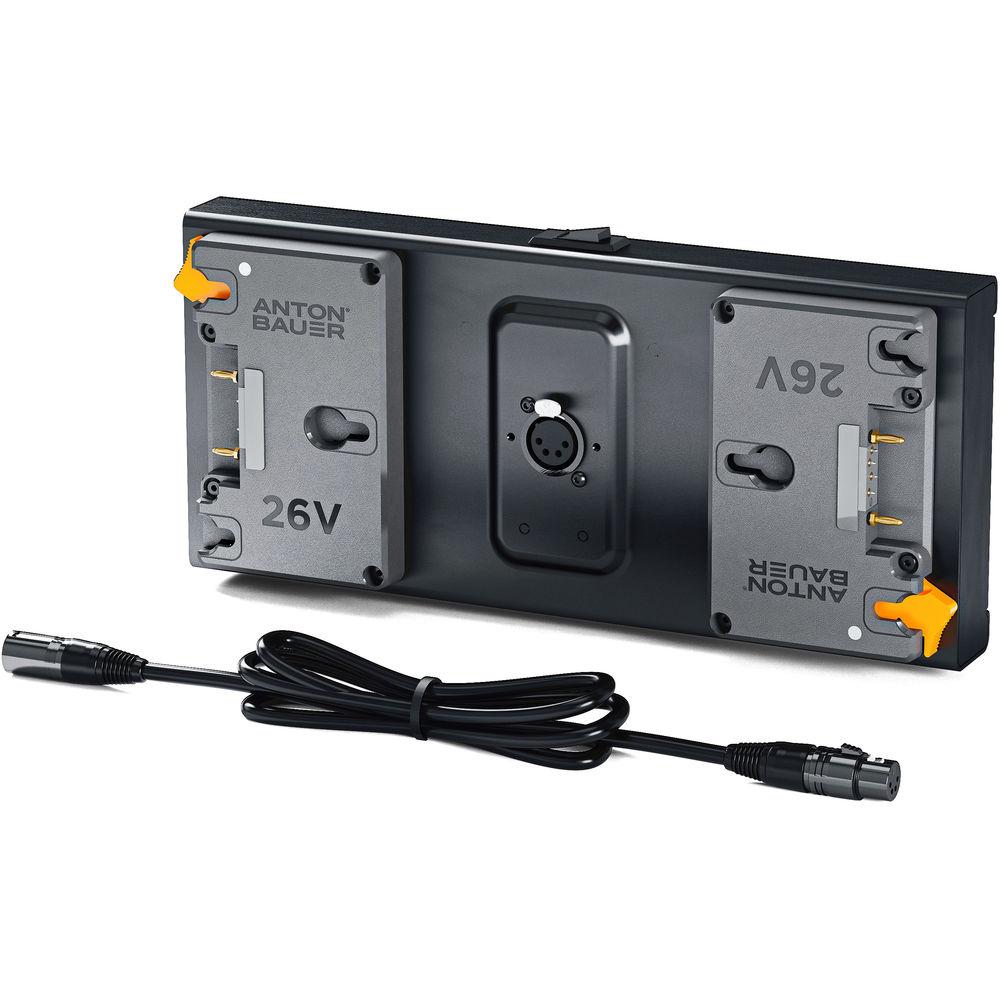

The light is powered using the 4-pin XLR output in the center of the plate. The dual plate is hot-swappable, so you can swap in a fresh battery without having to power down the light. The plate clamps to the light stand using the included hardware. A 4-pin XLR cable is also included with the plate.

Key Features
  • Mounts onto ARRI SkyPanel S-60C / S-30C LED lights
  • Supports two 26V Gold Mount Plus batteries
  • Hot-swappable
  • Connects to light with 4-pin XLR output and included cable
  • Can use two Dionic 98Wh Gold Mount Plus IATA-certified batteries

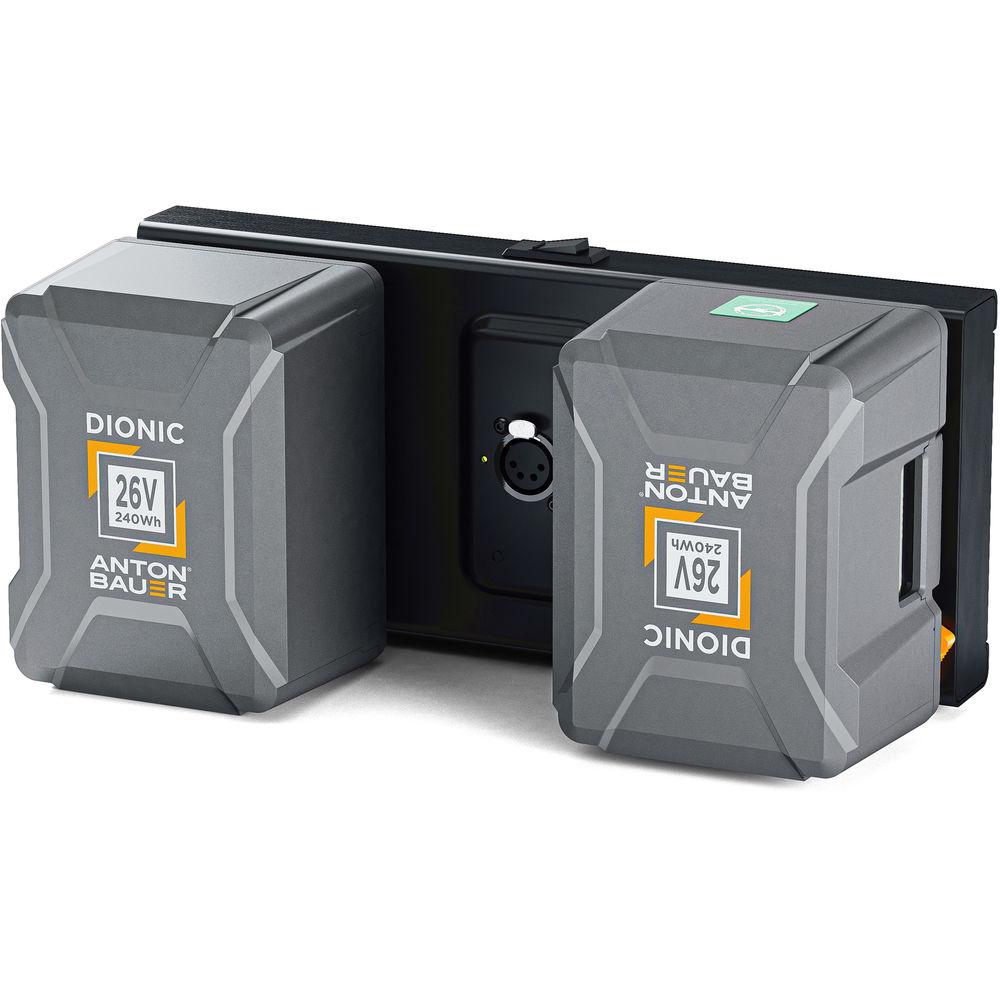

  • Can use two Dionic 240Wh Gold Mount Plus batteries for extended runtime
Compatibility
  • Dionic 26V Gold Mount Plus 98Wh Battery (8675-0155)
  • Dionic 26V Gold Mount Plus 240Wh Battery (8675-0156)
  • Dionic 26V LP4 Gold Mount Plus Charger (8475-0138)
  • Dionic 26V LPD Gold Mount Plus Discharger (8475-0139)

Compatibility
ARRI S-60C / S-30C
Plate Front / Battery Mount
Gold Mount Plus (up to 26 VDC)
Plate Rear Mount
Clamp
Number of Battery Bays
2
Accessory Mounting
No
Indicator
No
Inputs/Outputs
1x XLR 4-Pin Output
Dimensions
15.3 x 7.6 x 7.4" / 38.86 x 19.3 x 18.8 cm
Packaging Info
Package Weight
3.68 lb
Box Dimensions (LxWxH)
15.2 x 7.5 x 7.4"
