Anton/Bauer 98Wh 26V 4-Battery Starter Kit for ARRI ALEXA 35 (Gold Mount)
Anton/Bauer 98Wh 26V 4-Battery Starter Kit for ARRI ALEXA 35 (Gold Mount)

Anton/Bauer 98Wh 26V 4-Battery Starter Kit for ARRI ALEXA 35 (Gold Mount)

Brand: ANTON BAUER

MFR: 8275-0168

SKU: SF-2443-X29I

Price Available Upon Request
  • 4 x Dionic 98Wh 26V Batteries
  • Dionic 26V LP4 Quad Gold Mount Charger
  • Gold Mount Plus Plate for ALEXA 35
  • Hot-Swap Gold Mount Shark Fin Plate
  • Gold Mount Plus Protects Lower Voltage
  • Secure Fit for Reliable Device Data
  • Overvoltage & Short-Circuit Protection
  • Overdischarge & Thermal Protection

Items Included

    • Limited 2-Year Manufacturer Warranty
    • Limited 2-Year Manufacturer Warranty
    • Limited 2-Year Manufacturer Warranty
    • Limited 1-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: On Camera Batteries , On Camera Batteries

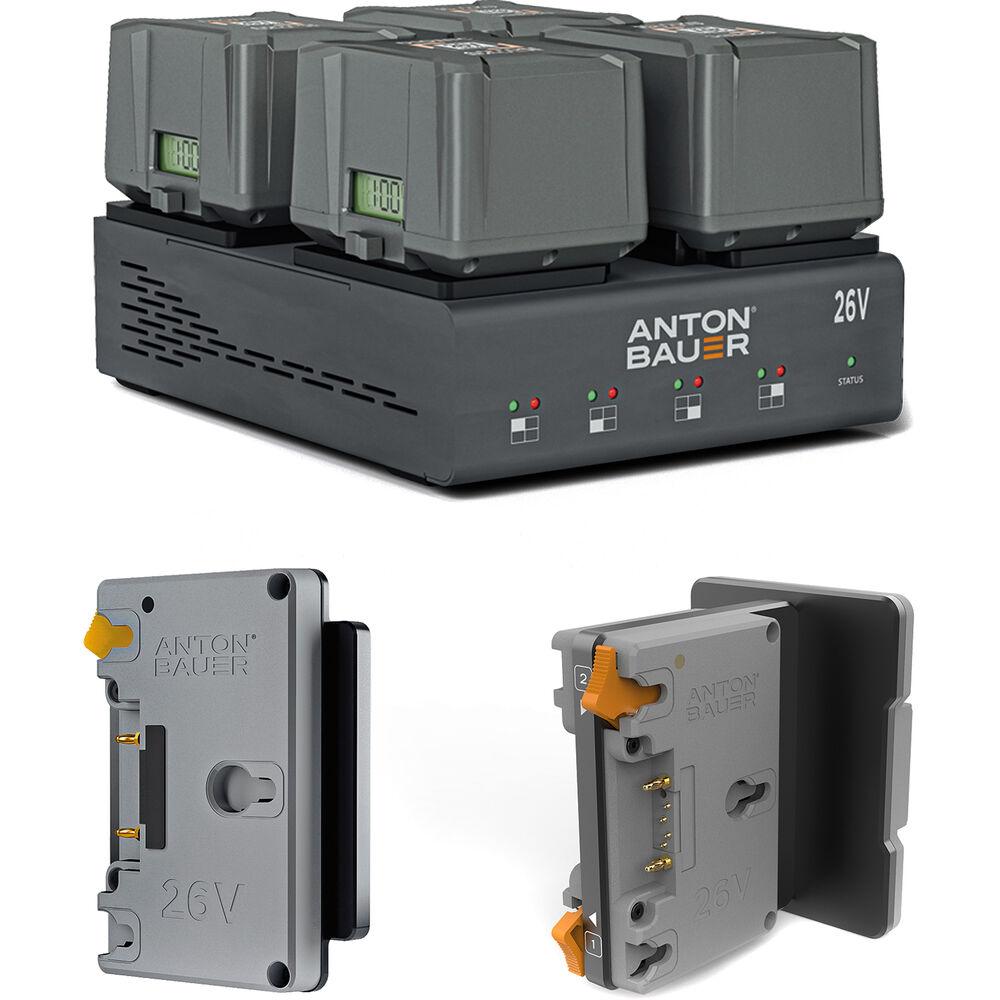

The 98Wh 26V 4-Battery Starter Kit for ARRI ALEXA 35 from Anton/Bauer provides a dedicated, compact solution for powering your ALEXA 35 cinema camera. This kit comprises four Dionic 98Wh batteries, a quad charger, a Gold mount plate that mounts directly on the ALEXA 35, and a shark fin-type plate that enables battery hot swapping. Read more below about each item in this kit.

Anton/Bauer Dionic 98Wh 26V Gold Mount Plus Battery

Designed for power-hungry devices, the Dionic 98Wh 26V Gold Mount Plus Battery from Anton/Bauer can be used to power cine-style cameras like the ARRI ALEXA LF, Litepanels Gemini LED panels, and other high-draw pro video components. This battery's Gold Mount Plus interface provides a secure connection and reliable communication for your device.

This travel-safe 98Wh battery supports up to a 12A constant draw and features overdischarge, overvoltage, short circuit, and thermal protection. Remaining runtime can be displayed on the integrated LCD panel and select camera viewfinders. Encased in a durable ABS/polycarbonate blend shell, the Dionic 98Wh 26V Gold Mount Plus Battery can withstand temperatures from -4 to 140°F.

Features
Gold Mount Plus provides a secure fit and reliable device communication
Displays remaining time on integrated LCD screen and select camera viewfinders
Overdischarge, overvoltage, short circuit, and thermal protection
Anton/Bauer Dionic 26V LP4 Quad Gold Mount Plus Charger

The four-bay Dionic 26V LP4 Quad Gold Mount Plus Charger from Anton/Bauer features simultaneous charging, compatibility with 26 and/or 14.4V batteries, and a USB port for upgrading in the field. This rapid charger is compatible with a variety of battery chemistries, fits common battery/charger cases, and can withstand a wide range of operating temperatures.

Compatibility
Anton/Bauer batteries:
Digital, Dionic HC, Dionic HCX
Dionic 26V, Dionic HD, Dionic XT
HyTron
Titon, Titon SL
Anton/Bauer 26V Gold Mount + ARRI S35 Plate

The 26V Gold Mount Plus Plate from Anton/Bauer enables you to power your ARRI ALEXA 35 camera with a single Dionic 26V battery. This Gold Mount Plus plate mounts directly on the back of your camera, saving space and weight on your rig. Full battery data is transmitted via the SMBus protocol and the plate's pogo pins.

Note:

Removing the installed B-mount bracket on the ARRI ALEXA 35 will not invalidate the camera warranty.
Battery Data
Transmits full battery data, enabling accurate battery monitoring
Direct Mount
Mounts directly on the back of your ALEXA 35 camera for a streamlined fit
Anton/Bauer Dionic 26V Gold Mount Plus Shark Fin Plate

Gain the ability to hot swap two mounted batteries with the Dionic 26V Gold Mount Plus Shark Fin Plate from Anton/Bauer. This dual-battery plate enables you to provide continuous power to your ARRI ALEXA LF, ALEXA 65, or ALEXA SXT camera plus P-Tap accessories. The hot swap function supports two Dionic 26V batteries, and its 2-pin Fischer input port is prioritized to also enable hot swapping when a block battery is attached.

The Shark Fin Plate's features include an OLED status screen that displays voltage data, battery capacity, and active source information. Its two 15V P-Tap accessory ports can be reset digitally through the plate's OLED screen if the current threshold is exceeded.

Features
Shark fin design supports two 26V Gold mount or Gold mount Plus batteries
Hot swap capability when used with two mounted batteries or and/or an attached block battery
Two 15V P-Tap accessory ports
Digital reset function
OLED status screen

Battery
Battery Type
Gold Mount
Battery Capacity
98 Wh
Output Voltage
26 VDC
Battery Chemistry
Lithium-Ion
Accessory Mounting Thread
No
Dimensions
5.16 x 3.9 x 2.8" / 131 x 99 x 71 mm
Weight
2.05 lb / 930 g
Environmental
Operating Conditions
-4 to 140°F / -20 to 60°C
Packaging Info
Package Weight
2.375 lb
Box Dimensions (LxWxH)
7.6 x 4.7 x 3.5"
