Anton/Bauer D-Box with V-Mount Battery Bracket for Canon EOS C700
Anton/Bauer D-Box with V-Mount Battery Bracket for Canon EOS C700
Anton/Bauer D-Box with V-Mount Battery Bracket for Canon EOS C700
Anton/Bauer D-Box with V-Mount Battery Bracket for Canon EOS C700
Anton/Bauer D-Box with V-Mount Battery Bracket for Canon EOS C700
Anton/Bauer D-Box with V-Mount Battery Bracket for Canon EOS C700
Anton/Bauer D-Box with V-Mount Battery Bracket for Canon EOS C700
Anton/Bauer D-Box with V-Mount Battery Bracket for Canon EOS C700

Anton/Bauer D-Box with V-Mount Battery Bracket for Canon EOS C700

Brand: ANTON BAUER

MFR: 8075-0279

SKU: SF-2443-MHRL

Price Available Upon Request
  • Power Distribution Box for Canon C700
  • V-Mount Battery Plate, LANC Run/Stop
  • For 14.4V Block Batteries, Hot Swap
  • LEMO, Fischer, USB & D-Tap Ports
  • 6-Pin LEMO DC Input, Regulated Outputs
  • Fischer Ports Pass ARRI Run/Stop Trigger

Items Included

  • Anton/Bauer D-Box with V-Mount Battery Bracket for Canon EOS C700
  • Limited 1-Year Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Battery Mounting Plates , Battery Mounting Plates , Battery Mounting Plates , Battery Mounting Plates

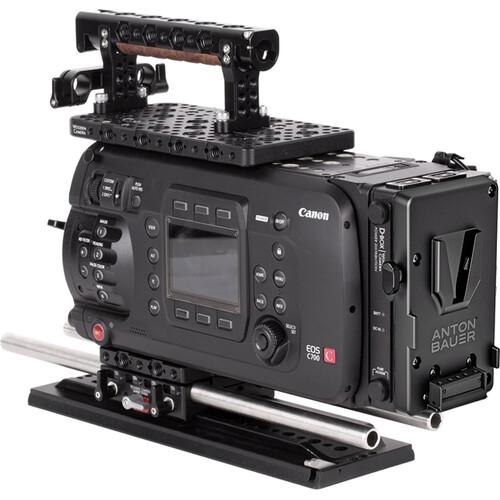

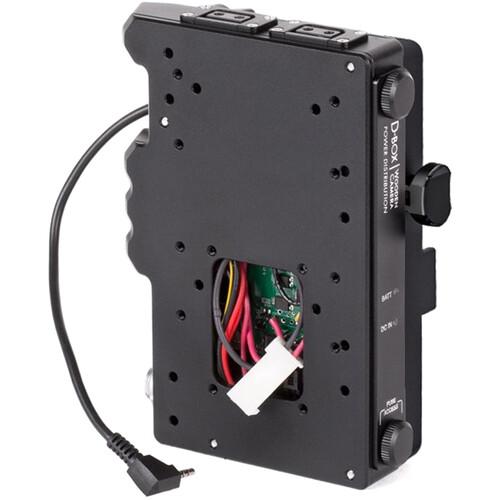

Power your Canon EOS C700 camera and accessories with the D-Box with V-Mount Battery Bracket from Wooden Camera. The D-Box is a power distribution box made from durable materials that features a V-mount battery plate for one 14.4V battery, and it mounts directly onto the back of your Canon C700 using a Molex connection to provide a variety of power options to your rig.

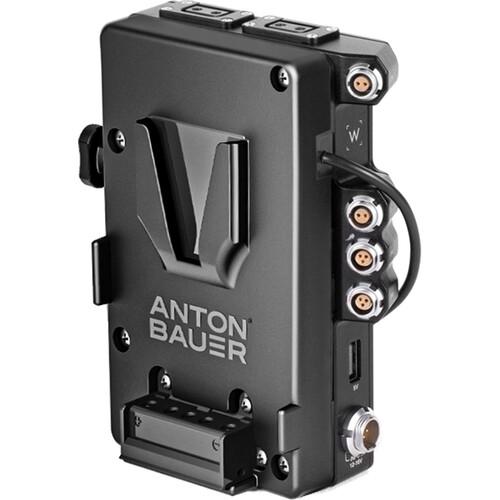

An integrated power strip on the side of the D-Box features two unregulated 2-pin 12V LEMO-type outputs, two regulated 24V 3-pin Fischer outputs, two unregulated 12V D-Tap outputs, and one regulated 5V USB output. There is also a matching 6-pin 12 to 16V LEMO-type input on the D-Box that matches the one on the camera, so you can use the camera's AC power supply to provide a hot-swap/failover system. Power will default to the AC adapter when it is plugged in, so you can save your battery level until you really need it. The integrated LANC cable allows the Fischer ports to pass run/stop trigger information from any ARRI run/stop trigger model to the camera, as well as providing power. Integrated LEDs indicate DC IN and BATT status, as well as battery voltage information.

Compatibility
Canon EOS C700 cinema camera

Also compatible with but not limited to:
Anton/Bauer Dionic XT 90 Battery
Anton/Bauer Dionic XT 150 Battery

Compatibility
Canon C700
Plate Front / Battery Mount
V-Mount
Plate Rear Mount
Mounting Holes
Number of Battery Bays
1 (Allows Hot-Swap When Connected to DC Input)
Accessory Mounting
No
Indicator
No
Inputs/Outputs
2x LEMO 2-Pin Output
2x Fischer 3-Pin Output
1x LEMO 6-Pin Output
2x D-Tap/P-Tap Output
1x USB-A Output
1x 2.5 mm Barrel Output
Adapter / Cable
Built-In Adapter
• Output: 1/8" / 3.5 mm Male
• Cable: Length Unspecified
Packaging Info
Package Weight
0.97 lb
Box Dimensions (LxWxH)
5.75 x 4.4 x 2.05"
