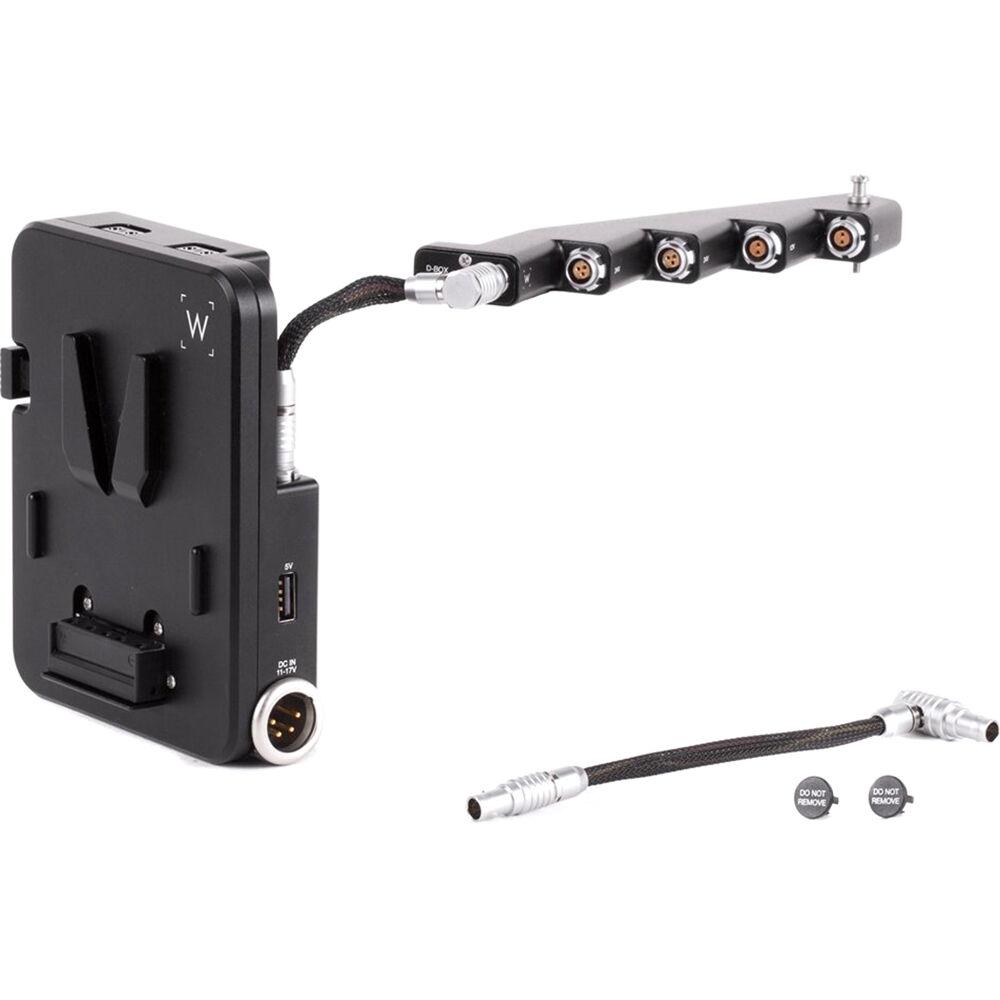

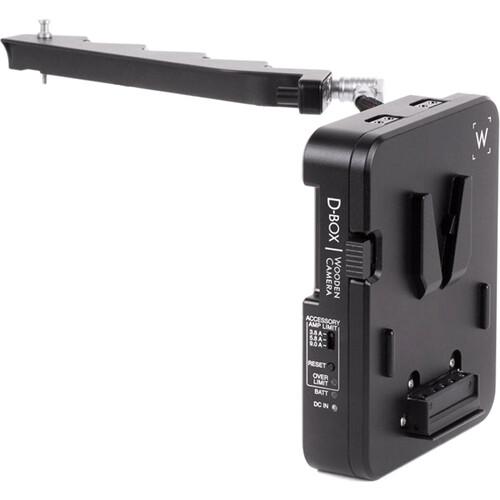

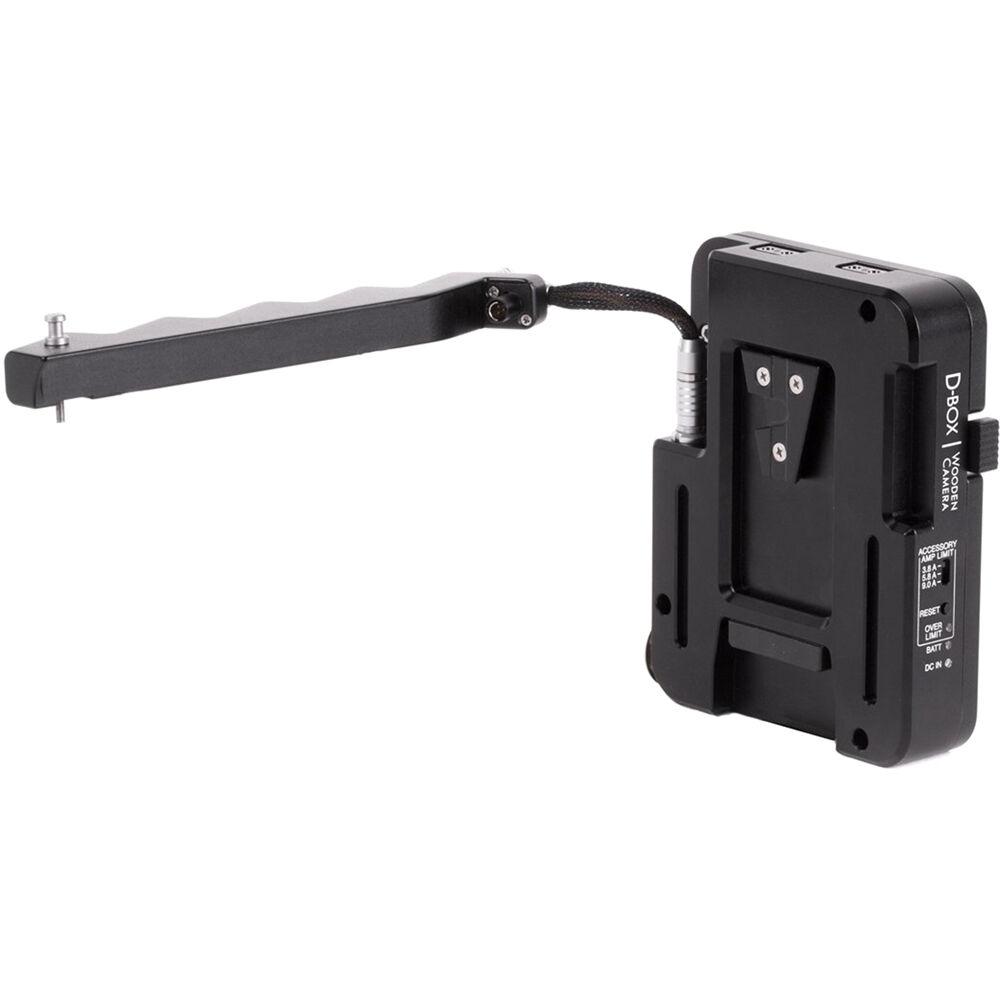

Anton/Bauer D-Box with V-Mount Battery Bracket for Sony VENICE
Anton/Bauer D-Box with V-Mount Battery Bracket for Sony VENICE
Anton/Bauer D-Box with V-Mount Battery Bracket for Sony VENICE
Anton/Bauer D-Box with V-Mount Battery Bracket for Sony VENICE
Anton/Bauer D-Box with V-Mount Battery Bracket for Sony VENICE
Anton/Bauer D-Box with V-Mount Battery Bracket for Sony VENICE
Anton/Bauer D-Box with V-Mount Battery Bracket for Sony VENICE
Anton/Bauer D-Box with V-Mount Battery Bracket for Sony VENICE

Anton/Bauer D-Box with V-Mount Battery Bracket for Sony VENICE

Brand: ANTON BAUER

MFR: 8075-0298

SKU: SF-2443-JEF3

Price Available Upon Request
  • Power Distribution Box for Sony VENICE
  • V-Mount Battery Mount and Plate
  • For 14.4V Block Batteries, Hot Swap
  • Power Strip with LEMO/Fischer/USB/D-Tap
  • 4-Pin XLR DC Input, Regulated Outputs
  • Manual Fuse Selection to Regulate Power
  • Fischer Ports Pass ARRI Run/Stop Trigger
  • Mounts Directly on Camera or AXS-R7

Items Included

  • Anton/Bauer D-Box with V-Mount Battery Bracket for Sony VENICE
  • Power Strip
  • 3-Pin Fischer Connector Cable
  • Limited 1-Year Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Battery Mounting Plates , Battery Mounting Plates , Battery Mounting Plates , Battery Mounting Plates

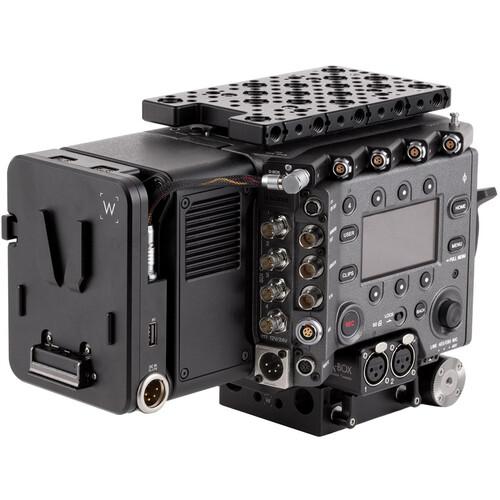

Power your Sony VENICE camera and accessories with the D-Box with V-Mount Battery Bracket from Wooden Camera. The D-Box is a power distribution box made from durable materials that features a V-mount battery plate for one 14.4V battery, and it mounts seamlessly onto the back of your Sony VENICE camera or the back of your AXS-R7 recorder, with a V-mount plate on the opposite side to provide a variety of power options to your rig.

A power strip connects to the D-Box using an included 3- to 5-pin Fischer cable, and it mounts onto the top right side of the camera using a tape-hook thread. The strip features two 2-pin 12V LEMO-type outputs, two 24V 3-pin Fischer outputs, two 12V D-Tap outputs, and one 5V USB output. There is also a matching 4-pin 12.9 to 18V XLR input on the D-Box that matches the one on the camera, so you can use the camera's AC power supply to provide a hot-swap/failover system. Power will default to the AC adapter when plugged in, so you can save your battery level until you really need it. The Fischer outputs can also be used to pass run/stop trigger information from any ARRI run/stop trigger model to the camera.

All outputs are active simultaneously, and they can be regulated using a fuse switch on the side to swap between 3.8, 5.8, or 9A to restrict power output to protect your equipment. There is a reset button if too much load current is provided to your accessories, so you can quickly reset and re-adjust your settings. Integrated LEDs indicate DC IN and BATT status, as well as battery voltage information.

Compatibility
Sony VENICE camera

Also compatible with but not limited to:
Anton/Bauer Dionic XT 90 Battery
Anton/Bauer Dionic XT 150 Battery

Compatibility
Sony VENICE / VENICE 2
Plate Front / Battery Mount
V-Mount
Plate Rear Mount
V-Mount Battery Plate
Number of Battery Bays
1 (Allows Hot-Swap When Connected to DC Input)
Accessory Mounting
No
Indicator
No
Inputs/Outputs
1x XLR 4-Pin Input
2x D-Tap/P-Tap (12 VDC / 9 A Shared) Output
1x USB-A (5 VDC) Output
1x Fischer 3-Pin Output to Included Adapter
Adapter / Cable
Included Adapter
• Input: Fischer 3-Pin Female
• Output 1: 2x Fischer 3-Pin Female (24 VDC / 2.5 to 3 A Shared)
• Output 2: 2x LEMO 2-Pin Female (12 VDC / 7 A Shared)
• Cable: Length Unspecified
Dimensions
5.25 x 4.5 x 1.3" / 133.35 x 114.3 x 31.8 mm
Weight
17.1 oz / 484 g
Packaging Info
Package Weight
1.19 lb
Box Dimensions (LxWxH)
8.45 x 5.75 x 2.5"
