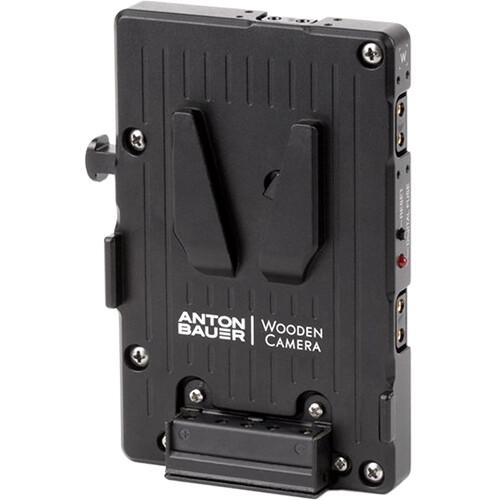

Anton/Bauer Pro V-Mount Battery Bracket for Blackmagic URSA Mini, URSA Mini Pro, and URSA
Anton/Bauer Pro V-Mount Battery Bracket for Blackmagic URSA Mini, URSA Mini Pro, and URSA

Anton/Bauer Pro V-Mount Battery Bracket for Blackmagic URSA Mini, URSA Mini Pro, and URSA

Brand: ANTON BAUER

MFR: 8075-0266

SKU: SF-2443-NK9B

Price Available Upon Request
  • Molex Connection to Camera
  • 3 x P-Tap Accessory Ports
  • Overdraw Power Protection
  • Camera Remains Powered
  • Overdraw Reset Button with Indicator

Items Included

  • Anton/Bauer Pro V-Mount Battery Bracket for Blackmagic URSA Mini, URSA Mini Pro, and URSA
  • 4 x Captive M3 Mounting Screw
  • Limited 1-Year Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Battery Mounting Plates , Battery Mounting Plates , Battery Mounting Plates , Battery Mounting Plates

This Anton/Bauer Pro V-Mount Battery Bracket mounts on your Blackmagic URSA Mini, URSA Mini Pro, and URSA, enabling you to power your camera from a V-mount battery. The bracket powers the camera through a 12-pin Molex connector on the back of the bracket. The plate also features three P-Tap ports that provide 12 to 16V of power for accessories. The bracket features overdraw protection, has an overdraw indicator and reset button, and will shut off the P-Tap ports if they draw too much amperage. However, power to the camera is not interrupted, even if the accessory ports are deactivated. To reset the P-Tap ports, remove accessories to reduce the current draw and press the reset button.

Compatible Cameras
Blackmagic Design URSA, URSA Mini, and URSA Mini Pro
Mounting
The bracket mounts directly onto the camera using the four captive mounting screws

Compatibility
Blackmagic URSA / URSA Mini / URSA Mini Pro
Plate Front / Battery Mount
V-Mount
Plate Rear Mount
V-Lock
Number of Battery Bays
1
Inputs/Outputs
1x Molex Output
Plate Material
Aluminum
Dimensions
5.8 x 3 x 0.8" / 146.1 x 76.2 x 19.1 mm
Weight
6.6 oz / 186 g

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • Anton/Bauer Pro V-Mount Battery Bracket for Blackmagic URSA Mini, URSA Mini Pro, and URSA
  • 4 x Captive M3 Mounting Screw
  • Limited 1-Year Warranty
