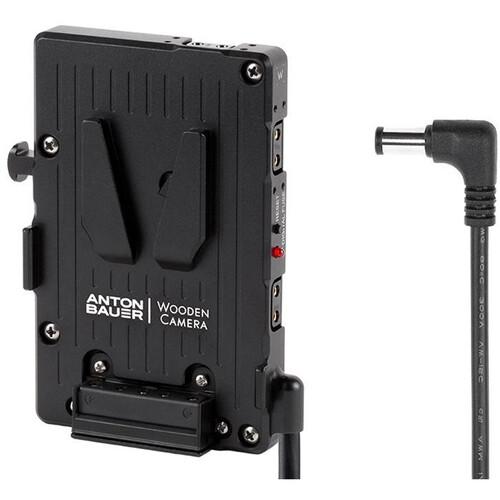

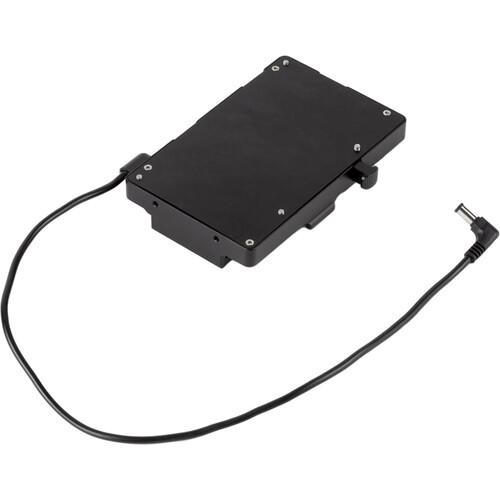

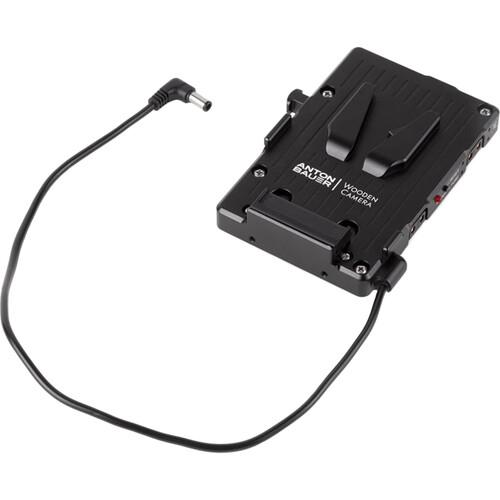

Anton/Bauer Pro V-Mount Battery Bracket for Sony FS5/FS7/EX3 and Panasonic EVA1
Anton/Bauer Pro V-Mount Battery Bracket for Sony FS5/FS7/EX3 and Panasonic EVA1
Anton/Bauer Pro V-Mount Battery Bracket for Sony FS5/FS7/EX3 and Panasonic EVA1
Anton/Bauer Pro V-Mount Battery Bracket for Sony FS5/FS7/EX3 and Panasonic EVA1
Anton/Bauer Pro V-Mount Battery Bracket for Sony FS5/FS7/EX3 and Panasonic EVA1
Anton/Bauer Pro V-Mount Battery Bracket for Sony FS5/FS7/EX3 and Panasonic EVA1

Anton/Bauer Pro V-Mount Battery Bracket for Sony FS5/FS7/EX3 and Panasonic EVA1

Brand: ANTON BAUER

MFR: 8075-0282

SKU: SF-2443-ZCWH

Price Available Upon Request
  • Molex Connection to Camera
  • 3 x P-Tap Accessory Ports
  • Overdraw Power Protection
  • Camera Remains Powered
  • Overdraw Reset Button with Indicator

Items Included

  • Anton/Bauer Pro V-Mount Battery Bracket for Sony FS5/FS7/EX3 and Panasonic EVA1
  • 4 x Captive M3 Mounting Screw
  • Limited 1-Year Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Battery Mounting Plates , Battery Mounting Plates , Battery Mounting Plates , Battery Mounting Plates

This Anton/Bauer Pro V-Mount Battery Bracket mounts on your Sony FS5/FS7/EX3 and Panasonic EVA1, enabling you to power your camera from a V-mount battery. The bracket powers the camera via a 15" long cable with a coaxial power connector. The plate also features three P-Tap ports that provide 12 to 16V of power for accessories. The bracket features overdraw protection, has an overdraw indicator and reset button, and will shut off the P-Tap ports if they draw too much amperage. However, power to the camera is not interrupted, even if the accessory ports are deactivated. To reset the P-Tap ports, remove accessories to reduce the current draw and press the reset button.

Compatible Cameras
Sony FS5, FS7, and EX3
Panasonic EVA1
Mounting
The bracket mounts directly onto the camera using the four captive mounting screws

Camera Compatibility
Sony FS5
Sony FS7
Sony EX3
Panasonic EVA 1
Plate Front / Battery Mount
V-Mount
Plate Rear Mount
V-Lock
Number of Battery Bays
1
Inputs/Outputs
1x Barrel Output
Adapter / Cable
1 x Barrel/Coax (Built-In)
Plate Material
Aluminum
Dimensions
4.8 x 3.3 x 0.8" / 120.7 x 83.8 x 20.8 mm
Weight
6.4 oz / 181 g
Packaging Info
Package Weight
0.43 lb
Box Dimensions (LxWxH)
8.25 x 4.25 x 1.75"
