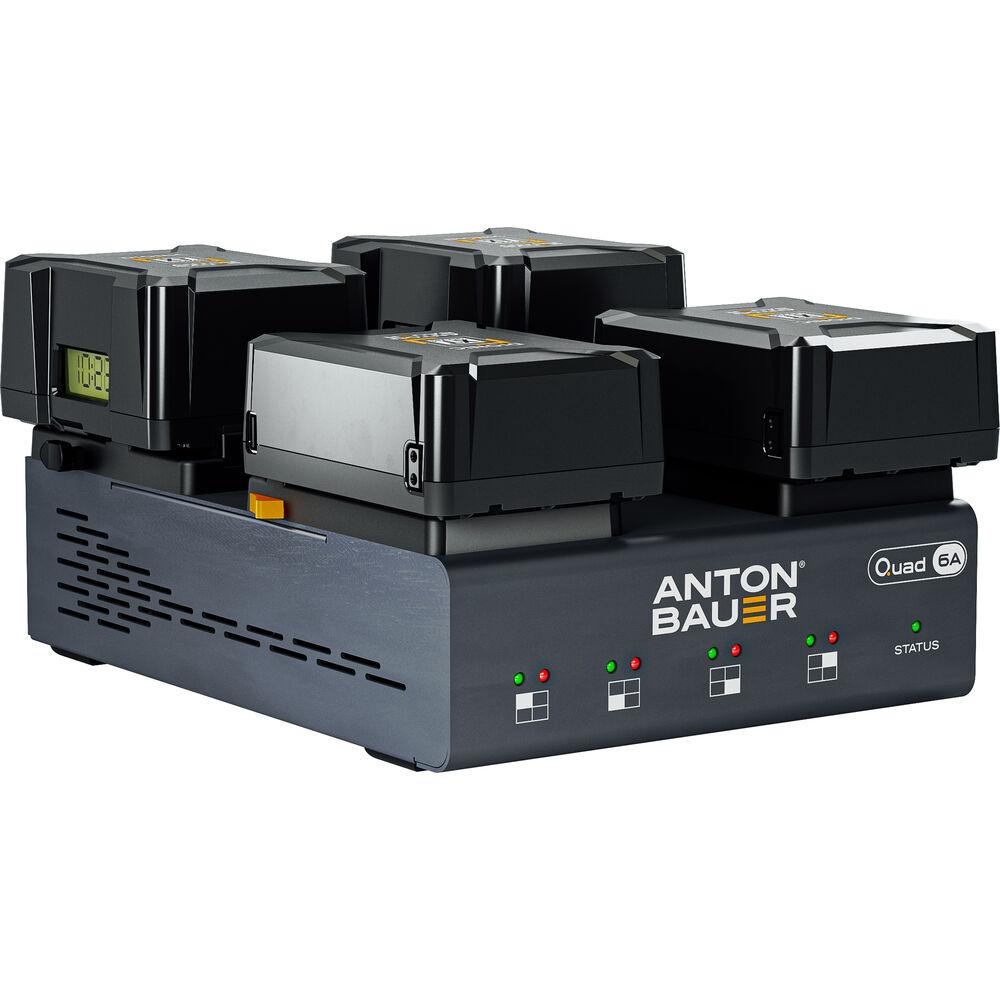

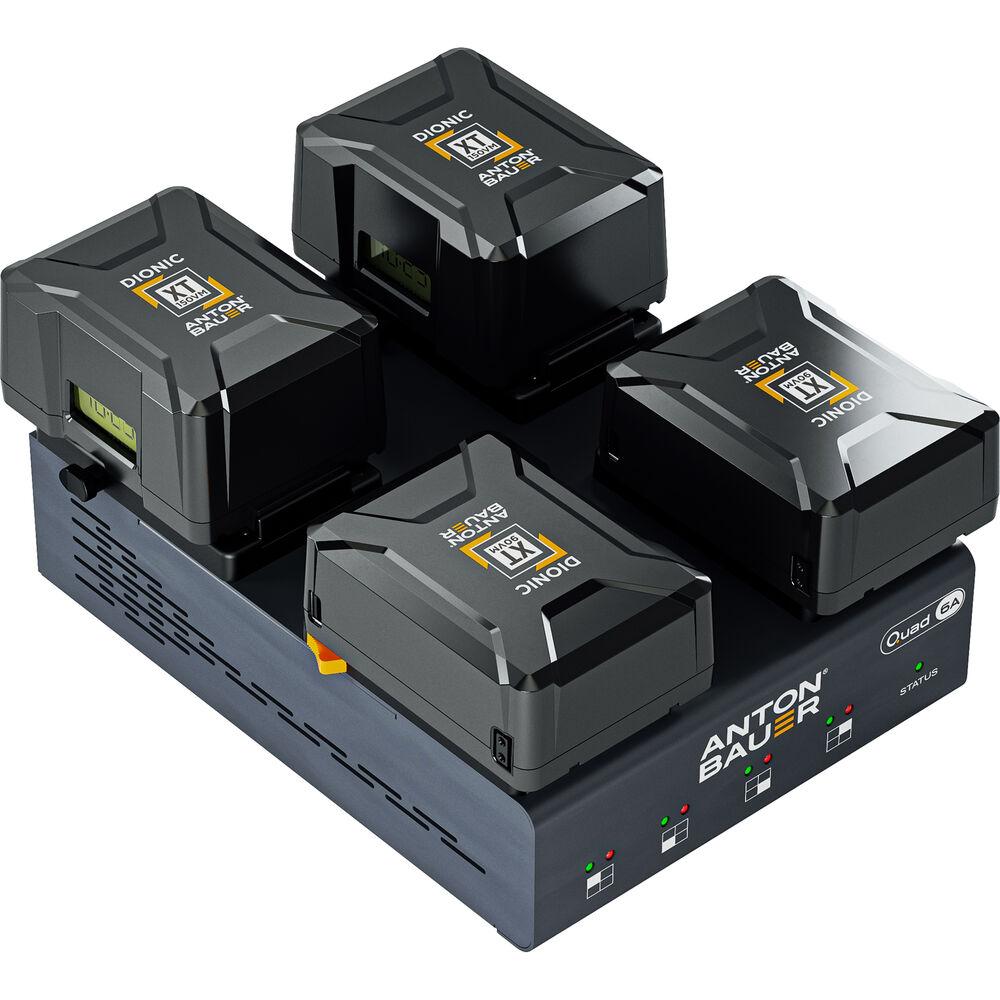

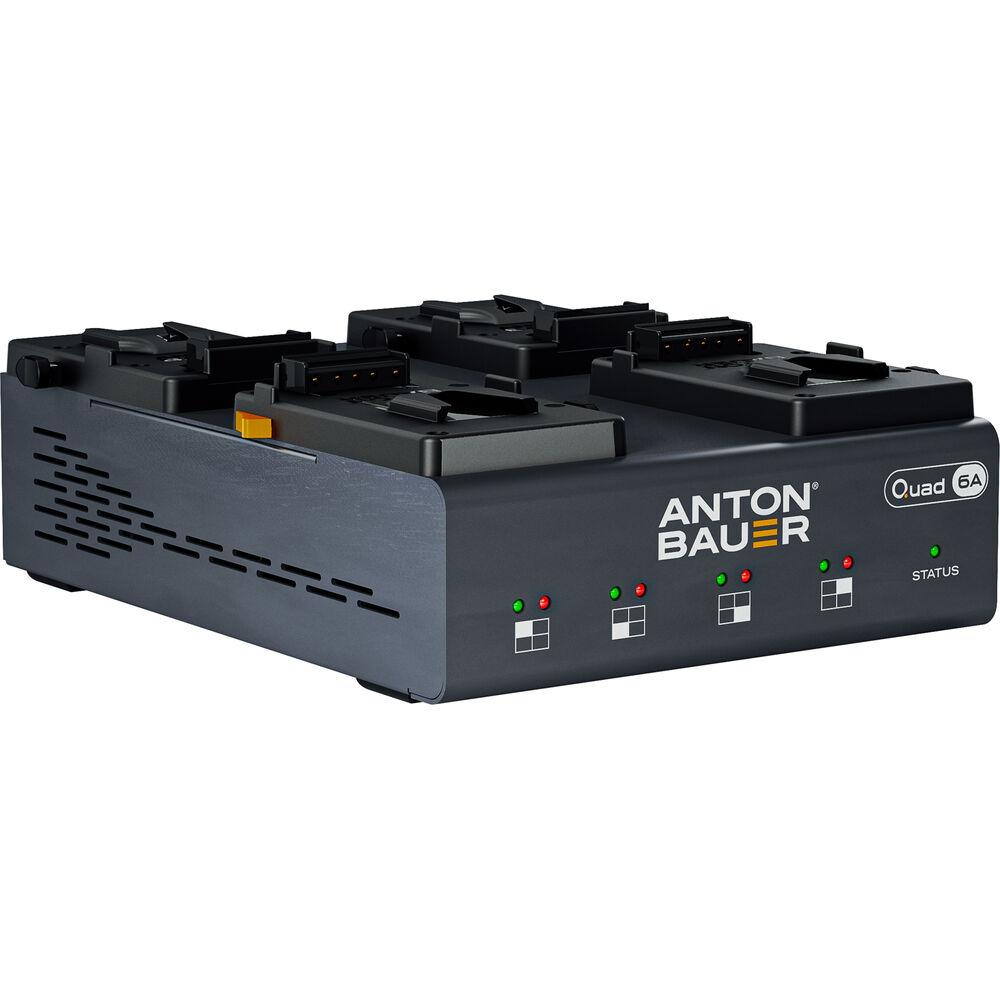

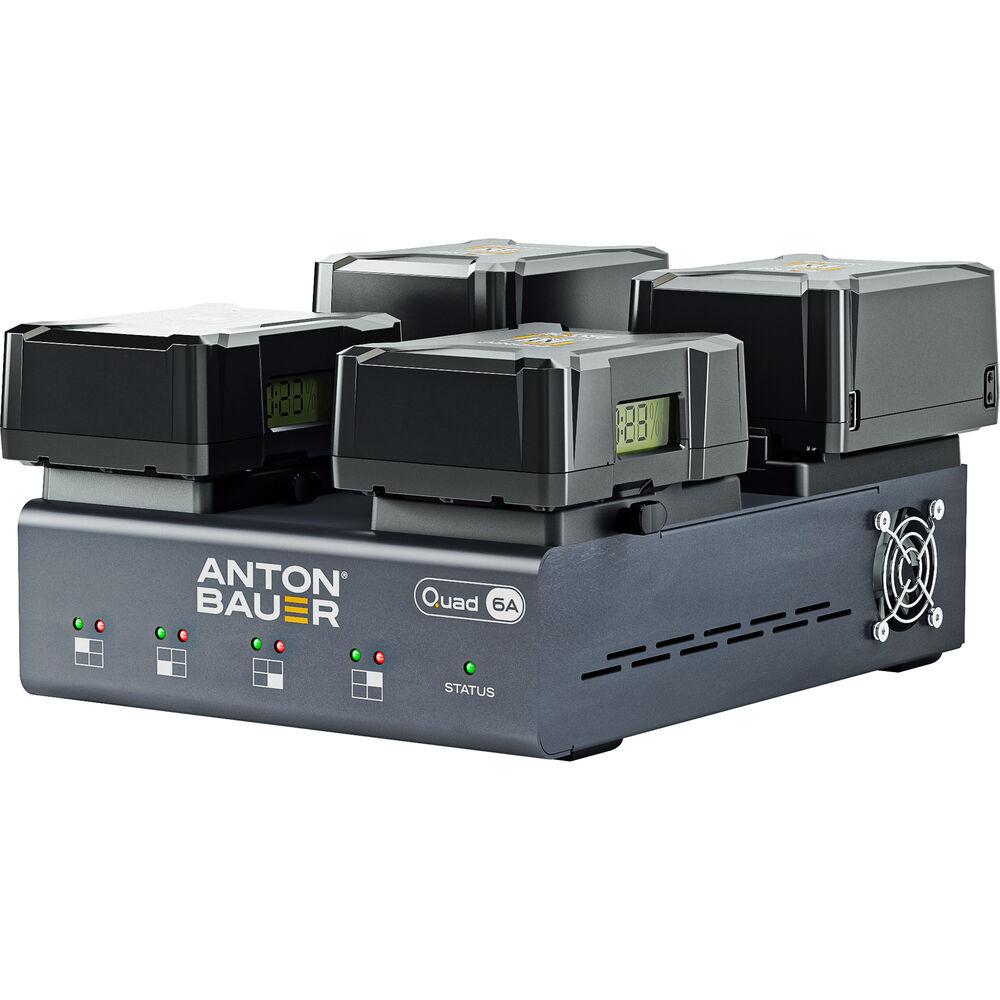

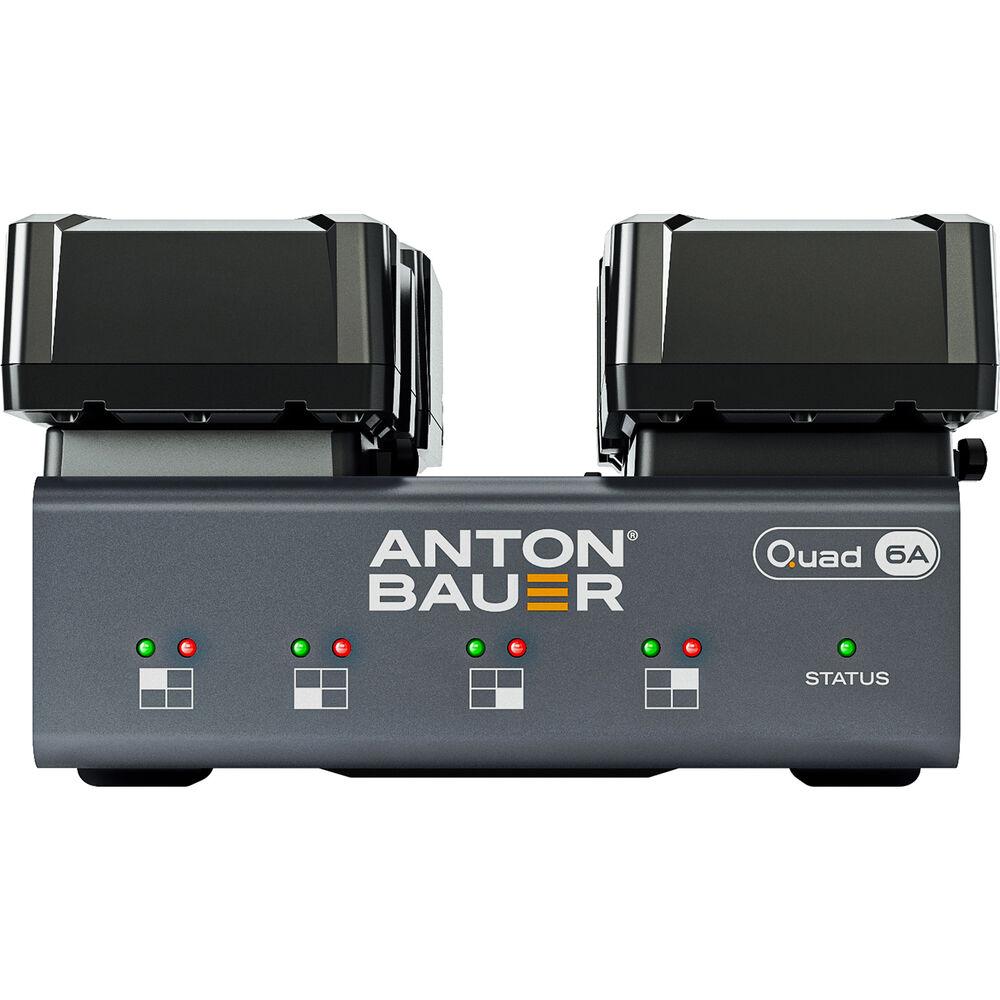

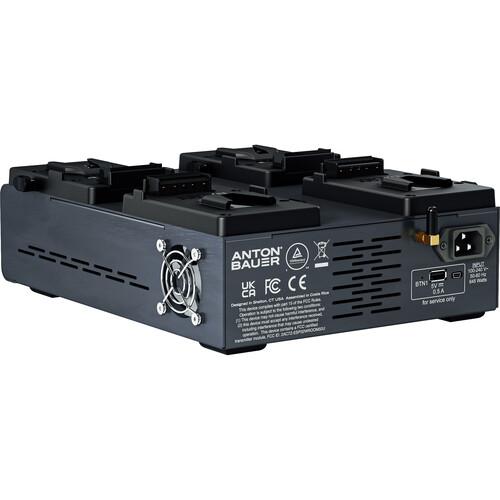

Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)
Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)
Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)
Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)
Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)
Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)
Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)
Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)
Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)
Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)
Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)
Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)

Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)

Brand: ANTON BAUER

MFR: 8475-0149

SKU: SF-2443-YKUX

Price Available Upon Request
  • 4-Position Charger for V-Mount Batteries
  • 6A Simultaneous Rapid Charging
  • Supports 14 & 26V Batteries
  • Automatic Detection, Field Upgradeable
  • Low-Profile Design

Items Included

  • Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)
  • Limited 2-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Chargers , Chargers

Simultaneously charge four V-mount batteries with the QUAD 6A 4-Position Multi-Voltage Charger from Anton/Bauer. This charger outputs 6A for rapid charging of both 14 and 26V batteries, like the Dionic XT90, in just 90 minutes. Automatic detection identifies the battery with the highest charge to ensure you always have one fully powered battery on deck. Two upgrade ports allow you to update the charger in the field. The charger's low-profile design makes storing and transporting in standard travel cases easy. Multiple layers of protection ensure the charger does not short-circuit for a safe charging experience.


Battery Charger
Charger Compatibility
V-Mount
Number of Battery Bays
4
Multi-Bay Charging Modes
Simultaneous
Charger Power Source
AC Power (Cable Not Included)
Charger Power I/O
1x IEC Input
 • 100 to 240 VAC, 50 / 60 Hz
Charger Other I/O
1x USB-A Female Firmware Input
1x Mini-USB Female Firmware Input
Battery Output Voltage
14/26 VDC at 6 A
Recharge Time
90 Minutes
Indicator
LED
Dimensions
12.2 x 11.4 x 3.6" / 310 x 290 x 91 mm
Weight
4.7 lb / 2.13 kg
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Packaging Info
Package Weight
6.33 lb
Box Dimensions (LxWxH)
16.4 x 12.5 x 4.2"
