Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)
Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)

Anton/Bauer Titon 150 4-Battery Kit with GM2 Dual Charger (Gold Mount)

Brand: ANTON BAUER

MFR: 8275-0162

SKU: SF-2443-JUMQ

Price Available Upon Request
  • 4 x Titon 150 156Wh Gold Mount Batteries
  • GM2 Dual Charger with 4-Pin XLR Output
  • Lithium-Ion, 10A Continuous Draw
  • P-Tap and USB Outputs on Batteries

Items Included

    • Limited 2-Year Manufacturer Warranty
    • 4-Pin XLR Cable (10')
    • AC Power Cable
    • Limited 2-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: On Camera Batteries , On Camera Batteries

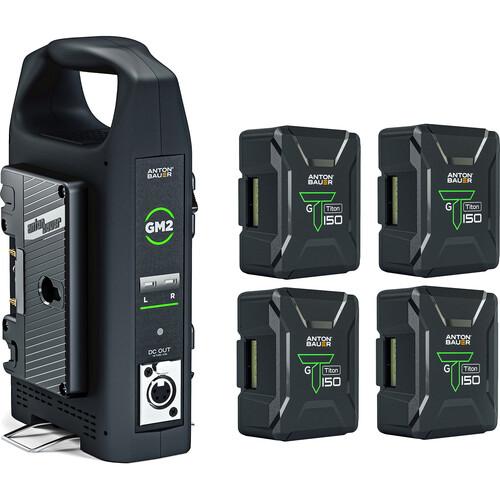

Power your camera and production gear using the Gold mount Titon 150 4-Battery Kit put together by Anton/Bauer. This kit comprises four 156Wh Titon 150 lithium-ion batteries and a GM2 dual Gold mount charger. The Titon 150 batteries feature a 10A continuous draw, an LCD capacity gauge, and both P-Tap and USB accessory ports. The GM2 dual charger features two Gold mount charging bays and a 4-pin XLR power output port.

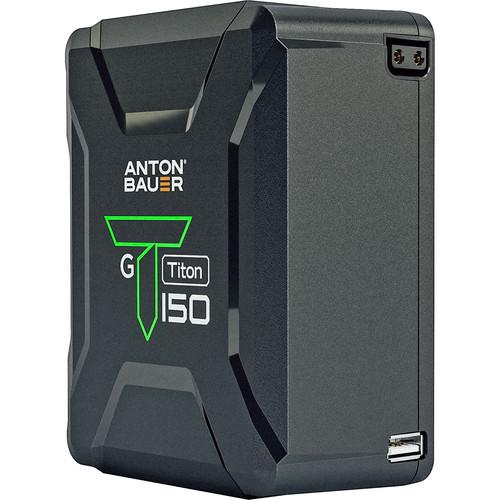

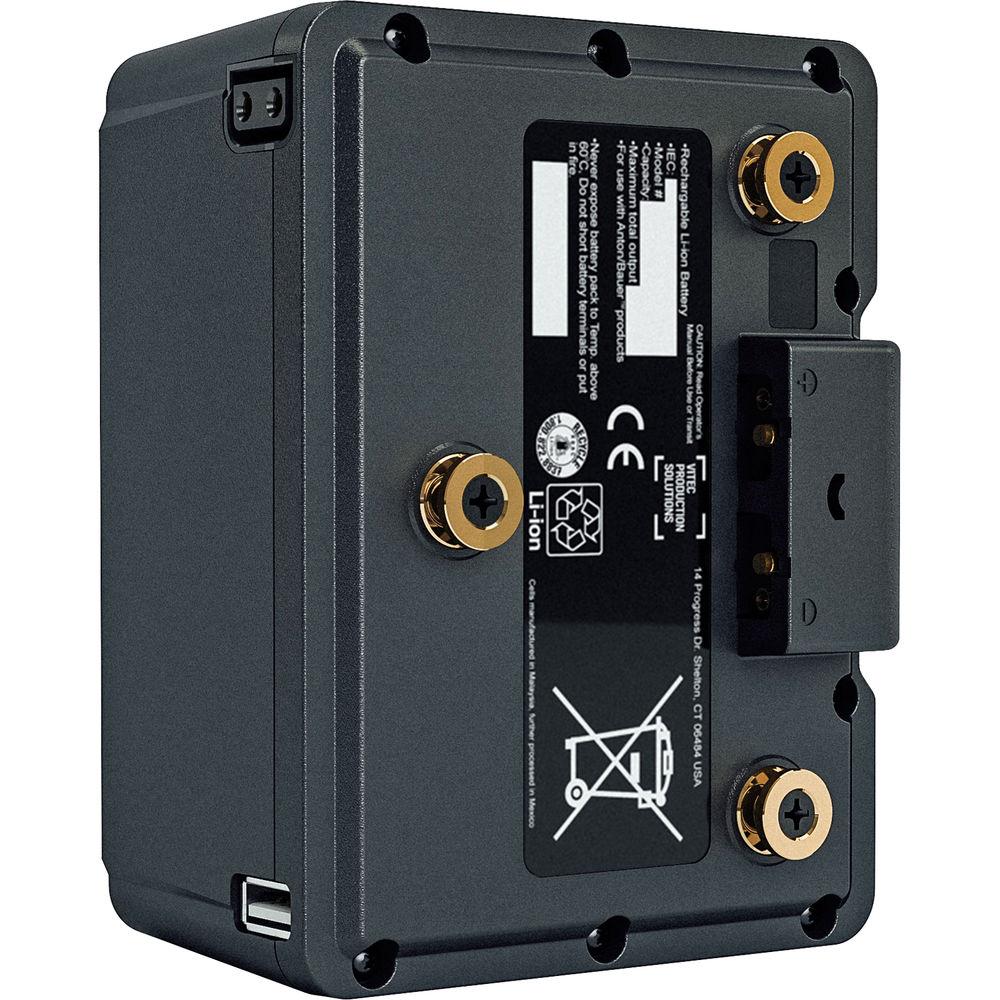

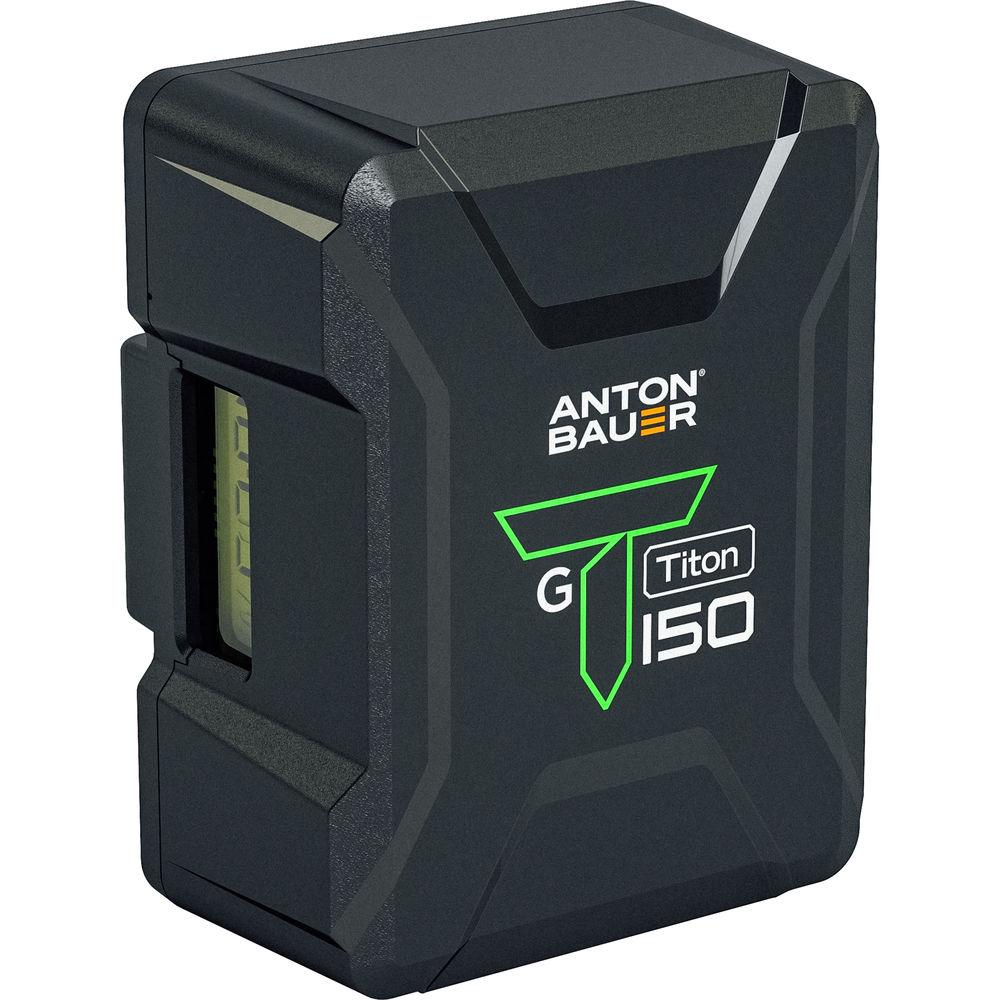

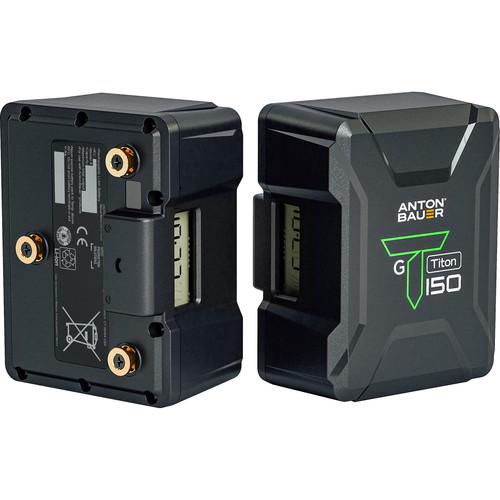

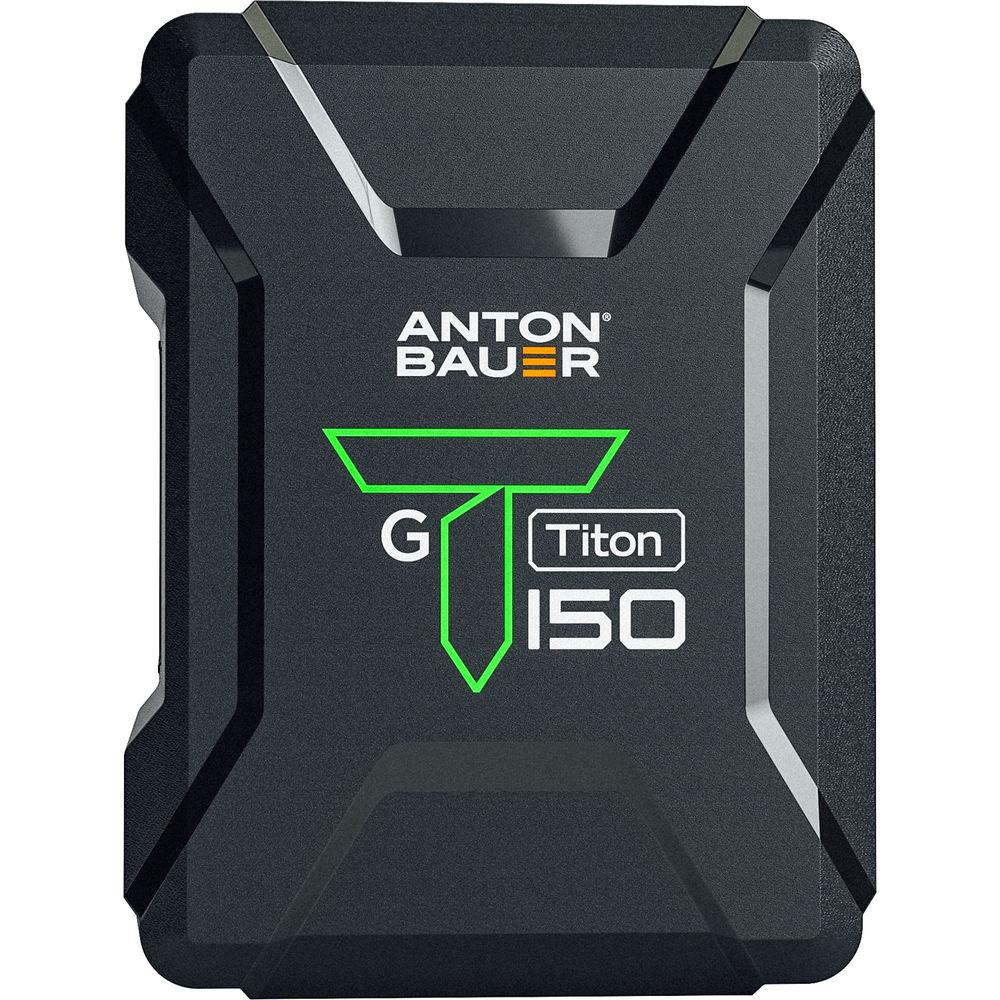

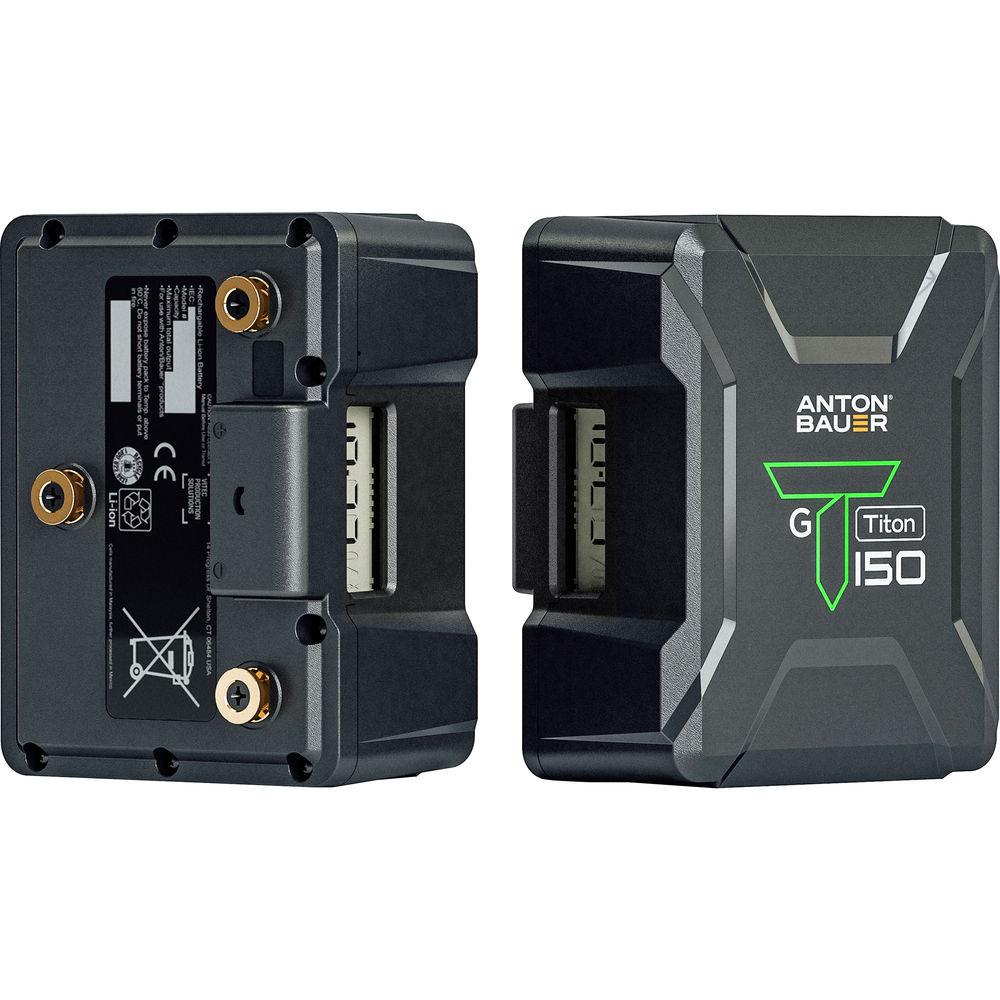

Anton/Bauer Titon 150 Gold Mount Lithium-Ion Battery

Providing a basic power readout and no user interactive surfaces, the Anton Bauer Titon 150 Gold Mount Lithium-Ion Battery can be used to power your Gold mount camera or other pro video gear. The lightweight lithium-ion chemistry can provide up to 10 amps of current on a continuous draw and support peaks of up to 12.5 amps for five seconds. At the side of the chassis, an LCD display screen shows battery capacity in percent remaining, and when put under load it shows the exact remaining runtime. Using the D-Tap and USB ports you can power essential accessories on your rig or other small electronics.

For those who prefer a basic battery without multiple display window options and mode selections. Additional information can be accessed and displayed via select Anton Bauer chargers (not included).
The built-in display shows remaining power as percent. When the battery is connected to a camera or light, or otherwise put under load the display changes to show the remaining runtime. This information is available in most professional camera EVFs.
The Titon Gold mount battery supports a continuous 10A total draw between the Gold mount, D-Tap, and USB ports. It will support a 12.5A draw for up to five seconds to accommodate the high-power draw (power inrush) of devices when they start up. The battery capacity is 144Wh.
The battery uses high-quality cells and robust electronics for power distribution and safety.
It has a working temperature range of -4 to 140°F, although temperatures below 40°F can greatly reduce battery performance.
The case is made from an ABS/polycarbonate blend.
The battery can be charged with Dual or Quad Gold mount LP and Performance chargers.
You can also use other Anton Bauer chargers, as well as common competitive chargers; however, not all features and modes may be accessible with these other charges.

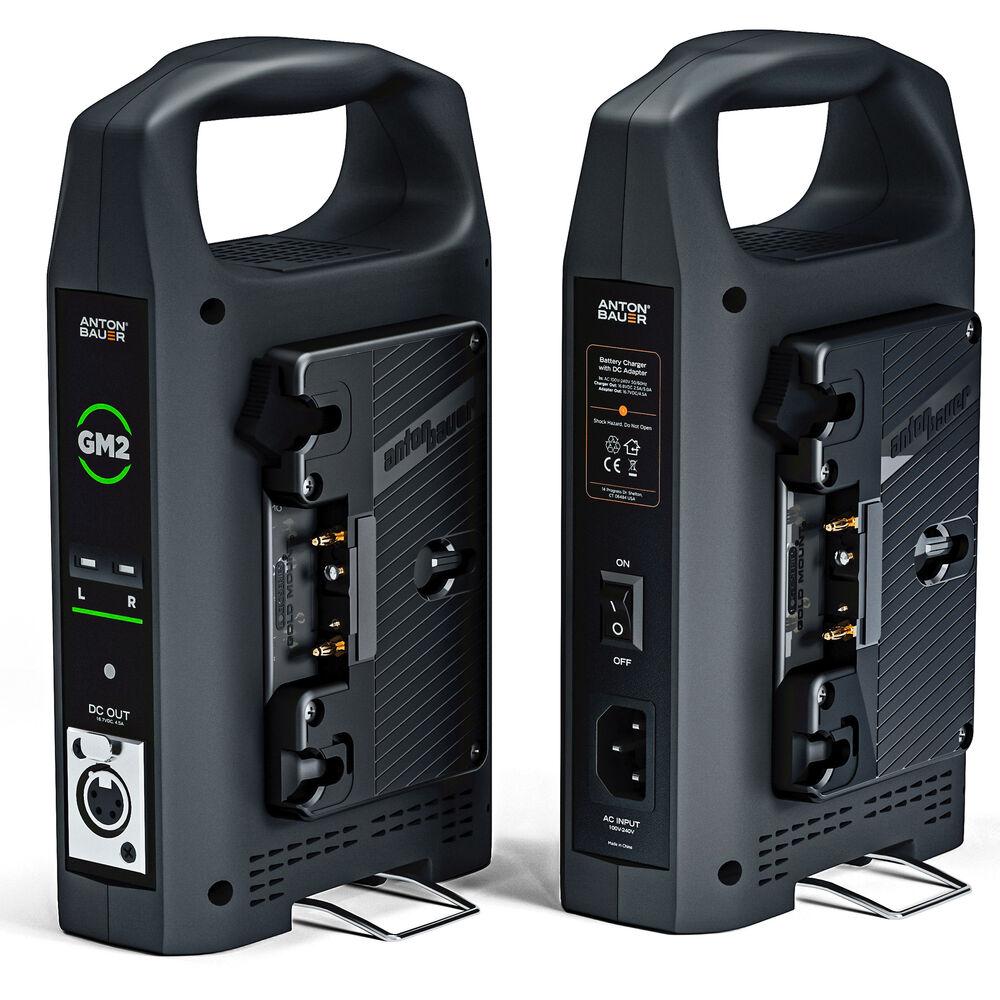

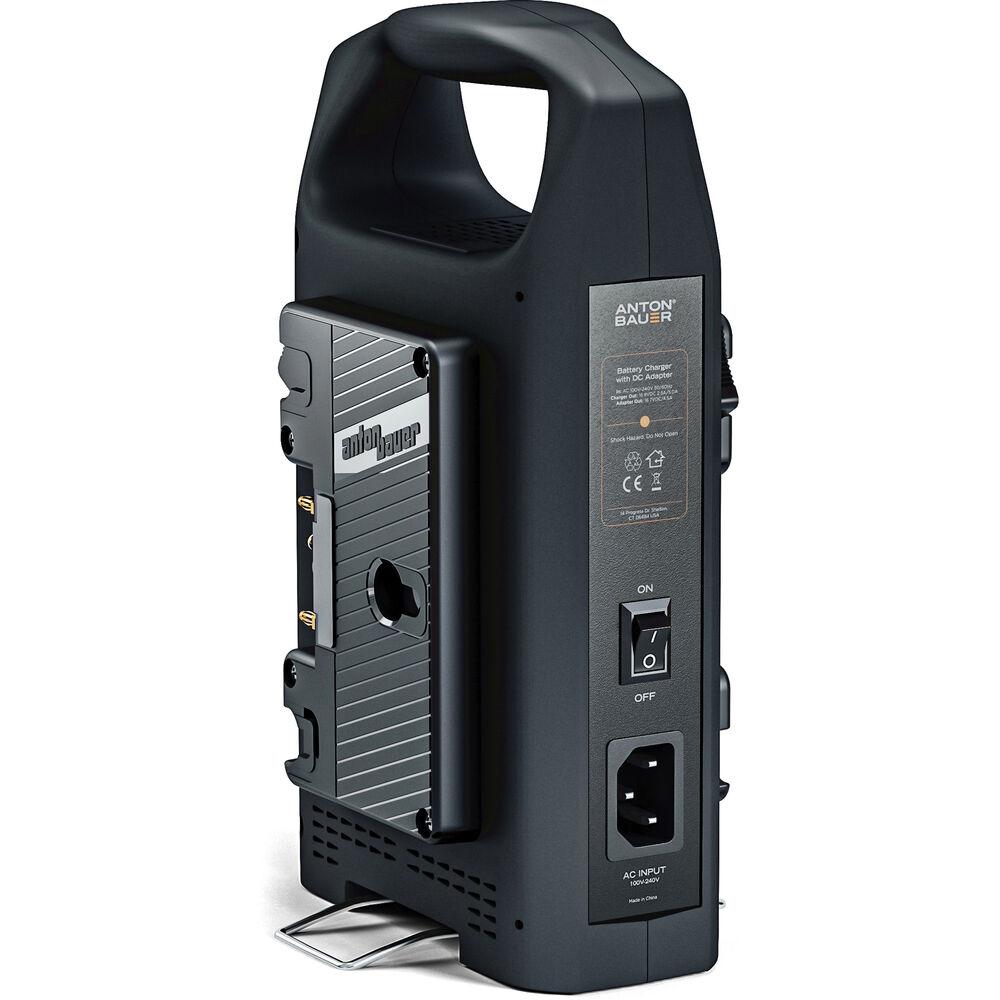

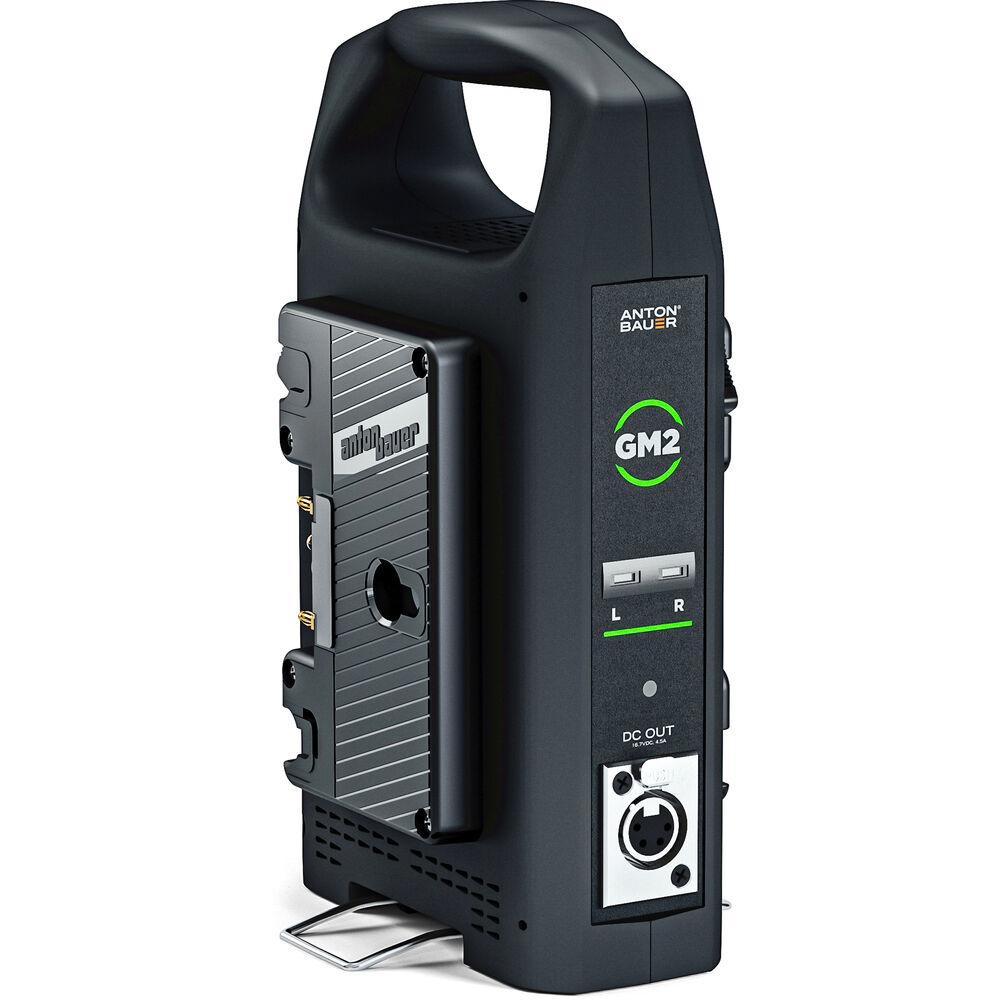

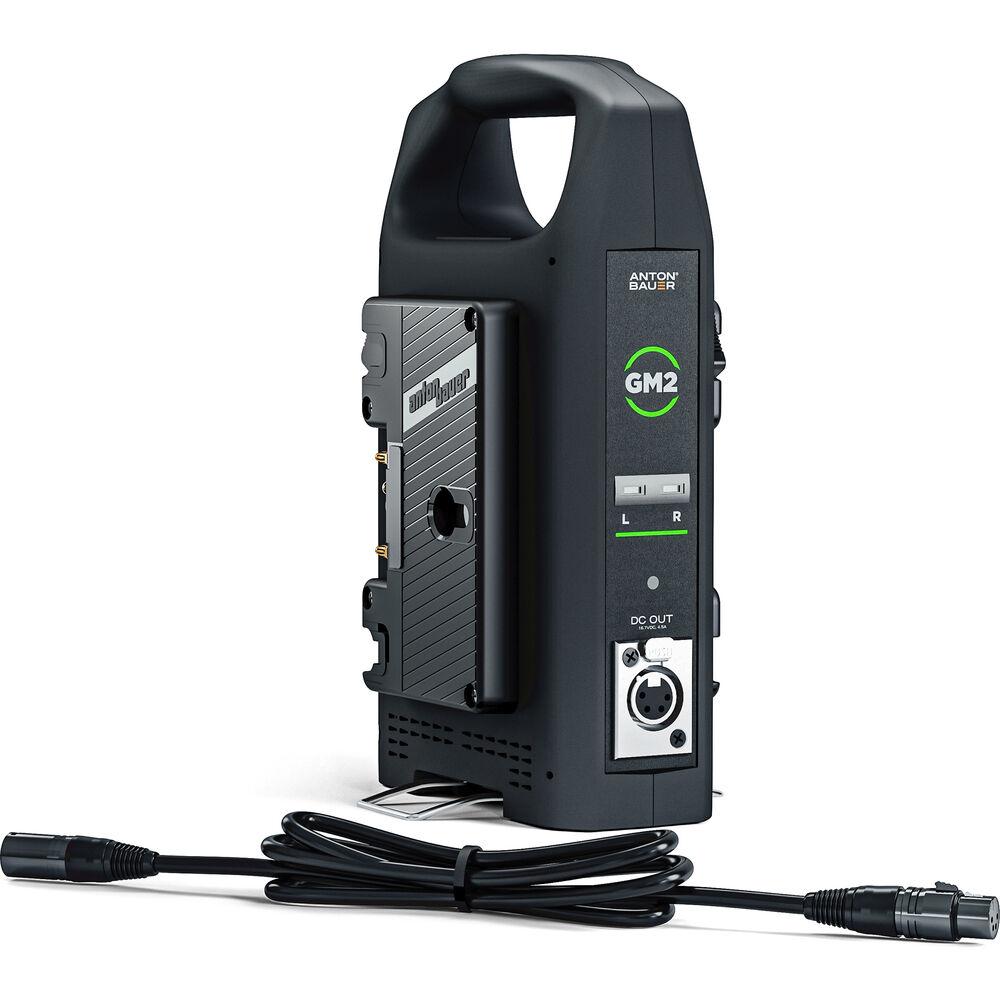

Anton/Bauer GM2 Dual-Bay Charger with 4-Pin XLR Output (Gold Mount)

This slim Gold mount Anton Bauer GM2 Dual-Bay Charger with 4-Pin XLR Output allows you to simultaneously charge two Gold mount batteries (or a single battery) from 100 to 240 VAC sources, and it supports worldwide power of 50/60 Hz. The charger can also output 16.7 VDC through the 4-pin XLR while charging batteries, allowing you to power your camera and charge your batteries simultaneously.

It features a top handle for easy transport and a built-in power management system that protects your batteries and powered devices from damage. The built-in intelligent safety technology continually monitors all attached devices, batteries, and devices connected to the XLR port, and it will shut down if a fault or overvoltage condition is detected, protecting your gear. A built-in fan helps to keep the unit cool and functioning. In addition, when AC power isn't available, you can connect one or two batteries to the charger, and it will output 15 VDC via the 4-pin XLR port.

Compatibility
  • Titon 90
  • Titon 150
  • Titon 240
  • Titon SL 90
  • Titon SL 150
  • Anton Bauer GO 90
LED charge status indicators
Supports worldwide power
IEC AC power input
Dedicated on/off switch

Battery
Battery Type
Gold Mount
Battery Capacity
144 Wh
Output Voltage
14.4 VDC
Battery Chemistry
Lithium-Ion
Accessory Mounting Thread
No
Dimensions
5.16 x 3.9 x 2.56" / 13.1 x 9.9 x 6.5 cm
Weight
2.43 lb / 1.1 kg
Battery Charger
Charger Power I/O
1x D-Tap/P-Tap Output
1x USB-A Output
Packaging Info
Package Weight
2.65 lb
Box Dimensions (LxWxH)
10.1 x 7.8 x 4"
