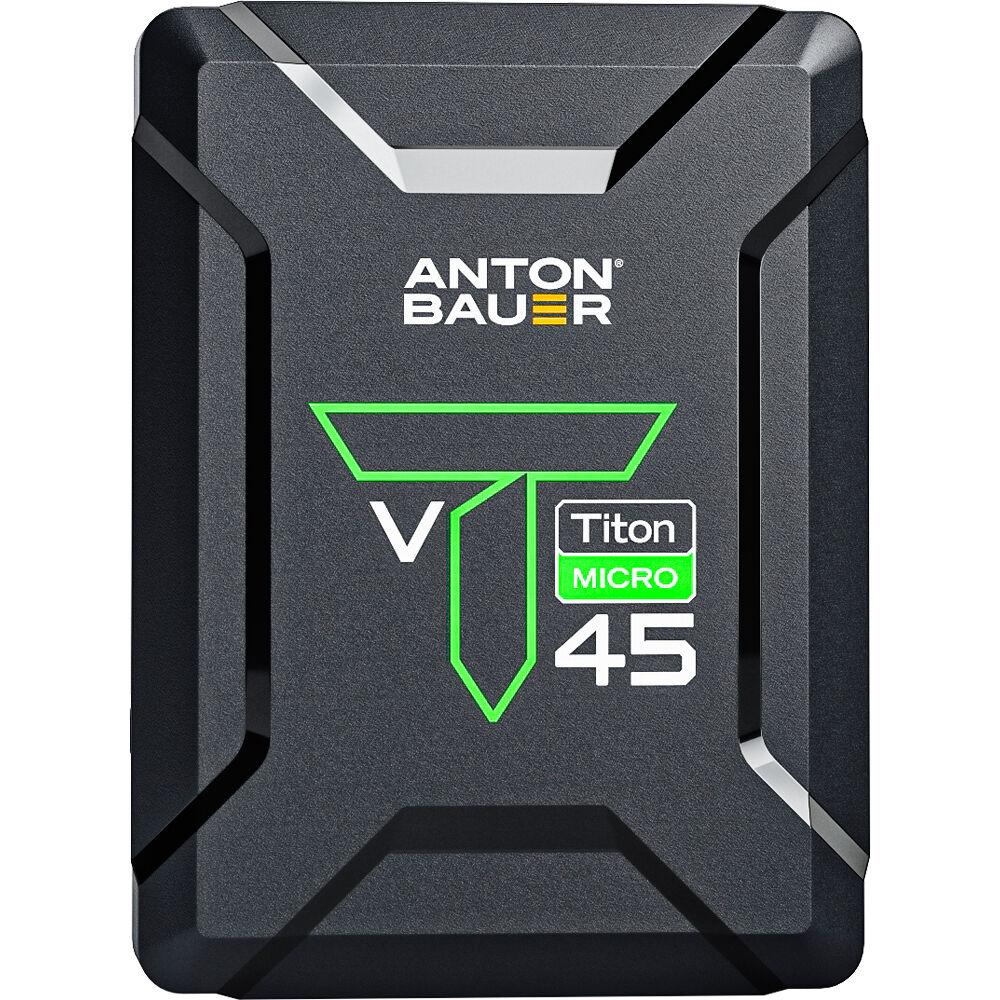

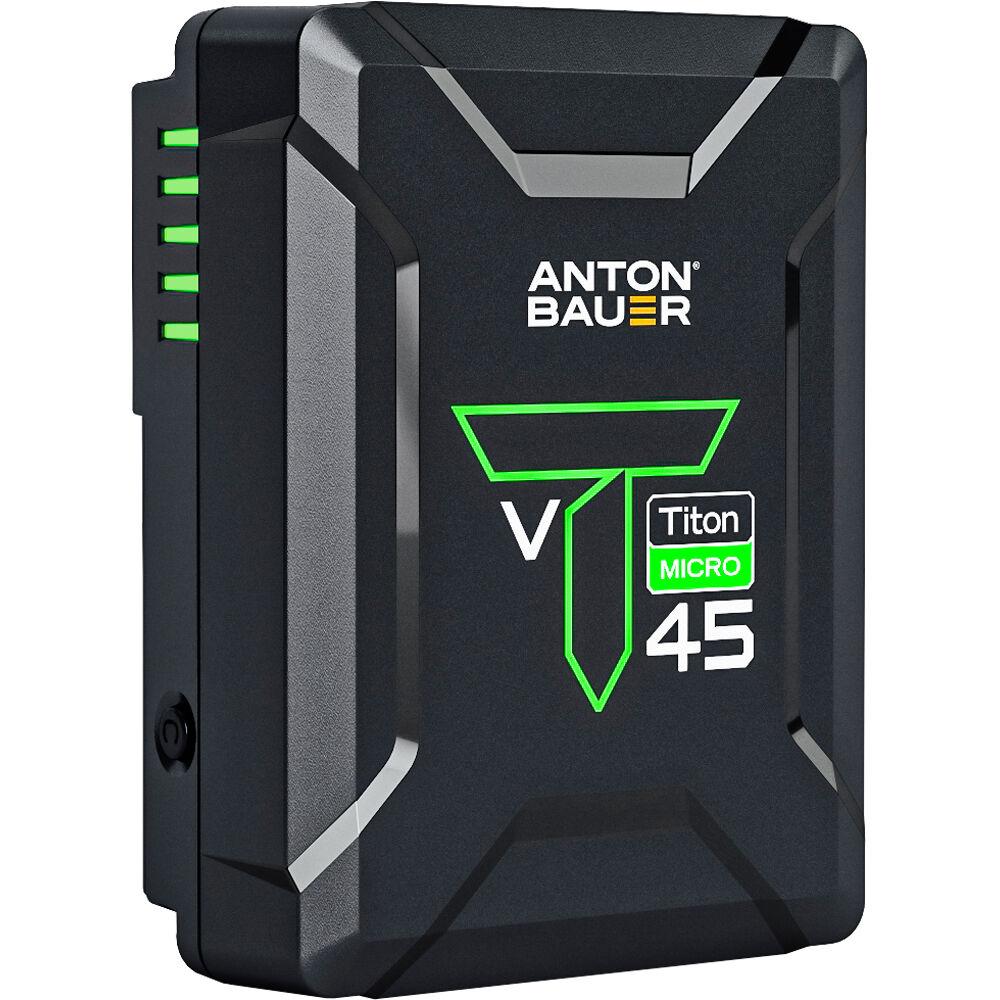

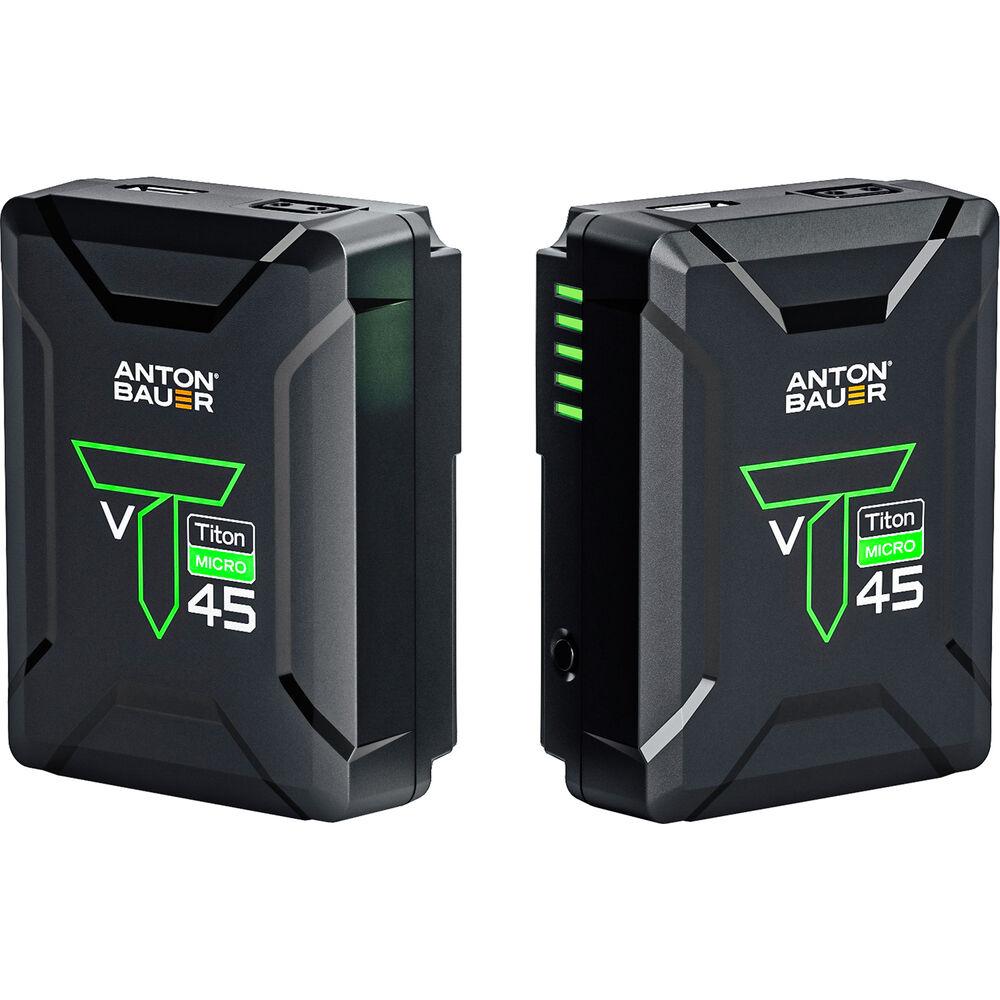

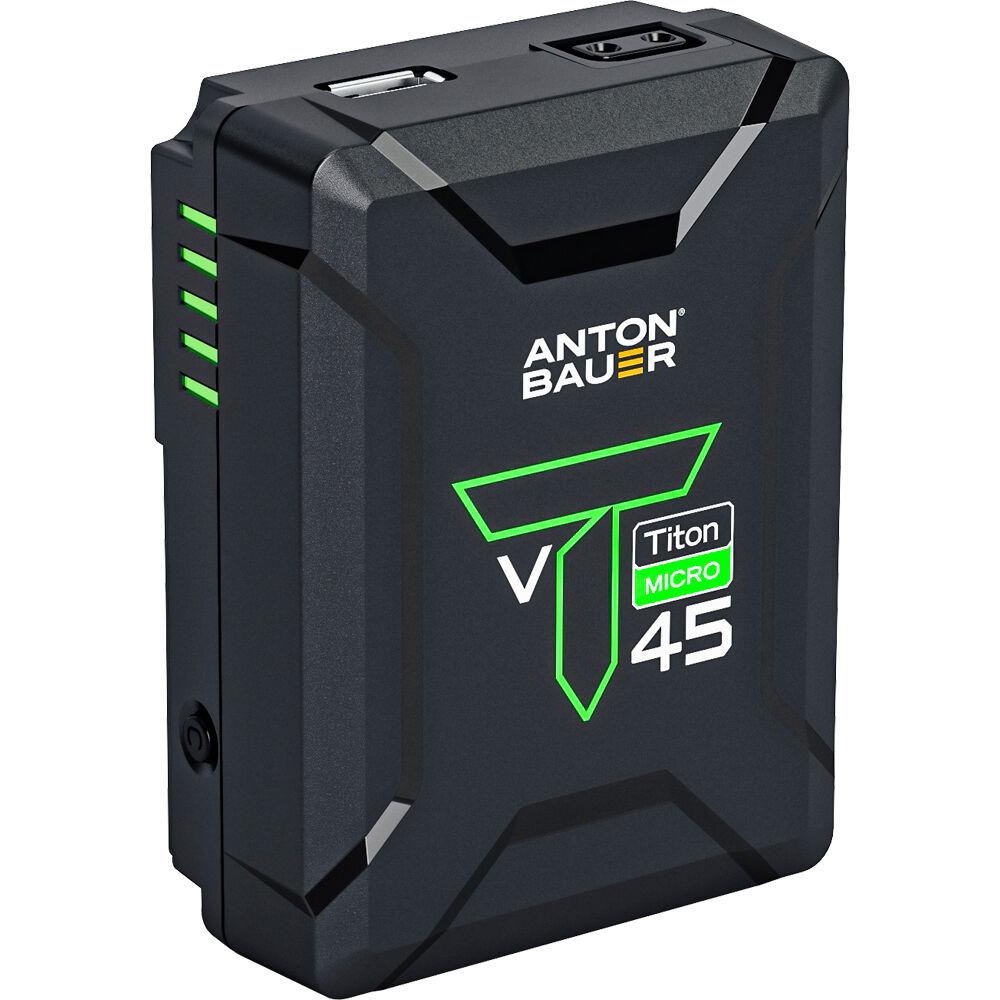

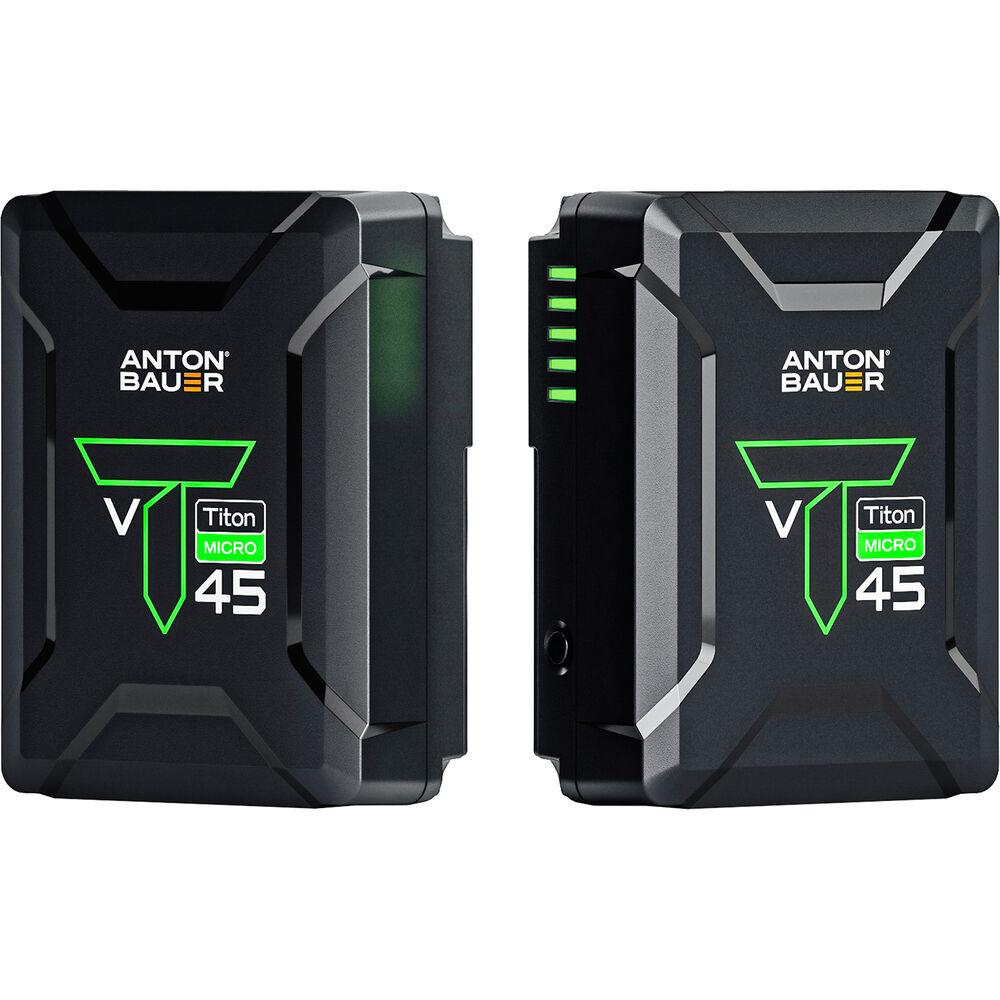

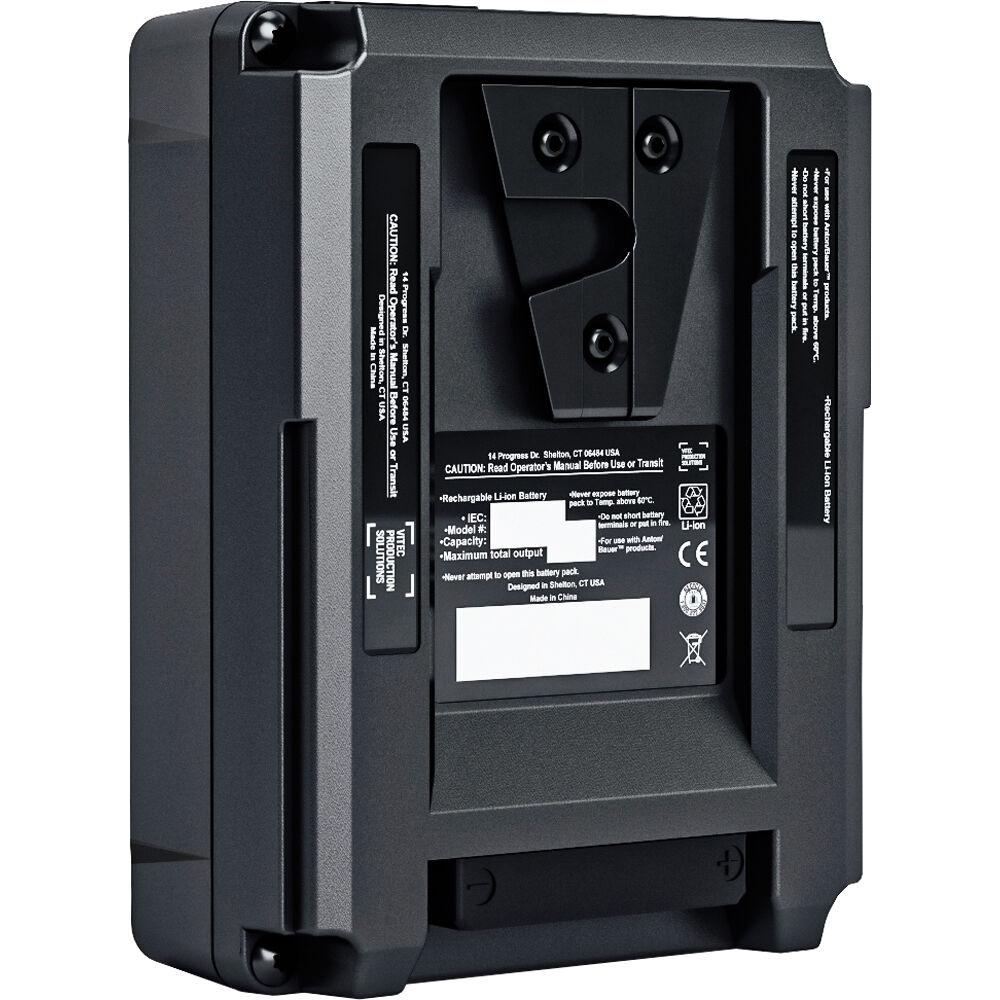

Anton/Bauer Titon Micro 45 V-Mount Lithium-Ion Battery

Price Available Upon Request
  • 45Wh Lithium-Ion Battery
  • Supports up to 8A Continuous Draw
  • LCD Battery Capacity Gauge
  • P-Tap and USB Accessory Ports

Items Included


  • Anton/Bauer Titon Micro 45 V-Mount Lithium-Ion Battery
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Power your V-mount camera or other power-hungry pro video gear with the ultra-compact Anton Bauer Titon Micro 45 V-Mount Lithium-Ion Battery. This lightweight battery is smaller than the original Titon series models and features lithium-ion chemistry and a V-mount. It provides up to 8A continuous draw and has a 45Wh capacity.

At the side of the chassis, a five-stage LCD screen shows battery capacity in percent remaining, and when put under load, it shows the exact remaining runtime. Using the 14V D-Tap and 5V USB ports you can power essential accessories on your rig or other small electronics.

Using a separately available dual-battery Micro plate, you can boost your runtime and the batteries can be hot-swapped without needing to turn off your camera. You can also utilize a separately available, compact P-Tap charger since the P-Tap ports can also be used to charge the battery.

For those who prefer a basic battery without multiple display window options and mode selections. Additional information can be accessed and displayed via select Anton Bauer chargers (not included).
The built-in display shows the remaining power as percents. When the battery is connected to a camera or light, or otherwise put under load the display changes to show the remaining runtime. This information is available in most professional camera EVFs.
The Titon Micro V-mount battery supports a continuous 10A total draw between the V-mount, D-Tap, and USB ports. The battery capacity is 45Wh.
The battery uses high-quality cells and robust electronics for power distribution and safety.
It has a working temperature range of -4 to 140°F, although temperatures below 40°F can greatly reduce battery performance.
The case is made from an ABS/polycarbonate blend.
The battery can be charged with Dual or Quad V-mount LP and Performance chargers.
You can also use other Anton Bauer chargers, as well as common competitive chargers; however, not all features and modes may be accessible with these other charges.

Battery
Battery Type
V-Mount
Output Voltage
14.4 VDC
Battery Chemistry
Lithium-Ion
Accessory Mounting Thread
No
Dimensions
3.94 x 2.95 x 1.42" / 10 x 7.5 x 3.6 cm
Weight
12.7 oz / 360 g
Battery Charger
Charger Power I/O
1x D-Tap/P-Tap Output
1x USB-A Output
Environmental
Operating Conditions
4 to 104°F / -15 to 40°C
Packaging Info
Package Weight
1.03 lb
Box Dimensions (LxWxH)
6.4 x 3.8 x 3.6"
