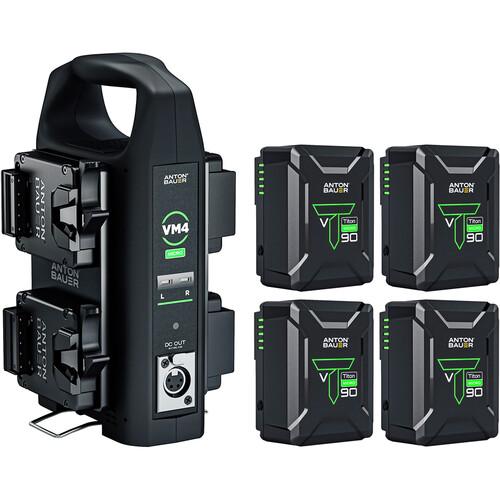

Anton/Bauer Titon Micro 90 4-Battery Kit with VM4 Charger Kit (V-Mount)

Price Available Upon Request
  • 4 x Micro 90 94Wh V-Mount Batteries
  • VM4 Quad Charger with 4-Pin XLR Output
  • Lithium-Ion, 10A Continuous Draw
  • P-Tap and USB Outputs on Batteries

Items Included


    • Power Supply
    • Limited 1-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

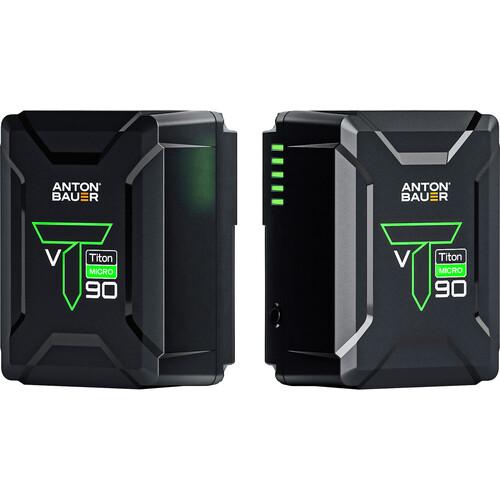

Power your camera and production gear all day using the V-mount Titon Micro 90 4-Battery Kit put together by Anton/Bauer. This kit comprises four compact 94Wh Titon 90 lithium-ion batteries and a VM4 quad V-mount charger. The lightweight Titon Micro 90 batteries feature a 10A continuous draw, an LCD capacity gauge, and both P-Tap and USB accessory ports. The VM4 quad charger features four V-mount charging bays and a 4-pin XLR power output port.

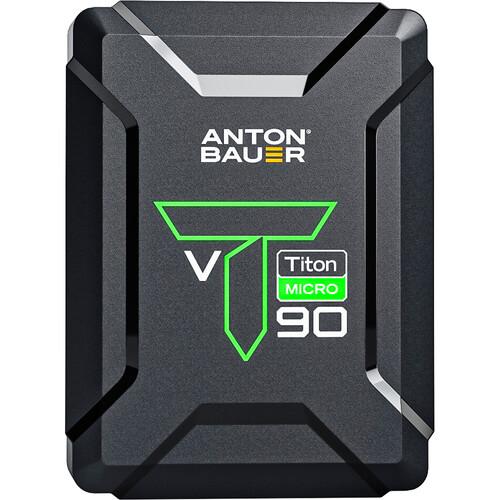

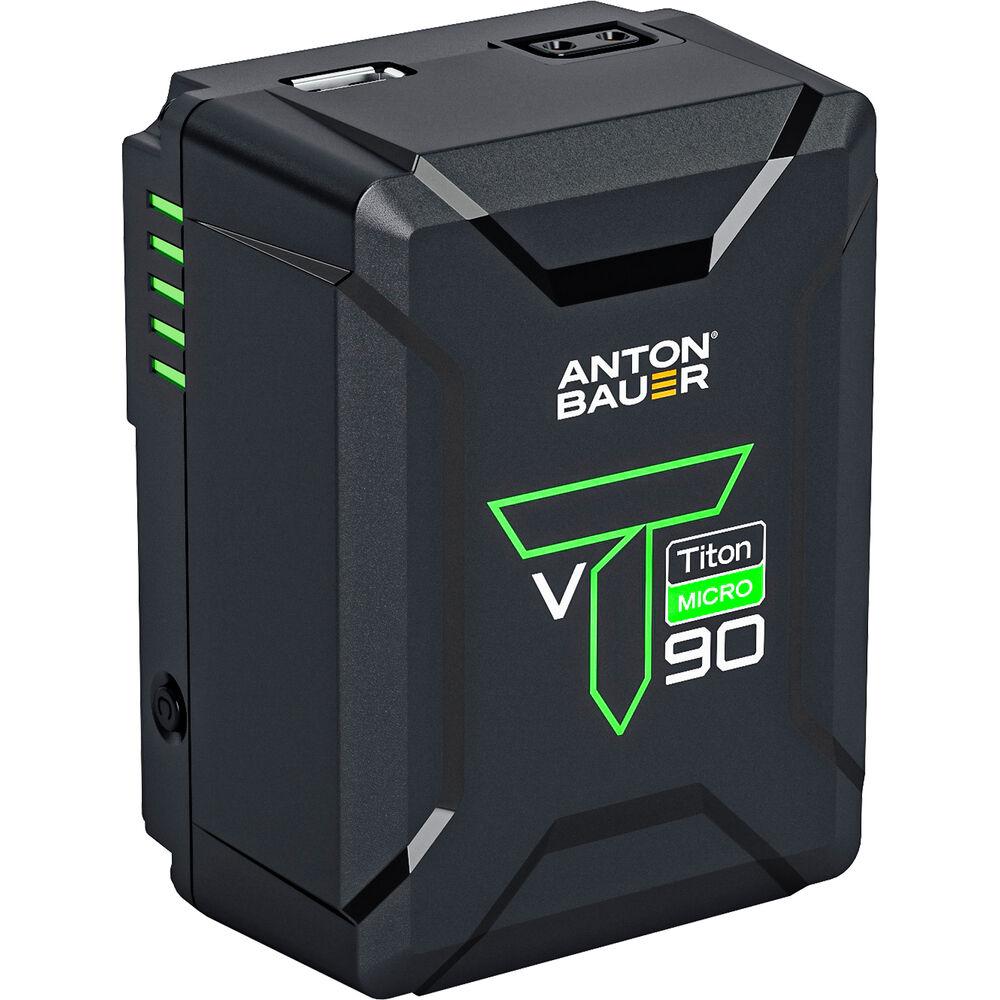

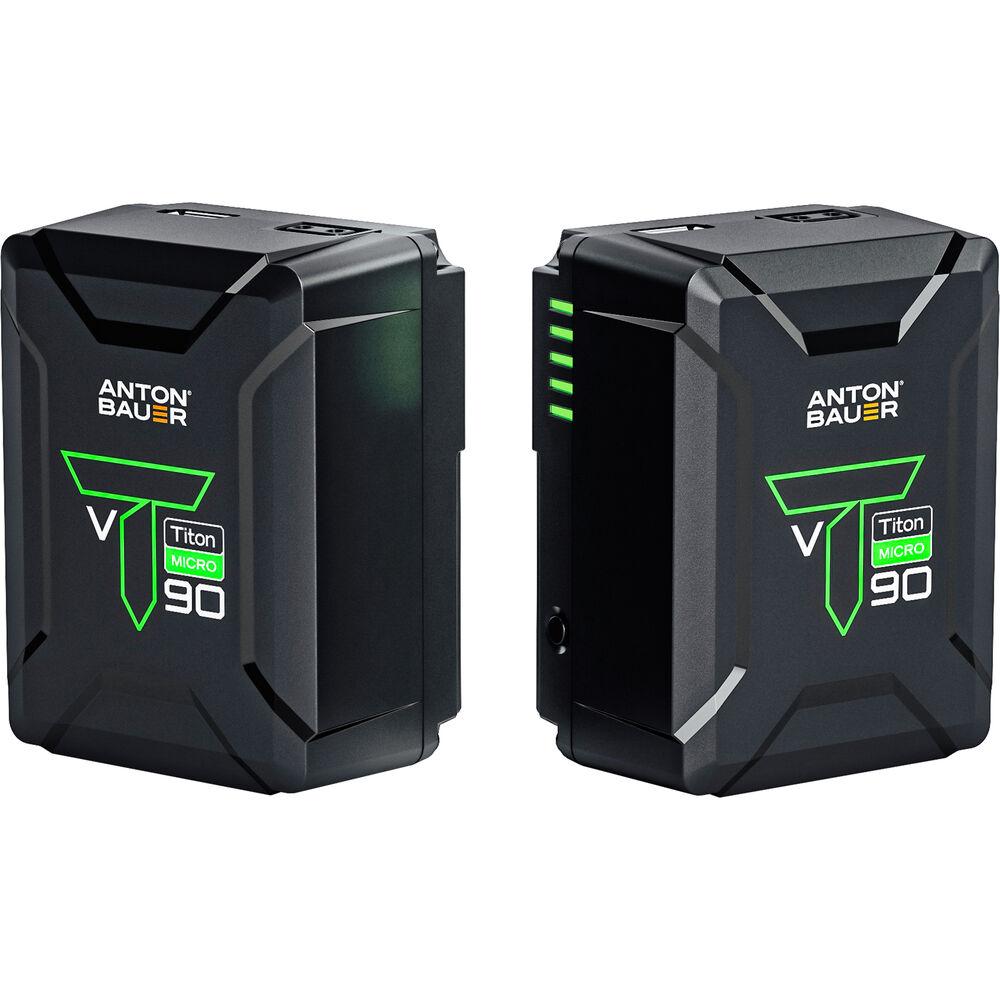

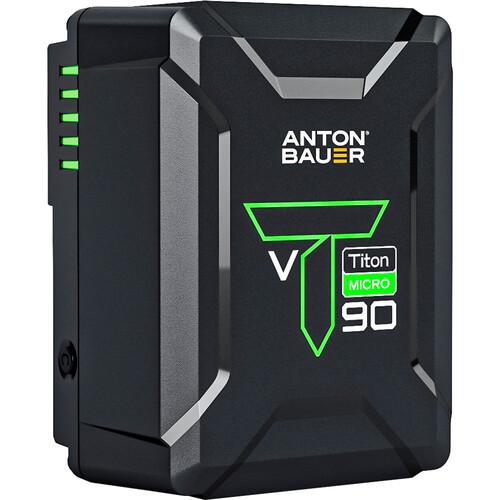

Anton/Bauer Titon Micro 90 V-Mount Lithium-Ion Battery

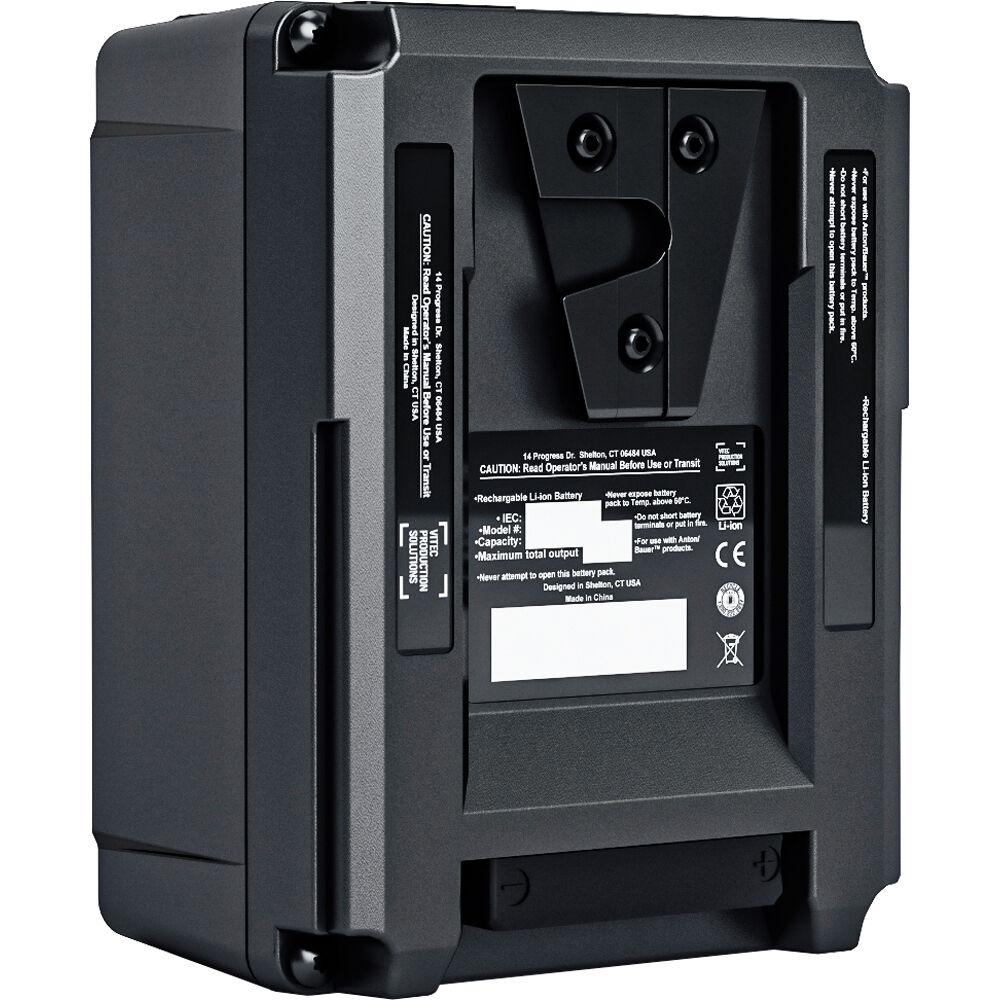

Power your V-mount camera or other power-hungry pro video gear with the ultra-compact Anton Bauer Titon Micro 90 V-Mount Lithium-Ion Battery. This lightweight battery is smaller than the original Titon series models and features lithium-ion chemistry and a V-mount. It provides up to 10A continuous draw and has a 98Wh capacity.

At the side of the chassis, a five-stage LCD screen shows battery capacity in percent remaining, and when put under load, it shows the exact remaining runtime. Using the 14V D-Tap and 5V USB ports you can power essential accessories on your rig or other small electronics.

Using a separately available dual-battery Micro plate, you can boost your runtime and the batteries can be hot-swapped without needing to turn off your camera. You can also utilize a separately available, compact P-Tap charger since the P-Tap ports can also be used to charge the battery.

For those who prefer a basic battery without multiple display window options and mode selections. Additional information can be accessed and displayed via select Anton Bauer chargers (not included).
The built-in display shows the remaining power as percents. When the battery is connected to a camera or light, or otherwise put under load the display changes to show the remaining runtime. This information is available in most professional camera EVFs.
The Titon Micro V-mount battery supports a continuous 10A total draw between the V-mount, D-Tap, and USB ports. The battery capacity is 98Wh.
The battery uses high-quality cells and robust electronics for power distribution and safety.
It has a working temperature range of -4 to 140°F, although temperatures below 40°F can greatly reduce battery performance.
The case is made from an ABS/polycarbonate blend.
The battery can be charged with Dual or Quad V-mount LP and Performance chargers.
You can also use other Anton Bauer chargers, as well as common competitive chargers; however, not all features and modes may be accessible with these other charges.

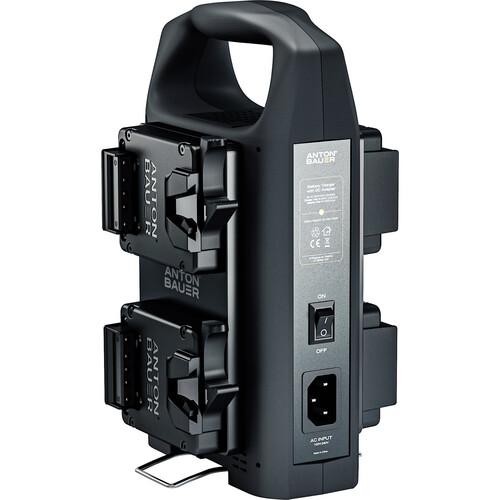

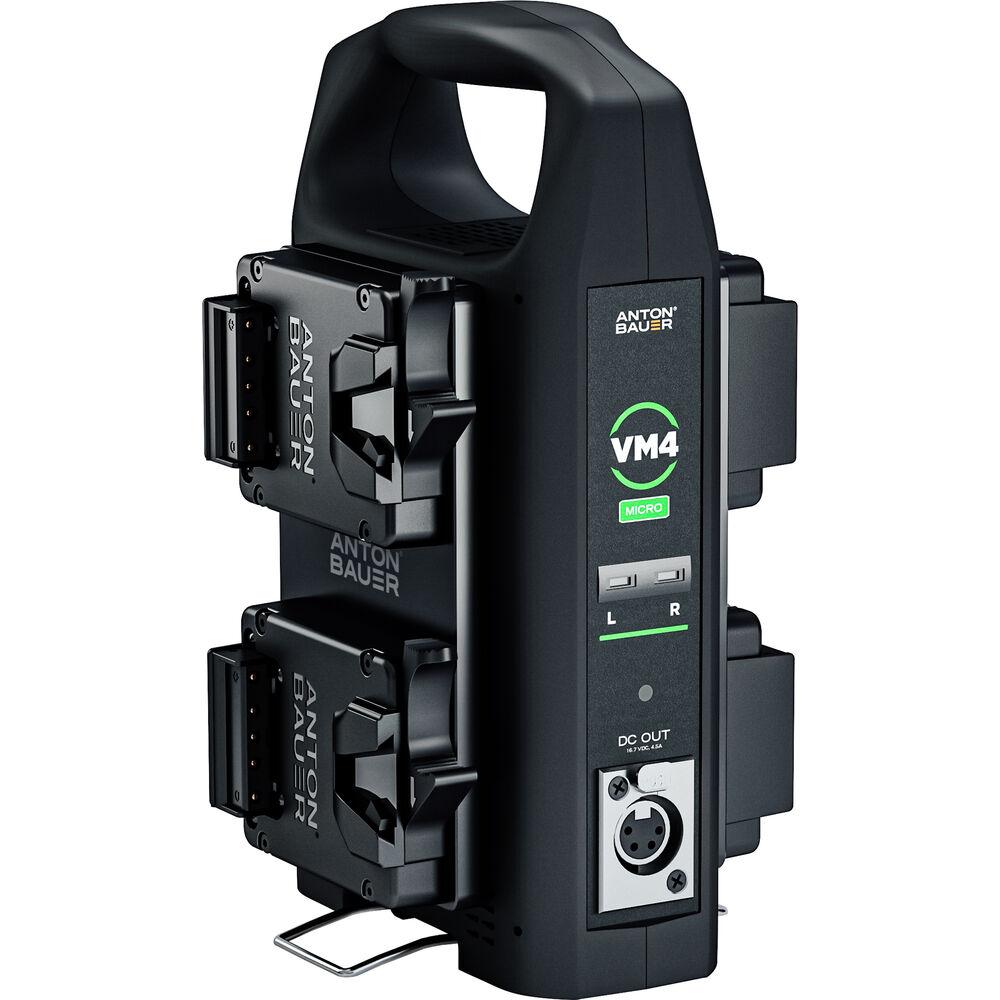

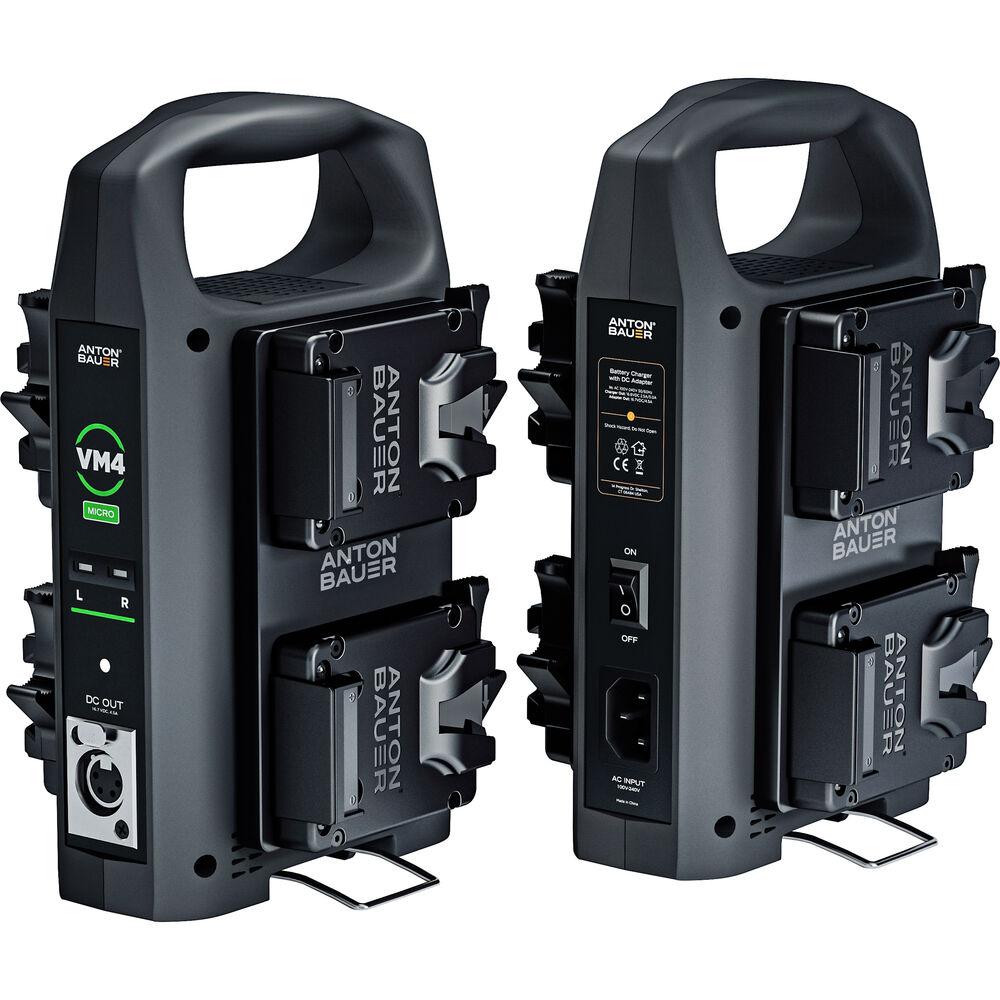

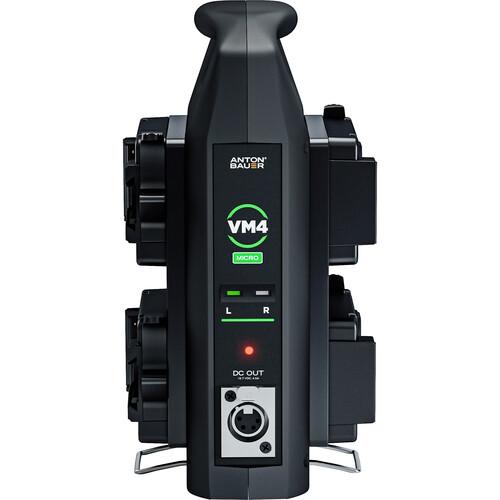

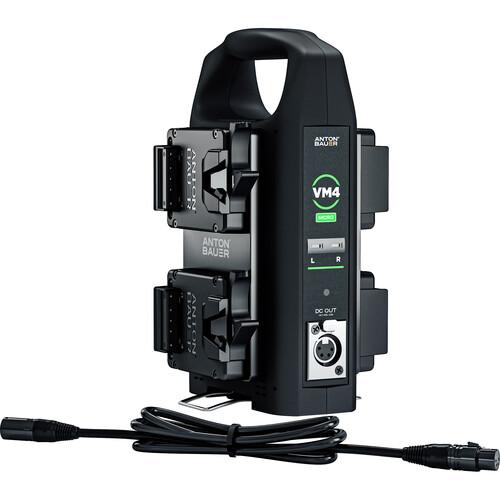

Anton/Bauer VM4 Quad Micro Battery Charger (V-Mount)

Simultaneously charge four high-capacity Micro batteries quickly while powering another device using this V-mount VM4 Quad Micro Battery Charger from Anton/Bauer. This four-bay, simultaneous V-mount battery charger is aimed at location shoots, rental facilities, ENG/EFP/OB vehicles, broadcast equipment depots, or productions that require many batteries to be on charge and ready to go.

The VM4 can simultaneously charge up to four Micro V-mount batteries, such as a Titon Micro 90, or up to two regular-size V-mount batteries such as a Titon 240. A 94Wh Micro battery charges to full in approximately three hours. It features a slim design, and it has a carry handle, making it easy to transport. The 4-pin XLR output allows you to power a camera or accessory while you are charging batteries, and it provides 16.7 VDC, 4.5A of power. Its built-in fan keeps it cool in warm environments, and it features safety technology to protect your batteries and gear in case of a fault or overvoltage condition.

Key Features
Simultaneously charge four V-mount Micro batteries or two regular-size V-mount batteries
Charges a Titon Micro 90 94Wh battery in approximately three hours
Slim, portable design with carry handle
Built-in cooling fan
Simultaneously charge and output via 4-pin XLR with 16.7 VDC, 4.5A power output
LED charge status indicator
Integrated support stand
Advanced safety monitoring

Battery
Battery Type
V-Mount
Battery Capacity
45 Wh
Output Voltage
14.4 VDC
Battery Chemistry
Lithium-Ion
Accessory Mounting Thread
No
Dimensions
3.94 x 2.95 x 2.05" / 10 x 7.5 x 5.2 cm
Weight
20.1 oz / 570 g
Battery Charger
Charger Power I/O
1x D-Tap/P-Tap Output
1x USB-A Output
Environmental
Operating Conditions
4 to 104°F / -15 to 40°C
Packaging Info
Package Weight
1.495 lb
Box Dimensions (LxWxH)
6.4 x 3.8 x 3.8"
