Anton/Bauer Titon Micro 90 Gold Mount Lithium-Ion Battery
Anton/Bauer Titon Micro 90 Gold Mount Lithium-Ion Battery
Anton/Bauer Titon Micro 90 Gold Mount Lithium-Ion Battery
Anton/Bauer Titon Micro 90 Gold Mount Lithium-Ion Battery
Anton/Bauer Titon Micro 90 Gold Mount Lithium-Ion Battery
Anton/Bauer Titon Micro 90 Gold Mount Lithium-Ion Battery
Anton/Bauer Titon Micro 90 Gold Mount Lithium-Ion Battery
Anton/Bauer Titon Micro 90 Gold Mount Lithium-Ion Battery
Anton/Bauer Titon Micro 90 Gold Mount Lithium-Ion Battery
Anton/Bauer Titon Micro 90 Gold Mount Lithium-Ion Battery
Anton/Bauer Titon Micro 90 Gold Mount Lithium-Ion Battery
Anton/Bauer Titon Micro 90 Gold Mount Lithium-Ion Battery

Anton/Bauer Titon Micro 90 Gold Mount Lithium-Ion Battery

Brand: ANTON BAUER

MFR: 8675-0164

SKU: SF-2443-HPXD

Price Available Upon Request
  • 98Wh Lithium-Ion Battery
  • Supports up to 10A Continuous Draw
  • LCD Battery Capacity Gauge
  • P-Tap and USB Accessory Ports

Items Included

Anton/Bauer Titon Micro 90 Gold Mount Lithium-Ion Batter

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: On Camera Batteries , On Camera Batteries

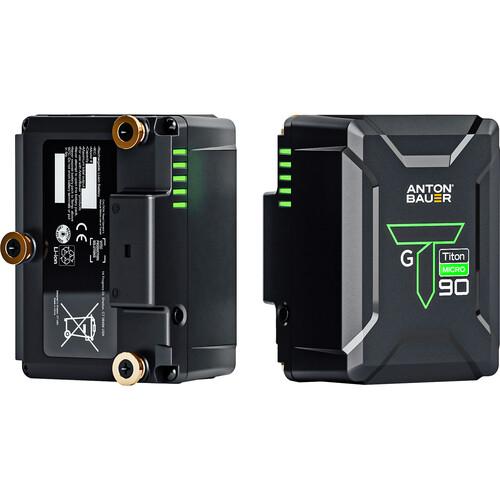

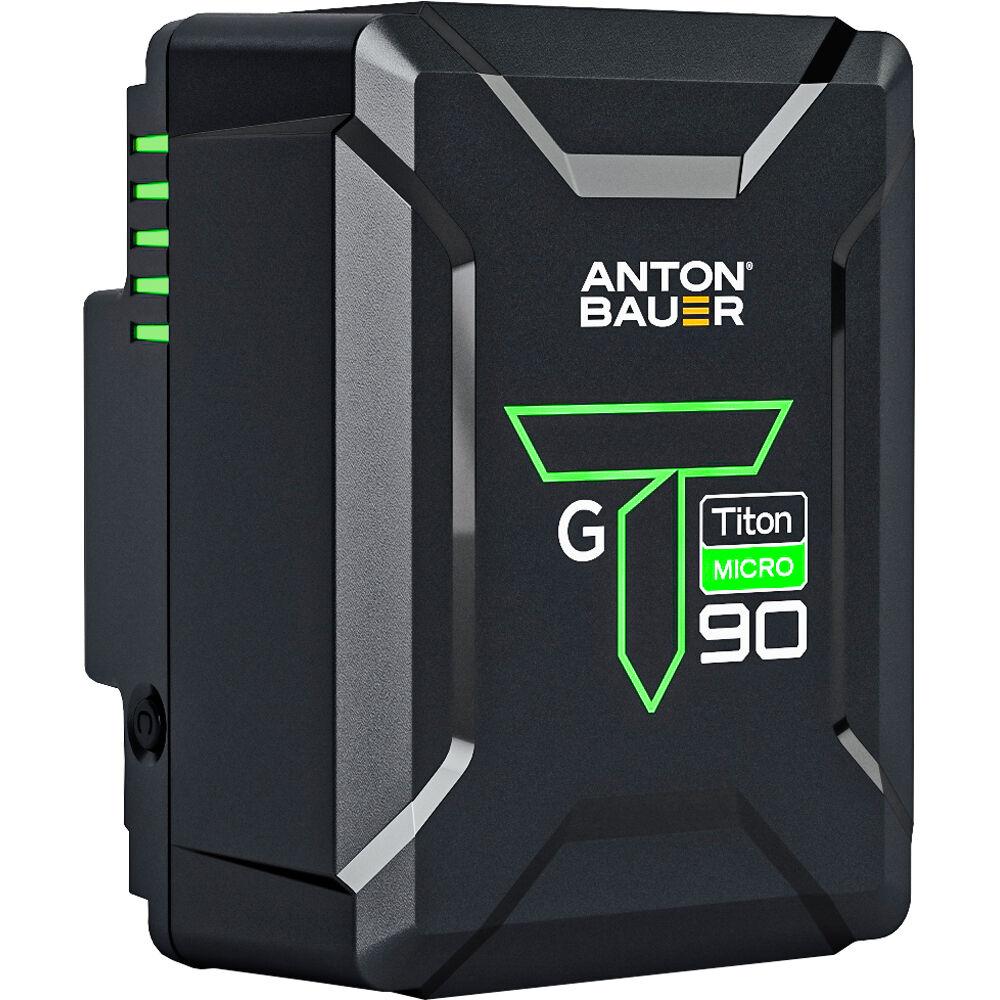

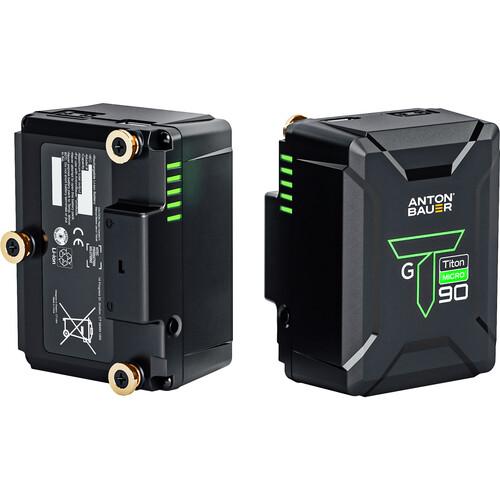

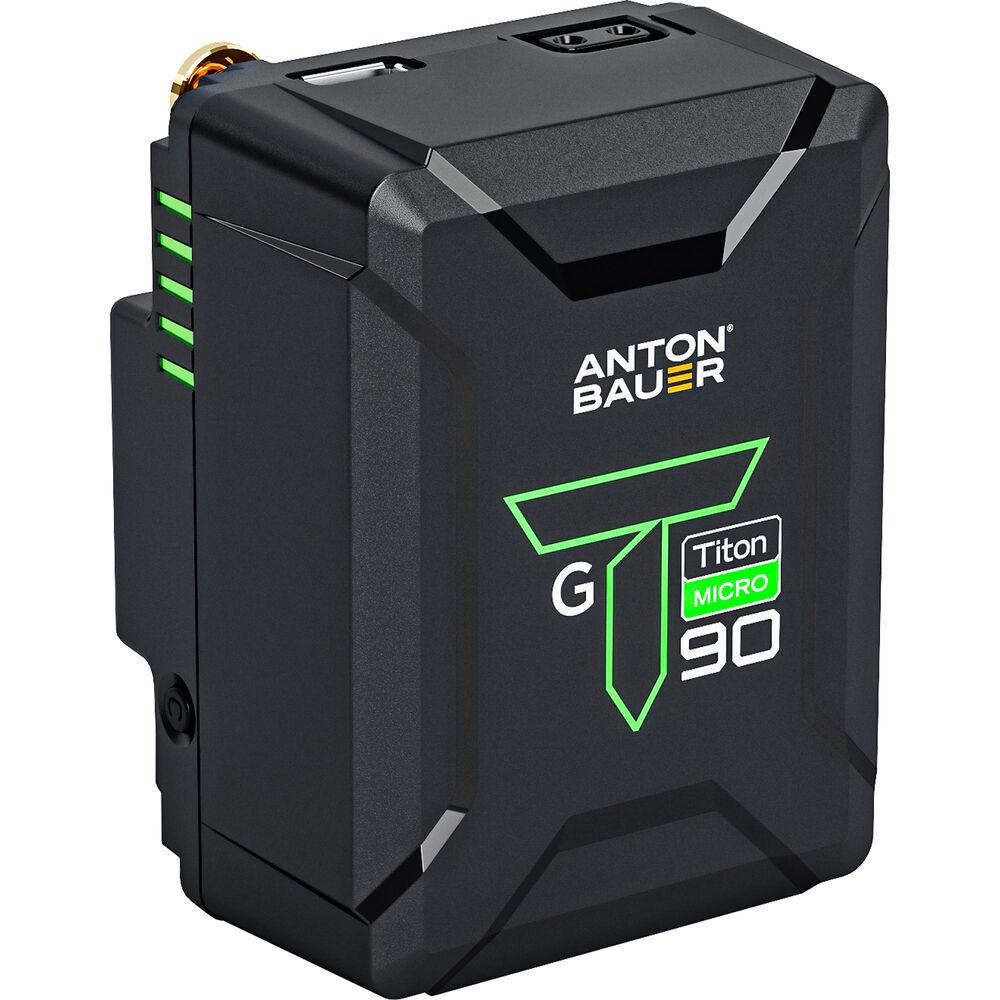

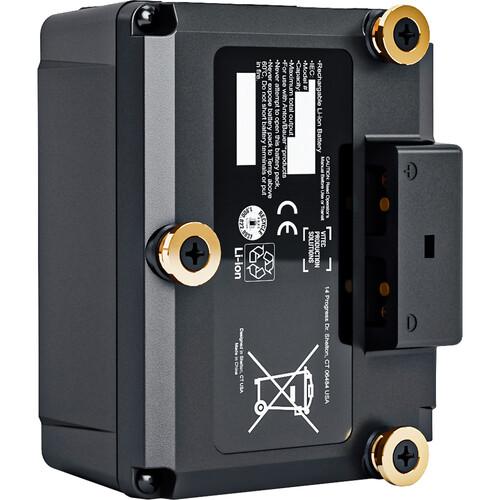

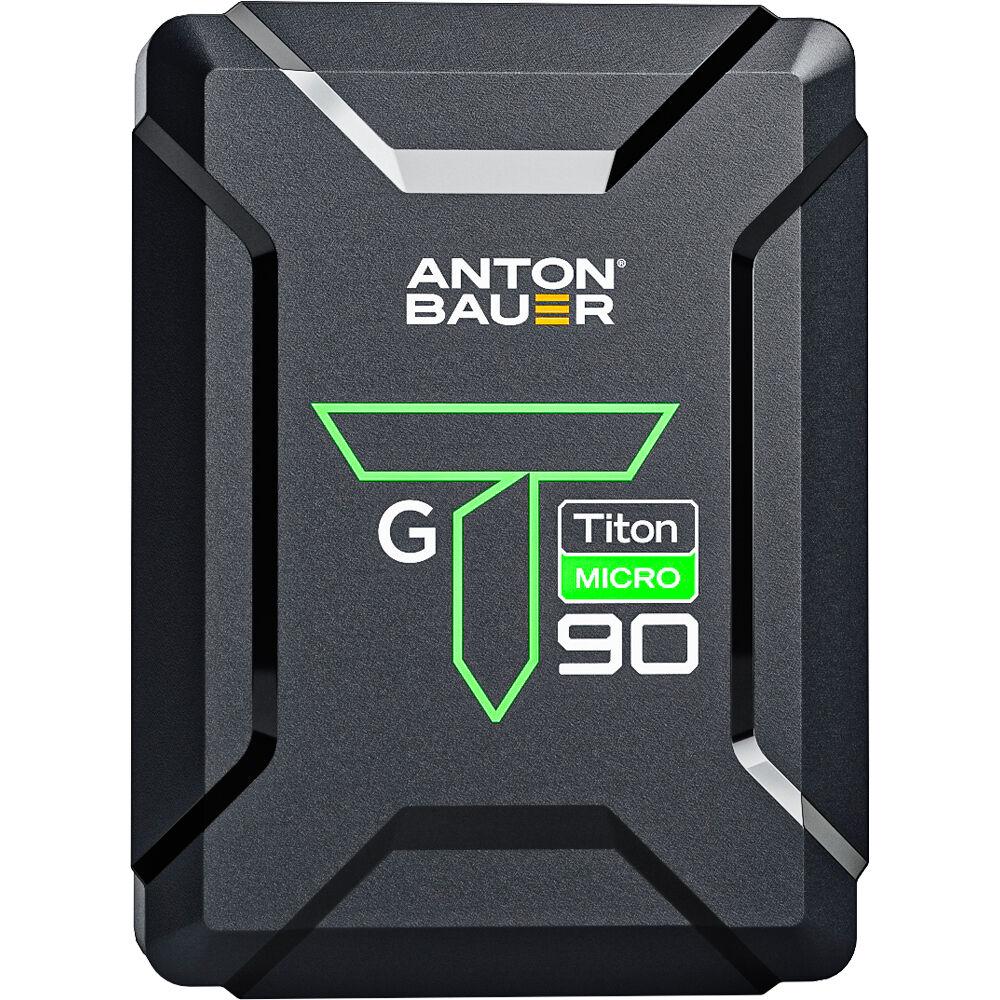

Power your Gold mount camera or other power-hungry pro video gear with the ultra-compact Anton Bauer Titon Micro 90 Gold Mount Lithium-Ion Battery. This lightweight battery is smaller than the original Titon series models and features lithium-ion chemistry and a Gold mount. It provides up to 10A continuous draw and has a 98Wh capacity.

At the side of the chassis, a five-stage LCD screen shows battery capacity in percent remaining, and when put under load, it shows the exact remaining runtime. Using the 14V D-Tap and 5V USB ports you can power essential accessories on your rig or other small electronics.

Using a separately available dual-battery Micro plate, you can boost your runtime and the batteries can be hot-swapped without needing to turn off your camera. You can also utilize a separately available, compact P-Tap charger since the P-Tap ports can also be used to charge the battery.

For those who prefer a basic battery without multiple display window options and mode selections. Additional information can be accessed and displayed via select Anton Bauer chargers (not included).
The built-in display shows the remaining power as percents. When the battery is connected to a camera or light, or otherwise put under load the display changes to show the remaining runtime. This information is available in most professional camera EVFs.
The Titon Micro Gold mount battery supports a continuous 10A total draw between the Gold mount, D-Tap, and USB ports. The battery capacity is 98Wh.
The battery uses high-quality cells and robust electronics for power distribution and safety.
It has a working temperature range of -4 to 140°F, although temperatures below 40°F can greatly reduce battery performance.
The case is made from an ABS/polycarbonate blend.
The battery can be charged with Dual or Quad Gold mount LP and Performance chargers.
You can also use other Anton Bauer chargers, as well as common competitive chargers; however, not all features and modes may be accessible with these other charges.

Battery
Battery Type
Gold Mount
Battery Capacity
98 Wh
Output Voltage
14.4 VDC
Battery Chemistry
Lithium-Ion
Accessory Mounting Thread
No
Dimensions
3.94 x 2.95 x 2.28" / 10 x 7.5 x 5.8 cm
Weight
20.1 oz / 570 g
Battery Charger
Charger Power I/O
1x D-Tap/P-Tap Output
1x USB-A Output
Environmental
Operating Conditions
4 to 104°F / -15 to 40°C
Packaging Info
Package Weight
1.465 lb
Box Dimensions (LxWxH)
6.3 x 3.8 x 3.6"
